TN-5308 系列

EN 50155 8 埠非網管型乙太網路交換器

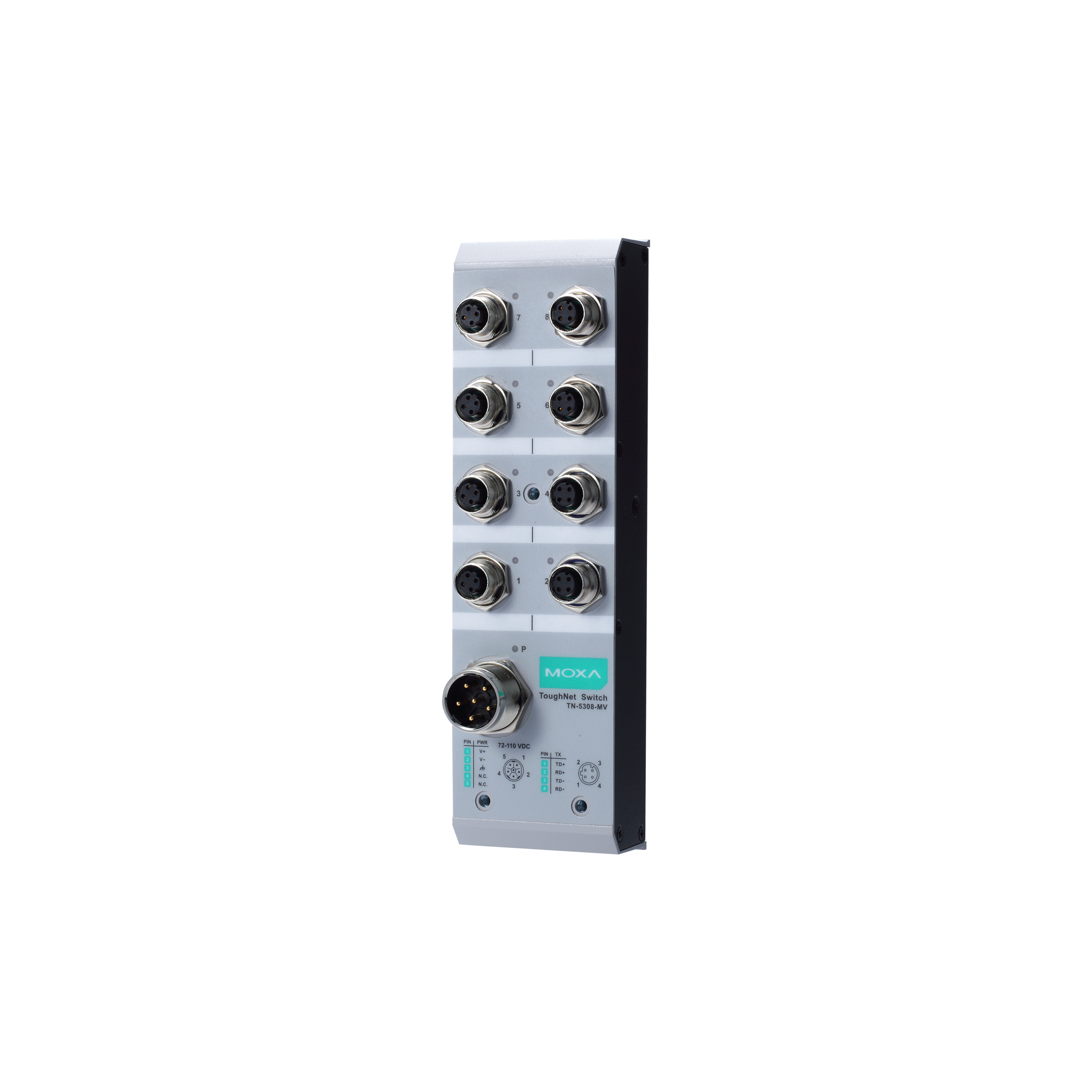

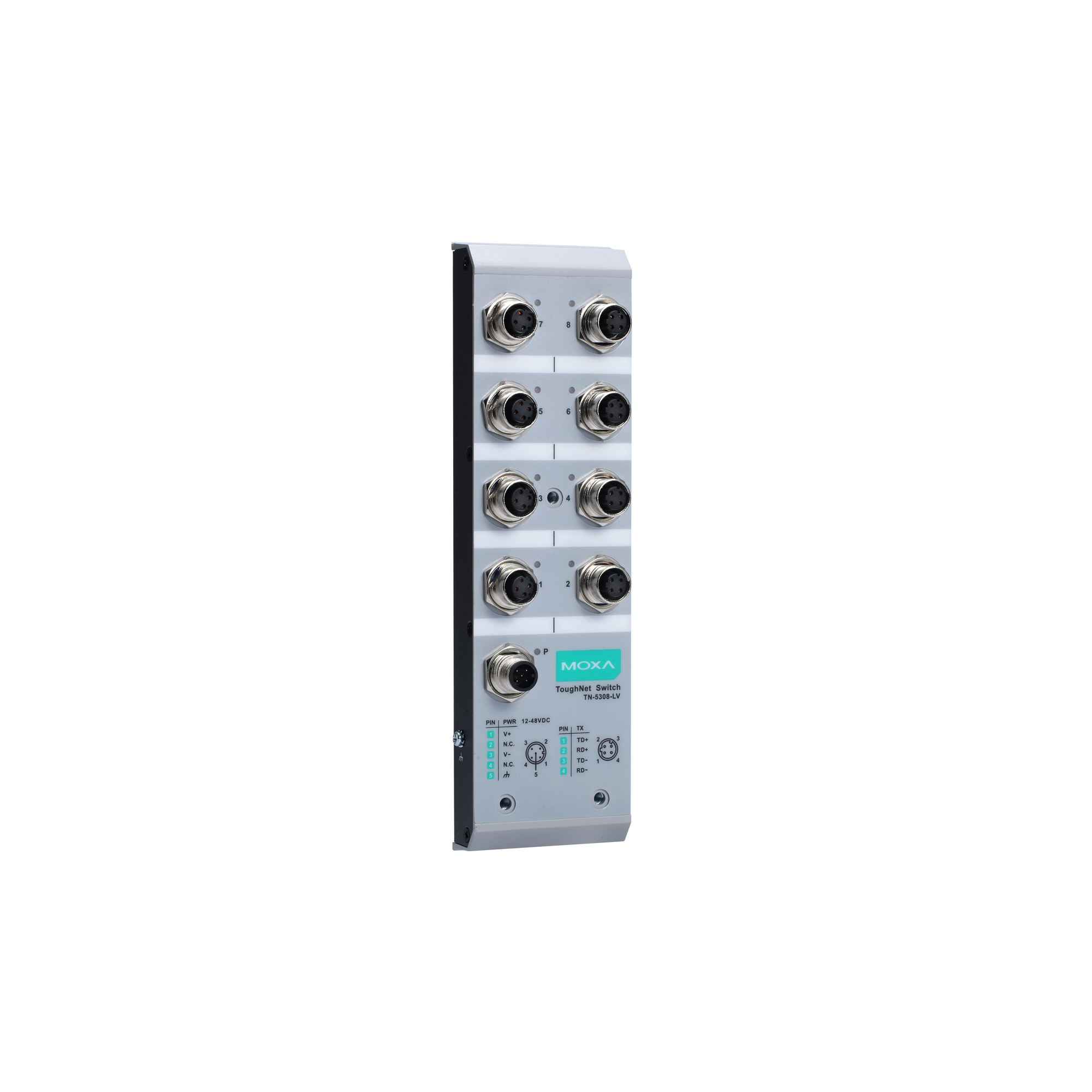

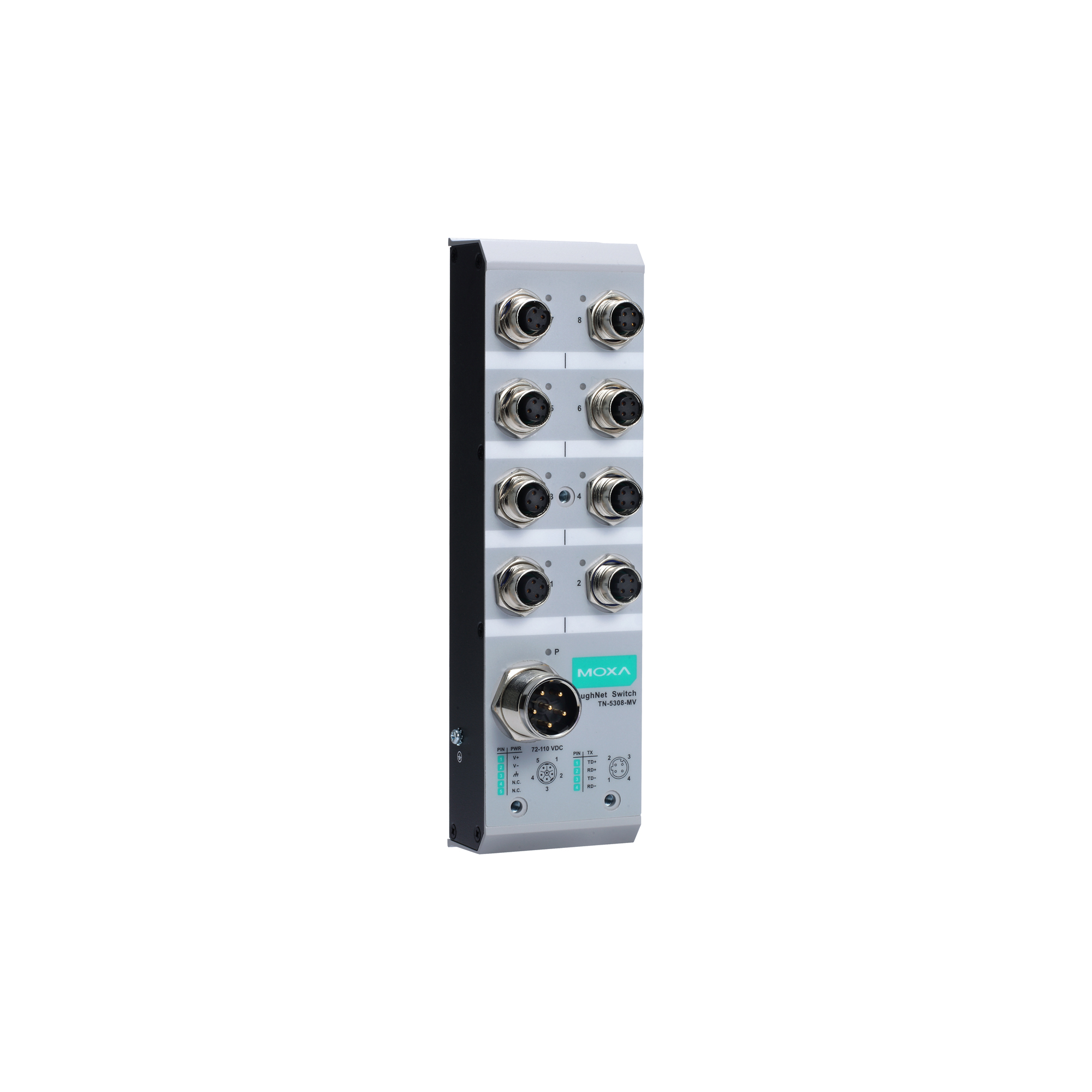

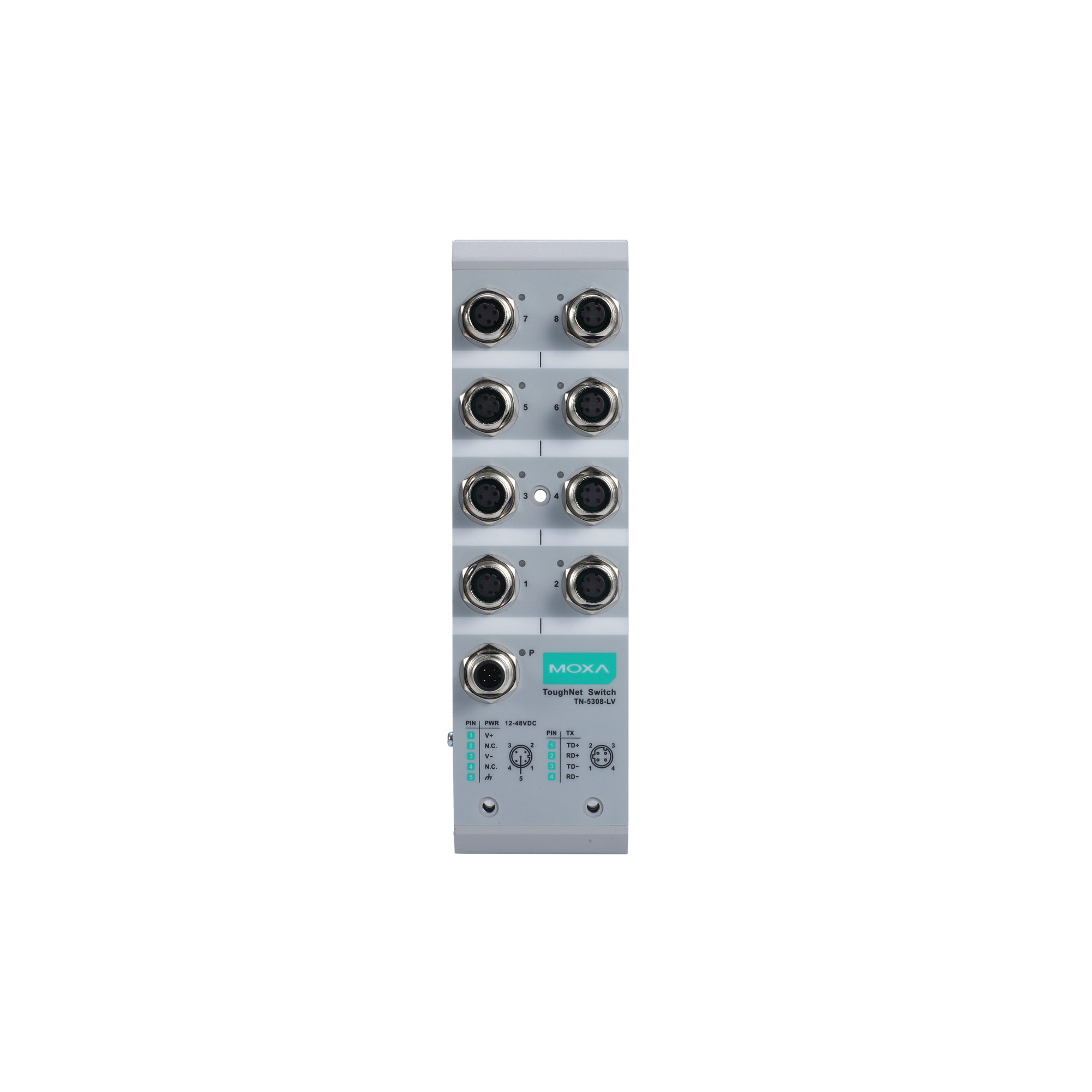

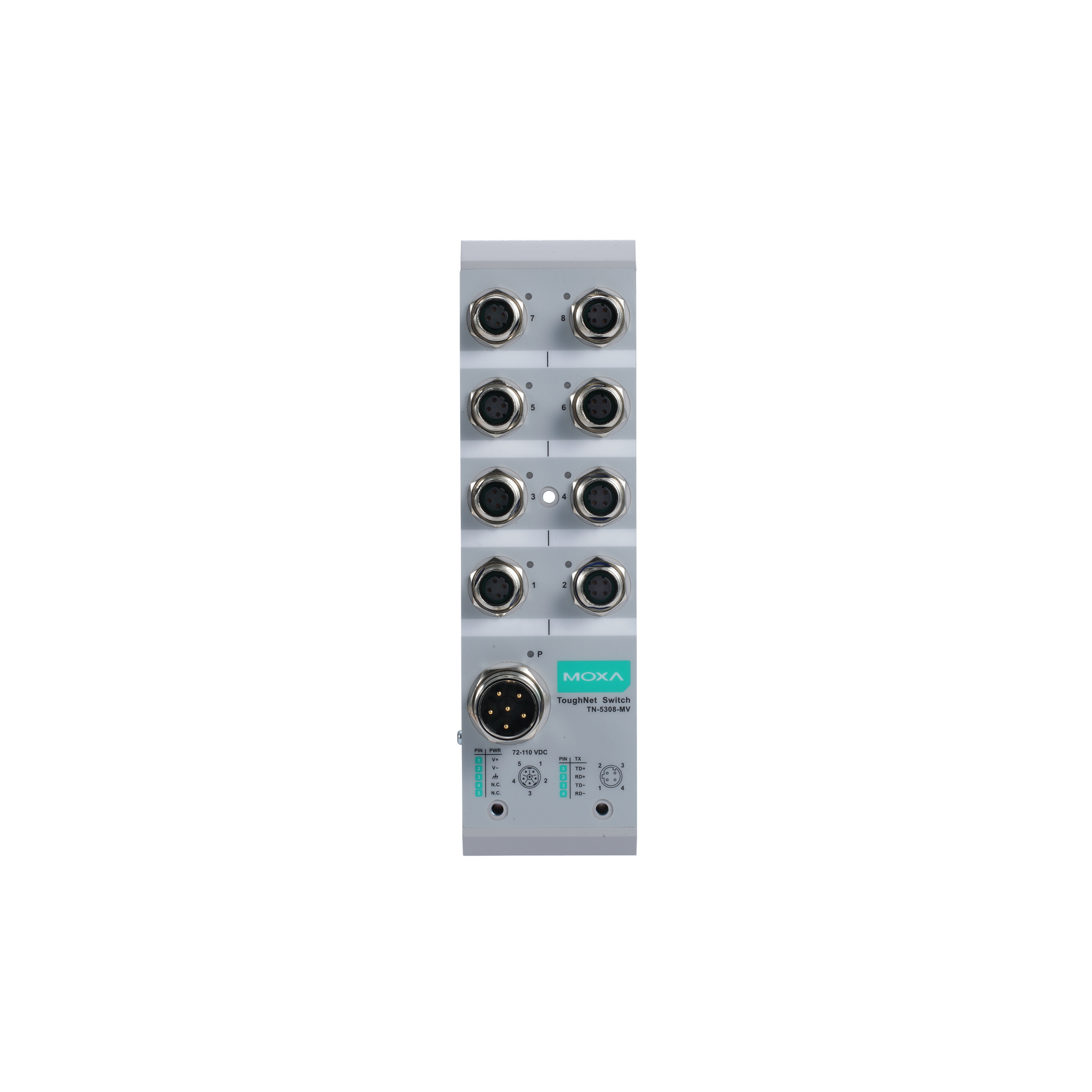

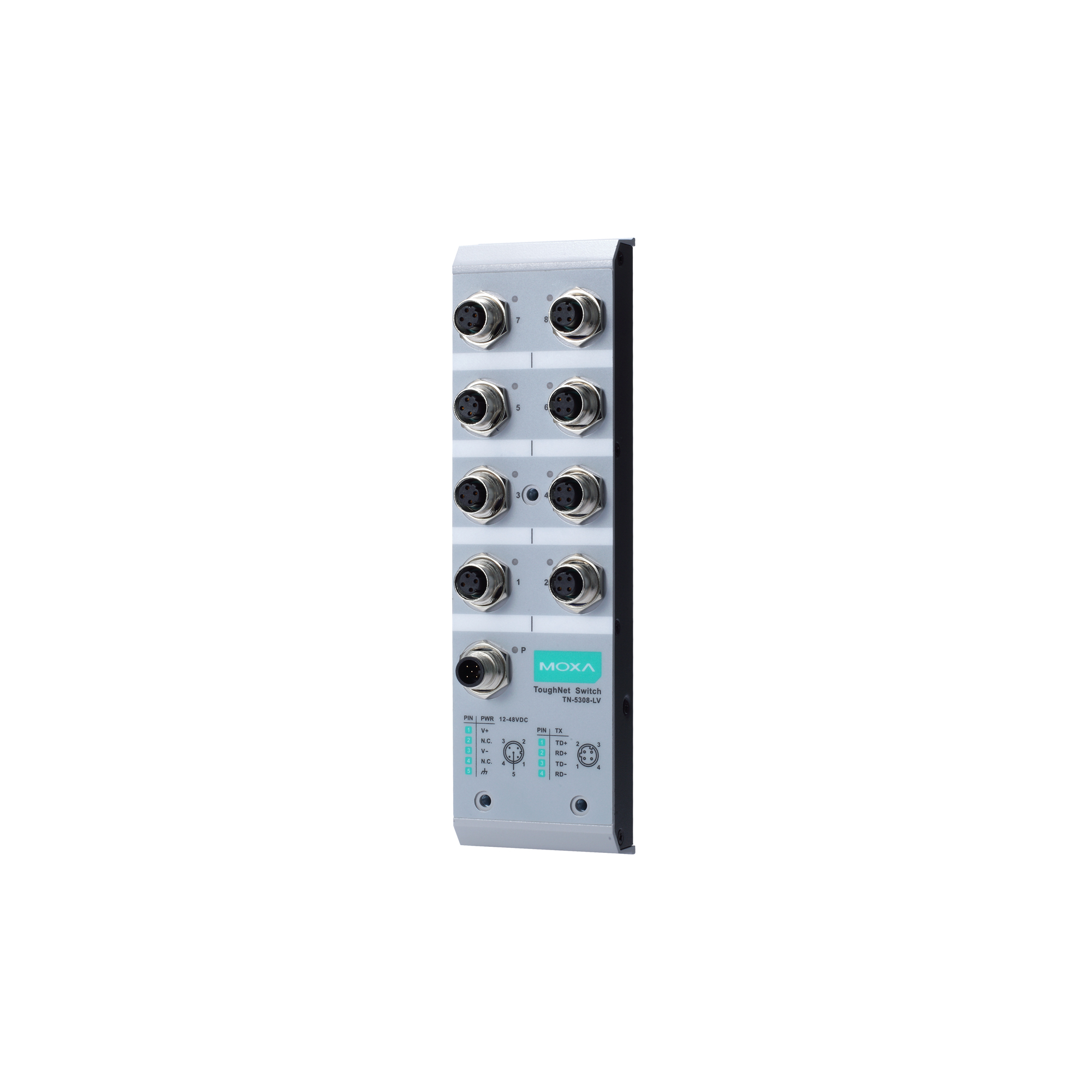

moxa-tn-5308-series-image-1-(1).jpg | Moxa
moxa-tn-5308-series-image-2-(1).jpg | Moxa
moxa-tn-5308-series-image-3-(1).jpg | Moxa
moxa-tn-5308-series-image-4-(1).jpg | Moxa
moxa-tn-5308-series-image-5-(1).jpg | Moxa
moxa-tn-5308-series-image-6-(1).jpg | Moxa

特色與優點

  • M12 連接器和 IP40 金屬外殼
  • 多達 8 個符合 IEEE 802.3af 標準的 PoE 和乙太網路兩用埠
  • 支援 IEEE 802.3/802.3u/802.3x
  • 符合所有 EN 50155 標準強制性測試項目 此產品適合用於符合 EN 50155 標準的軌道車輛應用。若需更詳細的說明,請參照:www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • 支援 -40 至 75°C 的操作溫度(-T 型號)

認證

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

ToughNet TN-5308 系列 M12 非網管型乙太網路交換器專為工業應用的嚴苛環境所設計。 TN-5308 系列交換器使用 M12 接頭,確保緊密且堅固的連線,並保證在不受環境的干擾(像是衝擊或震動)下,依然能夠穩定地運行。TN-5308 系列乙太網路交換器提供 8 個快速乙太網路 M12 接頭,以 10/100M 支援 IEEE 802.3/802.3u/802/3x、全/半雙工、MDI/MDI-X 自動偵測功能,為您的工業級乙太網路提供經濟實惠的解決方案。

同時,也提供寬溫(-40 至 75°C)的型號選擇。TN-5308 乙太網路交換器符合 EN 50155 要求,讓產品更適合軌道車輛應用,包括操作溫度、電源輸入電壓、突波、靜電放電 (ESD) 和震動,讓此台交換器可以適用於各式各樣的工業應用。TN-5308 PoE 乙太網路交換器提供 4 或 8 個 IEEE 802.3af 相容的 PoE 連接埠。 這些交換器被歸類為供電端設備 (PSE),每個連接埠提供到 15.4 瓦的電源。



  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    TN-5308 Series non-PoE models: 8

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    TN-5308-4PoE Series: 4
    TN-5308-8PoE Series: 8

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control
    TN-5308 Series PoE models: IEEE 802.3af for PoE

  • Input Current

    TN-5308-LV Series: 0.19 A @ 12 VDC, 0.10 A @ 24 VDC, 0.05 A @ 48 VDC
    TN-5308-MV Series: 0.033 A @ 72 VDC, 0.024 A @ 96 VDC, 0.021 A @ 110 VDC
    TN-5308-4PoE Series: 1.6 A @ 48 VDC
    TN-5308-8PoE Series: 2.9 A @ 48 VDC

  • Input Voltage

    TN-5308-LV Series: 12 to 48 VDC
    TN-5308-MV Series: 72 to 110 VDC
    PoE models: 48 VDC

  • Max. PoE Power Output per Port

    TN-5308 Series PoE models: 15.4 W

  • No. of Power Inputs

    1

  • Operating Voltage

    TN-5308-LV Series: 8.4 to 60 VDC
    TN-5308-MV Series: 50.4 to 137.5 VDC
    TN-5308 Series PoE models: 46 to 50 VDC The TN-5308 Series PoE models with an operating voltage range of 46 to 50 VDC do not meet the "Variation of Voltage Supply" and "Supply Change Over" requirements defined in the EN 50155 standard.Contact Moxa for more information.

  • Power Connector

    TN-5308-LV Series and TN-5308 Series PoE models: M12 A-coded male connector
    TN-5308-MV Series: M23 connector

  • Housing

    Metal

  • IP Rating

    IP40

  • Dimensions

    TN-5308-LV Series: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in)
    TN-5308-MV Series: 60 x 216.6 x 53.8 mm (2.36 x 8.53 x 2.12 in)
    TN-5308-4PoE Series: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
    TN-5308-8PoE Series: 60 x 216.6 x 52.9 mm (2.36 x 8.53 x 2.1 in)

  • Weight

    TN-5308-LV Series: 485 g (1.07 lb)
    TN-5308-MV Series: 685 g (1.51 lb)
    TN-5308-4PoE Series: 675 g (1.49 lb)
    TN-5308-8PoE Series: 970 g (2.14 lb)

  • Installation

    DIN-rail mounting (with optional kit), Wall mounting

  • Protection

    TN-5308 Series -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 60°C (-13 to 140°F)
    Wide Temp.Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

  • Freefall

    IEC 60068-2-32

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1, EN 50155
    IEC 60068-2-14, EN 50155
    IEC 60068-2-2, EN 50155
    IEC 60068-2-30, EN 50155

  • International Approval

    RCM

  • Railway

    EN 50121-4, EN 50155

  • Railway Fire Protection

    EN 45545-2

  • Safety

    EN 60950-1, UL 508

  • Salt Spray Test

    IEC 60068-2-11, EN 50155

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    TN-5308-LV Series: 2,099,286 hrs
    TN-5308-MV Series: 2,590,858 hrs
    TN-5308-4PoE Series: 252,075 hrs
    TN-5308-8PoE Series: 308,392 hrs

  • Standards

    Telcordia SR332
