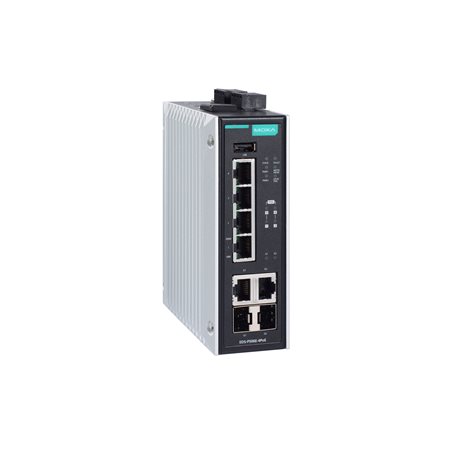

EDS-P506E-4PoE-2GTXSFP-T
EDS-P506E 系列

Managed Ethernet switch with 4 PoE+/60W 10/100BaseT(X) ports, 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual 12/24/48 VDC power inputs, -40 to 75°C operating temperature

Ethernet Interface

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 2
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed

  • PoE Ports (10/100BaseT(X), RJ45 connector)

    • 4
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features

  • Filter

    • 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP, PROFINET

  • Management

    • Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    • Broadcast storm protection, HTTPS/SSL, MAC ACL, TACACS+, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH

  • Time Management

    • IEEE 1588v2 PTP (software-based), NTP Server/Client, SNTP
Switch Properties

  • IGMP Groups

    • 256

  • Jumbo Frame Size

    • 9.6 KB

  • MAC Table Size

    • 8 K

  • Packet Buffer Size

    • 12 Mbits

  • Priority Queues

    • 4

  • Max. No. of VLANs

    • 64

  • VLAN ID Range

    • VID 1 to 4094
USB Interface

  • Storage Port

    • USB Type A
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 10/100/1000M (Gigabit Combo port), MSTR/HEAD, CPLR/TAIL, PoE
Serial Interface

  • Console Port

    • USB-serial console (Type B connector)
Input/Output Interface

  • Digital Input Channels

    • 1

  • Digital Inputs

    • Max. input current: 8 mA
      +13 to +30 V for state 1
      -30 to +3 V for state 0

  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 0.5 A @ 48 VDC

  • Buttons

    • Reset button
DIP Switch Configuration

  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    • 12 to 57 VDC (> 50 VDC for PoE+ output recommended)

  • Input Current

    • 4.08 A @ 48 VDC

  • Max. PoE Power Output per Port

    • 60 W

  • Connection

    • 2 removable 4-contact terminal block(s)

  • Power Consumption (Max.)

    • Max. 18.96 W full loading without PDs’ consumption

  • Total PoE Power Budget

    • Max. 180 W for total PD's consumption @ 48 VDC input
      Max. 150 W for total PD's consumption @ 24 VDC input
      Max. 62 W for total PD's consumption @ 12 VDC input

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP40

  • Dimensions

    • 49.1 x 135 x 116 mm (1.93 x 5.31 x 4.57 in)

  • Weight

    • 910 g (2.00 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • UL 61010-2-201, EN 61010-2-201

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-6 CS: 10 V
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-11 DIPs
      IEC 61000-4-8 PFMF

  • Power Substation

    • IEEE 1613, IEC 61850-3 Edition 2.0

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6

  • Bump

    • IEC 61850-3 Edition 2.0

  • Freefall

    • IEC 60068-2-31

  • Shock

    • IEC 60068-2-27
MTBF

  • Time

    • 755,167 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
