MDS-G4012 系列

12G 埠 Layer 2 全 Gigabit 模組化網管型乙太網路交換器

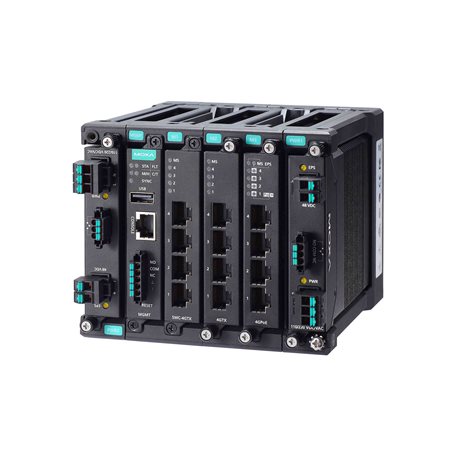

moxa-mds-g4012-series-image-(1).jpg | Moxa

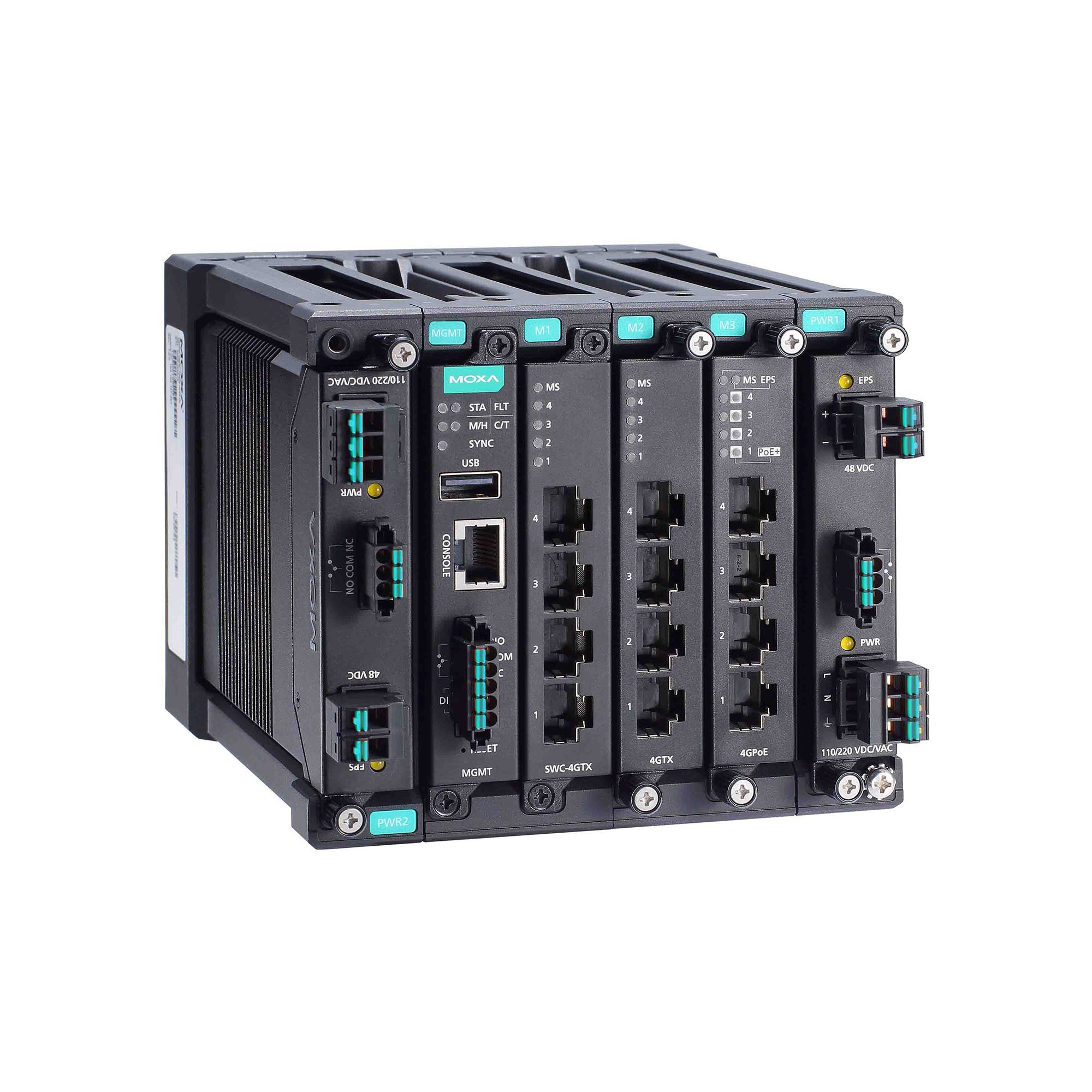

moxa-mds-g4012-series-image-1-(1).jpg | Moxa

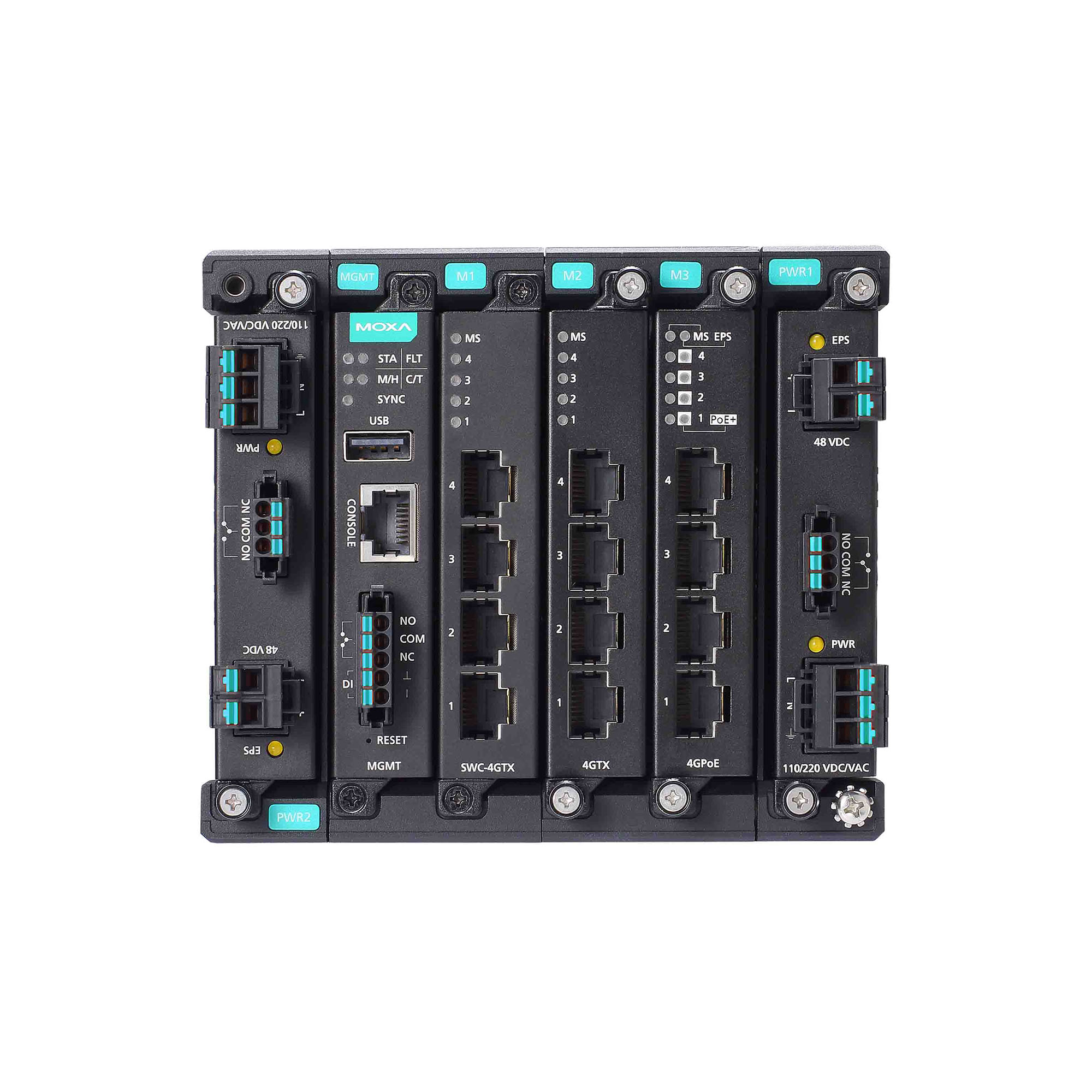

moxa-mds-g4012-series-image-2-(1).jpg | Moxa

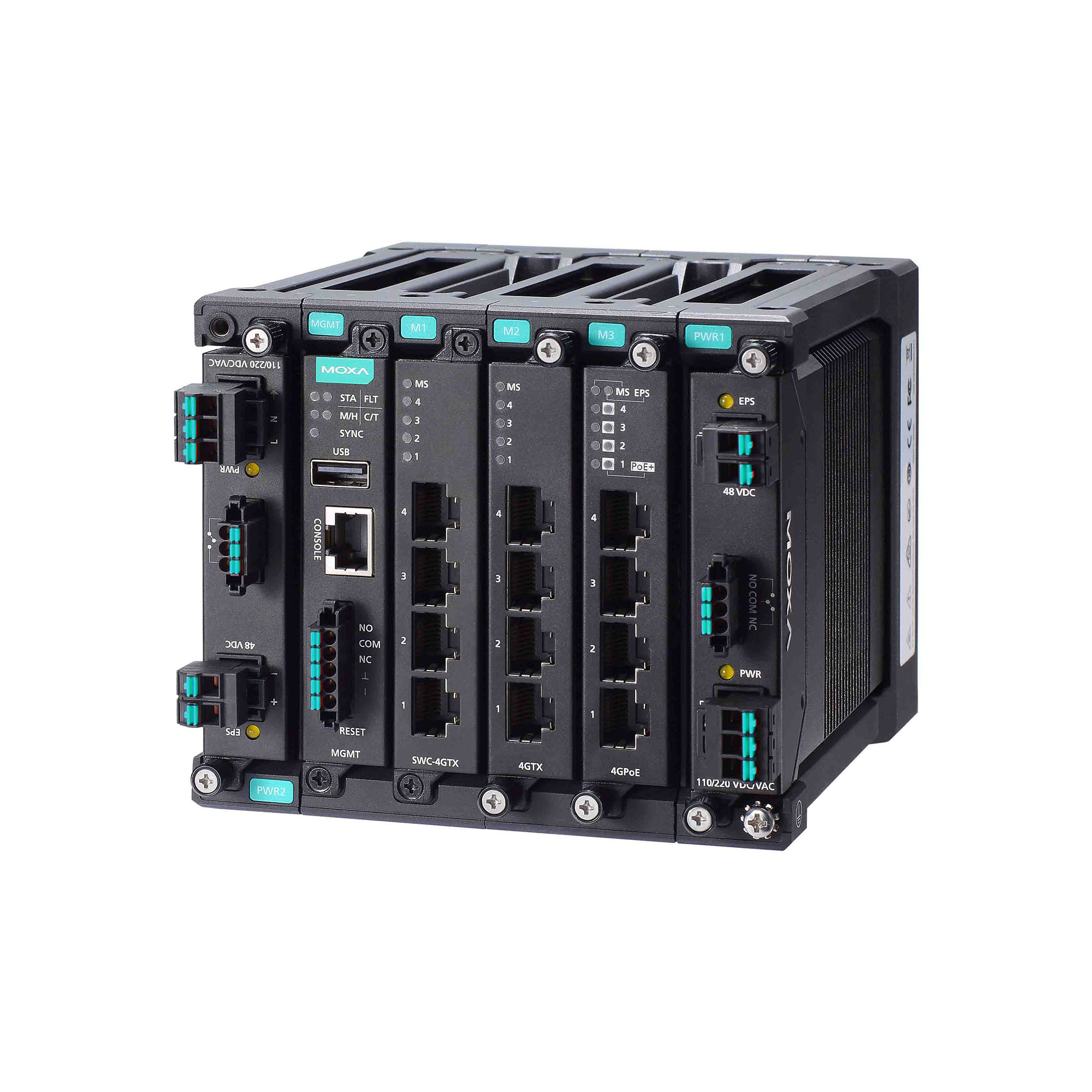

特色與優點

  • 多介面類型模組,提供更高的多樣性
  • 免工具設計,可輕鬆新增或更換模組,無需關閉交換器
  • 緊湊的尺寸和多種安裝選項,提供彈性安裝方式
  • 被動式背板可將維護工作減至最少
  • 堅固耐用的壓鑄型設計,適用於嚴苛環境
  • 直覺式 HTML5 網頁介面,提供跨平台的無縫使用體驗
  • 高 EMC 保護,符合 IEC 61850-3 與 IEEE 1613 標準
  • 硬體式 IEEE 1588 PTP,可提供高精確時間同步
  • 支援 IEC 62439-3 PRP/HSR 功能

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MDS-G4012 系列模組化交換器支援最多 12 個 Gigabit 連接埠,包括 4 個內嵌連接埠、2 個介面模組擴充插槽,以及 2 個電源模組插槽,確保適用多種應用的彈性。 極度輕巧的 MDS-G4000 系列設計符合不斷變化的網路要求,確保輕鬆安裝及維護,並具有可熱插拔模組設計,可讓您輕鬆變更或新增模組而無需關閉、交換器或中斷網路操作。

多種類型的介面模組 (RJ45、SFP、PoE+ 與 PRP/HSR) 及電源模組 (24/48 VDC、110/220 VAC/VDC) 提供更高的彈性並適用於不同的操作條件,提供自適應全 Gigabit 平台以符合乙太網路聚合/邊緣交換器的多樣性與頻寬需求。輕巧設計可容納於狹小空間,多種安裝方式,以及便利的免工具模組安裝方式,MDS-G4000 系列交換器可達成多樣化及輕鬆的部署,而無需高度技巧的工程師。在多種工業認證與高耐用性外殼之下,MDS-G4000 系列可在嚴苛及危險的環境下可靠操作,例如變電站、礦場、ITS 及油氣應用。雙電源模組支援提供高可靠性與可用性的備援能力,LV 與 HV 電源模組選項提供滿足不同應用電力需求的額外彈性。

此外,MDS-G4000 系列還具有 HTML5 型易用網頁介面,在不同平台與瀏覽器上都能提供回應迅速、流暢的使用者體驗。



  • Pre-installed Modules

    4 embedded Gigabit ports

  • Module

    2 slots for optional FE/GE modules

  • Slot Combination

    See the LM-7000H module series datasheet for more information.

    Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

    LM-7000H non-PoE modules:
    Any power module

    Note: LM-7000H-2GPHR module must be used with MDS-G4000 v2.0.0 or above.

    Note: The LM-7000H-2GPHR module can only be installed in one unit in slot M3.

    LM-7000H PoE modules:
    PWR-HV-P48, PWR-LV-P48 only

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1X for authentication

  • Management

    IPv4/IPv6
    Flow control
    Back Pressure Flow Control
    DHCP Server/Client
    ARP
    DHCP Relay Agent (Option 82)
    Fiber check
    RARP
    LLDP
    Port Mirroring (SPAN, RSPAN)
    Linkup Delay
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB

  • Filter

    GMRP
    GVRP
    GARP
    802.1Q VLAN
    IGMP Snooping v1/v2/v3
    IGMP Querier

  • Redundancy Protocols

    Link Aggregation
    MRP
    MRP Interconnection
    MSTP
    Multiple Dual Homing
    Multiple Network Coupling
    Network Loop Protection
    Ring Coupling
    RSTP
    STP
    Tracking
    Turbo Chain
    Turbo Ring v2

  • Security

    Access control list
    Broadcast storm protection
    DHCP Snooping
    Dynamic ARP Inspection
    IEEE 802.1AE MAC security
    HTTPS/SSL
    IP Source Guard
    Login and Password Policy
    MAC authentication bypass
    MAC Sticky
    RADIUS
    Rate Limit
    SSH
    Static Port Lock
    TACACS+
    Trust access control

  • Time Management

    SNTP
    IEEE 1588v2 PTP (hardware-based)
    Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
    NTP Server/Client
    NTP Authentication

  • Protocols

    IPv4/IPv6
    TCP/IP
    UDP
    ICMP
    ARP
    RARP
    TFTP
    DNS
    NTP Client
    DHCP Server
    DHCP Client
    802.1X
    QoS
    HTTPS
    HTTP
    Telnet
    SMTP
    SNMPv1/v2c/v3
    RMON
    Syslog
    VLAN Assignment

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP
    PROFINET

  • MIB

    P-BRIDGE MIB
    Q-BRIDGE MIB
    IEEE8021-SPANNING-TREE-MIB
    IEEE8021-PAE-MIB
    IEEE8023-LAG-MIB
    LLDP-EXT-DOT1-MIB
    LLDP-EXT-DOT3-MIB
    SNMPv2-MIB
    RMON MIB Groups 1, 2, 3, 9

  • Power Substation

    1588 PTP Power Profile C37.238-2017
    1588 PTP Power Profile IEC 61850-9-3
    GOOSE Check
    MMS

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    1024

  • Jumbo Frame Size

    9.216 KB

  • Priority Queues

    8

  • Packet Buffer Size

    12 Mbits

  • LED Indicators

    PWR, EPS, STATE, SYNC, FAULT, MSTR/HEAD, CPLR/TAIL

  • Console Port

    RS-232 (RJ45)

  • USB Connector

    USB Type A

  • Digital Input Channels

    1 (On MGMT Module)

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Alarm Contact Channels

    3 (On MGMT, PWR1, PWR2 Module)
    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Buttons

    Reset button

  • Input Voltage

    With PWR-HV-P48 installed:
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

    With PWR-LV-P48 installed:
    24/48 VDC, PoE: 48 VDC

    With PWR-HV-NP installed:
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

    With PWR-LV-NP installed:
    24/48 VDC

  • Operating Voltage

    With PWR-HV-P48 installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

    With PWR-LV-P48 installed:
    18 to 72 VDC (24/48 VDC for hazardous location), PoE: 46 to 57 VDC (48 VDC for
    hazardous location)

    With PWR-HV-NP installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

    With PWR-LV-NP installed:
    18 to 72 VDC

  • Input Current

    With PWR-HV-P48/PWR-HV-NP installed:
    Max. 0.30 A @ 110 VDC
    Max. 0.15 A @ 220 VDC
    Max. 0.60 A @ 110 VAC
    Max. 0.40 A @ 220 VAC

    With PWR-LV-P48/PWR-LV-NP installed:
    Max. 1.5 A @ 24 VDC
    Max. 0.75 A @ 48 VDC

    EPS (PoE models only):
    Max. 8.2 A @ 48 VDC

    Note: These are the input current ratings for the device with the maximum number of modules installed.

  • Power Consumption (Max.)

    With PWR-HV-P48/PWR-HV-NP installed:
    Max. 33.0 W @ 110 VDC
    Max. 34.0 W @ 220 VDC
    Max. 35.8 W @ 110 VAC
    Max. 38.0 W @ 220 VAC

    With PWR-LV-P48/PWR-LV-NP installed:
    Max. 36.0 W @ 24 VDC
    Max. 36.0 W @ 48 VDC

    Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.

  • Max. PoE Power Output per Port

    36 W

  • Total PoE Power Budget

    Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

    Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

    Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

    Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • IP Rating

    IP40

  • Dimensions

    134 x 115 x 163.25 mm (5.28 x 4.53 x 6.44 in)

  • Weight

    2000 g (4.41 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)
    Rack mounting (with optional kit)

  • Operating Temperature

    Standard Temperature: -10 to 60°C (14 to 140°F)
    Wide Temperature: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN IEC 62368-1
    IEC 60950-1
    IEC 62368-1
    UL 62368-1

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 Voltage Dips & Interruptions

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Vibration

    IEC 60068-2-6

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Power Substation

    IEC 61850-3
    IEEE 1613

  • Time

    1,008,160 hrs

  • Standards

    Telcordia Standard SR-332
