PWR-100 電源模組系列

EDS-4000/G4000 系列電源模組

moxa-pwr-100-power-module-series-image-(1).jpg | Moxa
moxa-pwr-100-power-module-series-image-1-(1).jpg | Moxa
moxa-pwr-100-power-module-series-image-2-(1).jpg | Moxa

特色與優點

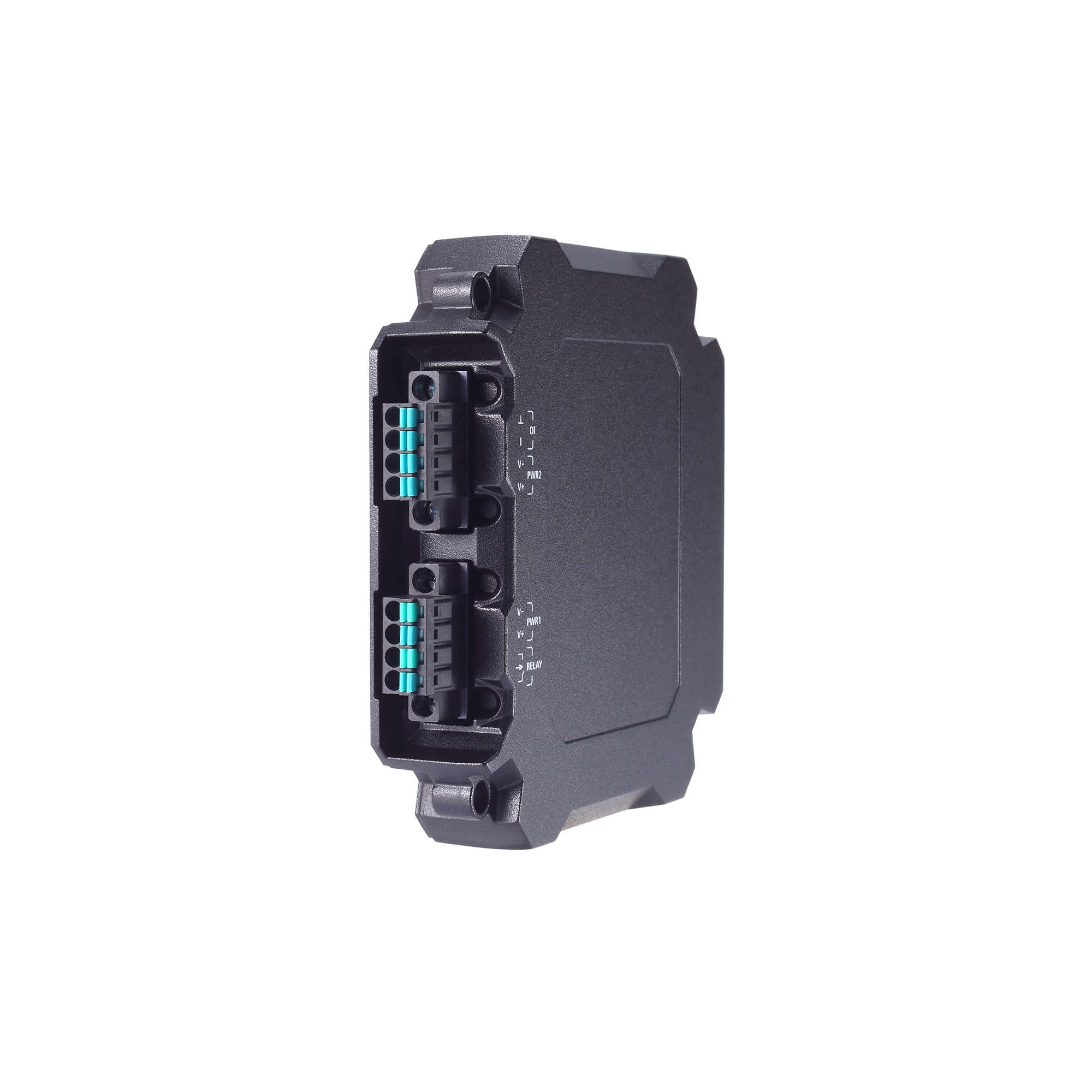

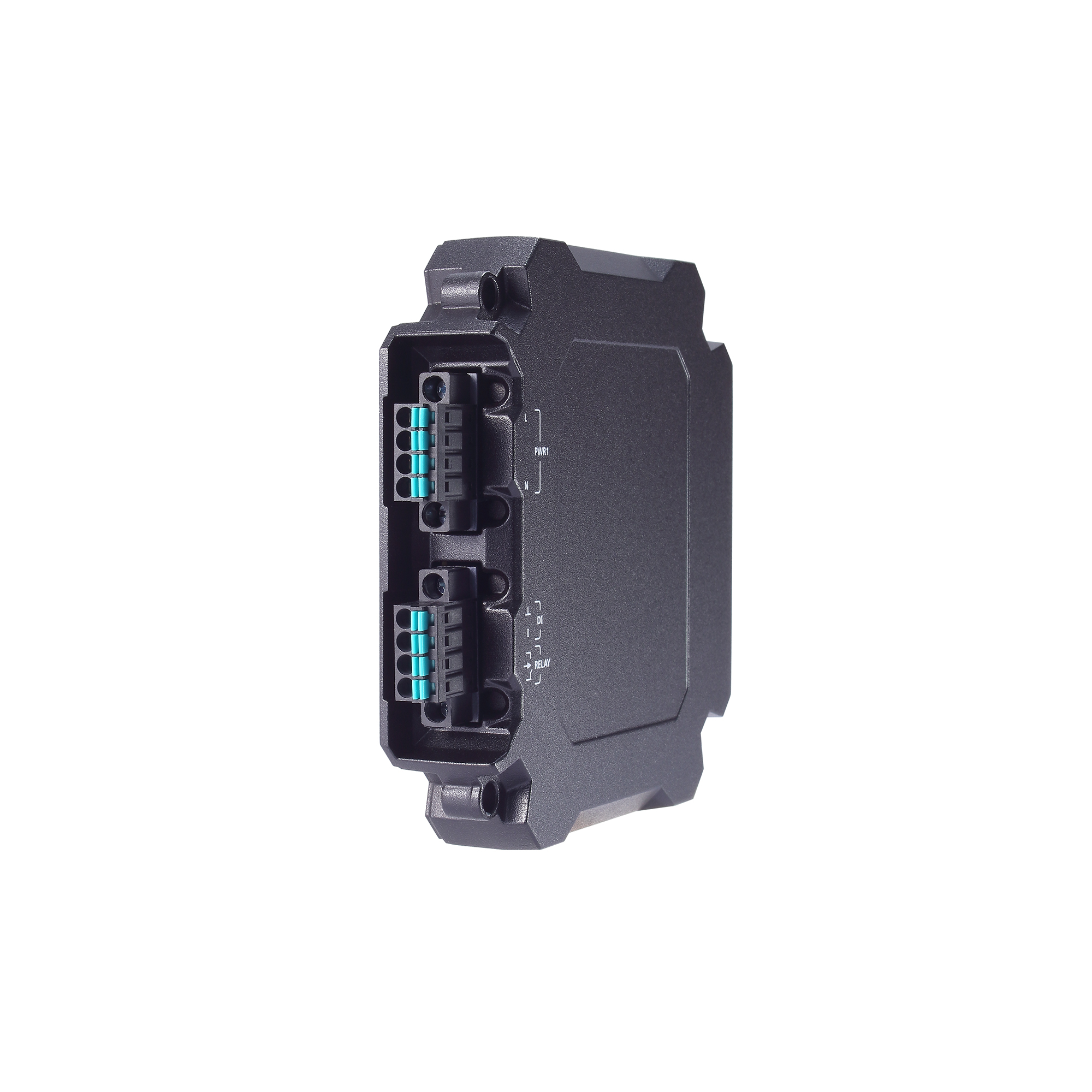

  • 適合多種安裝情境的旋轉性設計
  • 以多種電源輸入選項供靈活部署使用

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

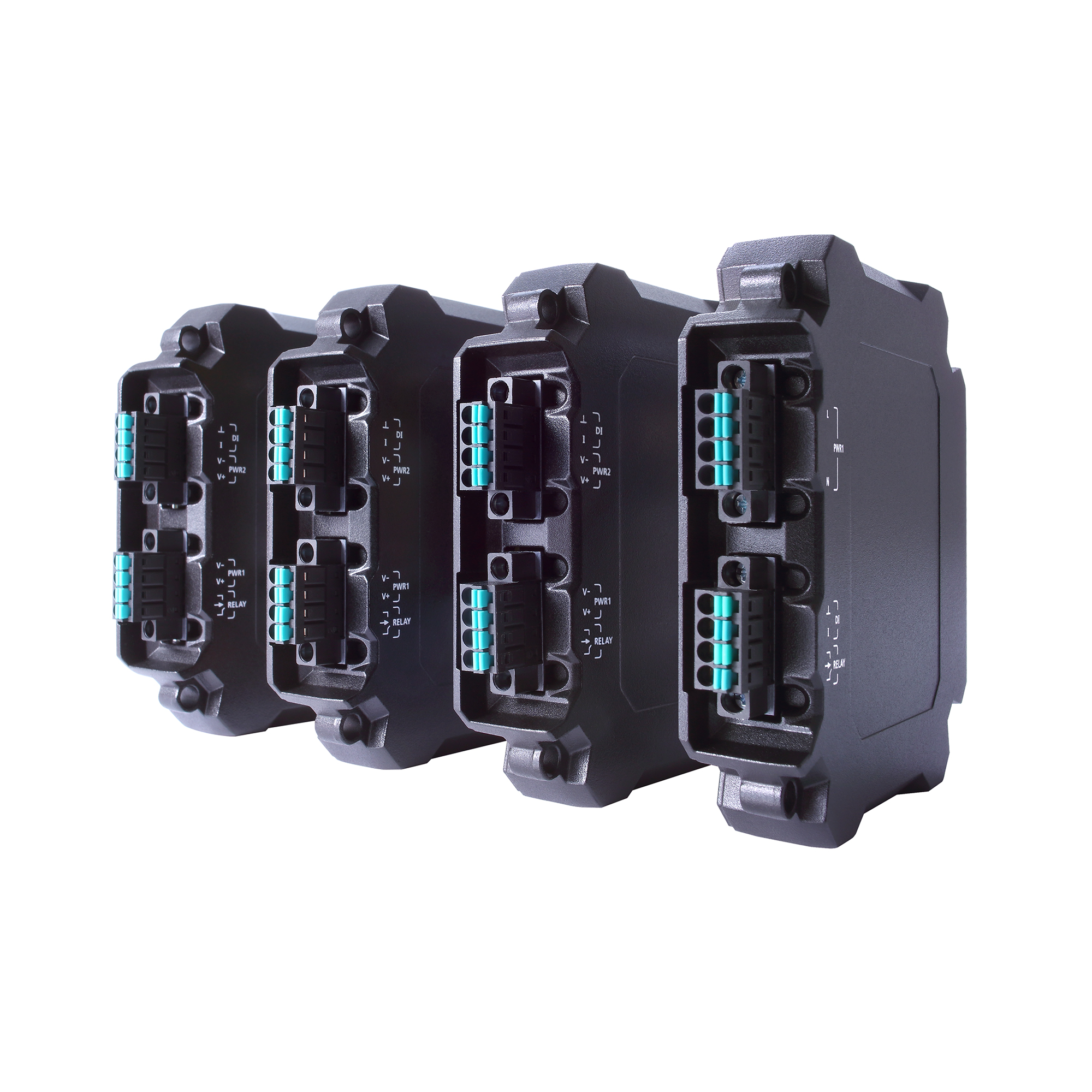

PWR-100 電源模組系列專為 Moxa 的 EDS-4000/G4000 系列交換器而設計。電源模組可支援使用 12/24/48 VDC 或 110/220 VDC/VAC 的交換器。

  • Note

    The EDS-4000/G4000 Series device model name and power parameters are determined by the installed PWR-100 power module.

    PWR-100–LV: -LV/-LV-T models
    PWR-105-HV-I: -HV/-HV-T models
    PWR-101-LV-BP-I: -LVA/-LVA-T models (PoE support)
    PWR-103-LV-VB-I: -LVB/-LVB-T models (PoE support)

    For example:
    EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-T
    EDS-G4008-T + PWR-105-HV-I = EDS-G4008-HVT

    If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4008-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.

    Power over Ethernet:
    Only the EDS-4008-4P-2GT-2GS(-T), EDS-4012-8P-4GS(-T), and EDS-G4012-8P-4QGS(-T) models support PoE. If a PoE-capable PWR-100 Series module (PWR-101-LV-BP-I, PWR-103-LV-VB-I) is installed into an EDS-4000/G4000 Series non-PoE model, PoE functionality will not be available.

  • Connection

    2 removable 4-contact terminal block(s)

  • Input Voltage

    PWR-100-LV: 12/24/48 VDC
    PWR-105-HV-I: 110/220 VDC/VAC
    PWR-101-LV-BP-I: 48 VDC
    PWR-103-LV-VB-I: 12/24/48 VDC

  • Operating Voltage

    PWR-100-LV: 9.6 to 60 VDC
    PWR-105-HV-I: 88 to 300 VDC, 85 to 264 VAC
    PWR-101-LV-BP-I: 44 to 57 VDC (> 52 VDC for PoE+ output recommended)
    PWR-103-LV-VB-I: 12 to 57 VDC (> 52 VDC for PoE+ output recommended)

  • Input Current

    PWR-100-LV: 12 to 48 VDC, 1.50 to 0.40 A or 24 VDC, 0.70 A
    PWR-105-HV-I: 110 to 220 VAC, 50 to 60 Hz, 0.30 to 0.20 A or 110 to 220 VDC, 0.30 to 0.20 A
    PWR-101-LV-BP-I: 48 VDC, 5.42 A
    PWR-103-LV-VB-I: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A

  • No. of Power Inputs

    PWR-100-LV: Redundant dual inputs
    PWR-105-HV-I: Single input
    PWR-101-LV-BP-I: Redundant dual inputs
    PWR-103-LV-VB-I: Redundant dual inputs

  • Inrush Current (Max.)

    -LV models: Max. 0.8 A @ 48 VDC (0.1 to 1 ms)

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Dimensions

    PWR-100-LV: 103 x 98 x 26.6 mm (4.06 x 3.86 x 1.02 in)
    PWR-105-HV-I: 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in)
    PWR-101-LV-BP-I: 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in)
    PWR-103-LV-VB-I: 103 x 98 x 39.9 mm (4.06 x 3.86 x 1.57 in)

  • Weight

    PWR-100-LV: 142 g (0.31 lb)
    PWR-105-HV-I: 215 g (0.47 lb)
    PWR-101-LV-BP-I: 176 g (0.39 lb)
    PWR-103-LV-VB-I: 244 g (0.54 lb)

  • Operating Temperature

    The operating temperature is dependent on the EDS-4000/G4000 switch the module is installed in. Please refer to the respective EDS-4000/G4000 Series datasheet for more information.

  • Storage Temperature

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 62368-1 (LVD)

  • EMI

    FCC Part 15 Subpart B Class A

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMS

    EN 61000-4-2 (ESD) Level 4
    EN 61000-4-3 (RS) Level 3
    EN 61000-4-4 (EFT) Level 4
    EN 61000-4-5 (Surge) Level 4
    EN 61000-4-6 (CS) Level 3
    EN 61000-4-8 Level 4

  • Vibration

    ISTA 1A

  • Warranty Period

    5 years

支援文件

名稱 類型 語言 版本 發布日期
PWR-100 電源模組系列產品資料表
2.9 MB
產品資料表 中文 v1.0 2023年9月11日 2023年9月11日
QIG for PWR-100 Power Module Series
1.3 MB
QIG 英文 v1.0 2023年9月11日 2023年9月11日
