MDS-G4028-L3-4XGS 系列

24 GbE + 4 10GbE 連接埠 Layer 3 全 Gigabit 模組化網管型乙太網路交換器

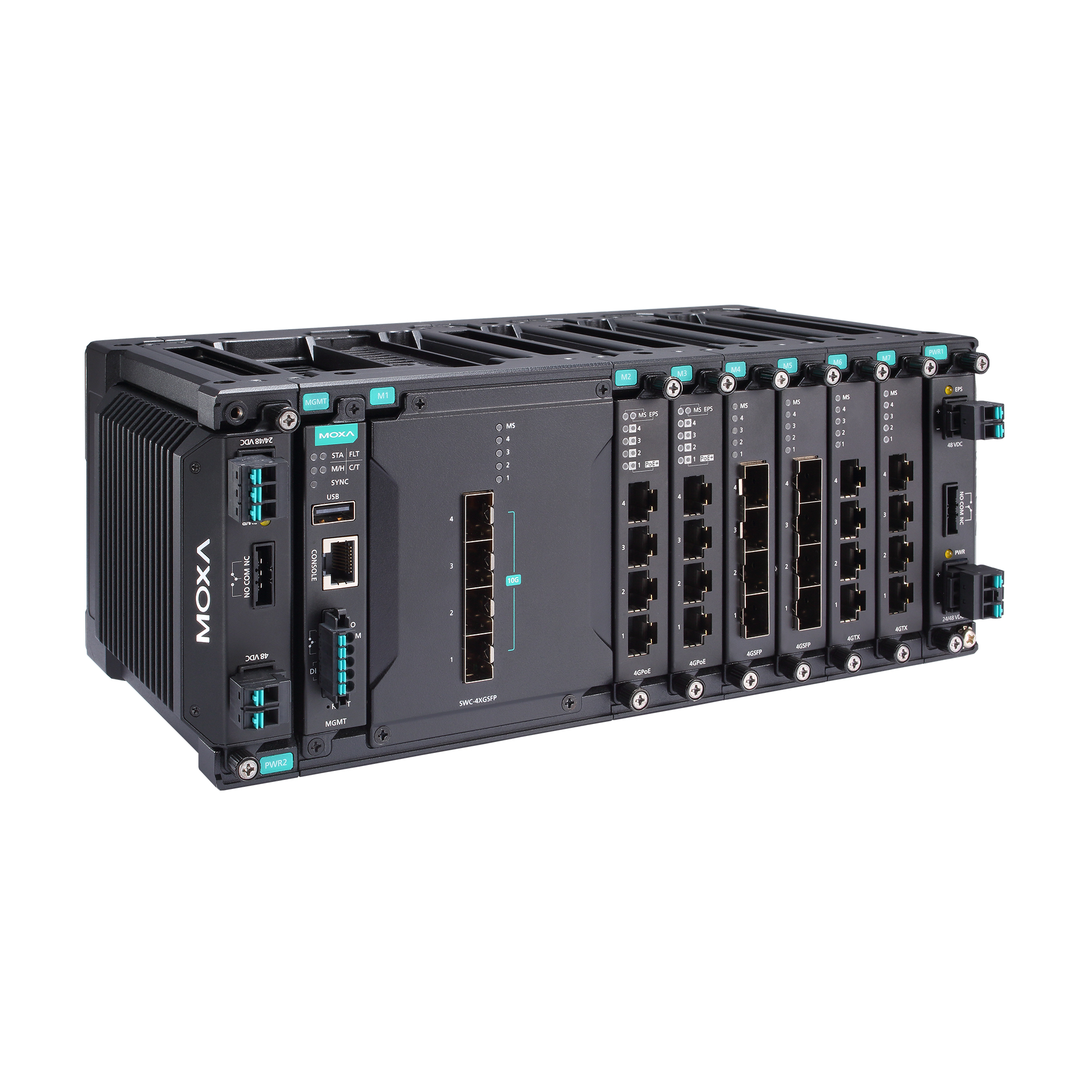

moxa-mds-g4028-l3-4xgs-series-image-(1).jpg | Moxa

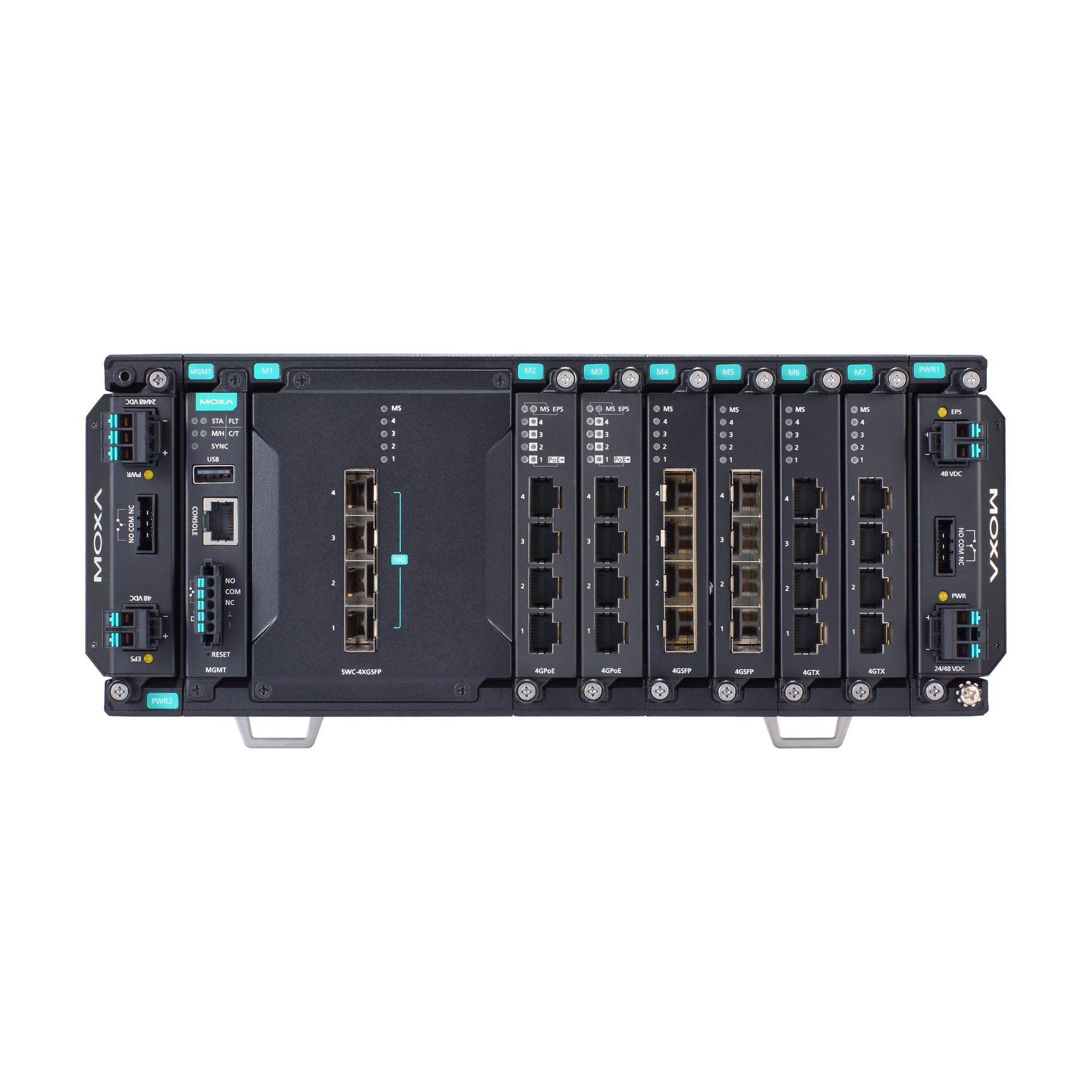

moxa-mds-g4028-l3-4xgs-series-image-1-(1).jpg | Moxa

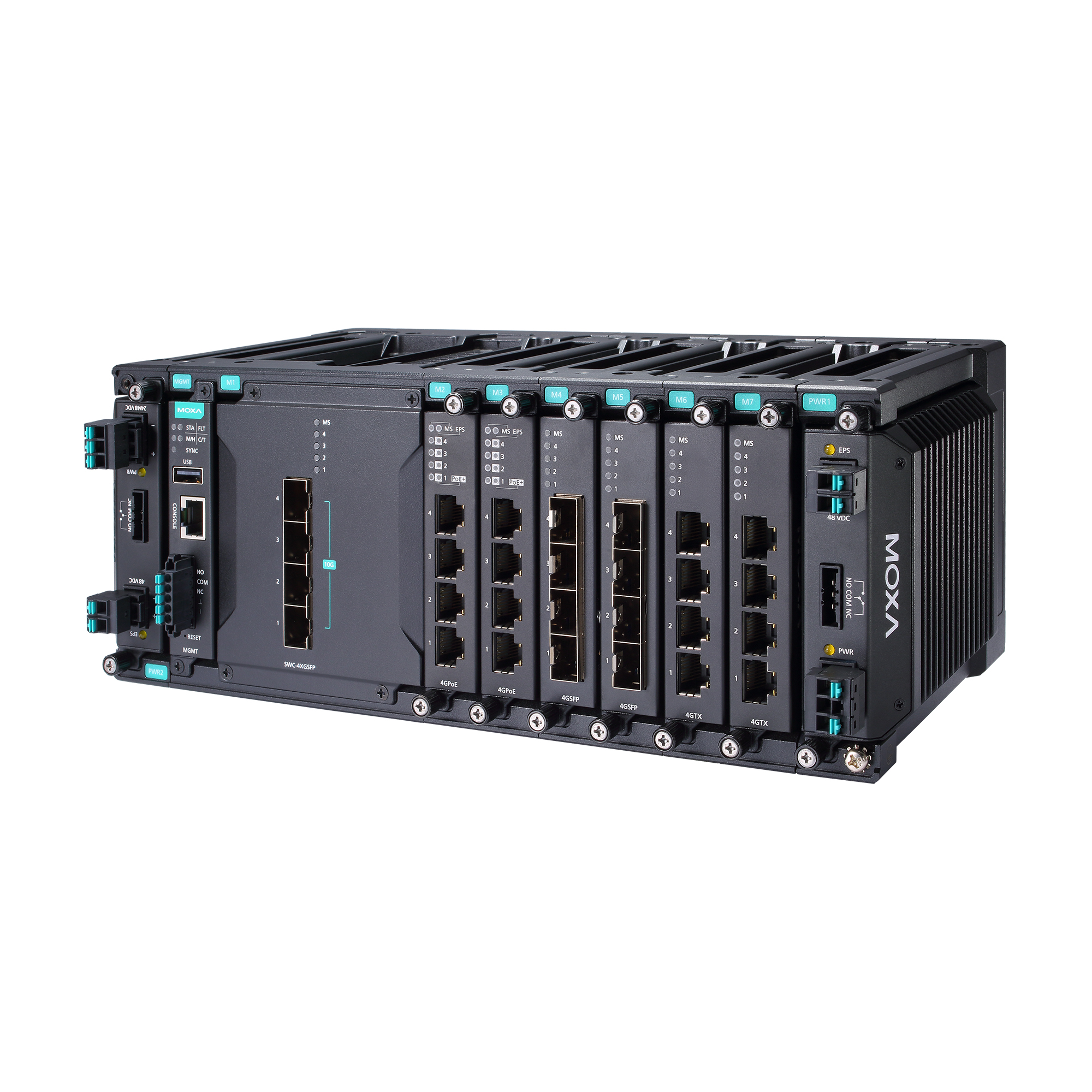

moxa-mds-g4028-l3-4xgs-series-image-2-(1).jpg | Moxa

特色與優點

  • Layer 3 路由互連多個 LAN 區段
  • 提供更多彈性的多重介面類型 4 埠模組
  • 最多 24 個 Gigabit 乙太網路連接埠或 SFP 插槽以及 4 個嵌入式 10G 乙太網路連接埠
  • 免工具設計,不需要關閉交換器即可輕鬆新增或更換模組
  • 彈性安裝的超輕巧尺寸和多種安裝選項
  • 能夠盡可能減少維護工作的無源背板
  • 適合嚴苛環境的堅固壓鑄設計
  • 採用 HTML5 的直覺式 Web 介面,可提供跨越不同平台的無縫體驗

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MDS-G4028-L3-4XGS 系列模組化交換器支援 4 個 10GbE + 24 個 Gigabit 連接埠,包括 4 個嵌入式連接埠、6 個介面模組擴充插槽和 2 個電源模組插槽,確保適用多種應用的彈性。極度輕巧的 MDS-G4028-L3-4XGS 系列能夠滿足不斷變化的網路需求,確保輕鬆安裝和維護,並採用熱插拔模組設計,因此您能夠輕鬆變更或新增模組,完全不需要關閉交換器或中斷網路運作。

多個乙太網路模組 (RJ45 和 SFP) 和電源單元 (24/48 VDC 和 110/220 VAC/VDC) 展現更大的彈性以及對不同操作條件的適用性,提供適應性全 Gigabit 平台,這個平台能夠提供乙太網路聚集/邊緣交換器所需的多功能性和頻寬。MDS-G4028-L3-4XGS 系列交換器採用適合狹小空間的輕巧型設計、多種安裝方法和方便的免工具模組安裝,不需要高技能工程師即可進行多功能且輕鬆的部署。藉由多項產業認證和高度耐用的外殼,MDS-G4028-L3-4XGS 系列可以在變電站、採礦場、ITS 以及石油和天然氣應用等嚴苛和危險的環境中可靠運作。對雙 LV 或 HV 電源模組的支援為高可靠性和可用性提供備援,而且也提供適應不同應用的電源要求所需的彈性。

對 Layer 3 路由功能的支援促使這些交換器能夠進行跨越不同網路的應用程式部署,因此成為大型工業網路的理想選擇。此外,MDS-G4028-L3-4XGS 系列具有採用 HTML5 的易用型 Web 介面,可以跨越不同平台和瀏覽器提供有回應、流暢的使用者體驗。



  • Pre-installed Modules

    4 embedded 10Gigabit ports

  • Module

    6 slots for optional 4-port FE/GE modules

  • Slot Combination

    See the LM-7000H module series datasheet for more information.

    Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

    LM-7000H non-PoE modules:
    Any power module

    LM-7000H PoE modules:
    PWR-HV-P48-A, PWR-LV-P48-A only

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1X for authentication

  • Management

    IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

  • Filter

    GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

  • Redundancy Protocols

    STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, Loop Protection, MSTP

  • Routing Redundancy

    VRRP

  • Security

    Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, Secure Boot, MAC Authentication Bypass, Access control list

  • Time Management

    SNTP, IEEE 1588v2 PTP (hardware-based), NTP Server/Client, NTP Authentication

  • Protocols

    IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

  • Unicast Routing

    OSPF, Static Route

  • MIB

    P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

  • Power Substation

    MMS

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    1024

  • Priority Queues

    8

  • Packet Buffer Size

    12 Mbits

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • USB Connector

    USB Type A

  • Digital Input Channels

    1 (On MGMT Module)

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Alarm Contact Channels

    3 (On MGMT, PWR1, PWR2 Module)
    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Input Voltage

    With PWR-HV-P48–A installed:
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

    With PWR-LV-P48–A installed:
    24/48 VDC, PoE: 48 VDC

    With PWR-HV-NP installed
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

    With PWR-LV-NP installed:
    24/48 VDC

  • Operating Voltage

    With PWR-HV-P48–A installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

    With PWR-LV-P48–A installed:
    18 to 72 VDC, PoE: 46 to 57 VDC

    With PWR-HV-NP installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

    With PWR-LV-NP installed:
    18 to 72 VDC

  • Input Current

    With PWR-HV-P48–A/PWR-HV-NP installed:
    Max. 0.11 A @ 110 VDC
    Max. 0.06 A @ 220 VDC
    Max. 0.29 A @ 110 VAC
    Max. 0.18 A @ 220 VAC

    With PWR-LV-P48–A/PWR-LV-NP installed:
    Max. 0.53 A @ 24 VDC
    Max. 0.28 A @ 48 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Max. PoE Power Output per Port

    36 W

  • Total PoE Power Budget

    Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

    Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

    Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

    Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems

  • IP Rating

    IP40

  • Dimensions

    281 x 115 x 163.25 mm (11.06 x 4.53 x 6.43 in)
    296 x 115 x 163.25 mm (11.65 x 4.53 x 6.43 in) with dual PWR-HV-P48-A/PWR-LV-P48-A power modules installed

  • Weight

    3,790 g (8.36 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 62368-1, IEC 62368-1, UL 62368-1, IEC 60950-1, EN 61010-2-201, UL 61010-2-201

  • EMC

    EN 55032/35, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Vibration

    IEC 60068-2-6

  • Power Substation

    IEC 61850-3, IEEE 1613

  • Time

    794,073 hrs

  • Standards

    Telcordia SR332

軟體、韌體和驅動程式

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Firmware for MDS-G4000-L3-4XGS Series
65.9 MB
韌體
SHA-512
v4.0
2023年9月26日 2023年9月26日 版本說明
Software Package for MDS-G4000-L3-4XGS Series (MIB file)
428.2 KB
軟體套件
SHA-512
v4.0
2023年9月26日 2023年9月26日 版本說明
Software Package for MDS-G4000-L3-4XGS Series (EDS file)
148.1 KB
軟體套件
SHA-512
v1.0
2023年9月26日 2023年9月26日 版本說明
Software Package for MDS-G4000-L3-4XGS Series (AOI file)
57.0 KB
軟體套件
SHA-512
v4.0
2023年9月26日 2023年9月26日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
QIG for MDS-G4000-4XGS/MDS-G4000-L3-4XGS Series
3.9 MB
QIG 英文 v1.3 2023年9月26日 2023年9月26日
Moxa Managed Switch Next-generation OS (v4.x) Layer 3 Command Line Interface User Manual
1.6 MB
使用者手冊 英文 v1.0 2023年9月26日 2023年9月26日
Moxa Managed Switch Next-generation OS (v4.x) Layer 2 Command Line Interface User Manual
3.7 MB
使用者手冊 英文 v1.0 2023年9月26日 2023年9月26日
Moxa Managed Switch Next-generation OS (v4.x) Layer 2 User Manual
17.3 MB
使用者手冊 英文 v1.1 2023年9月26日 2023年9月26日
Moxa Managed Switch Next-generation OS (v4.x) Layer 3 User Manual
3.1 MB
使用者手冊 英文 v1.0 2023年6月28日 2023年6月28日
MDS-G4028-L3-4XGS 系列產品資料表
3.5 MB
產品資料表 中文 v1.0 2022年8月31日 2022年8月31日

可供選擇的機型 (1)

顯示圖片
moxa-mds-g4028-l3-4xgs-t-image.jpg | MoxaMDS-G4028-L3-4XGS-T
Layer3
Total No. of Ports28
10G SFP+ Slots4
100/1000Base SFP SlotsUp to 24
10/100/1000BaseT(X) Ports RJ45 ConnectorUp to 24
10/100BaseT(X) Ports RJ45 ConnectorUp to 24
Operating Temp.-40 to 75°C
