MRX-G4064 系列

56 GbE 與 8 10GbE 連接埠 Layer 3 全 Gigabit 模組化網管型乙太網路交換器

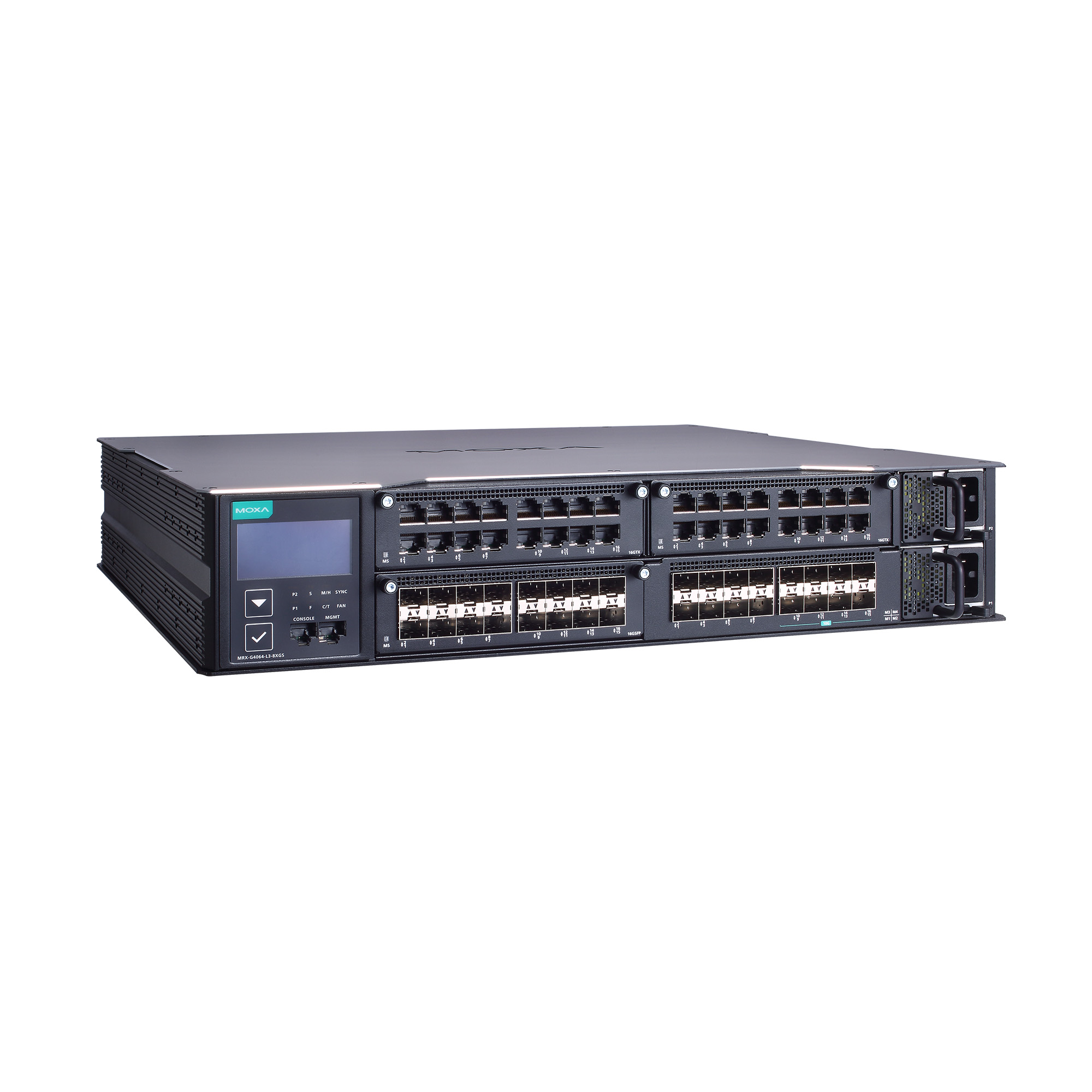

moxa-mrx-g4064-series-image-(1).jpg | Moxa

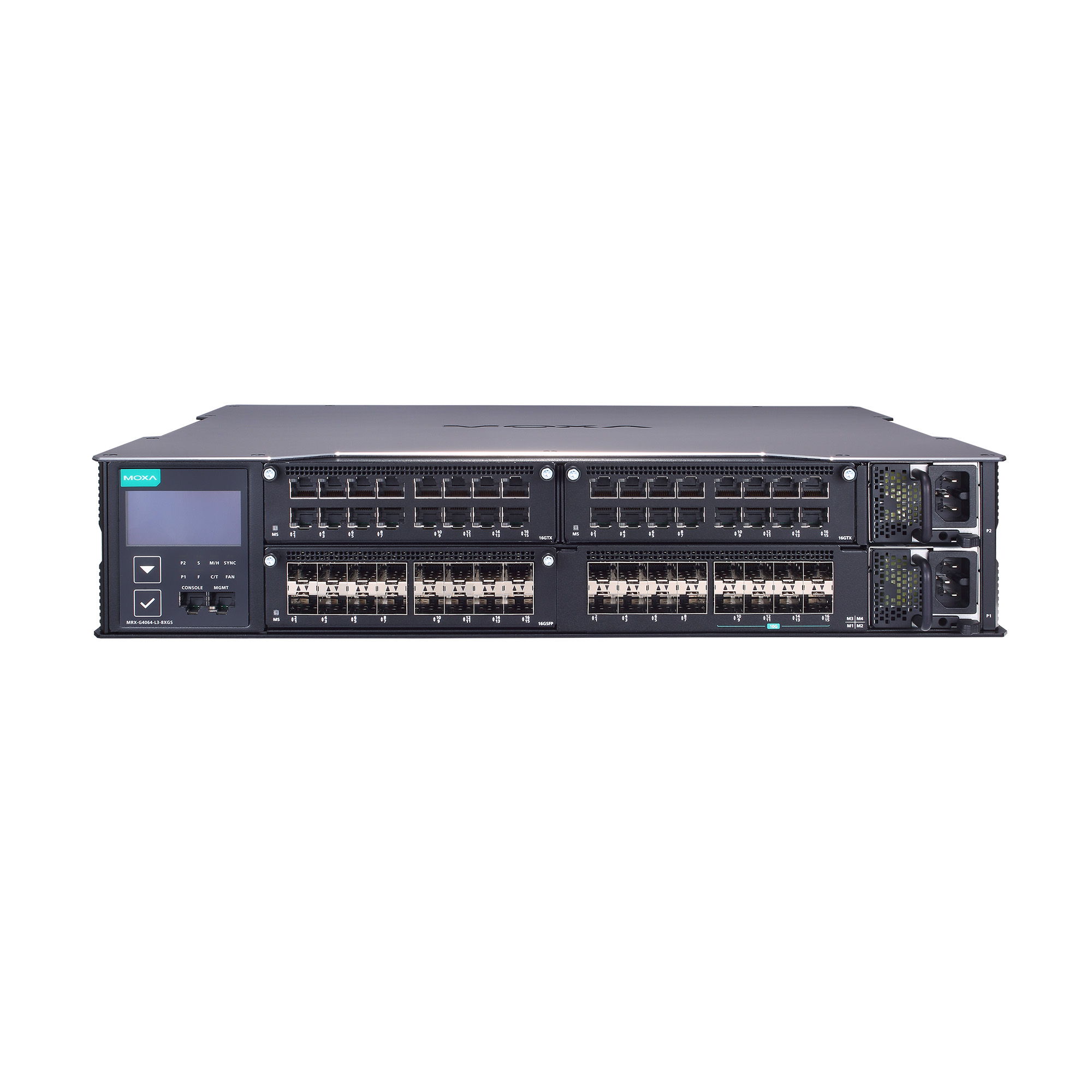

moxa-mrx-g4064-series-image-1-(1).jpg | Moxa

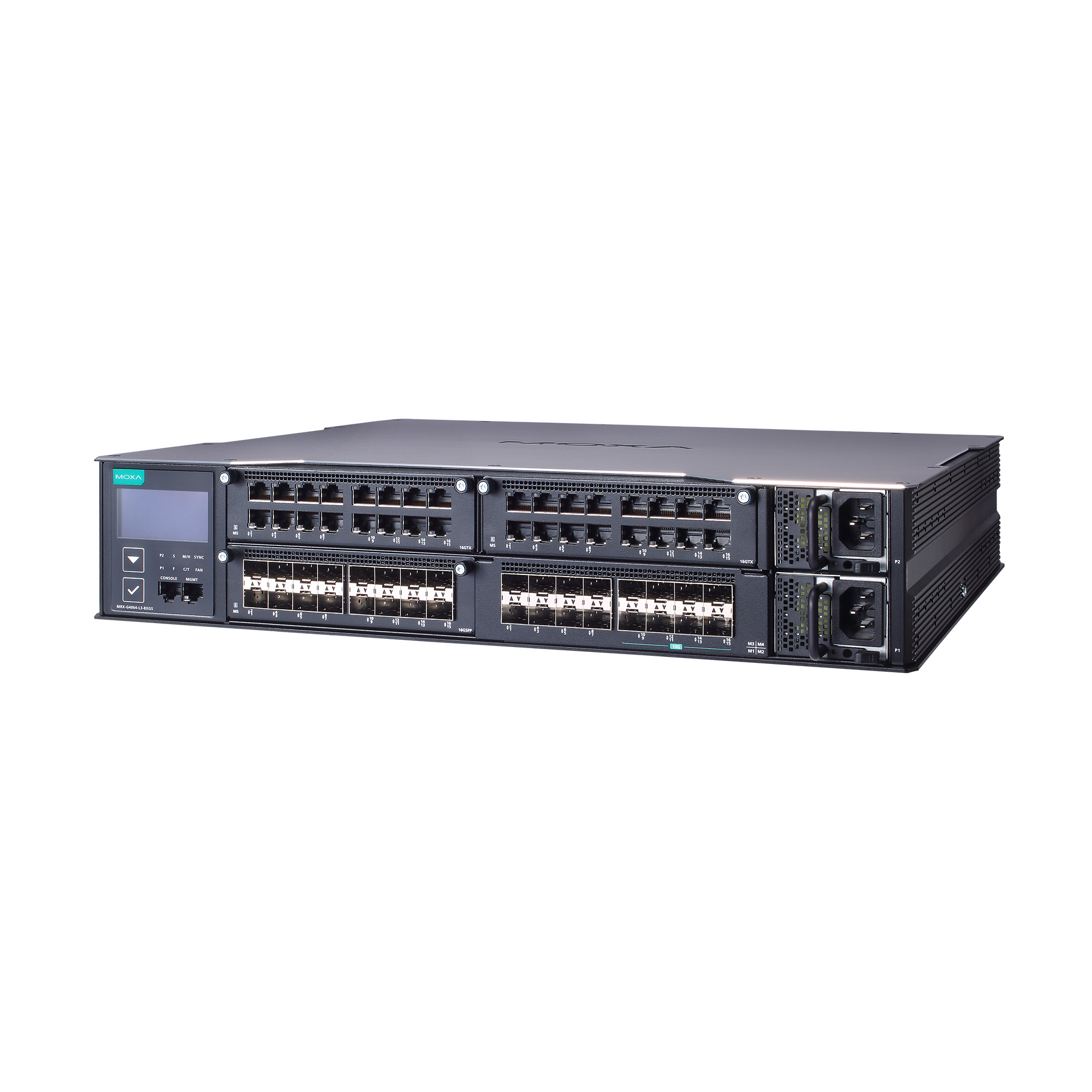

moxa-mrx-g4064-series-image-2-(1).jpg | Moxa

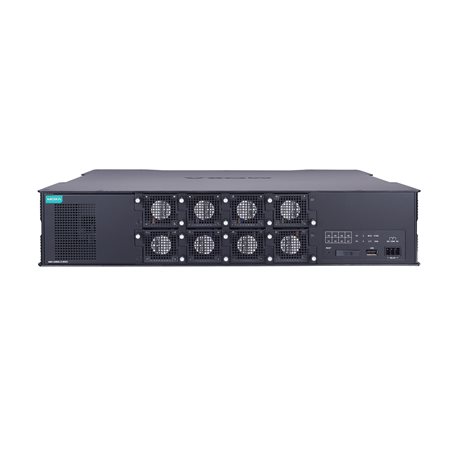

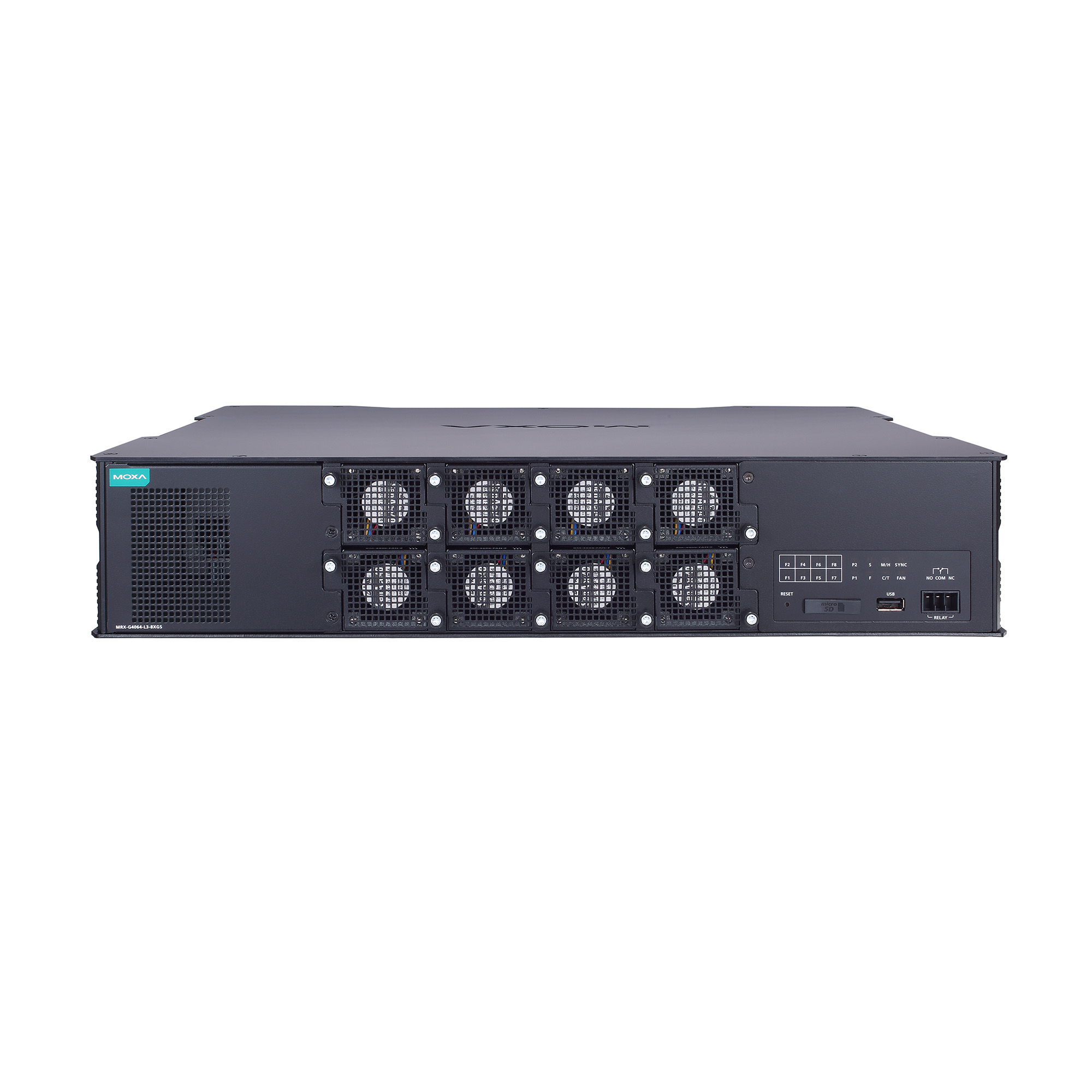

moxa-mrx-g4064-series-image-3-(1).jpg | Moxa

特色與優點

  • 8 個 10GbE 乙太網路連接埠
  • 多達 56 個 1GbE 連接埠或 SFP 插槽
  • HAST(高可用性靜態匯聚網口)技術支援骨幹可靠性
  • 搭載 LCM 顯示屏,狀態更新一目了然,支援輕鬆的現場維護和操作
  • 雙電源模組與 6+2 風扇冗餘設計,提供不間斷的網路運作
  • 即時系統溫度監控,可保護網路與裝置

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MRX-G4064 系列專為符合工業視訊、語音與數據應用的高效能、高可用性需求所設計,這些需求均源自於工業場所對於資訊科技的聚合成長。

MRX-G4064 系列採用模組化設計,內建 8 個 10GbE 連接埠,並可透過模組支援多達 56 個 1GbE 連接埠,非常適合構建大規模工業網路應用。10GbE 連接埠可顯著提升網路交換頻寬,支援直接連接 10GbE 伺服器,並將數據收集與分析功能部署於應用場所的第一線。此外,支援多埠聚合功能可實現更高頻寬骨幹,同時為未來網路成長預留空間。

MRX-G4064 系列不僅能容納更多現場設備,還能降低數據傳輸延遲,確保在高效能網路中實現視訊、語音及數據的高速傳輸。本系列配備備援多風扇散熱系統及備援隔離電源供應器。 本系列支援工業高效 Turbo Ring 技術,以及 ERPS (ITU-T G.8032) 和 RSTP/STP 等多種網路備援技術,可顯著提升 IT/OT 聚合應用中骨幹網絡的可靠性和可用性。



附加特色與優點

  • 彈性頻寬/連接埠組合,可達成高效頻寬 管理及最大可靠性

  • 命令列介面 (CLI) 快速管理

  • 頻外管理 (OOBM) 連接埠,可確保在無法存取頻內服務時的網路管理可用性

  • 系統溫度控制與電源消耗管理可實現不間斷運作

  • 連接埠鏡像 (N:M) 技術可支援安全監控與稽核

  • 針對大規模視訊監控的突發性大流量傳輸進行最佳化,有效避免畫面丟幀

  • 用於網路時間同步的 IEEE1588v2 PTP(精確時間協定)

  • 支援 MXconfig 和 MXview One 用於工業網路管理和視覺化



  • 1000/2500/10000BaseSFP Ports

    8

  • 1000BaseSFP Slots

    8

  • Out-of-band Management (OOBM)

    1 x 8-pin RJ45 1GbE Ethernet port (MGMT)

  • Module

    There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 16-port modules with 1000BaseT(X) or 1000BaseSFP interfaces.

    Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for Authentication
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3x for Flow Control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3ae for 10 Gigabit Ethernet
    IEEE 802.3az for Energy-Efficient Ethernet
    ITU-T G.8032 Ethernet Ring Protection Switching

  • Management

    IPv4
    Flow control
    Back Pressure Flow Control
    DHCP Client
    ARP
    RARP
    LLDP
    Linkup Delay
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB
    Port Mirroring (SPAN, RSPAN)

  • Filter

    GMRP
    GVRP
    GARP
    802.1Q
    IGMP Snooping v1/v2/v3
    IGMP Querier

  • Redundancy Protocols

    STP
    RSTP
    Turbo Ring v2
    Ring Coupling
    Multiple Dual-Homing
    Link Aggregation
    Network Loop Protection
    MSTP

  • Routing Redundancy

    VRRP

  • Security

    Broadcast storm protection
    Rate Limit
    Access control list
    Static port lock
    Sticky MAC
    HTTPS/SSL
    SSH
    RADIUS
    TACACS+
    Login and password policy
    Secure Boot

  • Time Management

    SNTP
    IEEE 1588v2 PTP (hardware-based)
    NTP Server/Client
    NTP Authentication

  • Protocols

    TCP/IP
    UDP
    ICMP
    ARP
    RARP
    TFTP
    DNS
    NTP Client
    DHCP Client
    802.1X
    QoS
    HTTPS
    HTTP
    Telnet
    SMTP
    SNMPv1/v2c/v3
    IPv4
    RMON
    Syslog

  • Unicast Routing

    OSPF
    Static Route

  • MIB

    P-BRIDGE MIB
    Q-BRIDGE MIB
    IEEE8021-SPANNING-TREE-MIB
    IEEE8021-PAE-MIB
    IEEE8023-LAG-MIB
    LLDP-EXT-DOT1-MIB
    LLDP-EXT-DOT3-MIB
    SNMPv2-MIB
    RMON MIB Groups 1, 2, 3, 9

  • MAC Table Size

    32 K

  • Max. No. of VLANs

    512

  • IGMP Groups

    1500

  • Jumbo Frame Size

    9.6 KB

  • Packet Buffer Size

    6 MB

  • Priority Queues

    8

  • VLAN ID Range

    VID 1 to 4094

  • Storage Port

    USB Type A

  • Storage Port

    microSD card

  • Console Port

    RS-232 (RJ45)

  • Alarm Contact Channels

    1 relay output with current carrying capacity of 2 A @ 30 VDC

  • Input Voltage

    100-240 VAC, 50-60 Hz or 230-240 VDC (for each power supply)

  • Operating Voltage

    90-264 VAC, 47-63 Hz or 180-300 VDC (for each power supply)

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Input Current

    Max. 1.236 A @ 110 VAC
    Max. 0.675 A @ 220 VAC
    Max. 0.74 A @ 180 VDC
    Max. 0.439 A @ 300 VDC

  • Power Consumption (Max.)

    Max. 134.2 W @ 110 VAC
    Max. 132.3 W @ 220 VAC
    Max. 133.2 W @ 180 VDC
    Max. 131.8 W @ 300 VDC

    Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.

  • Power Module

    2 x slots (2 x PWR-300-HVA-IF power modules included)

  • IP Rating

    IP30

  • Dimensions

    440 x 88 x 420 mm (17.32 x 3.46 x 16.54 in)

  • Weight

    12 kg (26 lb)

  • Fan Module

    8 x slots (8 x XM-4000-FAN-R preinstalled)

  • Installation

    Rack mounting

  • Interactive Interface

    Onboard LCM display
    Push buttons for configuration

  • Operating Temperature

    -10 to 60°C (-14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 62368-1
    UL 61010-2-201
    IEC 62368-1

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 Voltage Dips & Interruptions

  • Railway

    EN 50121-4

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Package Drop Test

    ISTA 1A

  • Package Vibration Test

    ISTA 1A

  • Time

    1,337,959 hrs

  • Standards

    Telcordia (Bellcore), GB

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
238.9 MB
軟體套件
SHA-512
v1.6.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2025年7月31日 2025年7月31日 版本說明
Software Package for MXview One Series (Linux version)
336.8 MB
軟體套件
SHA-512
v1.6.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2025年7月31日 2025年7月31日 版本說明
Software Package for MRX-G4064 Series (MIB file)
403.0 KB
軟體套件
SHA-512
v1.0
2024年5月7日 2024年5月7日 版本說明
Firmware for MRX-G4064 Series
83.7 MB
韌體
SHA-512
v1.0
2024年5月7日 2024年5月7日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
MRX-G4064 系列產品資料表
3.9 MB
產品資料表 中文 v1.2 2024年11月25日 2024年11月25日
FOSS Statement for Various MRX Series Products
4.1 MB
聲明書 英文 v1.0 2024年11月1日 2024年11月1日
Moxa Managed Switch MRX (v1.x) Layer 2 Command Line Interface
3.7 MB
使用者手冊 英文 v1.1 2024年8月14日 2024年8月14日
Moxa Managed Switch MRX (v1.x) Layer 3 CLI Manual
1.8 MB
使用者手冊 英文 v1.0 2024年5月6日 2024年5月6日
Moxa Managed Switch MRX (v1.x) Layer 2 User Manual
12.4 MB
使用者手冊 英文 v1.0 2024年5月6日 2024年5月6日
Moxa Managed Switch MRX (v1.x) Layer 3 User Manual
2.2 MB
使用者手冊 英文 v1.0 2024年5月6日 2024年5月6日
MRX-G4064/Q4064 Series Quick Installation Guide
3.6 MB
QIG 英文 v1.0 2024年5月6日 2024年5月6日
Declaration of Conformity for MRX-G4064/Q4064 with XM-4000 Module Series
330.8 KB
聲明書 英文 v1.0 2024年3月29日 2024年3月29日

可供選擇的機型 (1)

顯示圖片
moxa-mrx-g4064-l3-8xgs-image.jpg | MoxaMRX-G4064-L3-8XGS
Max. No. of Ports64
10GbE SFP+ Slots8
1000Base SFP SlotsUp to 56
1000BaseT(X) Ports (RJ-45)Up to 48
L3 Functionality
Operating Temp.-10 to 60°C
