PoE 交換器

Moxa 提供一應俱全的 PoE/PoE+ 交換器，每款機型均配備最多 48 埠的光纖或 Gigabit PoE+ 埠，每埠提供高達 60 W 的輸出功率，不但可提供高速資料傳輸，並可為遠距的高功率設備供電。我們的 PoE 交換器採用工業級設計，可為每個 LAN 埠提供 3 kV 的突波保護。這些交換器並具備智慧型 PoE 管理功能，以簡化 PoE 網路的部署和維護。

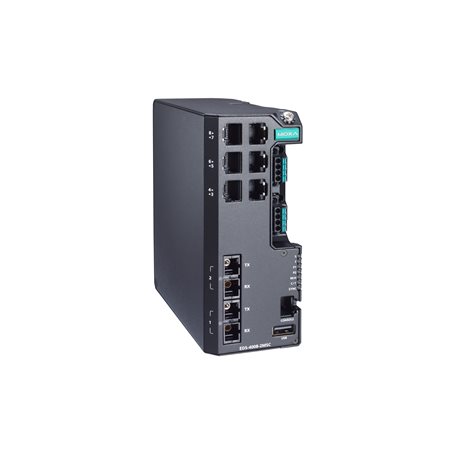

EDS-4008-2MSC-HV-T
EDS-4008 系列

Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, single power supply 110/220 VAC/VDC, -40 to 75°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 6
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • 100BaseFX Ports (multi-mode SC connector)

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.3x for flow control
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1X for authentication
Ethernet Software Features

  • Filter

    • GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

  • Management

    • IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

  • MIB

    • P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

  • Redundancy Protocols

    • STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation

  • Security

    • Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy

  • Time Management

    • SNTP, NTP Server/Client, NTP Authentication

  • Protocols

    • IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Switch Properties

  • MAC Table Size

    • 16 K

  • Jumbo Frame Size

    • 9.216 KB

  • Max. No. of VLANs

    • 256

  • VLAN ID Range

    • VID 1 to 4094

  • IGMP Groups

    • 512

  • Priority Queues

    • 4

  • Packet Buffer Size

    • 1 MB
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface

  • USB Connector

    • USB Type A (Reserved)
Input/Output Interface

  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    • 1

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA

  • Buttons

    • Reset button
DIP Switch Configuration

  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters

  • Connection

    • 2 removable 4-contact terminal block(s)

  • Pre-installed Power Module

    • PWR-105-HV-I

  • Note

    • The EDS-4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.

      For example:
      EDS-4008-T + PWR-100–LV = EDS-4008-LV-T
      EDS-4008-T + PWR-105-HV-I = EDS-4008-HV-T

      If you install a different power module, refer to the specifications of the corresponding
      model. For example, if you replace the power module of the EDS-4008–LV-T
      with the PWR-105–HV-I, refer to the specifications of the EDS-4008–HV-T.

  • Input Voltage

    • 110/220 VDC/VAC, Single input

  • Operating Voltage

    • 88 to 300 VDC, 85 to 264 VAC

  • Input Current

    • 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A

  • Power Consumption (Max.)

    • 11.09 W

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • IP Rating

    • IP40

  • Dimensions

    • 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)

  • Weight

    • 886 g (1.95 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)

  • Housing

    • Metal
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Industrial Cybersecurity

    • IEC 62443-4-1
      IEC 62443-4-2

  • Safety

    • UL 61010-2-201, EN 62368-1 (LVD)

  • EMC

    • EN 55032/35, EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Vibration

    • IEC 60068-2-6

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2
MTBF

  • Time

    • 492,582 hrs

  • Standards

    • Telcordia SR332
