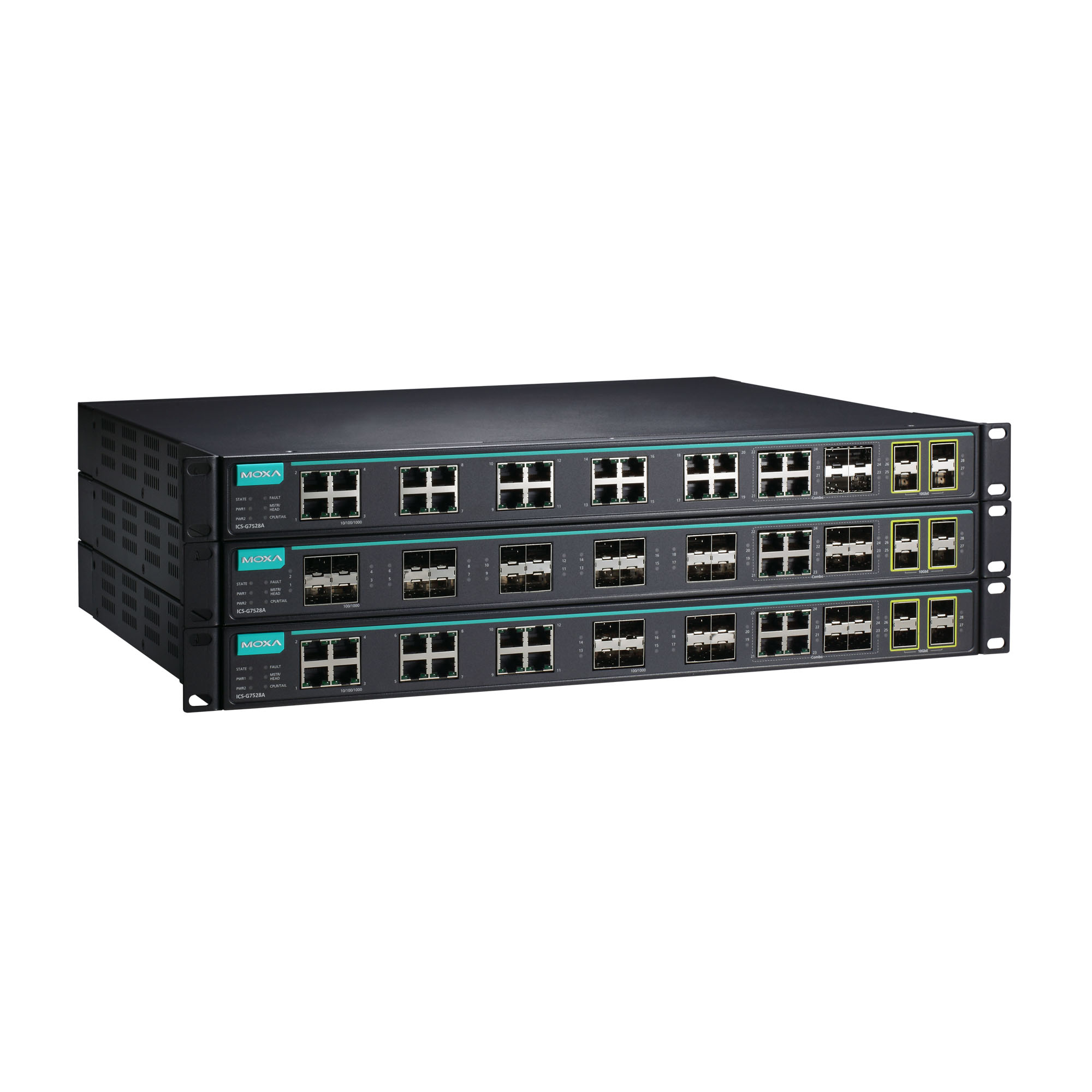

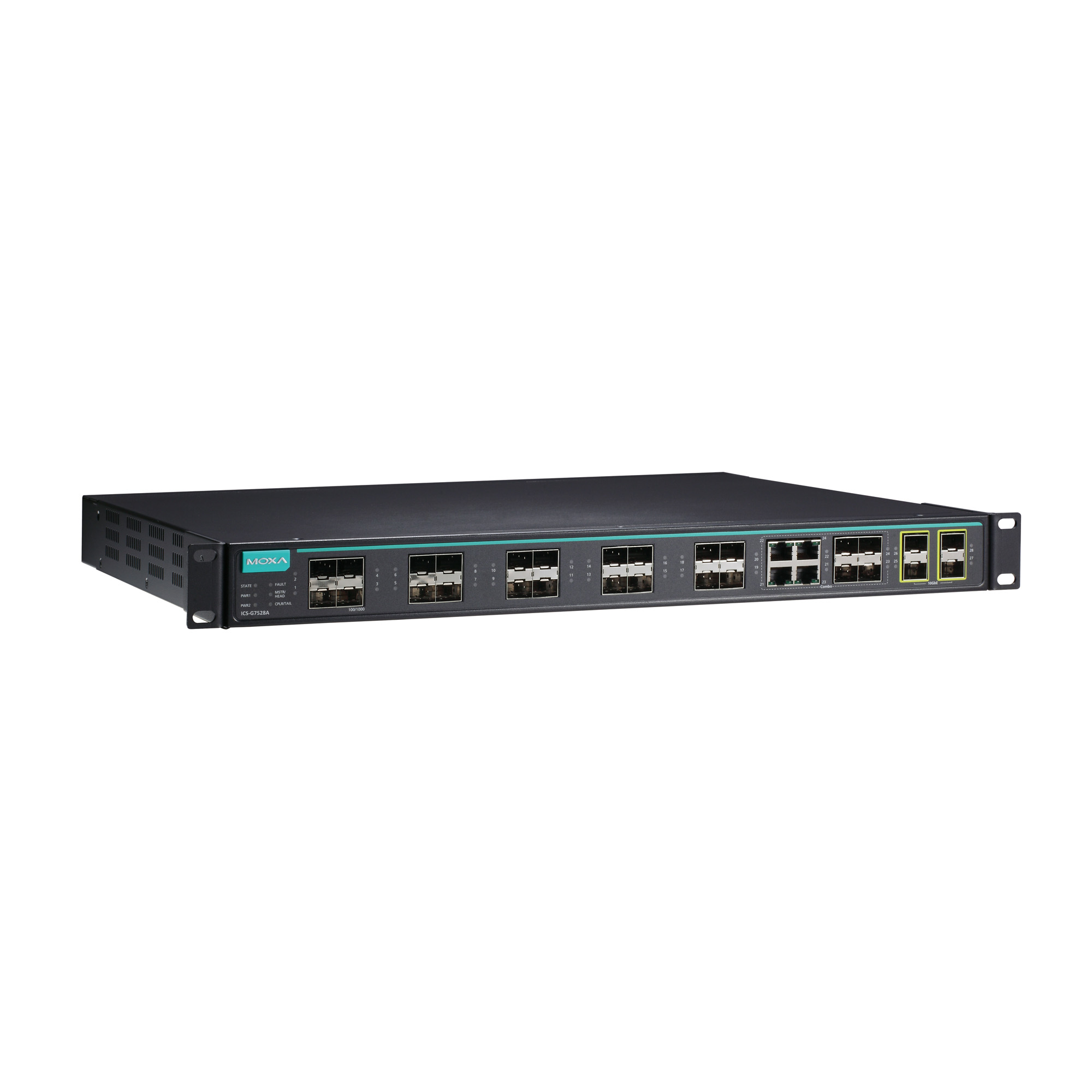

ICS-G7528A 系列

24G+4 10GbE 連接埠 Layer 2 全 Gigabit 網管型乙太網路交換器

moxa-ics-g7528a-series-image-(1).jpg | Moxa
moxa-ics-g7528a-series-image-1-(1).jpg | Moxa

特色與優點

  • 24 個 Gigabit 乙太網路連接埠以及最多 4 個 10G 乙太網路連接埠
  • 多達 28 個光纖連接埠(SFP 插槽)
  • 無風扇,-40 至 75°C 操作溫度範圍(T 型號)
  • Turbo Ring 和 Turbo Chain(250 台交換器,復原時間小於 20 毫秒),以及 STP/RSTP/MSTP,以實現網路備援
  • 隔離式備援電源輸入,具有通用 110/220 VAC 電源供應範圍
  • 支援 MXstudio,輕鬆實現可視化的工業網路管理
  • V-ON™ 可確保毫秒等級的 Multicast 資料和視訊網路復原

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

自動化和傳輸自動化應用結合數據、語音和視訊,因此需要高效能和高可靠性。ICS-G7528A 系列全 Gigabit 骨幹交換器配備 24 個 Gigabit 乙太網路連接埠以及最多 4 個 10 Gigabit 乙太網路連接埠,相當適合大規模工業網路。

ICS-G7528A 的全 Gigabit 可增加頻寬,藉以提供高效能以及透過網路快速傳輸大量視訊、語音和數據的能力。無風扇交換器支援 Turbo Ring、Turbo Chain 和 RSTP/STP 備援技術,並配備隔離備援電源,藉以提高系統可靠性和網路骨幹的可用性。

附加特色與優點

  • 命令列介面(CLI)快速設定主要網管功能

  • DHCP Option 82 以不同原則指派 IP 位址

  • 支援 EtherNet/IP、PROFINET 及 Modbus TCP 通訊協定,便於進行設備管理和監控

  • IGMP snooping 和 GMRP,用於過濾 mulitcast 流量

  • IEEE 802.1Q VLAN 以及 GVRP 通訊協定,可簡化網路規劃

  • QoS(IEEE 802.1p/1Q 和 TOS/DiffServ)提高資料傳送穩定性

  • 發生狀況時可透過電子郵件或是繼電器輸出自動發出告警

  • 數位輸入可將感應器和告警整合至 IP 網路

  • Port Trunking 可將頻寬使用率最佳化

  • 支援 TACACS+、SNMPv3、IEEE 802.1X、HTTPS 和 SSH,強化網路安全

  • 存取控制清單 (ACL) 可增加網路管理的彈性與安全性(ICS-G7800A 系列)

  • SNMPv1/v2c/v3,支援不同層級的網路管理

  • RMON 提供主動且有效率的網路監控

  • 頻寬管理可預防不穩定的網路狀態出現

  • 連接埠鎖定功能可依據 MAC 位址封鎖未經授權的存取

  • Port mirroring 可用於除錯

  • 備援雙交流 (AC) 電源輸入

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    ICS-G7528A-4XG-HV-HV-T: 20
    ICS-G7528A-8GSFP-4XG-HV-HV-T: 12

  • 100/1000BaseSFP Ports

    ICS-G7528A-8GSFP-4XG-HV-HV-T: 8
    ICS-G7528A-20GSFP-4XG-HV-HV-T: 20

  • 10GbE SFP+ Slots

    4

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    4

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.3ae for 10 Gigabit Ethernet

  • Management

    ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control

  • Filter

    802.1Q, GMRP, GVRP, IGMP v1/v2/v3

  • Redundancy Protocols

    Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON

  • Security

    Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, TACACS+

  • Time Management

    NTP Server/Client, SNTP

  • MIB

    Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Industrial Protocols

    EtherNet/IP, Modbus TCP, PROFINET

  • DRAM

    128 MB

  • Flash

    16 MB

  • IGMP Groups

    4096

  • Jumbo Frame Size

    9.6 KB

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • Packet Buffer Size

    12 Mbits

  • VLAN ID Range

    VID 1 to 4094

  • Priority Queues

    8

  • Storage Port

    USB Type A

  • Console Port

    USB-serial console (Type B connector)

  • Alarm Contact Channels

    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • Input Voltage

    110 to 220 VAC, Redundant dual inputs

  • Operating Voltage

    85 to 264 VAC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Input Current

    1/0.5 A @ 110/220 VAC

  • IP Rating

    IP30

  • Dimensions

    440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)

  • Weight

    6470 g (14.26 lb)

  • Installation

    Rack mounting

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 61010-2-201, EN 61010-2-201: ICS-G7528A-4XG-HV-HV-T, ICS-G7528A-8GSFP/20GSFP-4XG-HV-HV-T

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    ICS-G7528A-4XG-HV-HV-T: 444,388 hrs
    ICS-G7528A-8GSFP-4XG-HV-HV-T: 427,108 hrs
    ICS-G7528A-20GSFP-4XG-HV-HV-T: 403,574 hrs

  • Standards

    Telcordia (Bellcore), GB

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
374.0 MB
軟體套件
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年1月31日 2024年1月31日 版本說明
Software Package for MXview One Series (Linux version)
333.4 MB
軟體套件
SHA-512
v1.3.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2024年1月31日 2024年1月31日 版本說明
Modbus File
2.3 KB
軟體套件
SHA-512
v1.0
2023年4月28日 2023年4月28日 版本說明
Software Package for ICS-G7528A Series (SNMP MIB file)
196.3 KB
軟體套件
SHA-512
v5.5
2023年4月24日 2023年4月24日 版本說明
Firmware for ICS-G7528A Series
4.0 MB
韌體
SHA-512
v5.10
2023年4月24日 2023年4月24日 版本說明
Software Package for ICS-G7528A Series (EDS file)
4.0 KB
軟體套件
SHA-512
v1.3
2023年4月24日 2023年4月24日 版本說明
Firmware for ICS-G7528A Series
3.2 MB
韌體
SHA-512
v5.7
2020年2月17日 2020年2月17日 版本說明
EtherNet/IP AOI (28P) for ICS-G7528A Series
82.9 KB
軟體套件
SHA-512
v1.2.0
2018年1月18日 2018年1月18日 版本說明
Moxa ICS/IKS Configuration Migration Tool
118.5 KB
工具程式
SHA-512
v1.1
  • Windows
  • Windows XP
2015年5月20日 2015年5月20日 版本說明
PROFINET GSD file for ICS-G7528A Series
47.8 KB
軟體套件
SHA-512
v4.0
2015年3月26日 2015年3月26日 版本說明
Moxa USB Console Windows Driver
1.2 MB
驅動程式
SHA-512
v1.7.1
  • Windows
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 98 SE
  • Windows ME
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2013年12月10日 2013年12月10日 版本說明
PComm Lite - Serial Communication Tool for Windows
1.6 MB
工具程式
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月14日 2012年5月14日 版本說明
Moxa Ethernet Switch and Video Server Configurator
1.6 MB
工具程式
SHA-512
v5.3
  • Windows
  • Windows XP
2012年4月9日 2012年4月9日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Moxa Managed Ethernet Switch User Manual (UI 2.0, FW 5.x)
7.6 MB
使用者手冊 英文 v2.6 2024年1月18日 2024年1月18日
Moxa Command Line Interface (FW 5.x) Users Manual
2.7 MB
使用者手冊 英文 v1.7 2023年12月8日 2023年12月8日
Industrial Protocol Users Guide
13.1 MB
使用者手冊 英文 v6.5 2023年8月31日 2023年8月31日
QIG for ICS-G7526A/G7528A/G7826A/G7828A-T Series
1.6 MB
QIG 英文 v1.2 2023年8月11日 2023年8月11日
Moxa Managed Ethernet Switch Redundancy Protocol Manual (UI 2.0)
3.0 MB
使用者手冊 英文 v4.3 2023年4月26日 2023年4月26日
Moxa Managed Ethernet Switch (UI 2.0, FW 5.x) User's Manual
5.3 MB
使用者手冊 英文 v2.2 2022年6月29日 2022年6月29日
ICS-G7528A 系列產品資料表
3.2 MB
產品資料表 中文 v1.5 2021年6月15日 2021年6月15日
QiG for ICS-G7526A/G7528A/G7826A/G7828A-T Series
2.5 MB
QIG 英文 v1.1 2021年5月7日 2021年5月7日
2D CAD for ICS-G7528A Series (ICS-G7X28A-4XG-T)
386.1 KB
2D CAD 英文 2019年12月25日 2019年12月25日
2D CAD for ICS-G7528A Series (ICS-G7X28A-4XG-T Model)
177.8 KB
2D CAD 英文 2019年12月25日 2019年12月25日
2D CAD for ICS-G7528A Series (ICS-G7X28A-8GSFP-4XG-T)
464.8 KB
2D CAD 英文 2019年12月25日 2019年12月25日
2D CAD for ICS-G7528A Series (ICS-G7X28A-8GSFP-4XG-T Model)
244.9 KB
2D CAD 英文 2019年12月25日 2019年12月25日
2D CAD for ICS-G7528A Series (ICS-G7X28A-20GSFP-4XG-T)
559.9 KB
2D CAD 英文 2019年12月25日 2019年12月25日
2D CAD for ICS-G7528A Series (ICS-G7X28A-20GSFP-4XG-T Model)
341.7 KB
2D CAD 英文 2019年12月25日 2019年12月25日
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB
技術說明 英文 v1.0 2019年2月12日 2019年2月12日
Moxa Command Line Interface (FW 4.x) User's Manual
2.3 MB
使用者手冊 英文 v5.2 2017年10月19日 2017年10月19日
Moxa Managed Ethernet Switch (UI 2.0, FW 4.x) User's Manual
4.4 MB
使用者手冊 英文 v3.3 2017年7月4日 2017年7月4日

可供選擇的機型 (3)

顯示圖片

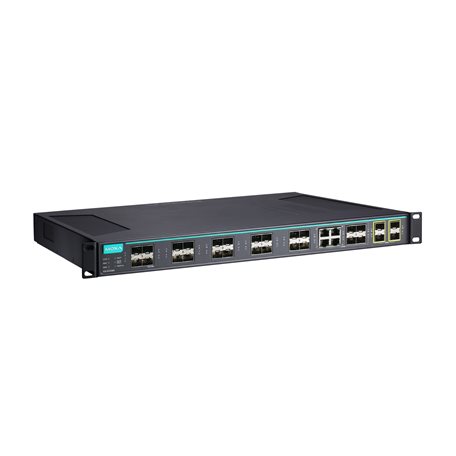

moxa-ics-g7528a-4xg-hv-hv-t-image.jpg | MoxaICS-G7528A-4XG-HV-HV-Tmoxa-ics-g7528a-20gsfp-4xg-hv-hv-t-image.jpg | MoxaICS-G7528A-20GSFP-4XG-HV-HV-Tmoxa-ics-g7528a-8gsfp-4xg-hv-hv-t-image.jpg | MoxaICS-G7528A-8GSFP-4XG-HV-HV-T
Layer222
10GbE SFP+ Slots444
Combo Ports
10/100/1000BaseT(X) or 100/1000BaseSFP+
444
100/1000BaseSFP Slots0208
10/100/1000BaseT(X) Ports
(RJ45 Connector)
20012
Operating Temp.-40 to 75°C-40 to 75°C-40 to 75°C
