MOXA

機架式交換器

Moxa 工業級機架式交換器提供 24 至 52 埠路由和交換功能、基於 IEC 62443 標準的安全功能，以及毫秒級快速多播流量備援的模組化靈活性，可大幅強化部署於都市、運輸、製造和監控應用之 IIoT 基礎設施的效能。

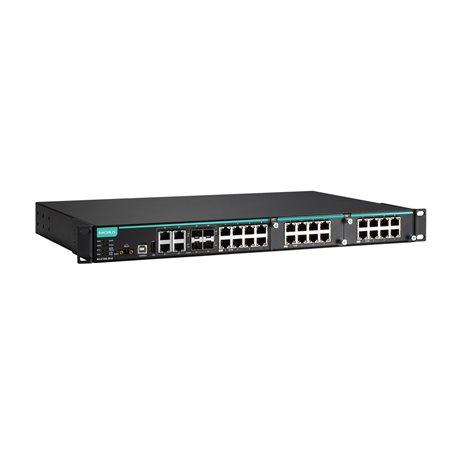

IKS-6728A-8PoE-4GTXSFP-48-48-T
IKS-6728A 系列

Modular managed rackmount Ethernet PoE+ switch with 8 built-in 10/100BaseT(X) PoE+ ports, 4 Gigabit Copper/SFP combo ports, 2 slots for Fast Ethernet PoE+ modules. Support for up to 24+4G ports with 8 built-in PoE+ ports and up to 24 PoE+ ports, 2 isolated power supplies (48 VDC), -40 to 75°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 8

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

    • 4

  • Module

    • 2 modular slots for any 8-port or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base PoE/PoE+, or 100Base SFP See the IM-6700A datasheet for Fast Ethernet module product information.

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features

  • Management

    • Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • Filter

    • 802.1Q, GMRP, GVRP, IGMP v1/v2/v3

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON

  • Security

    • Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, NTP authentication, Port Lock, RADIUS, SSH, TACACS+

  • Time Management

    • NTP Server/Client, SNTP

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP, PROFINET

  • MIB

    • Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Switch Properties

  • IGMP Groups

    • 2048

  • Jumbo Frame Size

    • 9.6 KB

  • MAC Table Size

    • 16 K

  • Max. No. of VLANs

    • 64

  • Packet Buffer Size

    • 12 Mbits

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
USB Interface

  • Storage Port

    • USB Type A
Serial Interface

  • Console Port

    • USB-serial console (Type B connector)
Power Parameters

  • Input Voltage

    • 48 VDC, Redundant dual inputs

  • Operating Voltage

    • 36 to 72 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported

  • Input Current

    • 0.53 A @ 48 VDC
Physical Characteristics

  • IP Rating

    • IP30

  • Dimensions

    • 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)

  • Weight

    • 4100 g (9.05 lb)

  • Installation

    • Rack mounting
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Freefall

    • IEC 60068-2-32

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50121-4

  • Safety

    • EN 60950-1, UL 60950-1

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 215,994 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
