1 relay output with current carrying capacity of 1 A @ 24 VDC

6
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

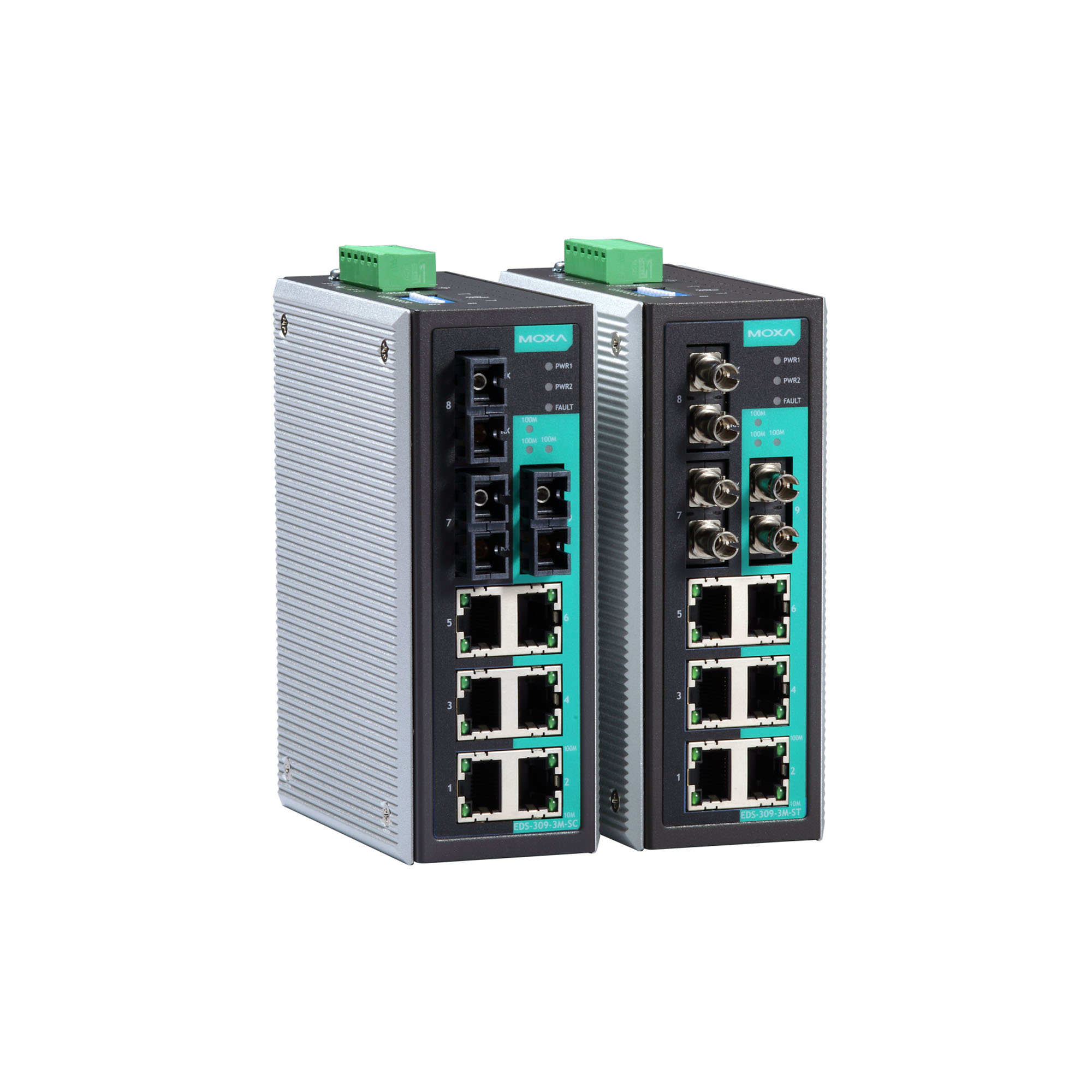

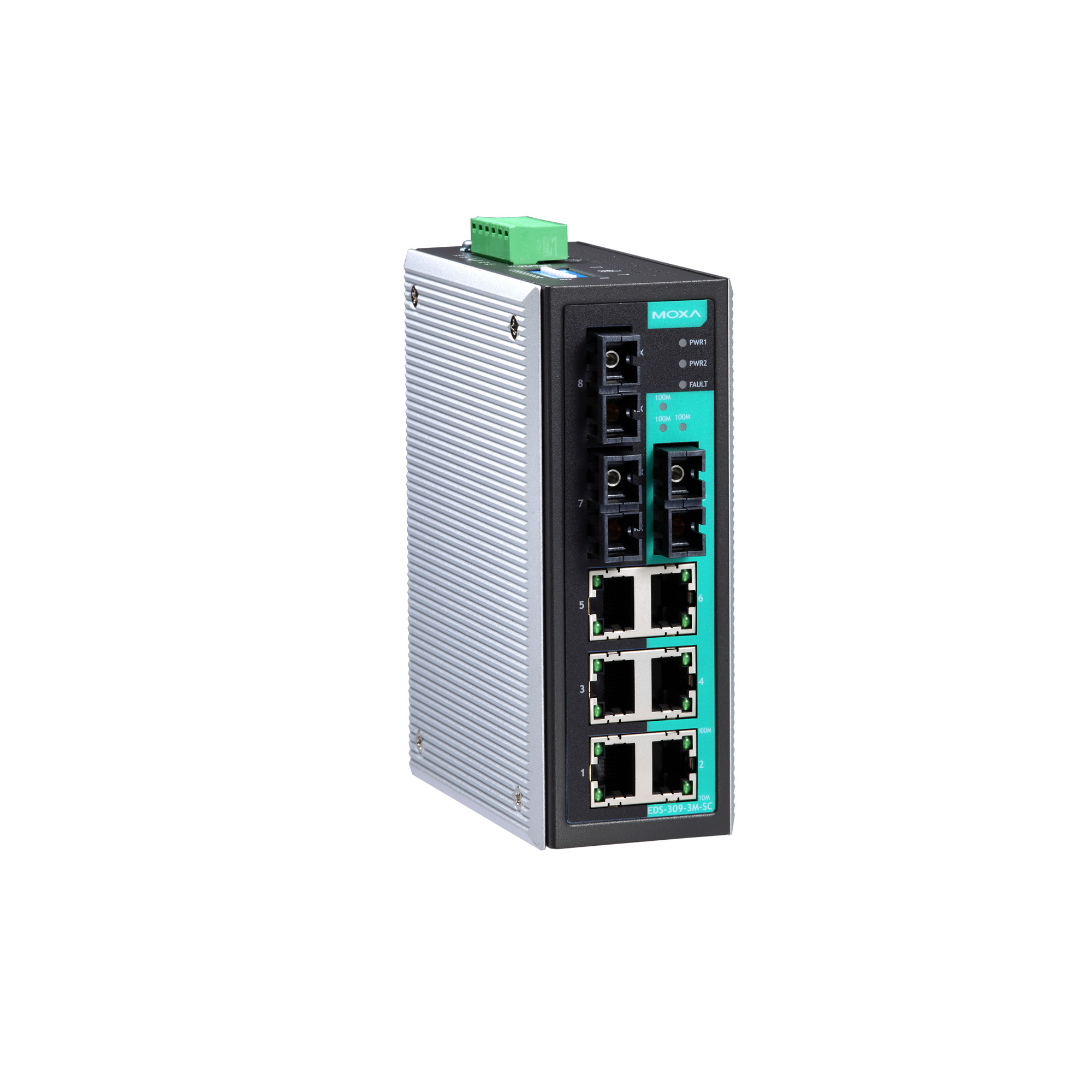

EDS-309-3M-SC Series: 3

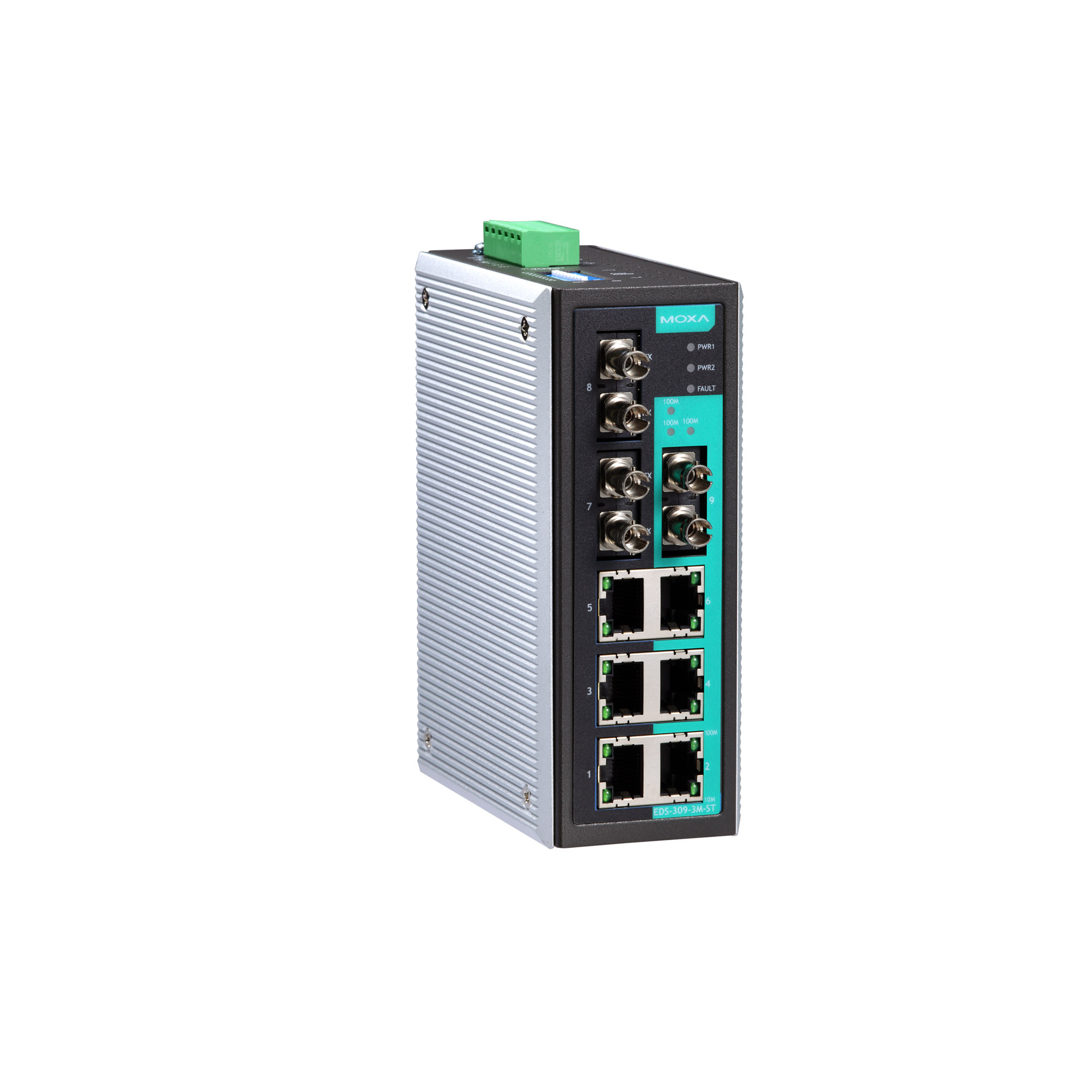

EDS-309-3M-ST Series: 3

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control

1 K

512 kbits

Store and Forward

Port break alarm

0.26 A @ 24 VDC

1 removable 6-contact terminal block(s)

9.6 to 60 VDC

Redundant dual inputs, 12/24/48 VDC

Supported

Supported

Metal

IP30

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

790 g (1.75 lb)

DIN-rail mounting, Wall mounting (with optional kit)

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp.Models: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

ATEX, Class I Division 2

CISPR 32, FCC Part 15B Class A

EN 55032/24

IEC 60068-2-6

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

UL 508, UL 60950-1, CSA C22.2 No. 60950-1

IEC 60068-2-27

IEC 60068-2-32

396,595 hrs

MIL-HDBK-217F

5 years

See www.moxa.com/tw/warranty
