MOXA

EN 50155 路由器

TN 系列路由器專為軌道車輛骨幹網路而設計，旗下產品包括具有 4 個旁路中繼骨幹網路埠的高效能 M12 路由器。它們具備 NAT 和路由功能，可簡化跨網路應用的部署。

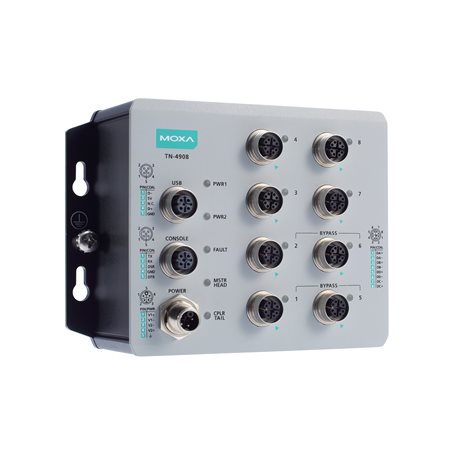

TN-4908-ETBN-4GTX-4GTXBP-WV-CT-T
TN-4900 系列

IEC 61375 ETBN industrial secure router with 8 Gigabit Ethernet ports including 4 Gigabit Ethernet ports with bypass relay, 24 to 110 VDC power input, IP40, -40 to 70°C operating temperature, conformal coating

Ethernet Interface

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 4

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 4

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    • 4

  • Standards

    • IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.1X for authentication
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.3x for flow control
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.1p for Class of Service
      IEEE 802.3 for 10BaseT
Ethernet Software Features

  • Configuration Options

    • Command Line Interface (CLI) through Serial/Telnet/SSH
      Web Console (HTTP/HTTPS)
      Windows Utility

  • Filter

    • IGMP v1/v2
      Static Multicast
      802.1Q

  • Management

    • Back Pressure Flow Control
      SNMP Inform
      LLDP
      Syslog
      HTTP
      Flow control
      SMTP
      QoS/CoS/ToS
      Port Mirror
      SNMP Trap
      SNMPv1/v2c/v3
      IPv4
      Telnet
      DHCP Server
      TFTP
      RARP
      Account Management

  • Redundancy Protocols

    • RSTP
      Static Port Trunk
      Turbo Ring v2
      STP

  • Routing Redundancy

    • VRRP

  • Security

    • Port Lock
      SSH
      Broadcast storm protection
      TACACS+
      Local Account Accessibility
      HTTPS/SSL

  • Time Management

    • SNTP
      NTP Server/Client

  • Unicast Routing

    • RIPV1/V2
      OSPF
      Static Route

  • Multicast Routing

    • Static Route
DoS and DDoS Protection

  • Technology

    • NMAP-ID Scan
      ARP-Flood
      SYN/FIN Scan
      Null Scan
      ICMP-Death
      FIN Scan
      SYN-Flood
      NEWWithout-SYN Scan
      Xmas Scan
      NMAP-Xmas Scan
      SYN/RST Scan
Firewall

  • Filter

    • ICMP
      MAC address
      Ethernet protocols
      Ports
      IP address
      DDoS

  • Quick Automation Profiles

    • Telnet
      HTTP
      RADIUS
      PROFINET
      EtherCAT
      IPsec
      SSH
      PPTP
      IEC 60870-104
      FOUNDATION Fieldbus
      L2TP
      EtherNet/IP
      LonWorks
      DNP
      Modbus TCP
      FTP

  • Stateful Inspection

    • Router firewall
      Transparent (bridge) firewall

  • Throughput

    • Max. 500,000 packets per second
Switch Properties

  • IGMP Groups

    • 256

  • MAC Table Size

    • 16 K

  • Max. No. of VLANs

    • 16

  • VLAN ID Range

    • VID 1 to 4094
LED Interface

  • LED Indicators

    • STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE
NAT

  • Features

    • 1-to-1
      Port forwarding
      N-to-1
Serial Interface

  • Console Port

    • RS-232 (M12 B-coded 5-pin female connector)
USB Interface

  • M12 Connector

    • M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters

  • Input Current

    • 0.68 A @ 24 V

  • Input Voltage

    • 24/36/48/72/96/110 VDC
      Redundant dual inputs
      No. of power inputs: 2

  • Operating Voltage

    • 16.8 to 137.5 VDC

  • Overload Current Protection

    • Supported

  • Power Connector

    • M12 K-coded 5-pin male connector

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 160 x 115 x 70 mm (6.30 x 4.53 x 2.76 in)

  • IP Rating

    • IP40

  • Weight

    • 1120 g (2.47 lb)

  • Installation

    • Wall mounting
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032, EN 55035

  • EMS

    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Freefall

    • IEC 60068-2-31

  • Radio Frequency

    • FCC

  • Railway

    • EN 50121-4
      EN 50155
      IEC 60571

  • Railway Fire Protection

    • EN 45545-2

  • Safety

    • IEC 62368, UL 62368

  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 648,903 hrs

  • Standards

    • Telcordia SR332
