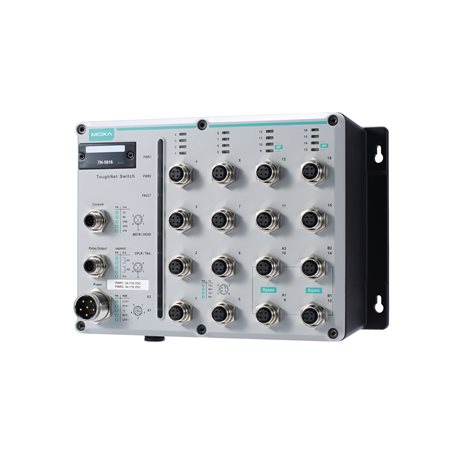

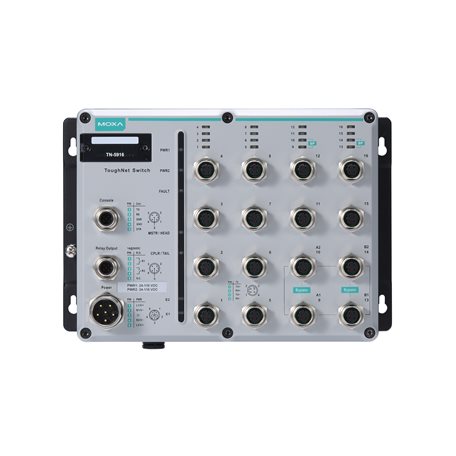

TN-5900 系列

EN 50155 16 埠 NAT 路由器

moxa-tn-5900-series-image-1-(1).jpg | Moxa
moxa-tn-5900-series-image-2-(1).jpg | Moxa
moxa-tn-5900-series-image-3-(1).jpg | Moxa

特色與優點

  • 專為軌道車輛骨幹網路所設計
  • 雙旁路繼電器
  • 隔離式電源輸入範圍介於 24 至 110 VDC
  • 符合所有 EN 50155 強制性測試項目 本產品適用於鐵路應用,符合 EN 50155 標準的定義。如需更詳細的聲明,請按一下此處:www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 至 75°C 工作溫度範圍
  • Turbo Ring 及 RSTP/STP 網路備援

認證

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

ToughNet TN-5900 系列路由器專為軌道車輛主幹網路所設計,是一款具有四個旁路繼電器骨幹連接埠的高效能 M12 路由器。此系列路由器支援 NAT 和路由功能,便於用戶在網路上部署應用程式。TN-5900 系列路由器採用 M12 和其他圓形連接器,可確保緊密、耐用的連線能力,在環境干擾 (例如振動和衝擊) 下能夠保證穩定性。

TN-5900 系列路由器提供 24 至 110 VDC 的寬電源輸入範圍。TN-5900 系列交換器在 -40 至 75°C 的更寬工作溫度範圍內運作,並符合 EN 50155/50121-4 的強制要求,因此適合多種工業應用。

其他特色與優點

  • 路由功能可將大型網路分成階層式子網路,便於資料和資訊在網路間進行傳輸

  • NAT 使 IP 管理更加容易,因為不同車廂的終端設備可以使用相同 IP 位址

  • 領先業界的 EN 50155 乙太網路路由器,適用於軌道車輛應用

  • Turbo Ring 及 RSTP/STP 網路備援

  • IGMP V1/V2 窺探用於篩選多點傳送流量

  • IEEE 802.1Q VLAN 可輕鬆規劃網路

  • QoS (IEEE 802.1p/1Q 和 TOS/DiffServ) 提高可靠性

  • 面板安裝或 DIN 軌道安裝能力

  • SNMPv3、HTTPS 及 SSH 加強網路安全性

  • SNMP v1/v2c/v3 適用不同層級的網路管理

  • 連接埠鏡像可用於線上偵錯

  • 發生例外狀況時透過電子郵件和繼電器輸出自動發出警告

  • 線路交換快速恢復

  • 自動恢復連線設備的 IP 位址

  • LLDP 適用於在網路管理軟體中進行自動拓撲探索

  • 可透過網頁瀏覽器、Telnet/序列主控台、CLI 和 Windows 公共程式進行設定

  • Alarm Contact Channels

    2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    12

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay)

    4

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.3 for 10BaseT
    IEEE 802.3ad for Static Port Trunk
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control

  • Configuration Options

    Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Browser (HTTP/HTTPS), Windows Utility

  • Filter

    802.1Q, IGMP v1/v2, Static Multicast

  • Management

    Back Pressure Flow Control, DHCP server, Flow control, HTTP, IPv4, LLDP, Port Mirror, QoS/CoS/ToS, RARP, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Account Management

  • MIB

    RFC1213

  • Redundancy Protocols

    Link Aggregation, RSTP, Static Port Trunk, STP, Turbo Ring v2

  • Routing Redundancy

    VRRP

  • Security

    Broadcast storm protection Not supported in FW v1.2. , HTTPS/SSL, Local Account Accessibility, TACACS+ Not supported in FW v1.2. , Port Lock, SSH

  • Time Management

    NTP Server/Client, SNTP

  • Unicast Routing

    Static Route, RIPV1/V2

  • IGMP Groups

    256

  • MAC Table Size

    8 K

  • Max. No. of VLANs

    16

  • VLAN ID Range

    VID 1 to 4094

  • LED Indicators

    STATE, PWR1, PWR2, FAULT, 10/100M

  • Features

    1-to-1, N-to-1, Port forwarding

  • Console Port

    M12 A-coded male connector

  • Input Current

    0.85 A @ 24 VDC, 0.17 A @ 110 VDC

  • Input Voltage

    24/36/48/72/96/110 VDC, Redundant dual inputs, No. of power inputs: 2

  • Operating Voltage

    16.8 to 137.5 VDC

  • Overload Current Protection

    Supported

  • Power Connector

    M23 connector

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP54

  • Dimensions

    250 x 175.8 x 116.3 mm (9.84 x 6.92 x 4.58 in)

  • Weight

    4,030 g (8.88 lb)

  • Installation

    DIN-rail mounting (optional), Wall mounting

  • Protection

    TN-5916-WV-CT-T: PCB conformal coating

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

  • EMC

    EN 55032/24

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Radio Frequency

    FCC

  • Railway

    EN 50121-4, EN 50155, IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    IEC 60950-1, UL 61010-2-201

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    556,025 hrs

  • Standards

    Telcordia SR332
