AWK-3251A-RCC 系列

Wi-Fi 5 鐵路無線存取點/用戶端

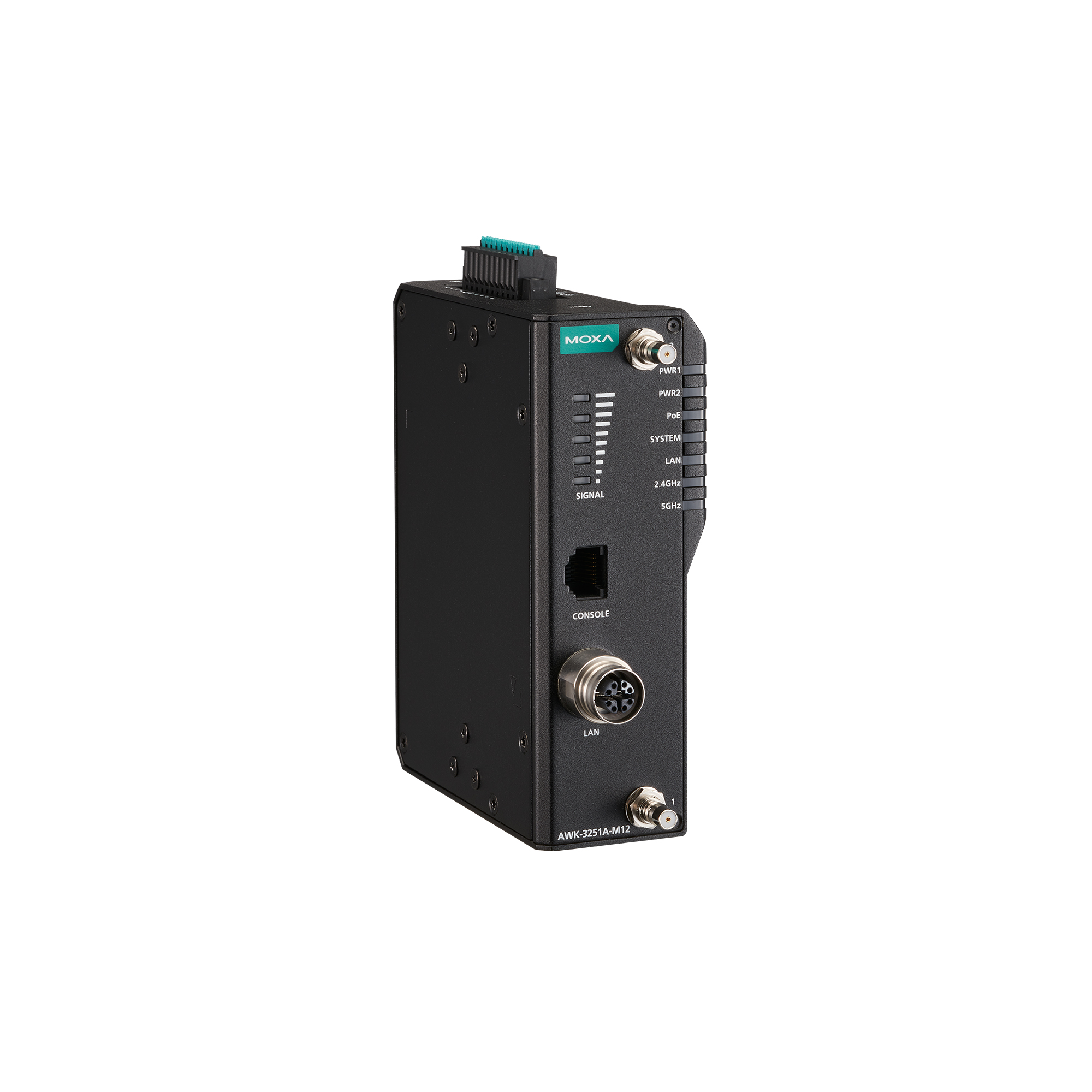

moxa-awk-3251a-rcc-series-image-(1).jpg | Moxa

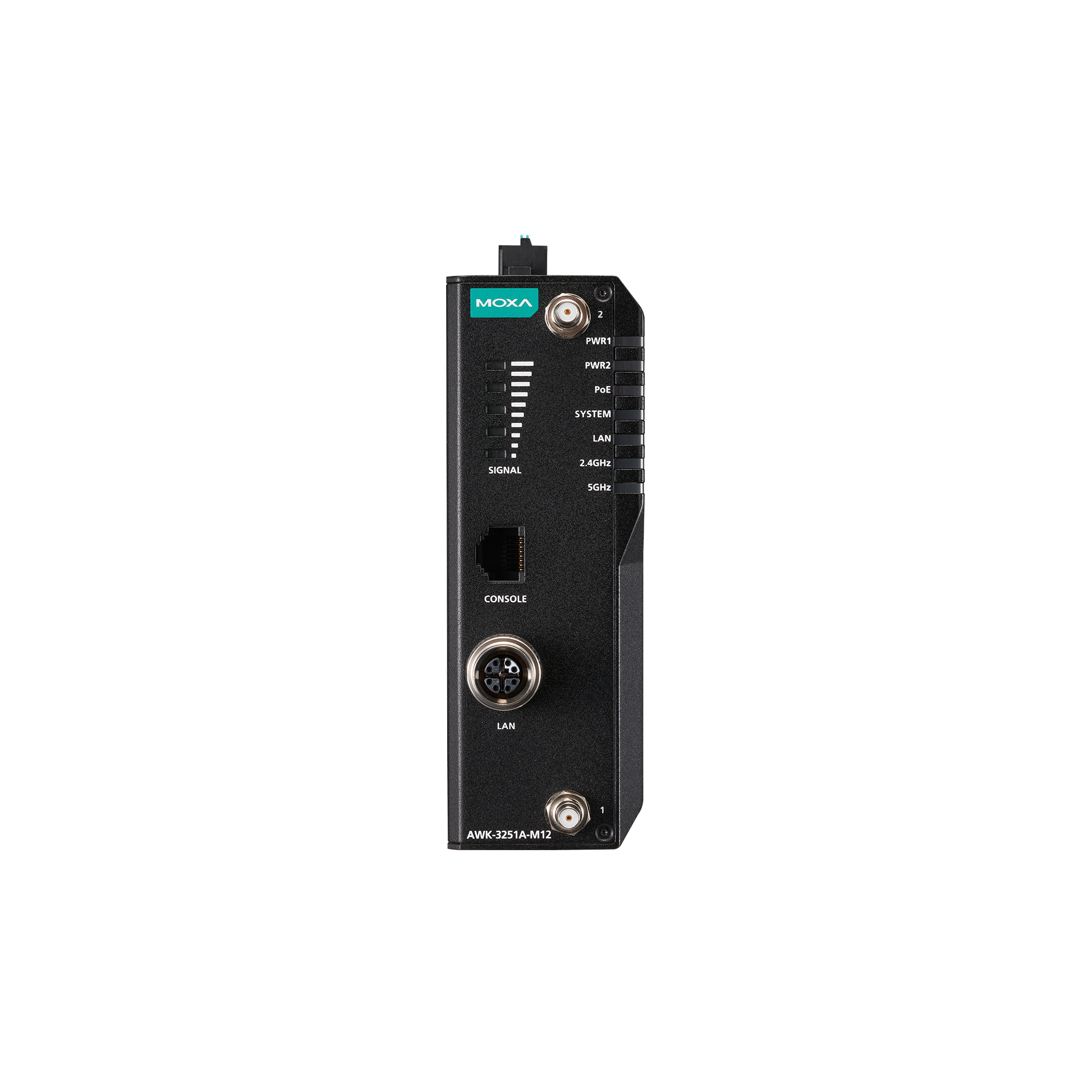

moxa-awk-3251a-rcc-series-image-1-(1).jpg | Moxa

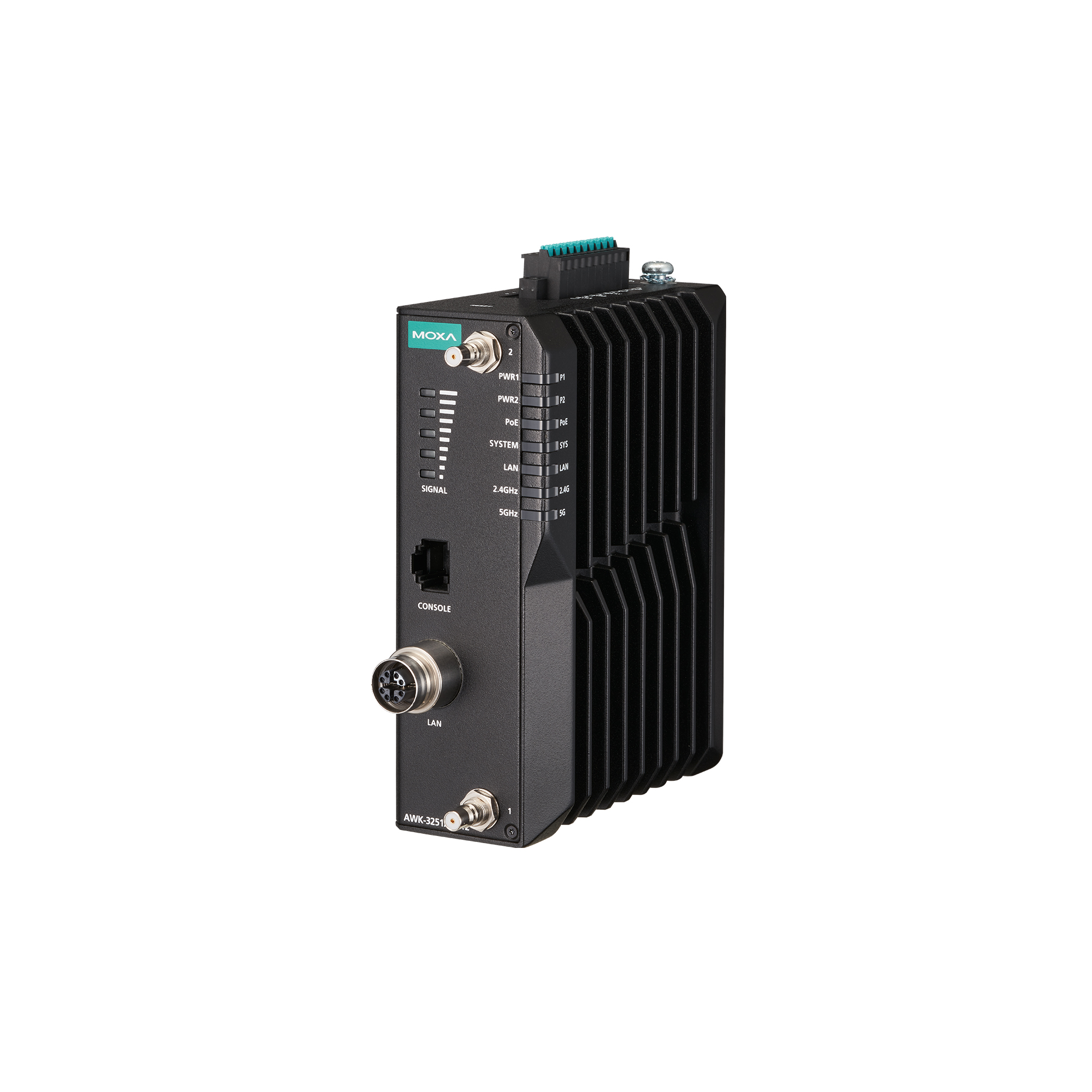

moxa-awk-3251a-rcc-series-image-2-(1).jpg | Moxa

特色與優點

  • IEEE 802.11a/b/g/n/ac Wave 2 Ap/客戶端
  • 並行雙頻 Wi-Fi,聚合資料速率高達 1.267 Gbps
  • 最新的 WPA3 加密增強無線網路安全性
  • 專門為軌道的車廂間通訊而設計
  • 毫秒等級的用戶端 Turbo Roaming 漫遊 此處所指的 Turbo Roaming 快速漫遊復原時間是在最佳狀態下,配置無干擾 20 MHz RF 頻道、WPA2-PSK 安全性和預設的 Turbo Roaming 快速漫遊參數,所得到的測試結果平均值。用戶端設定為在 100 Kbps 流量負載下 3 個頻道漫遊。其他情況也有可能會影響漫遊的效能。若想了解更多關於 Turbo Roaming 快速漫遊的參數設定,請參閱產品手冊。
  • 內建 2.4 GHz 和 5 GHz 帶通濾波器,實現更可靠的無線連接
  • -40 至 75°C 寬操作溫度範圍(-T 型號)

認證

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-en50155-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

AWK-3251A-RCC 系列工業無線 AP/客戶端 透過 IEEE 802.11ac 技術滿足日益增長 的加速資料傳輸需求。自動車廂連線 (ACC) 功能可輕鬆部署無線設備並且增加無線車廂骨幹網路的可靠性。AWK-3251A-RCC 系列也針對乘客 Wi-Fi 服務進行了最佳化,並支援多達 120 個用戶端連線。AWK-3251A-RCC 系列符合 EN 50155 標準規範的部分項目,涵蓋操作溫度、電源輸入電壓、突波、ESD 和震動,使此產品適用於多種的工業應用。AWK-3251A-RCC 系列可透過 PoE 供電,方便靈活部署,並可在 AP 模式下同時在 2.4 和 5 GHz 頻段上運作。

進階 802.11ac 工業無線解決方案

  • 符合 802.11a/b/g/n/ac 標準的鐵路雙頻存取點,聚合資料速率高達 1.267 Gbps

  • WPA3 加密增強無線網路安全性

  • 支援 ACC 技術,實現車廂間無線連接

  • 支援多達 120 個設備連線和客戶端隔離

先進無線技術

  • 基於用戶端的 Turbo Roaming 快速漫遊,達到無縫漫遊的目的。 此處所指的 Turbo Roaming 快速漫遊復原時間是在最佳狀態下,配置無干擾 20 MHz RF 頻道、WPA2-PSK 安全性和預設的 Turbo Roaming 快速漫遊參數,所得到的測試結果平均值。 用戶端設定為在 100 Kbps 流量負載下 3 個頻道漫遊。其他情況也有可能會影響漫遊的效能。若想了解更多關於 Turbo Roaming 快速漫遊的參數設定,請參閱產品手冊。 在 AP 間的漫遊復原時間 < 150 毫秒 (用戶端模式)

工業級耐用性

  • 整合式天線隔離設計可提供保護,防止外部電氣干擾

  • -40 至 75°C 的寬廣操作溫度型號 (-T) 可在惡劣環境中提供順暢的無線通訊

  • WLAN Standards

    2.4 GHz: 802.11b/g/n with 256 QAM support
    5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support

  • Frequency Band for US (20 MHz operating channels)

    AWK-3251A-RCC US Models Only:
    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) 支援DFS(動態頻率選擇)頻道:在 AP 模式下,當設備偵測到一個雷達信號,會自動 切換到另一個頻道。然而,根據規定,當頻道切換後,若要重啟服務,需要 60 秒的可用性檢查期。
    5.500 to 5.700 GHz (11 channels) 支援DFS(動態頻率選擇)頻道:在 AP 模式下,當設備偵測到一個雷達信號,會自動 切換到另一個頻道。然而,根據規定,當頻道切換後,若要重啟服務,需要 60 秒的可用性檢查期。
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for UN (20 MHz operating channels)

    AWK-3251A-RCC UN Models Only:
    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels) 支援 DFS(動態頻率選擇)頻道:在 AP 模式下,當設備偵測到一個雷達信號,會自動 切換到另一個頻道。然而,根據規定,當頻道切換後,若要重啟服務,需要 60 秒的可用性檢查期。
    5.500 to 5.700 GHz (11 channels) 支援DFS(動態頻率選擇)頻道:在 AP 模式下,當設備偵測到一個雷達信號,會自動 切換到另一個頻道。然而,根據規定,當頻道切換後,若要重啟服務,需要 60 秒的可用性檢查期。
    5.745 to 5.825 GHz (5 channels)
    Available channels change depending on the selected country or region code.

  • Wireless Security

    WEP encryption (64-bit and 128-bit)
    WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    WPA/WPA2/WPA3-Personal

  • Transmission Rate

    2.4 GHz:
    802.11b: 1 to 11 Mbps
    802.11g: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps
    802.11ac: 6.5 to 400 Mbps

    5 GHz:
    802.11a: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps
    802.11ac: 6.5 to 867 Mbps

  • Transmitter Power for 802.11a

    22±1.5 dBm @ 6 Mbps
    22±1.5 dBm @ 9 Mbps
    22±1.5 dBm @ 12 Mbps
    20.5±1.5 dBm @ 18 Mbps
    20.5±1.5 dBm @ 24 Mbps
    20.5±1.5 dBm @ 36 Mbps
    20±1.5 dBm @ 48 Mbps
    20±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz)

    22±1.5 dBm @ MCS0 20 MHz
    22±1.5 dBm @ MCS1 20 MHz
    22±1.5 dBm @ MCS2 20 MHz
    20±1.5 dBm @ MCS3 20 MHz
    19.5±1.5 dBm @ MCS4 20 MHz
    19.5±1.5 dBm @ MCS5 20 MHz
    19.5±1.5 dBm @ MCS6 20 MHz
    19±1.5 dBm @ MCS7 20 MHz
    22±1.5 dBm @ MCS8 20 MHz
    22±1.5 dBm @ MCS9 20 MHz
    22±1.5 dBm @ MCS10 20 MHz
    20±1.5 dBm @ MCS11 20 MHz
    19.5±1.5 dBm @ MCS12 20 MHz
    19.5±1.5 dBm @ MCS13 20 MHz
    19.5±1.5 dBm @ MCS14 20 MHz
    19±1.5 dBm @ MCS15 20 MHz
    21±1.5 dBm @ MCS0 40 MHz
    21±1.5 dBm @ MCS1 40 MHz
    21±1.5 dBm @ MCS2 40 MHz
    19.5±1.5 dBm @ MCS3 40 MHz
    19±1.5 dBm @ MCS4 40 MHz
    19±1.5 dBm @ MCS5 40 MHz
    19.5±1.5 dBm @ MCS6 40 MHz
    19±1.5 dBm @ MCS7 40 MHz
    21±1.5 dBm @ MCS8 40 MHz
    21±1.5 dBm @ MCS9 40 MHz
    21±1.5 dBm @ MCS10 40 MHz
    19.5±1.5 dBm @ MCS11 40 MHz
    19±1.5 dBm @ MCS12 40 MHz
    19±1.5 dBm @ MCS13 40 MHz
    19±1.5 dBm @ MCS14 40 MHz
    19±1.5 dBm @ MCS15 40 MHz

  • Transmitter Power for 802.11ac (5 GHz, Dual Chain)

    21.5±1.5 dBm @ MCS0 20 MHz
    21.5±1.5 dBm @ MCS1 20 MHz
    21±1.5 dBm @ MCS2 20 MHz
    20±1.5 dBm @ MCS3 20 MHz
    19.5±1.5 dBm @ MCS4 20 MHz
    19.5±1.5 dBm @ MCS5 20 MHz
    19.5±1.5 dBm @ MCS6 20 MHz
    19±1.5 dBm @ MCS7 20 MHz
    19±1.5 dBm @ MCS8 20 MHz
    21±1.5 dBm @ MCS0 40 MHz
    21±1.5 dBm @ MCS1 40 MHz
    21±1.5 dBm @ MCS2 40 MHz
    19.5±1.5 dBm @ MCS3 40 MHz
    19±1.5 dBm @ MCS4 40 MHz
    19±1.5 dBm @ MCS5 40 MHz
    19±1.5 dBm @ MCS6 40 MHz
    19±1.5 dBm @ MCS7 40 MHz
    18.5±1.5 dBm @ MCS8 40 MHz
    18±1.5 dBm @ MCS9 40 MHz
    20±1.5 dBm @ MCS0 80 MHz
    20±1.5 dBm @ MCS1 80 MHz
    20±1.5 dBm @ MCS2 80 MHz
    17±1.5 dBm @ MCS3 80 MHz
    17±1.5 dBm @ MCS4 80 MHz
    17±1.5 dBm @ MCS5 80 MHz
    17±1.5 dBm @ MCS6 80 MHz
    17±1.5 dBm @ MCS7 80 MHz
    17±1.5 dBm @ MCS8 80 MHz
    17±1.5 dBm @ MCS9 80 MHz

  • Transmitter Power for 802.11b

    25.5±1.5 dBm @ 1 Mbps
    25.5±1.5 dBm @ 2 Mbps
    26±1.5 dBm @ 5.5 Mbps
    26±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    26±1.5 dBm @ 6 Mbps
    26±1.5 dBm @ 9 Mbps
    26±1.5 dBm @ 12 Mbps
    25±1.5 dBm @ 18 Mbps
    25±1.5 dBm @ 24 Mbps
    24.5±1.5 dBm @ 36 Mbps
    23.5±1.5 dBm @ 48 Mbps
    23±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    24.5±1.5 dBm @ MCS0 20 MHz
    24.5±1.5 dBm @ MCS1 20 MHz
    24±1.5 dBm @ MCS2 20 MHz
    24±1.5 dBm @ MCS3 20 MHz
    23.5±1.5 dBm @ MCS4 20 MHz
    23.5±1.5 dBm @ MCS5 20 MHz
    22.5±1.5 dBm @ MCS6 20 MHz
    22±1.5 dBm @ MCS7 20 MHz
    24±1.5 dBm @ MCS8 20 MHz
    24.5±1.5 dBm @ MCS9 20 MHz
    24±1.5 dBm @ MCS10 20 MHz
    24±1.5 dBm @ MCS11 20 MHz
    23.5±1.5 dBm @ MCS12 20 MHz
    23±1.5 dBm @ MCS13 20 MHz
    22±1.5 dBm @ MCS14 20 MHz
    21.5±1.5 dBm @ MCS15 20 MHz
    24±1.5 dBm @ MCS0 40 MHz
    24±1.5 dBm @ MCS1 40 MHz
    24±1.5 dBm @ MCS2 40 MHz
    24±1.5 dBm @ MCS3 40 MHz
    23.5±1.5 dBm @ MCS4 40 MHz
    23.5±1.5 dBm @ MCS5 40 MHz
    22.5±1.5 dBm @ MCS6 40 MHz
    22±1.5 dBm @ MCS7 40 MHz
    24±1.5 dBm @ MCS8 40 MHz
    24±1.5 dBm @ MCS9 40 MHz
    24±1.5 dBm @ MCS10 40 MHz
    24±1.5 dBm @ MCS11 40 MHz
    23.5±1.5 dBm @ MCS12 40 MHz
    23±1.5 dBm @ MCS13 40 MHz
    22.5±1.5 dBm @ MCS14 40 MHz
    21.5±1.5 dBm @ MCS15 40 MHz

  • Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

    25±1.5 dBm @ MCS0 20 MHz
    25±1.5 dBm @ MCS1 20 MHz
    25±1.5 dBm @ MCS2 20 MHz
    25±1.5 dBm @ MCS3 20 MHz
    24±1.5 dBm @ MCS4 20 MHz
    23.5±1.5 dBm @ MCS5 20 MHz
    22.5±1.5 dBm @ MCS6 20 MHz
    22±1.5 dBm @ MCS7 20 MHz
    21.5±1.5 dBm @ MCS8 20 MHz
    25±1.5 dBm @ MCS0 40 MHz
    25±1.5 dBm @ MCS1 40 MHz
    25±1.5 dBm @ MCS2 40 MHz
    25±1.5 dBm @ MCS3 40 MHz
    24±1.5 dBm @ MCS4 40 MHz
    23.5±1.5 dBm @ MCS5 40 MHz
    22.5±1.5 dBm @ MCS6 40 MHz
    22±1.5 dBm @ MCS7 40 MHz
    21.5±1.5 dBm @ MCS8 40 MHz
    21±1.5 dBm @ MCS9 40 MHz

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -88 @ 6 Mbps
    Typ. -88 @ 9 Mbps
    Typ. -85 @ 12 Mbps
    Typ. -84 @ 18 Mbps
    Typ. -81 @ 24 Mbps
    Typ. -77 @ 36 Mbps
    Typ. -74 @ 48 Mbps
    Typ. -72 @ 54 Mbps

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -88 dBm @ MCS0 20 MHz
    Typ. -84 dBm @ MCS1 20 MHz
    Typ. -83 dBm @ MCS2 20 MHz
    Typ. -80 dBm @ MCS3 20 MHz
    Typ. -76 dBm @ MCS4 20 MHz
    Typ. -72 dBm @ MCS5 20 MHz
    Typ. -70 dBm @ MCS6 20 MHz
    Typ. -68 dBm @ MCS7 20 MHz
    Typ. -89 dBm @ MCS8 20 MHz
    Typ. -87 dBm @ MCS9 20 MHz
    Typ. -85 dBm @ MCS10 20 MHz
    Typ. -81 dBm @ MCS11 20 MHz
    Typ. -78 dBm @ MCS12 20 MHz
    Typ. -74 dBm @ MCS13 20 MHz
    Typ. -73 dBm @ MCS14 20 MHz
    Typ. -71 dBm @ MCS15 20 MHz
    Typ. -85 dBm @ MCS0 40 MHz
    Typ. -82 dBm @ MCS1 40 MHz
    Typ. -79 dBm @ MCS2 40 MHz
    Typ. -77 dBm @ MCS3 40 MHz
    Typ. -73 dBm @ MCS4 40 MHz
    Typ. -69 dBm @ MCS5 40 MHz
    Typ. -68 dBm @ MCS6 40 MHz
    Typ. -66 dBm @ MCS7 40 MHz
    Typ. -87 dBm @ MCS8 40 MHz
    Typ. -84 dBm @ MCS9 40 MHz
    Typ. -82 dBm @ MCS10 40 MHz
    Typ. -79 dBm @ MCS11 40 MHz
    Typ. -75 dBm @ MCS12 40 MHz
    Typ. -72 dBm @ MCS13 40 MHz
    Typ. -70 dBm @ MCS14 40 MHz
    Typ. -69 dBm @ MCS15 40 MHz

  • Receiver Sensitivity for 802.11ac (5 GHz, Dual Chain)

    Typ. -89 dBm @ MCS0 20 MHz
    Typ. -86 dBm @ MCS1 20 MHz
    Typ. -84 dBm @ MCS2 20 MHz
    Typ. -81 dBm @ MCS3 20 MHz
    Typ. -78 dBm @ MCS4 20 MHz
    Typ. -74 dBm @ MCS5 20 MHz
    Typ. -72 dBm @ MCS6 20 MHz
    Typ. -71 dBm @ MCS7 20 MHz
    Typ. -67 dBm @ MCS8 20 MHz
    Typ. -86 dBm @ MCS0 40 MHz
    Typ. -84 dBm @ MCS1 40 MHz
    Typ. -81 dBm @ MCS2 40 MHz
    Typ. -78 dBm @ MCS3 40 MHz
    Typ. -75 dBm @ MCS4 40 MHz
    Typ. -71 dBm @ MCS5 40 MHz
    Typ. -70 dBm @ MCS6 40 MHz
    Typ. -69 dBm @ MCS7 40 MHz
    Typ. -64 dBm @ MCS8 40 MHz
    Typ. -63 dBm @ MCS9 40 MHz
    Typ. -84 dBm @ MCS0 80 MHz
    Typ. -81 dBm @ MCS1 80 MHz
    Typ. -79 dBm @ MCS2 80 MHz
    Typ. -76 dBm @ MCS3 80 MHz
    Typ. -73 dBm @ MCS4 80 MHz
    Typ. -69 dBm @ MCS5 80 MHz
    Typ. -67 dBm @ MCS6 80 MHz
    Typ. -65 dBm @ MCS7 80 MHz
    Typ. -61 dBm @ MCS8 80 MHz
    Typ. -60 dBm @ MCS9 80 MHz

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -96 dBm @ 1 Mbps
    Typ. -92 dBm @ 2 Mbps
    Typ. -91 dBm @ 5.5 Mbps
    Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -90 dBm @ 6 Mbps
    Typ. -89 dBm @ 9 Mbps
    Typ. -88 dBm @ 12 Mbps
    Typ. -86 dBm @ 18 Mbps
    Typ. -82 dBm @ 24 Mbps
    Typ. -79 dBm @ 36 Mbps
    Typ. -75 dBm @ 48 Mbps
    Typ. -73 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -89 dBm @ MCS0 20 MHz
    Typ. -86 dBm @ MCS1 20 MHz
    Typ. -84 dBm @ MCS2 20 MHz
    Typ. -81 dBm @ MCS3 20 MHz
    Typ. -77 dBm @ MCS4 20 MHz
    Typ. -73 dBm @ MCS5 20 MHz
    Typ. -72 dBm @ MCS6 20 MHz
    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -91 dBm @ MCS8 20 MHz
    Typ. -88 dBm @ MCS9 20 MHz
    Typ. -86 dBm @ MCS10 20 MHz
    Typ. -82 dBm @ MCS11 20 MHz
    Typ. -80 dBm @ MCS12 20 MHz
    Typ. -75 dBm @ MCS13 20 MHz
    Typ. -74 dBm @ MCS14 20 MHz
    Typ. -73 dBm @ MCS15 20 MHz
    Typ. -87 dBm @ MCS0 40 MHz
    Typ. -84 dBm @ MCS1 40 MHz
    Typ. -82 dBm @ MCS2 40 MHz
    Typ. -78 dBm @ MCS3 40 MHz
    Typ. -75 dBm @ MCS4 40 MHz
    Typ. -71 dBm @ MCS5 40 MHz
    Typ. -70 dBm @ MCS6 40 MHz
    Typ. -68 dBm @ MCS7 40 MHz
    Typ. -88 dBm @ MCS8 40 MHz
    Typ. -85 dBm @ MCS9 40 MHz
    Typ. -83 dBm @ MCS10 40 MHz
    Typ. -80 dBm @ MCS11 40 MHz
    Typ. -77 dBm @ MCS12 40 MHz
    Typ. -73 dBm @ MCS13 40 MHz
    Typ. -71 dBm @ MCS14 40 MHz
    Typ. -70 dBm @ MCS15 40 MHz

  • Receiver Sensitivity for 802.11ac (2.4 GHz, Dual Chain)

    Typ. -90 dBm @ MCS0 20 MHz
    Typ. -87 dBm @ MCS1 20 MHz
    Typ. -85 dBm @ MCS2 20 MHz
    Typ. -82 dBm @ MCS3 20 MHz
    Typ. -79 dBm @ MCS4 20 MHz
    Typ. -75 dBm @ MCS5 20 MHz
    Typ. -73 dBm @ MCS6 20 MHz
    Typ. -72 dBm @ MCS7 20 MHz
    Typ. -68 dBm @ MCS8 20 MHz
    Typ. -88 dBm @ MCS0 40 MHz
    Typ. -85 dBm @ MCS1 40 MHz
    Typ. -83 dBm @ MCS2 40 MHz
    Typ. -80 dBm @ MCS3 40 MHz
    Typ. -77 dBm @ MCS4 40 MHz
    Typ. -72 dBm @ MCS5 40 MHz
    Typ. -71 dBm @ MCS6 40 MHz
    Typ. -70 dBm @ MCS7 40 MHz
    Typ. -66 dBm @ MCS8 40 MHz
    Typ. -64 dBm @ MCS9 40 MHz

  • WLAN Operation Mode

    Access point
    Client
    Client-Router
    Master
    Slave
    Sniffer
    ACC

  • Antenna Connectors

    QMA

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3at for PoE
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    1
    Supports IEEE 802.3at PoE

  • Management

    DHCP Server/Client
    DNS
    HTTP
    IPv4
    LLDP
    SMTP
    SNMPv1/v2c/v3
    Syslog
    TCP/IP
    Telnet
    UDP
    VLAN
    MXconfig

  • Security

    HTTPS/SSL
    RADIUS
    SSH

  • Time Management

    SNTP Client

  • Filter

    ICMP
    MAC address
    IP protocol
    Port-based

  • Console Port

    RS-232
    8-pin RJ45

  • LED Indicators

    PWR1, PWR2, PoE, System, LAN, 2.4GHz, 5GHz, SIG

  • Digital Inputs

    2
    Max. input current: 8 mA
    +13 to +30 V for state 1
    +3 to -30 V for state 0

  • Alarm Contact Channels

    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    45 x 130 x 118 mm (1.77 x 5.12 x 4.65 in)

  • Weight

    800 g (1.76 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Input Current

    12-48 VDC, 2.01-0.5 A

  • Input Voltage

    12 to 48 VDC
    Redundant dual inputs
    48 VDC Power-over-Ethernet

  • Power Connector

    1 removable 10-contact terminal block(s)

  • Power Consumption

    24.12 W (max.)

  • Operating Temperature

    Standard Models: -25 to 60°C (-13 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V/m
    IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    IEC 60950-1
    IEC 62368-1
    UL 62368-1

  • Railway

    EN 50121-4
    EN 50155

  • Railway Fire Protection

    EN 45545-2

  • Radio

    EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, TELEC, NCC, RCM, SRRC, IC

  • Time

    838,684 hrs

  • Standards

    Telcordia SR332

軟體、韌體和驅動程式

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for AWK-3251A-RCC Series (MIB)
24.9 KB
軟體套件
SHA-512
v1.0
2023年8月16日 2023年8月16日 版本說明
Firmware for AWK-3251A-RCC Series
25.7 MB
韌體
SHA-512
v1.0
2023年8月16日 2023年8月16日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
AWK-3251A-RCC 系列產品資料表
3.9 MB
產品資料表 中文 v1.1 2023年10月6日 2023年10月6日
Manual for AWK-3251A-RCC Series
11.0 MB
使用者手冊 英文 v1.0 2023年8月15日 2023年8月15日
QIG for AWK-3251A-RCC Series
4.1 MB
QIG 英文 v1.0 2023年8月15日 2023年8月15日

product image

Buy online from distributors

已加入詢價列表
