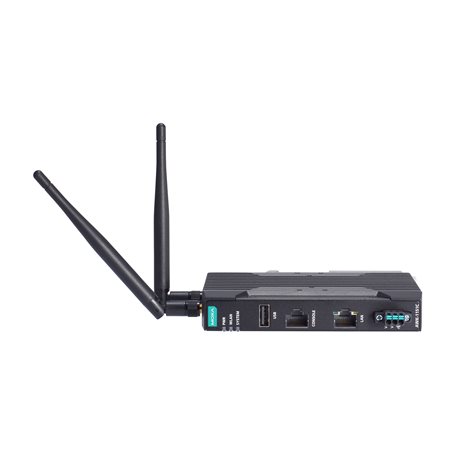

AWK-1151C-UN-T
AWK-1151C 系列

Industrial 802.11a/b/g/n/ac wireless client, IP30, universal band, -40 to 75°C operating temperature

WLAN Interface

  • WLAN Standards

    • 2.4 GHz: 802.11b/g/n with 256 QAM support
      5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support

  • Frequency Band for UN (20 MHz operating channels)

    • 2.412 to 2.484 GHz (14 channels)
      5.180 to 5.240 GHz (4 channels)
      5.745 to 5.825 GHz (5 channels)
      Available channels change depending on the selected country or region code.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2/WPA3-Personal

  • Transmission Rate

    • 2.4 GHz:
      802.11b: 1 to 11 Mbps
      802.11g: 6 to 54 Mbps
      802.11n: 6.5 to 400 Mbps

      5 GHz:
      802.11a: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps
      802.11ac: 6.5 to 867 Mbps

  • Transmitter Power for 802.11a (Dual Chain)

    • 25±1.5 dBm @ 6 Mbps
      23±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz, Dual Chain)

    • 25±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS7 20 MHz
      24±1.5 dBm @ MCS0 40 MHz
      22±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (Dual Chain)

    • 25±1.5 dBm @ MCS0 20 MHz
      22±1.5 dBm @ MCS8 20 MHz
      24±1.5 dBm @ MCS0 40 MHz
      21±1.5 dBm @ MCS9 40 MHz
      23±1.5 dBm @ MCS0 80 MHz
      20±1.5 dBm @ MCS9 80 MHz

  • Transmitter Power for 802.11b (Dual Chain)

    • 29±1.5 dBm @ 1 Mbps
      29±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g (Dual Chain)

    • 29±1.5 dBm @ 6 Mbps
      26±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

    • 28±1.5 dBm @ MCS0 20 MHz
      25±1.5 dBm @ MCS7 20 MHz
      28±1.5 dBm @ MCS0 40 MHz
      25±1.5 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -89 @ 6 Mbps
      Typ. -72 @ 54 Mbps

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -89 dBm @ MCS0 20 MHz
      Typ. -69 dBm @ MCS7 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -66 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac

    • Typ. -88 dBm @ MCS0 20 MHz
      Typ. -65 dBm @ MCS8 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -60 dBm @ MCS9 40 MHz
      Typ. -81 dBm @ MCS0 80 MHz
      Typ. -55 dBm @ MCS9 80 MHz

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -96 dBm @ 1 Mbps
      Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -90 dBm @ 6 Mbps
      Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -90 dBm @ MCS0 20 MHz
      Typ. -70 dBm @ MCS7 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -69 dBm @ MCS7 40 MHz

  • WLAN Operation Mode

    • Client, Client-Router, Slave, Sniffer

  • Antenna

    • External, 2/2 dBi, Omni-directional

  • Antenna Connectors

    • 2 RP-SMA female
Ethernet Interface

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3af for PoE
      IEEE 802.3at for PoE
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 1
Ethernet Software Features

  • Management

    • DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig

  • Routing

    • Port forwarding, Static Route, NAT

  • Security

    • HTTPS/SSL, RADIUS, SSH

  • Time Management

    • SNTP Client
Firewall

  • Filter

    • ICMP, MAC address, IP protocol, Port-based
Serial Interface

  • Console Port

    • RS-232, 8-pin RJ45
USB Interface

  • Storage Port

    • USB Type A
LED Interface

  • LED Indicators

    • PWR, WLAN, SYSTEM
Input/Output Interface

  • Buttons

    • Reset button
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 100 x 130 x 22 mm (3.94 x 5.12 x 0.87 in)

  • Weight

    • 436 g (0.96 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters

  • Input Current

    • 9 to 30 VDC, 1.57 to 0.47 A

  • Input Voltage

    • 9 to 30 VDC

  • Power Connector

    • 1 removable 3-contact terminal block(s)

  • Power Consumption

    • 14 W (max.)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4, EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V/m
      IEC 61000-4-8 PFMF: 30 A/m

  • Road Vehicles

    • E mark E1

  • Safety

    • IEC 60950-1, IEC 62368-1, UL 62368-1

  • Vibration

    • IEC 60068-2-6

  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, IC
MTBF

  • Time

    • 1,144,888 hrs

  • Standards

    • Telcordia SR332
Warranty
