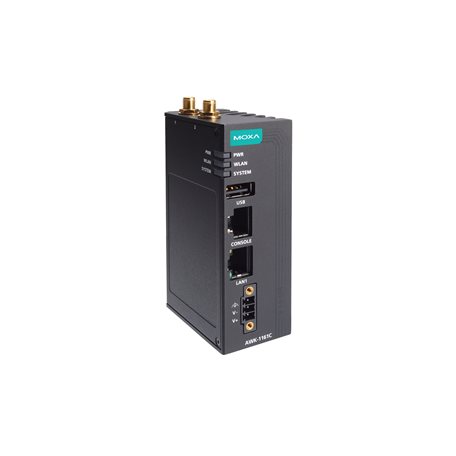

AWK-1161C-US
AWK-1161C 系列

Industrial 802.11ax wireless client with 1 10/100/1000BaseT(X) port, IP30, US band, -25 to 60°C operating temperature

WLAN Interface

  • WLAN Standards

    • 2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz
      5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz

  • Frequency Band for US (20 MHz operating channels)

    • 2.412 to 2.462 GHz (11 channels)
      5.180 to 5.240 GHz (4 channels)
      5.745 to 5.825 GHz (5 channels)
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2/WPA3-Personal

  • Transmission Rate

    • 2.4 GHz:
      Up to 573.5 Mbps

      5 GHz:
      Up to 1,201 Mbps

  • Transmitter Power for 802.11a (Dual Chain)

    • 18±1.5 dBm @ 6 Mbps
      18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz, Dual Chain)

    • 18±1.5 dBm @ MCS0 20 MHz
      18±1.5 dBm @ MCS7 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      18±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (Dual Chain)

    • 18±1.5 dBm @ MCS0 20 MHz
      18±1.5 dBm @ MCS8 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      18±1.5 dBm @ MCS9 40 MHz
      18±1.5 dBm @ MCS0 80 MHz
      18±1.5 dBm @ MCS9 80 MHz

  • Transmitter Power for 802.11ax (Dual Chain)

    • 18±1.5 dBm @ MCS0 20 MHz
      17±1.5 dBm @ MCS11 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      17±1,5 dBm @ MCS11 40 MHz
      18±1.5 dBm @ MCS0 80 MHz
      17±1.5 dBm @ MCS11 80 MHz

  • Transmitter Power for 802.11b (Dual Chain)

    • 18±1.5 dBm @ 1 Mbps
      18±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g (Dual Chain)

    • 18±1.5 dBm @ 6 Mbps
      18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

    • 18±1.5 dBm @ MCS0 20 MHz
      18±1.5 dBm @ MCS7 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      18±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

    • 18±1.5 dBm @ MCS0 20 MHz
      18±1.5 dBm @ MCS8 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      18±1.5 dBm @ MCS7 40 MHz

  • Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)

    • 18±1.5 dBm @ MCS0 20 MHz
      18±1.5 dBm @ MCS11 20 MHz
      18±1.5 dBm @ MCS0 40 MHz
      18±1.5 dBm @ MCS11 40 MHz

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -88 @ 6 Mbps
      Typ. -72 @ 54 Mbps

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -88 dBm @ MCS0 20 MHz
      Typ. -68 dBm @ MCS7 20 MHz
      Typ. -84 dBm @ MCS0 40 MHz
      Typ. -66 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac (5 GHz)

    • Typ. -88 dBm @ MCS0 20 MHz
      Typ. -65 dBm @ MCS8 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -60 dBm @ MCS9 40 MHz
      Typ. -81 dBm @ MCS0 80 MHz
      Typ. -55 dBm @ MCS9 80 MHz

  • Receiver Sensitivity for 802.11ax (5 GHz)

    • Typ. -88 dBm @ MCS0 20 MHz
      Typ. -59 dBm @ MCS11 20 MHz
      Typ. -85 dBm @ MCS0 40 MHz
      Typ. -56 dBm @ MCS11 40 MHz
      Typ. -81 dBm @ MCS0 80 MHz
      Typ. -52 dBm @ MCS11 80 MHz

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -96 dBm @ 1 Mbps
      Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -90 dBm @ 6 Mbps
      Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -90 dBm @ MCS0 20 MHz
      Typ. -70 dBm @ MCS7 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -69 dBm @ MCS7 40 MHz

  • Receiver Sensitivity for 802.11ac (2.4 GHz)

    • Typ. -90 dBm @ MCS0 20 MHz
      Typ. -66 dBm @ MCS6 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -63 dBm @ MCS9 40 MHz

  • Receiver Sensitivity for 802.11ax (2.4 GHz)

    • Typ. -90 dBm @ MCS0 20 MHz
      Typ. -59 dBm @ MCS11 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -56 dBm @ MCS11 40 MHz

  • WLAN Operation Mode

    • Client
      Client-Router
      Slave
      Sniffer

  • Antenna

    • External, 2/2 dBi
      Omni-directional

  • Antenna Connectors

    • 2 RP-SMA female
Ethernet Interface

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3az for Energy-Efficient Ethernet
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 1
Ethernet Software Features

  • Management

    • DHCP Server
      DHCP Client
      DNS
      HTTP
      IPv4
      LLDP
      SMTP
      SNMPv1/v2c/v3
      Syslog
      TCP/IP
      Telnet
      UDP
      VLAN
      MXconfig

  • Routing

    • Port forwarding
      Static Route
      NAT

  • Security

    • HTTPS/SSL
      RADIUS
      SSH
      Certificate Management

  • Time Management

    • SNTP Client
Firewall

  • Filter

    • ICMP
      MAC address
      IP protocol
      Port-based
      Wi-Fi ACL
Serial Interface

  • Console Port

    • RS-232
      8-pin RJ45
USB Interface

  • Storage Port

    • USB Type A
LED Interface

  • LED Indicators

    • PWR, WLAN, SYSTEM
Input/Output Interface

  • Buttons

    • Reset button
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 60 x 100 x 34.2 mm (2.36 x 3.94 x 1.35 in)

  • Weight

    • 330 g (0.73 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Power Parameters

  • Input Current

    • 9 to 30 VDC, 1.57 to 0.47 A

  • Input Voltage

    • 9 to 30 VDC

  • Power Connector

    • 1 removable 3-contact terminal block(s)

  • Power Consumption

    • 14 W (max.)
Environmental Limits

  • Operating Temperature

    • -25 to 60°C (-13 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4
      EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V/m
      IEC 61000-4-8 PFMF: 30 A/m

  • Road Vehicles

    • E mark E1

  • Safety

    • IEC 62368-1
      UL 62368-1

  • Vibration

    • IEC 60068-2-6

  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC
MTBF

  • Time

    • 4,002,106 hrs

  • Standards

    • Telcordia SR332
Warranty
