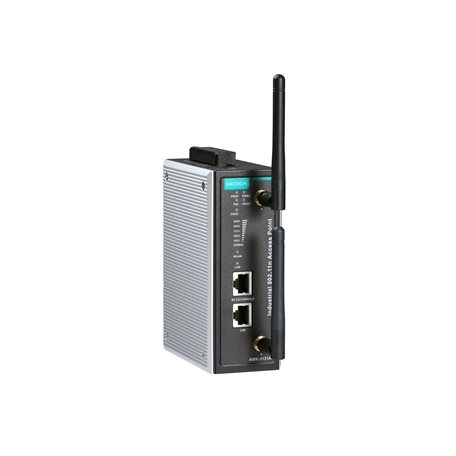

AWK-3131A-JP-T
AWK-3131A 系列

Industrial 802.11a/b/g/n access point, JP band, -40 to 75°C operating temperature

WLAN Interface

  • WLAN Standards

    • 802.11a/b/g/n
      802.11i Wireless Security

  • Modulation Type

    • DSSS
      OFDM
      MIMO-OFDM

  • Frequency Band for JP (20 MHz operating channels)

    • 2.412 to 2.484 GHz (14 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2-Personal

  • Transmission Rate

    • 802.11b: 1 to 11 Mbps
      802.11a/g: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps

  • Transmitter Power for 802.11a

    • 23±1.5 dBm @ 6 to 24 Mbps
      21±1.5 dBm @ 36 Mbps
      20±1.5 dBm @ 48 Mbps
      18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz)

    • 23±1.5 dBm @ MCS0/8 20 MHz
      18±1.5 dBm @ MCS7/15 20 MHz
      23±1.5 dBm @ MCS0/8 40 MHz
      17±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power for 802.11b

    • 26±1.5 dBm @ 1 Mbps
      26±1.5 dBm @ 2 Mbps
      26±1.5 dBm @ 5.5 Mbps
      25±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    • 23±1.5 dBm @ 6 to 24 Mbps
      21±1.5 dBm @ 36 Mbps
      19±1.5 dBm @ 48 Mbps
      18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    • 23±1.5 dBm @ MCS0/8 20 MHz
      18±1.5 dBm @ MCS7/15 20 MHz
      23±1.5 dBm @ MCS0/8 40 MHz
      17±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power

    •

  • Transmitter Power

    •   US EU JP
      2.4 GHz 26 dBm 18 dBm 18 dBm
      5 GHz (UNII-1) 23 dBm 21 dBm 21 dBm
      5 GHz (UNII-2) 23 dBm 21 dBm 21 dBm
      5 GHz (UNII-2e) 23 dBm 23 dBm 23 dBm
      5 GHz (UNII-3) 23 dBm – –
      Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -90 @ 6 Mbps
      Typ. -88 @ 9 Mbps
      Typ. -88 @ 12 Mbps
      Typ. -85 @ 18 Mbps
      Typ. -81 @ 24 Mbps
      Typ. -78 @ 36 Mbps
      Typ. -74 @ 48 Mbps
      Typ. -72 @ 54 Mbps
      Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -69 dBm @ MCS7 20 MHz
      Typ. -71 dBm @ MCS15 20 MHz
      Typ. -63 dBm @ MCS7 40 MHz
      Typ. -68 dBm @ MCS15 40 MHz
      Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -93 dBm @ 1 Mbps
      Typ. -93 dBm @ 2 Mbps
      Typ. -93 dBm @ 5.5 Mbps
      Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -88 dBm @ 6 Mbps
      Typ. -86 dBm @ 9 Mbps
      Typ. -85 dBm @ 12 Mbps
      Typ. -85 dBm @ 18 Mbps
      Typ. -85 dBm @ 24 Mbps
      Typ. -82 dBm @ 36 Mbps
      Typ. -78 dBm @ 48 Mbps
      Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -70 dBm @ MCS7 20 MHz
      Typ. -69 dBm @ MCS15 20 MHz
      Typ. -67 dBm @ MCS7 40 MHz
      Typ. -67 dBm @ MCS15 40 MHz

  • WLAN Operation Mode

    • Access point, Client, Client-Router, Master, Slave, Sniffer

  • Antenna

    • External, 2/2 dBi, Omni-directional

  • Antenna Connectors

    • 2 RP-SMA female
Ethernet Interface

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3af for PoE
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol

  • PoE Ports (10/100/1000BaseT(X), RJ45 connector)

    • 1
Ethernet Software Features

  • Management

    • DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig

  • Routing

    • Port forwarding, Static Route, NAT

  • Redundancy Protocols

    • RSTP, STP

  • Security

    • HTTPS/SSL, RADIUS, SSH

  • Time Management

    • SNTP Client
Firewall

  • Filter

    • ICMP, MAC address, IP protocol, Port-based
Serial Interface

  • Console Port

    • RS-232, 8-pin RJ45
LED Interface

  • LED Indicators

    • PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, WLAN, LAN
Input/Output Interface

  • Digital Inputs

    • 2
      Max. input current: 8 mA
      +13 to +30 V for state 1
      +3 to -30 V for state 0

  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    • Reset button
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 52.7 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)

  • Weight

    • 860 g (1.9 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters

  • Input Current

    • 0.6 A @ 12 VDC, 0.15 A @ 48 VDC

  • Input Voltage

    • 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet

  • Power Connector

    • 1 removable 10-contact terminal block(s)

  • Power Consumption

    • 7.2 W (max.)

  • Reverse Polarity Protection

    • Supported
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class B

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx

  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, ANATEL, MIC, NCC, RCM, SRRC, WPC, KC

  • Safety

    • EN 60950-1, UL 60950-1

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 570,854 hrs

  • Standards

    • Telcordia SR332
Warranty
