SPL-24 Series

PoE splitters

moxa-spl-24-series-image-1-(1).jpg | Moxa

Features and Benefits

  • IEEE 802.3af compliant; splits power and data from PoE equipment
  • Supports output power up to 12.95 W at 24 VDC
  • Short-circuit protection for power output
  • -40 to 75°C operating temperature range (-T model)
  • DIN-rail mounting ability

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The main benefit of PoE is that it can transfer data and power to Ethernet-enabled devices using a standard Ethernet CAT5 cable. Moxa’s SPL-24 PoE splitters perform the role of powered devices (PDs) and split power from the injector to Ethernet devices. When using Moxa’s devices, power and data can be transmitted up to 100 meters (328 feet) from the power source equipment (PSE).

The standard model in can operate in temperatures from 0 to 60°C (32 to 140°F) and the wide-temperature model can operate in temperatures from -40 to 75°C (-40 to 167°F). In addition, the rugged hardware means that these devices will perform reliably even when used in demanding industrial applications.

  • 10/100BaseT(X) Ports (RJ45 connector)

    1
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

  • PoE Ports (PD), 10/100BaseT(X), RJ45 Connector

    1
    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

  • Standards

    IEEE 802.3af for PoE
    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)

  • Operating Voltage

    44 to 75 VDC (PoE)

  • Overload Current Protection

    Supported

  • Output Voltage Rating

    24 VDC

  • Output Power Rating

    12.95 W (max.)

  • Connection

    1 removable 3-contact terminal block(s)

  • Dimensions

    24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)

  • Installation

    DIN-rail mounting

  • IP Rating

    IP30

  • Weight

    95 g (0.21 lb)

  • Operating Temperature

    SPL-24: 0 to 60°C (32 to 140°F)
    SPL-24-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 60950-1

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Signal: 2 kV
    IEC 61000-4-5 Surge: Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Maritime

    DNV-GL, ABS, LR, NK

  • Vibration

    IEC 60068-2-6

  • Time

    5,104,703 hrs

  • Standards

    MIL-HDBK-217F

Support Documents

FILTER

All 2D CAD Datasheet Declaration QIG Tech Note
Name Type Version Release Date
Declaration of Conformity for SPL-24 Series
289.6 KB 		Declaration v1.0 May 02, 2024 May 02, 2024
Datasheet for SPL-24 Series
568.8 KB 		Datasheet v1.1 Apr 23, 2024 Apr 23, 2024
QIG for SPL-24 Series
1.9 MB 		QIG v6.4 Mar 08, 2024 Mar 08, 2024
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB 		Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
2D CAD for SPL-24
513.5 KB 		2D CAD Jan 19, 2018 Jan 19, 2018

Available Models (2)

Show Images
Compare
moxa-spl-24-image.jpg | MoxaSPL-24
Compare

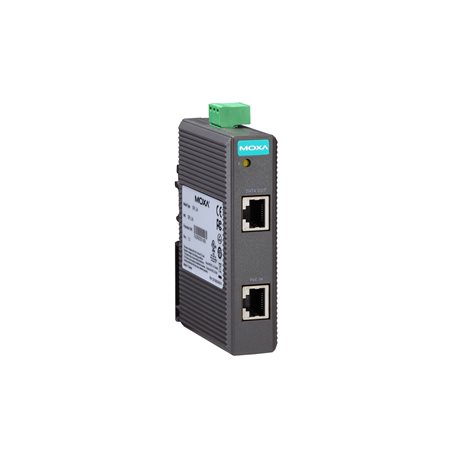

moxa-spl-24-t-image.jpg | MoxaSPL-24-T
