MOXA

PoE Splitters

Moxa PoE splitters give non-PoE powered devices (PD) the ability to pair PoE Power Sourcing Equipment (PSE) by splitting power from PoE to Ethernet devices.

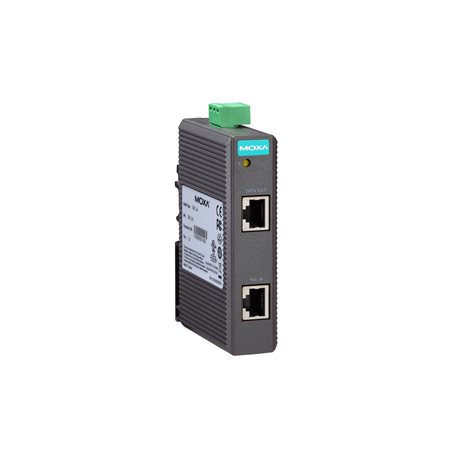

SPL-24
SPL-24 Series

PoE splitter with maximum output of 12.95 W at 24 VDC, 0 to 60°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed

  • PoE Ports (PD), 10/100BaseT(X), RJ45 Connector

    • 1
      Full/Half duplex mode
      Auto MDI/MDI-X connection
      Auto negotiation speed

  • Standards

    • IEEE 802.3af for PoE
      IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
Power Parameters

  • Operating Voltage

    • 44 to 75 VDC (PoE)

  • Overload Current Protection

    • Supported

  • Output Voltage Rating

    • 24 VDC

  • Output Power Rating

    • 12.95 W (max.)

  • Connection

    • 1 removable 3-contact terminal block(s)
Physical Characteristics

  • Dimensions

    • 24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)

  • Installation

    • DIN-rail mounting

  • IP Rating

    • IP30

  • Weight

    • 95 g (0.21 lb)
Environmental Limits

  • Operating Temperature

    • 0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • UL 60950-1

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Signal: 2 kV
      IEC 61000-4-5 Surge: Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Freefall

    • IEC 60068-2-31

  • Shock

    • IEC 60068-2-27

  • Maritime

    • DNV-GL, ABS, LR, NK

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 5,104,703 hrs

  • Standards

    • MIL-HDBK-217F
Warranty
