ANT-LTE-ASM-02 Series

2 dBi, GPRS/EDGE/UMTS/HSPA/LTE, omnidirectional, rubber-duck antennas

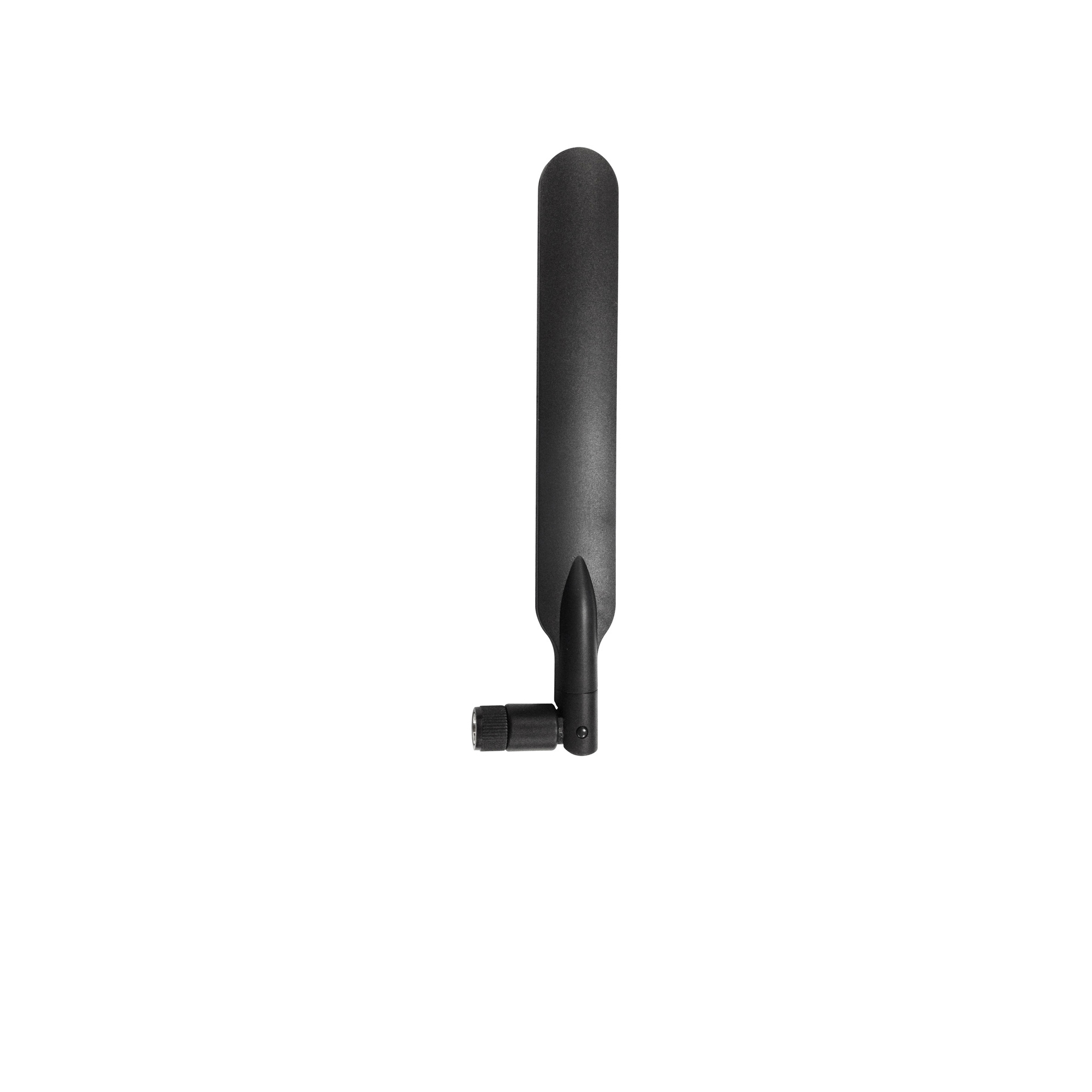

moxa-ant-lte-asm-02-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-LTE-ASM-02 is an omni-directional lightweight compact antenna suitable for GPRS/EDGE/UMTS/HSPA/LTE bands. The antenna provides a gain of 2 dBi and is designed to operate in temperatures from -30 to 75°C.

  • Frequency

    800/900/1800/2100/2600 MHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    2 dBi

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear, Vertical

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    < 3

  • Weight

    26 g (0.06 lb)

  • Length

    161 mm (6.34 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -20 to 65°C (-4 to 149°F)

  • Storage Temperature (package included)

    -20 to 65°C (-4 to 149°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for ANT-LTE-ASM-02 Series
334.0 KB
Datasheet v1.0 Nov 12, 2018 Nov 12, 2018

Available Models (1)

Show Images
moxa-ant-lte-asm-02-image.jpg | MoxaANT-LTE-ASM-02
Frequency800/900/1800/2100/2600 MHz
Antenna TypeOmni-directional
Antenna Gain2 dBi
ConnectorSMA (male)
