Cellular Antennas

Moxa offers a wide variety of cellular antennas that are easy to install and simplify the process of establishing wireless networks.

ANT-LTE-ASM-02

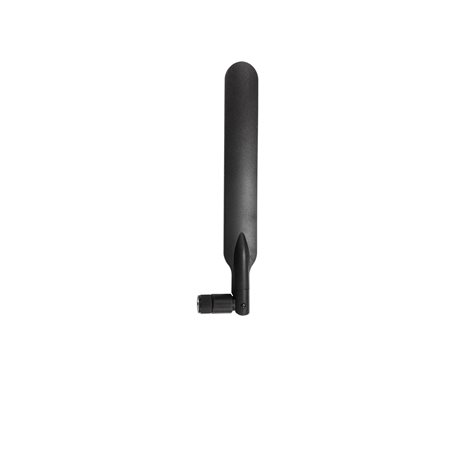

ANT-LTE-ASM-02 Series

GPRS/EDGE/UMTS/HSPA/LTE, 2 dBi, omnidirectional rubber-duck antenna

Antenna Characteristics
  • Frequency

    • 800/900/1800/2100/2600 MHz
  • Antenna Type

    • Omni-directional
  • Typical Antenna Gain

    • 2 dBi
  • Connector

    • SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear, Vertical
  • HPBW/Horizontal

    • 360°
  • V.S.W.R.

    • < 3
Physical Characteristics
  • Weight

    • 26 g (0.06 lb)
  • Length

    • 161 mm (6.34 in)
  • Radome Color

    • Black
  • Radome Material

    • Plastic
  • Installation

    • Straight mount
Environmental Limits
  • Operating Temperature

    • -20 to 65°C (-4 to 149°F)
  • Storage Temperature (package included)

    • -20 to 65°C (-4 to 149°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
