MAT-5G-PA-SM-2-06-3m Series

Wireless MIMO panel antennas with 2 SMA (male) connectors for cellular applications

moxa-mat-5g-pa-sm-2-06-3m-series-image-(1).jpg | Moxa

Features and Benefits

  • Supports all global LTE bands
  • High-gain antenna to enhance performance
  • 2-in-1 LTE combination design
  • Flexible installation
  • 3-meter cable
  • SMA connector (male) supported

Contact Sales

Introduction

The MAT-5G-PA-SM-2-06-3m Series is a 2-in-1 panel antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 6 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

  • Frequency

    617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz

  • Antenna Type

    Panel

  • Typical Antenna Gain

    1.55 dBi @ 617 to 698 MHz (5G NR n71)
    4.32 dBi @ 698 to 824 MHz (LTE 700)
    5.18 dBi @ 824 to 960 MHz (GSM 850/900)
    6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76)
    6.80 dBi @ 1710 to 1880 MHz (DCS)
    7.10 dBi @ 1850 to 1990 MHz (PCS)
    7.10 dBi @ 1920 to 2170 MHz (UMTS1)
    5.41 dBi @ 2300 to 2690 MHz (LTE 2600)

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear
    Vertical

  • Dimensions

    135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Screw mount

  • Cable

    SNC200

  • Cable Length

    3 m

  • IP Rating

    IPx9K

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for MAT-5G-PA-SM-2-06-3m Series
1.3 MB 		Datasheet v1.0 May 31, 2023 May 31, 2023

Available Models (1)

Show Images
Compare

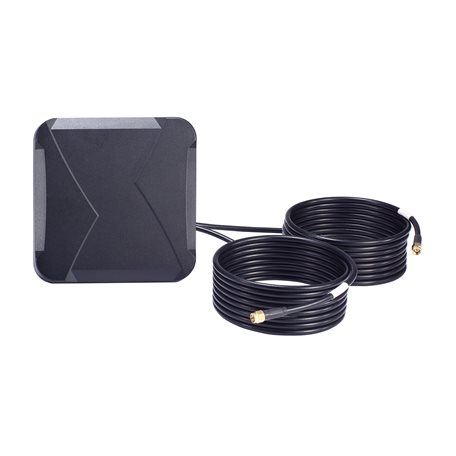

moxa-mat-5g-pa-sm-2-06-3m-image.jpg | MoxaMAT-5G-PA-SM-2-06-3m
