Cellular Antennas

Moxa offers a wide variety of cellular antennas that are easy to install and simplify the process of establishing wireless networks.

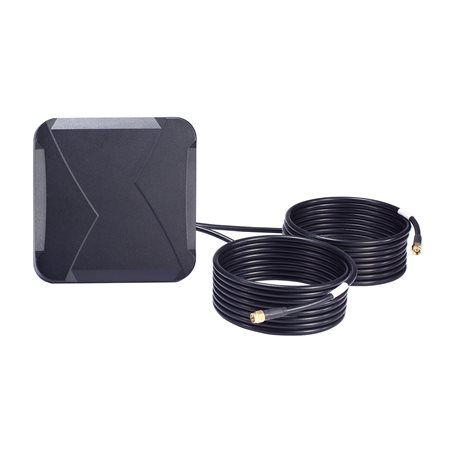

MAT-5G-PA-SM-2-06-3m
MAT-5G-PA-SM-2-06-3m Series

6 dBi MIMO panel antenna with 2 SMA (male) connectors for cellular applications, 3 m cable

Antenna Characteristics
  • Frequency

    • 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
  • Antenna Type

    • Panel
  • Typical Antenna Gain

    • 1.55 dBi @ 617 to 698 MHz (5G NR n71)
      4.32 dBi @ 698 to 824 MHz (LTE 700)
      5.18 dBi @ 824 to 960 MHz (GSM 850/900)
      6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76)
      6.80 dBi @ 1710 to 1880 MHz (DCS)
      7.10 dBi @ 1850 to 1990 MHz (PCS)
      7.10 dBi @ 1920 to 2170 MHz (UMTS1)
      5.41 dBi @ 2300 to 2690 MHz (LTE 2600)
  • Connector

    • SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear
      Vertical
Physical Characteristics
  • Dimensions

    • 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
  • Radome Color

    • Black
  • Radome Material

    • Plastic
  • Installation

    • Screw mount
  • Cable

    • SNC200
  • Cable Length

    • 3 m
  • IP Rating

    • IPx9K
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
