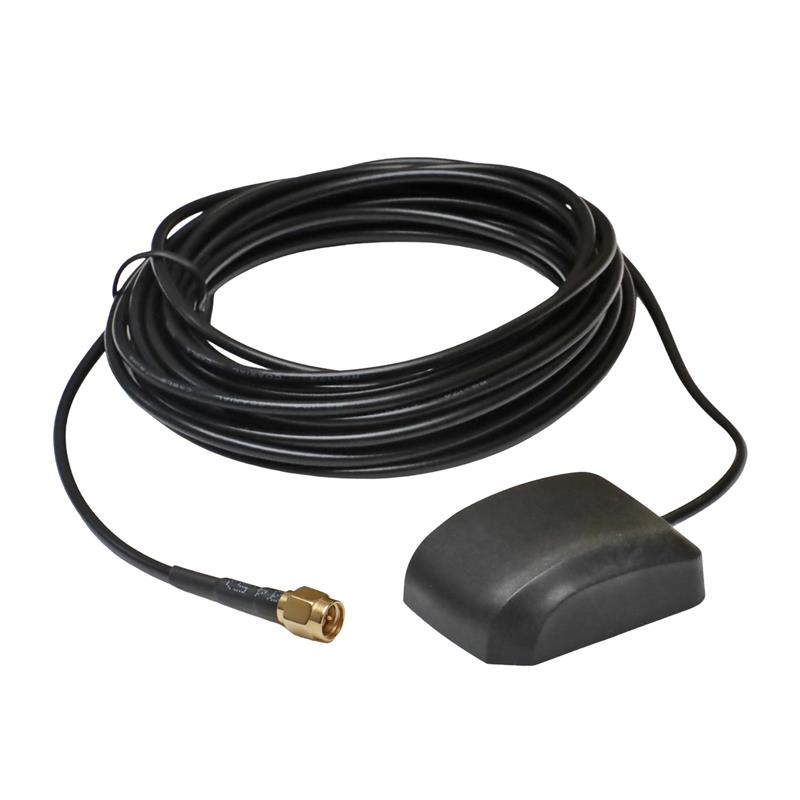

ANT-GPS-CSM-04-3m Series

Wireless GPS antennas with SMA (male) connectors

moxa-ant-gps-csm-04-3m-series-image-(1).jpg | Moxa

Features and Benefits

  • High active gain antenna for enhanced performance
  • 3-meter cable
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-GPS-CSM-04-3m Series is an omnidirectional cone-shaped antenna suitable for GPS applications. The antenna provides a gain of 4 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

  • Frequency

    1575 to 1605 MHz

  • Antenna Type

    Directional

  • Typical Antenna Gain

    Without low noise amplifier: 4 dBi
    With low noise amplifier: 20 dBi

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    RHCP

  • V.S.W.R.

    < 2.5

  • Power Consumption (Max.)

    Max. 20 mA @3.3 V; 2.7 to 5 VDC

  • Weight

    85 g (0.19 lb)

  • Dimensions

    Length: 48.8 mm

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Magnetic mount

  • Cable

    RG-174

  • Cable Length

    3 m

  • IP Rating

    IP65

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-GPS-CSM-04-3m Series
481.0 KB 		Datasheet v1.0 Oct 31, 2025 Oct 31, 2025

Available Models (1)

Show Images
Compare
ANT-GPS-CSM-04-3m
Frequency1575 to 1605 MHz
Antenna TypeDirectional
Antenna Gain4 dBi
Connector TypeSMA (male)
