Home Products Accessories Wireless Accessories GNSS Antennas ANT-GPS-CSM-04-3m Series ANT-GPS-CSM-04-3m
MOXA

GNSS Antennas

Moxa offers a wide variety of GNSS antennas that are easy to install and simplify the process of establishing wireless networks.

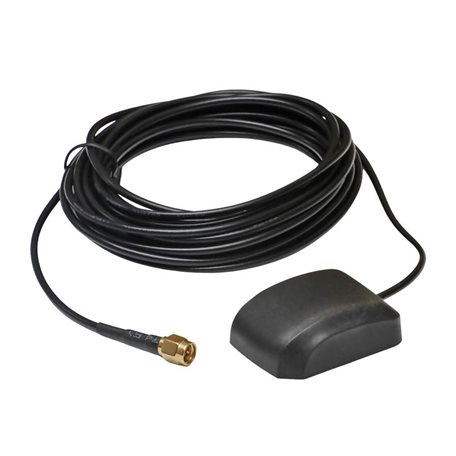

ANT-GPS-CSM-04-3m
ANT-GPS-CSM-04-3m Series

20 dBi at 1575 to 1605 MHz, right-hand circular polarization (RHCP), active GPS antenna with SMA (male) connector, 3 m cable

Antenna Characteristics

  • Frequency

    • 1575 to 1605 MHz

  • Antenna Type

    • Directional

  • Typical Antenna Gain

    • Without low noise amplifier: 4 dBi
      With low noise amplifier: 20 dBi

  • Connector

    • SMA (male)

  • Impedance

    • 50 ohms

  • Polarization

    • RHCP

  • V.S.W.R.

    • < 2.5
Power Parameters

  • Power Consumption (Max.)

    • Max. 20 mA @3.3 V; 2.7 to 5 VDC
Physical Characteristics

  • Weight

    • 85 g (0.19 lb)

  • Dimensions

    • Length: 48.8 mm

  • Radome Color

    • Black

  • Radome Material

    • Plastic

  • Installation

    • Magnetic mount

  • Cable

    • RG-174

  • Cable Length

    • 3 m

  • IP Rating

    • IP65
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
Warranty
