BST-1000 Series

Industrial Cellular Signal Boosters

moxa-bst-1000-series-image-(1).jpg | Moxa
moxa-bst-1000-series-image-1-(1).jpg | Moxa
moxa-bst-1000-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Industrial-grade signal booster for 5G user equipment
  • Compact size for easy installation

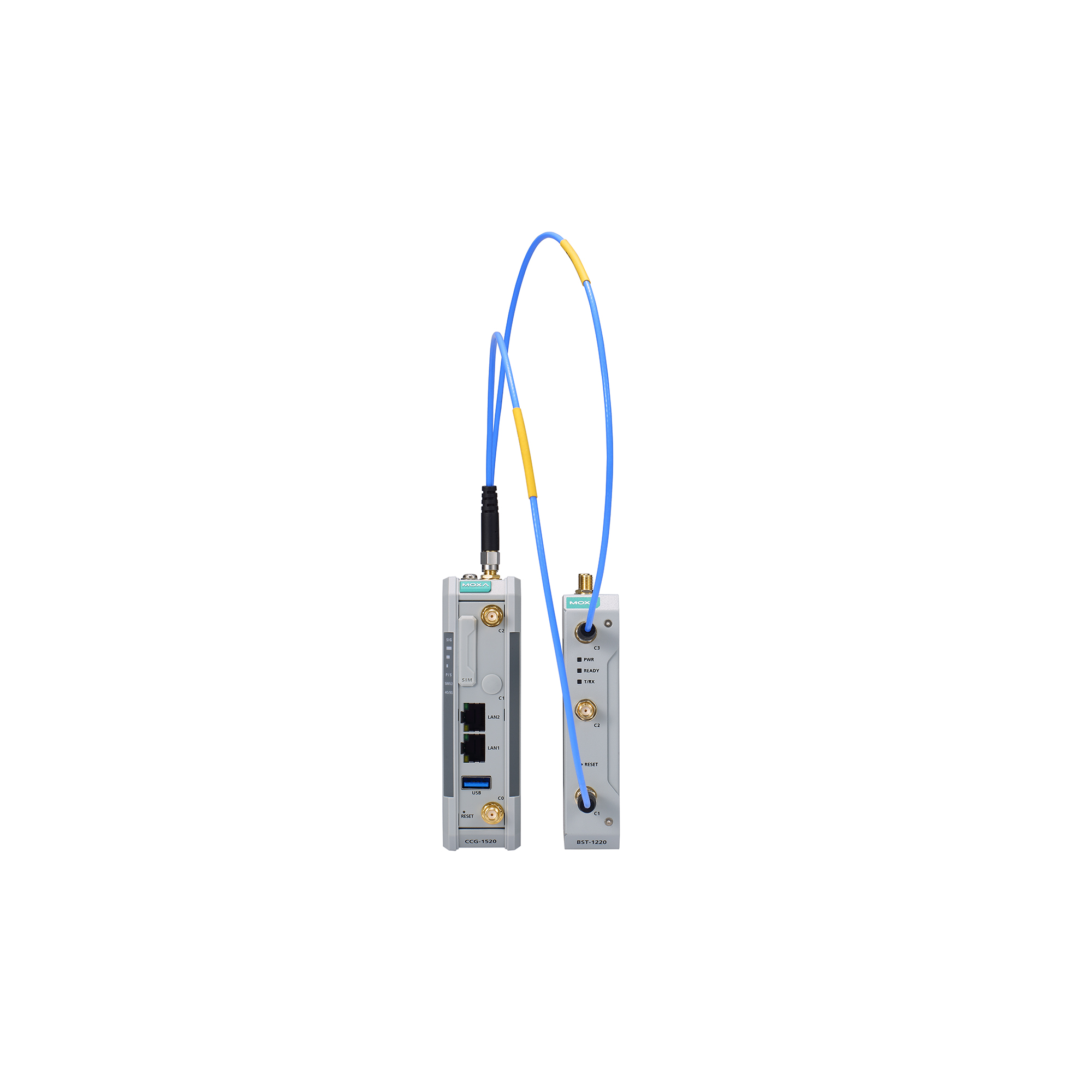

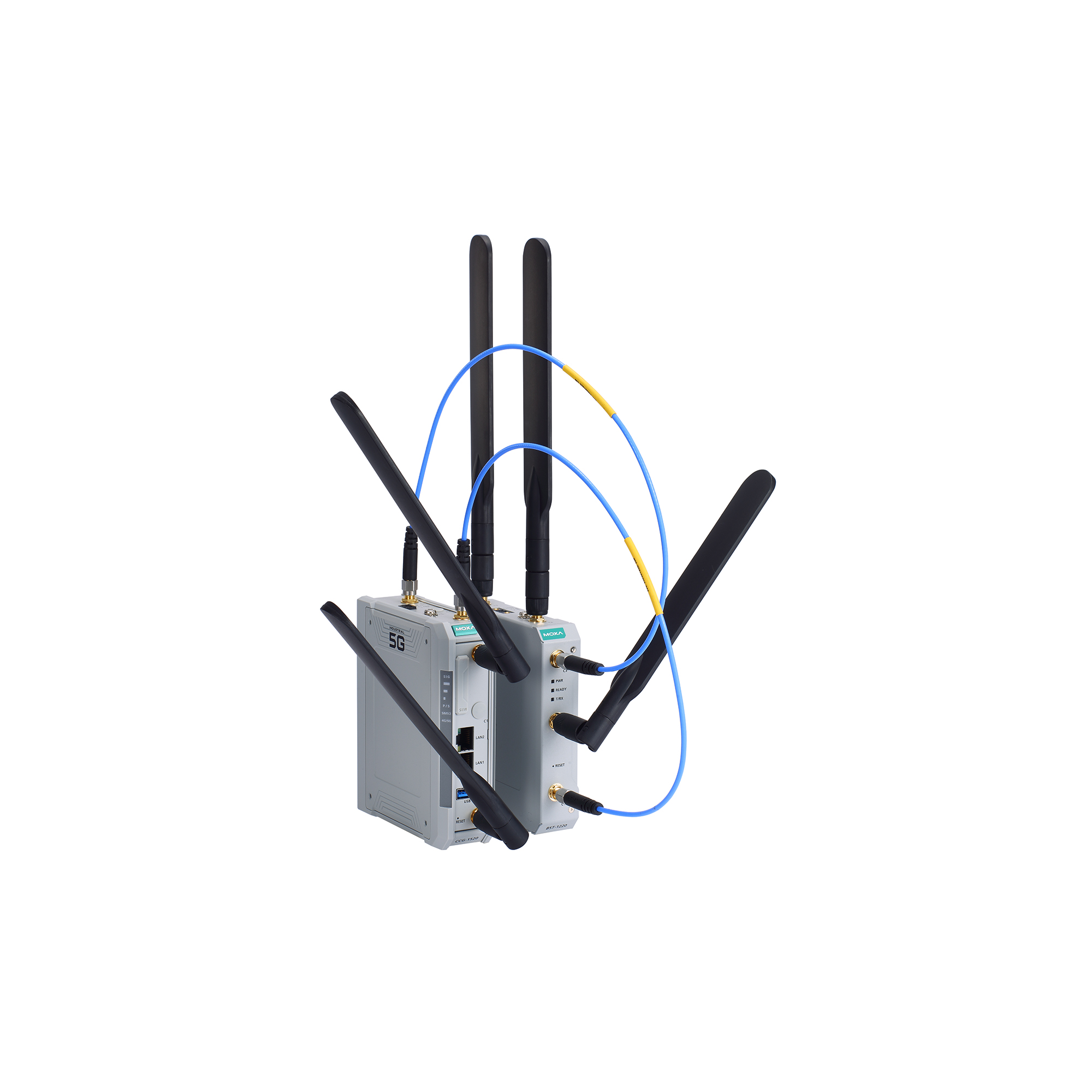

  • Easy integration with Moxa 5G user equipment
  • Stabilizes and improves low-power 5G signal environment
  • -40 to 70°C wide-temperature design

Contact Sales

Introduction

The 5G NR (New Radio) Tx and Rx booster is a cellular radio front-end accessory designed to cope with the challenges associated with signal attenuation, interference, coverage, and field site deployment signal cable loss limitations. The booster uses the advanced technology that enhances the performance and coverage of cellular 5G networks from 5G UE (user equipment). It operates by amplifying and extending the transmitting capabilities of the 5G UE. The signal quality and network capacity of the 5G UE will be improved significantly. In addition, this booster accessory enhances user experience and offers greater efficiency in 5G network communication.

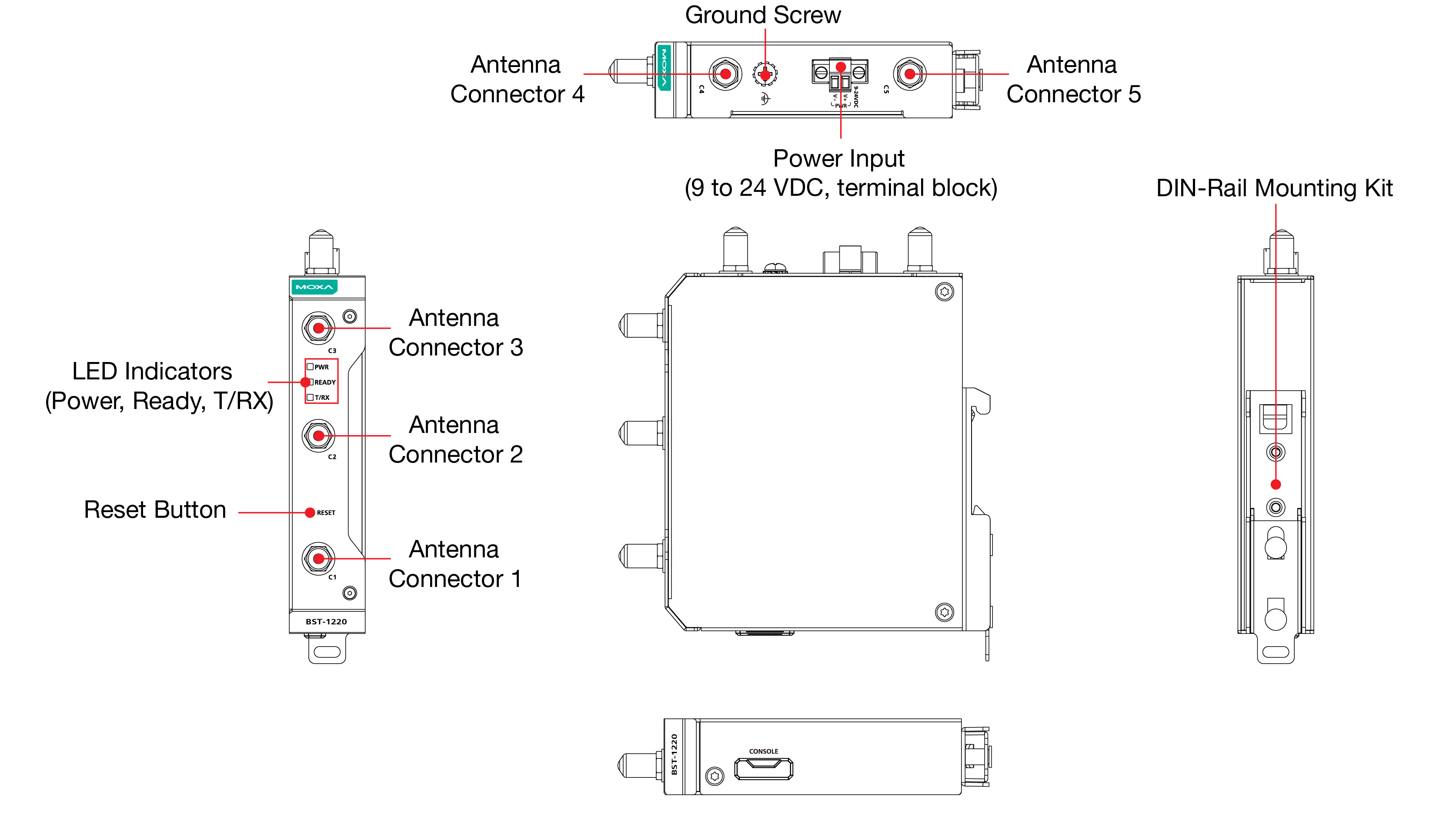

Appearance

  • Cellular Antenna Connectors

    5 x SMA(J)

  • Frequency Bands Supported

    n79

  • System

    Power, Ready, T/Rx

  • Source of Input Power

    9-24 VDC

  • Dimensions

    116.3 x 96.8 x 24.7 mm (4.58 x 3.81 x 0.97 in)

  • Housing

    Metal

  • IP Rating

    IP30

  • Weight

    370 g (0.816 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Time

    6,570,917 hrs

  • Standards

    Telcordia Standard SR-332

Support Documents

FILTER

All Datasheet QIG
Name Type Version Release Date
Datasheet for BST-1000 Series
1.7 MB 		Datasheet v1.0 Jun 17, 2025 Jun 17, 2025
QIG for BST-1000 Series
1.1 MB 		QIG v1.0.0 Jun 15, 2024 Jun 15, 2024

Available Models (1)

Show Images
Compare
moxa-bst-1220-t-image.jpg | MoxaBST-1220-T
Cellular Bandsn79
Operating Temp.-40 to 70°C
