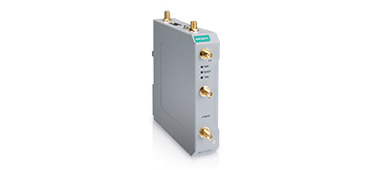

Signal Boosters

Moxa’s 5G signal boosters enhance the performance and coverage of 5G networks by amplifying and extending the transmission and reception capabilities of user equipment (UE).

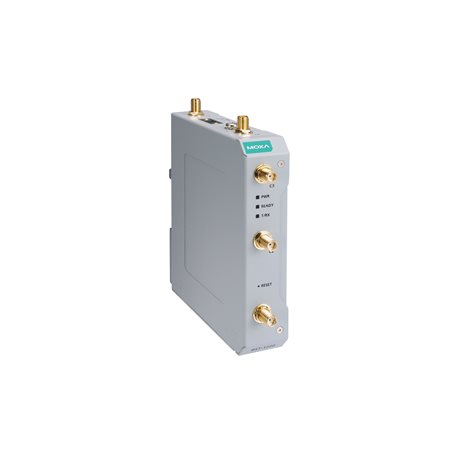

BST-1220-T
BST-1000 Series

Industrial 5G signal booster, n79 band, IP30, -40°C to 70°C operating temperature.

Cellular Interface

  • Cellular Antenna Connectors

    • 5 x SMA(J)

  • Frequency Bands Supported

    • n79
LED Indicators

  • System

    • Power, Ready, T/Rx
Power Parameters

  • Source of Input Power

    • 9-24 VDC
Physical Characteristics

  • Dimensions

    • 116.3 x 96.8 x 24.7 mm (4.58 x 3.81 x 0.97 in)

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Weight

    • 370 g (0.816 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
MTBF

  • Time

    • 6,570,917 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty
