A-CRF-NMNM Series

Wireless antenna cable

moxa-a-crf-nmnm-series-image-(1).jpg | Moxa

Features and Benefits

  • 3 m, 6 m, and 9 m options available

Contact Sales

Introduction

The A-CRF-NMNM Series is a set of LMR-400 LITE cable accessories with N-type (male) to N-type (male) connectors.

  • Cable Type

    LMR-400 Lite

  • Connector Type

    N-type (Male) to N-type (Male)

  • Cable Length

    A-CRF-NMNM-LL4-300: 3 m
    A-CRF-NMNM-LL4-600: 6 m
    A-CRF-NMNM-LL4-900: 9 m

  • Outer Diameter

    10.29 mm (0.41 in)

  • Min. Bend Radius

    24.5 mm (0.96 in)

  • Impedance

    50 ohms

  • V.S.W.R.

    1.4:1 Max @ 2400 to 2486 MHz

  • Insertion Loss

    A-CRF-NMNM-LL4-300: -1.6 dB (max.)
    A-CRF-NMNM-LL4-600: -2.8 dB (max.)
    A-CRF-NMNM-LL4-900: -3.8 dB (max.)

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

Support Documents

Name Type Version Release Date
Datasheet for A-CRF-NMNM Series
1.1 MB
Datasheet v1.0 Dec 25, 2019 Dec 25, 2019

Available Models (3)

Show Images
moxa-a-crf-nmnm-ll4-300-image.jpg | MoxaA-CRF-NMNM-LL4-300moxa-a-crf-nmnm-ll4-600-image.jpg | MoxaA-CRF-NMNM-LL4-600moxa-a-crf-nmnm-ll4-900-image.jpg | MoxaA-CRF-NMNM-LL4-900
Cable TypeLMR-400 LiteLMR-400 LiteLMR-400 Lite
Connector TypeN-type (male) to N-type (male)N-type (male) to N-type (male)N-type (male) to N-type (male)
Cable Length3 m6 m9 m
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

Added To Bag

A-CRF-NMNM Series

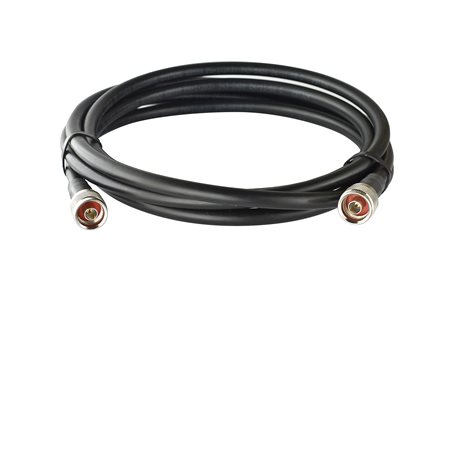

A-CRF-NMNM-LL4-300

moxa-a-crf-nmnm-ll4-300-image.jpg | Moxa

Buy online from our distributors

A-CRF-NMNM Series

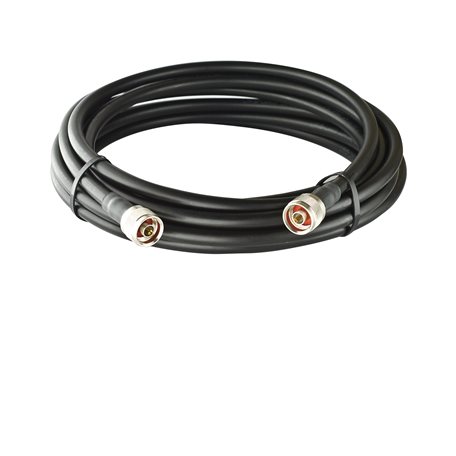

A-CRF-NMNM-LL4-600

moxa-a-crf-nmnm-ll4-600-image.jpg | Moxa

Buy online from our distributors

A-CRF-NMNM Series

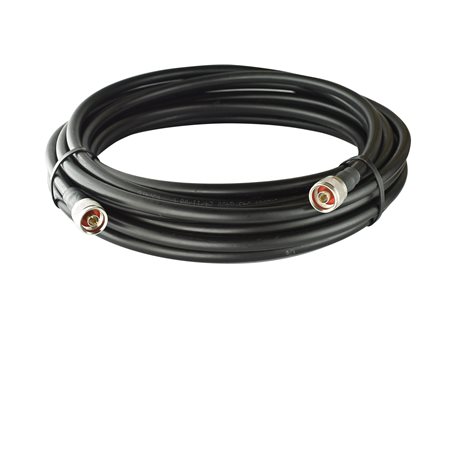

A-CRF-NMNM-LL4-900

moxa-a-crf-nmnm-ll4-900-image.jpg | Moxa

Buy online from our distributors
