Arm-Based Computers

Moxa's Arm-based compact fanless industrial-grade computers are wireless-ready and come with comprehensive security features. They are built for space-critical applications. The computers are specifically designed for long-term operations and come with both a 5-year hardware warranty and 10-year support for Moxa Industrial Linux, making them an ideal choice for remote monitoring and data-acquisition applications.



For more information, visit our Arm Linux IIoT gateway solution portal site.

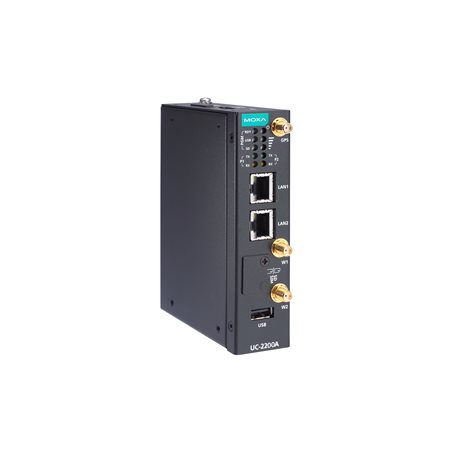

UC-2222A-T-US
UC-2200A Series

Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot with LTE Cat. 4 module for the U.S. region preinstalled, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 70°C operating temperature

Computer
  • CPU

    • Armv8 Cortex-A53 dual-core 1GHz
  • DRAM

    • 2 GB DDR4
  • Pre-installed OS

    • Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL
      See www.moxa.com/MIL
  • Storage Pre-installed

    • 16 GB eMMC
  • Storage Slot

    • micro SD slots x 1
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (terminal block)
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
  • Expansion Slots

    • mPCIe slots x 1
  • Number of SIMs

    • 1
  • SIM Format

    • Nano
  • Buttons

    • Reset button
  • TPM

    • TPM v2.0
Ethernet Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Baudrate

    • 300 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS
      XON/XOFF
      Automatic Data Direction Control (ADDC) for RS-485
      RTS Toggle (RS-232 only)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Cellular Interface
  • Cellular Standards

    • LTE Cat. 4
  • Band Options

    • LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)
      UMTS/HSPA B5 (850 MHz) / B4 (1700 MHz) / B2 (1900 MHz)
      Carrier Approvals: Verizon, AT&T
GPS Interface
  • Receiver Types

    • GPS, GLONASS, Galileo
  • Accuracy

    • Position: 2.0 m @CEP50
  • Acquisition

    • Hot starts: 1.1 sec
      Cold starts: 29.94 sec
  • Sensitivity

    • Cold starts: -145 dBm
      Tracking: -160 dBm
  • Time Pulse

    • 250 Hz to 10 MHz
LED Indicators
  • System

    • Power x 1
      SW ready (programmable)
      USB (programmable) x 1
      micro SD slot (programmable) x 1
      Serial Port: TX x 2, RX x 2
  • Wireless Signal Strength

    • Cellular x 2, programmable


      Disconnected: None
      Very Poor Signal: 1 LED (blinking)
      Poor Signal: 1 LED
      Good Signal: 2 LEDs
Power Parameters
  • Input Current

    • 900 mA @ 12 VDC
      450 mA @ 24 VDC
  • Input Voltage

    • 12 to 24 VDC
  • Power Consumption

    • 7.8 W (without external USB device)
      10.5 W (with external USB device)
Reliability
  • Alert Tools

    • External RTC (real-time clock)
  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics
  • Dimensions

    • 102 x 32 x 128 mm (4.20 x 1.26 x 5.04 in)
  • Weight

    • 546 g (1.2 lb)
  • Housing

    • SECC
      Metal
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 80°C (-40 to 176°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Shock

    • IEC 60068-2-27
  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Safety

    • EN 62368-1
      UL 62368-1
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • International Approval

    • RCM
      KC
      BSMI
      NCC
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 865,122 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
