BXP-C101 Series

Compact box computers with 14th Gen Intel® Core™ Raptor Lake Refresh processor

moxa-bxp-c101-series-image-1-(1).jpg | Moxa

moxa-bxp-c101-series-image-2-(1).jpg | Moxa

moxa-bxp-c101-series-image-3-(1).jpg | Moxa

moxa-bxp-c101-series-image-4-(1).jpg | Moxa

moxa-bxp-c101-series-image-5-(1).jpg | Moxa

moxa-bxp-c101-series-image-6-(1).jpg | Moxa

Features and Benefits

Box-type computer with fanless design
Intel® Core™ Raptor Lake-U Refresh processor
Compact size to fit most field applications
Dual storage with a removable cover design for easy maintenance
-30 to 70°C operating temperature range

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The BXP-C101 Series computer models are built around an Intel® Core™ 3-100U, 5-120U, or 7-150U processor. The computers come with a rich set of interface options including either two serial ports (S1 models) or five digital inputs and six digital outputs (S2 models), two gigabit Ethernet ports, six USB ports, one HDMI port, and one DisplayPort. A dual-storage design that includes CFast and M.2 slots enables easy storage expansion.

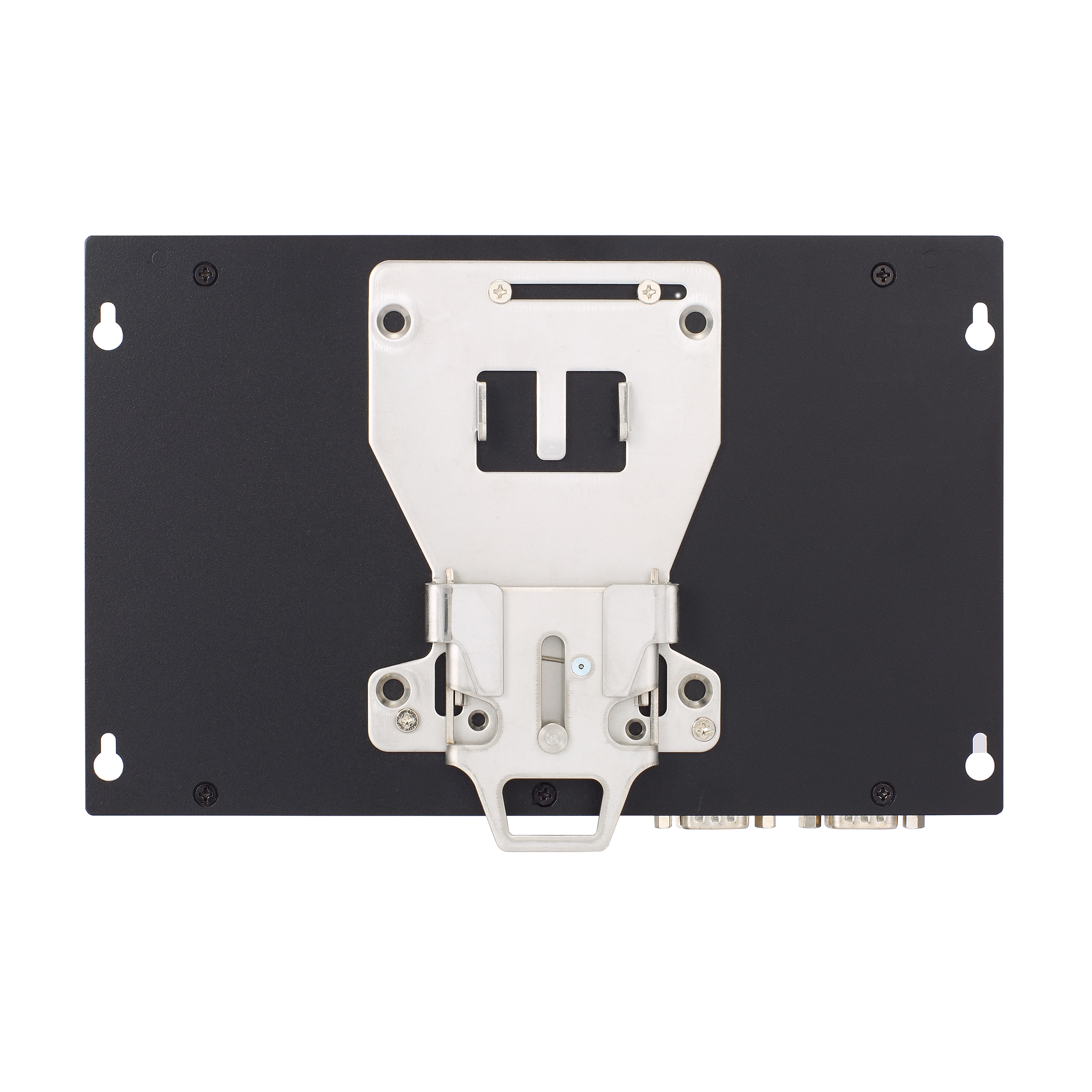

The BXP-C101 computers have a compact design and come with wall-mounting kit attached. The computers are fanless enabling them to withstand a temperature range of -30 to 70°C and making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements for various industrial environments.

Appearance

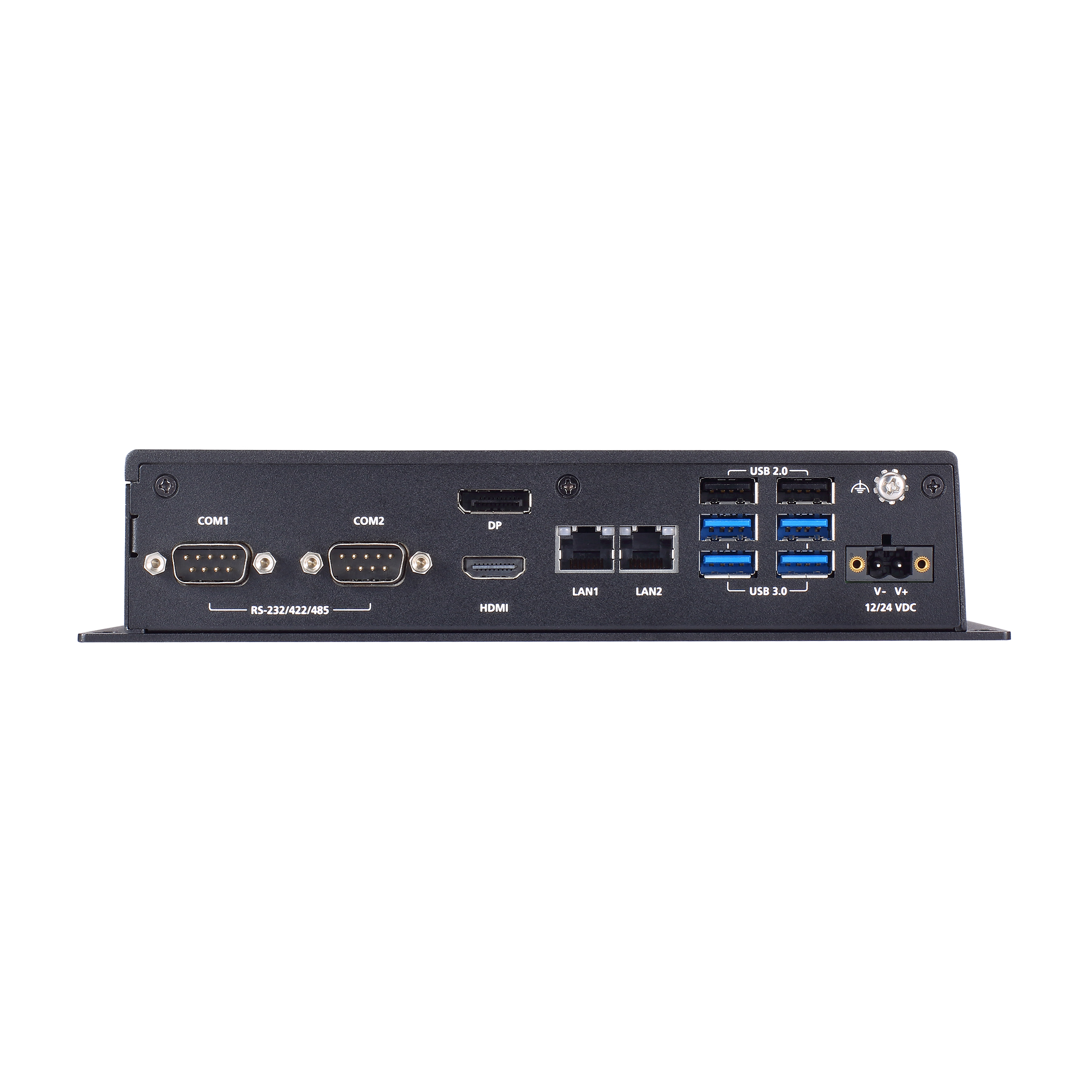

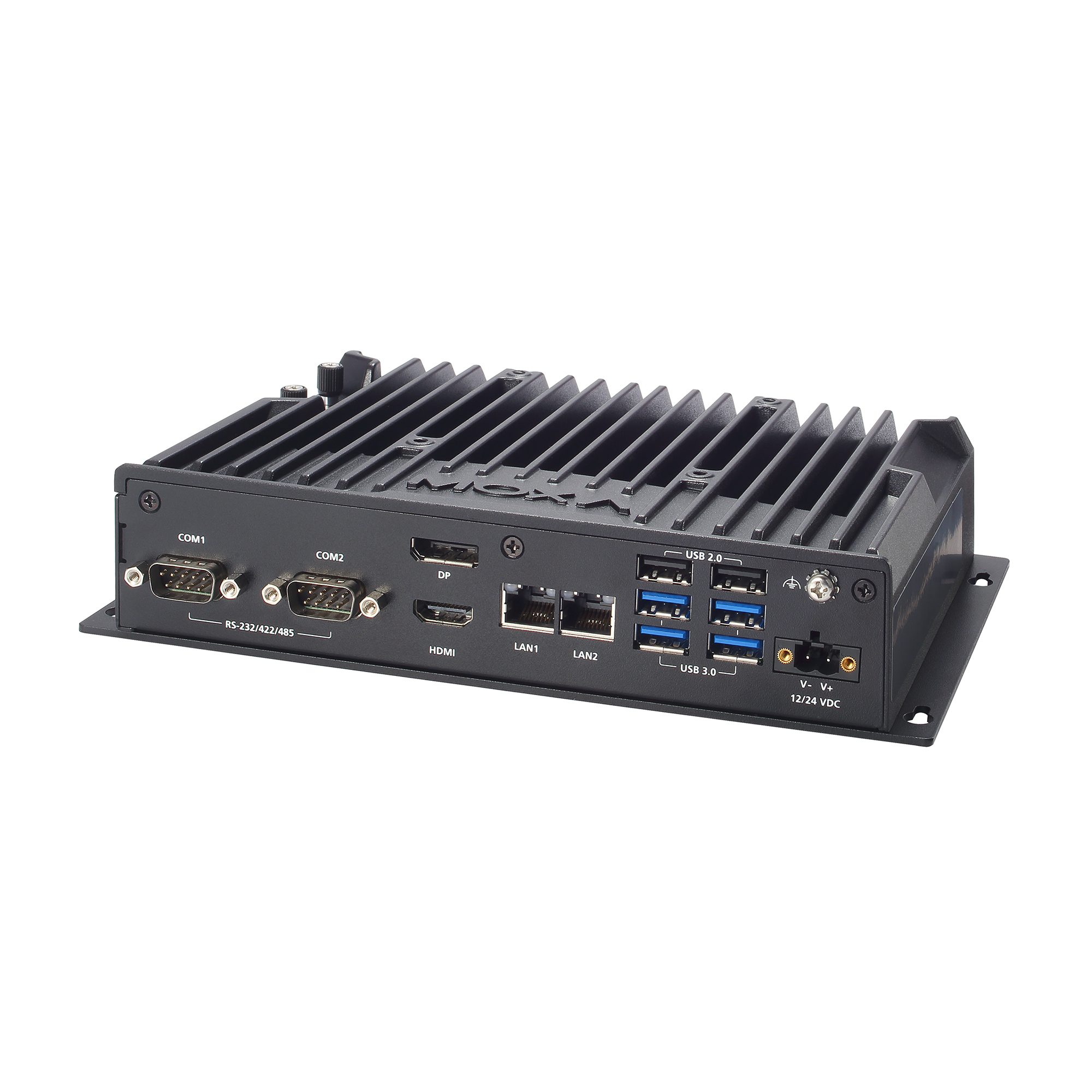

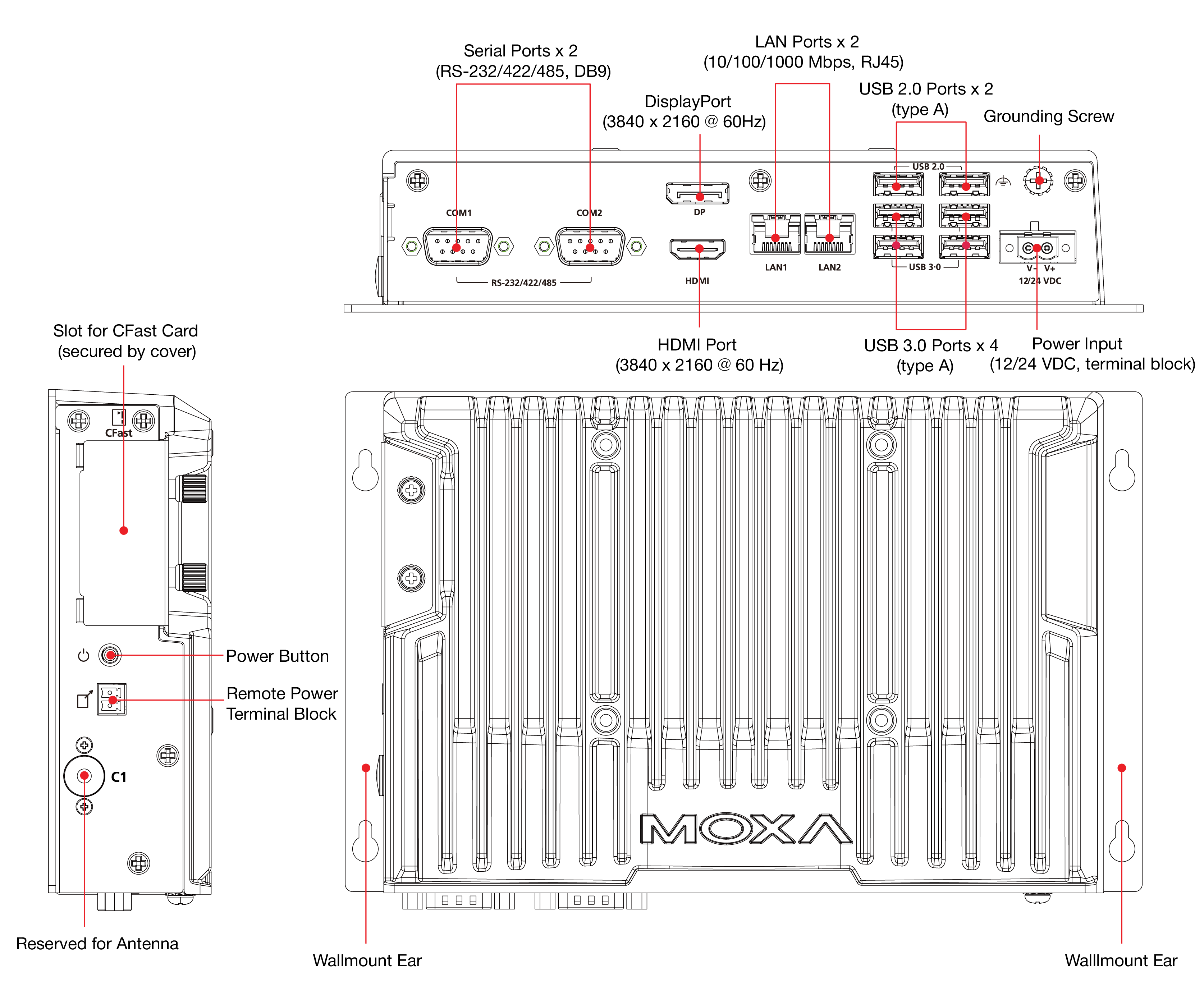

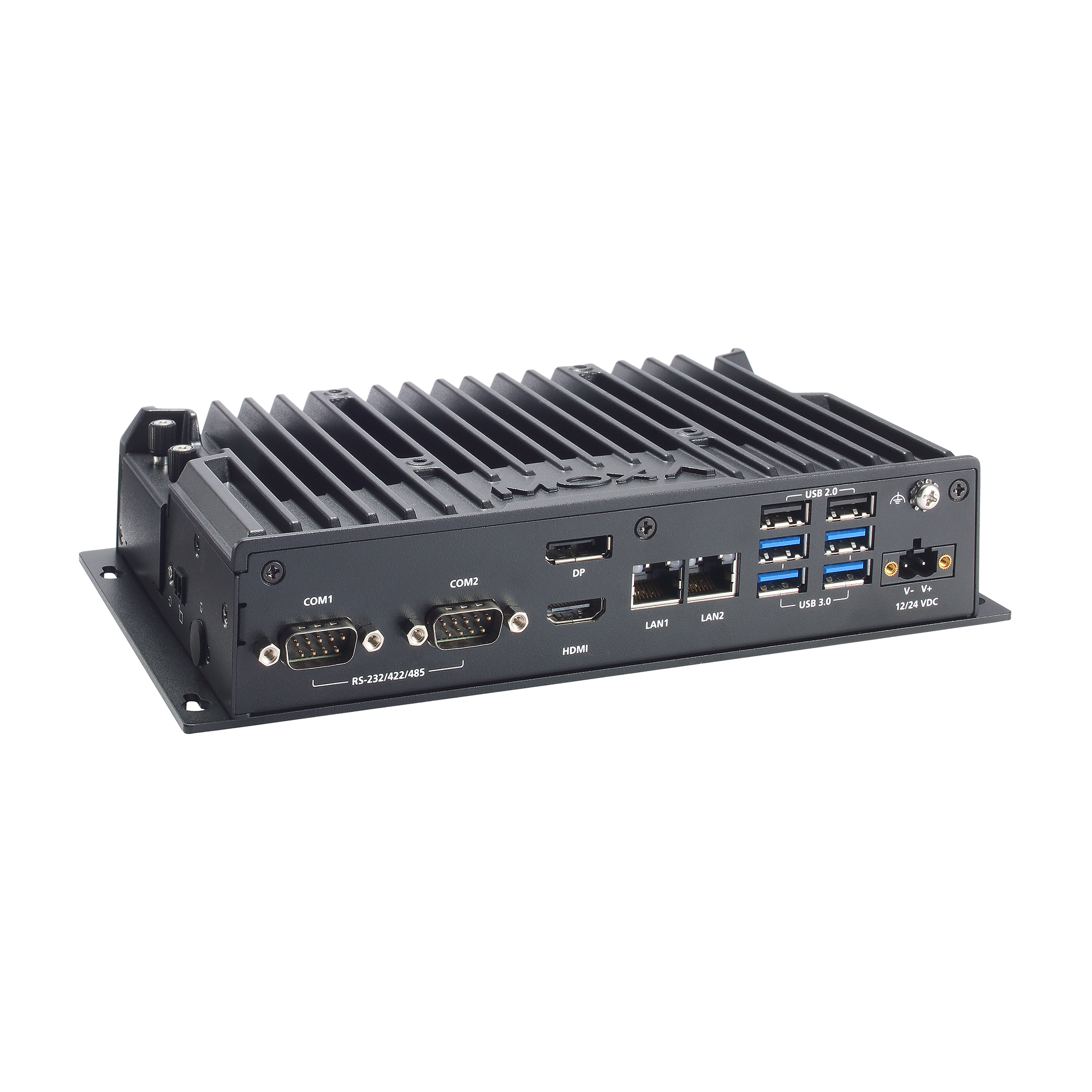

S1 Models (BXP-C101-C3-S1-T/C5-S1-T/C7-S1-T)

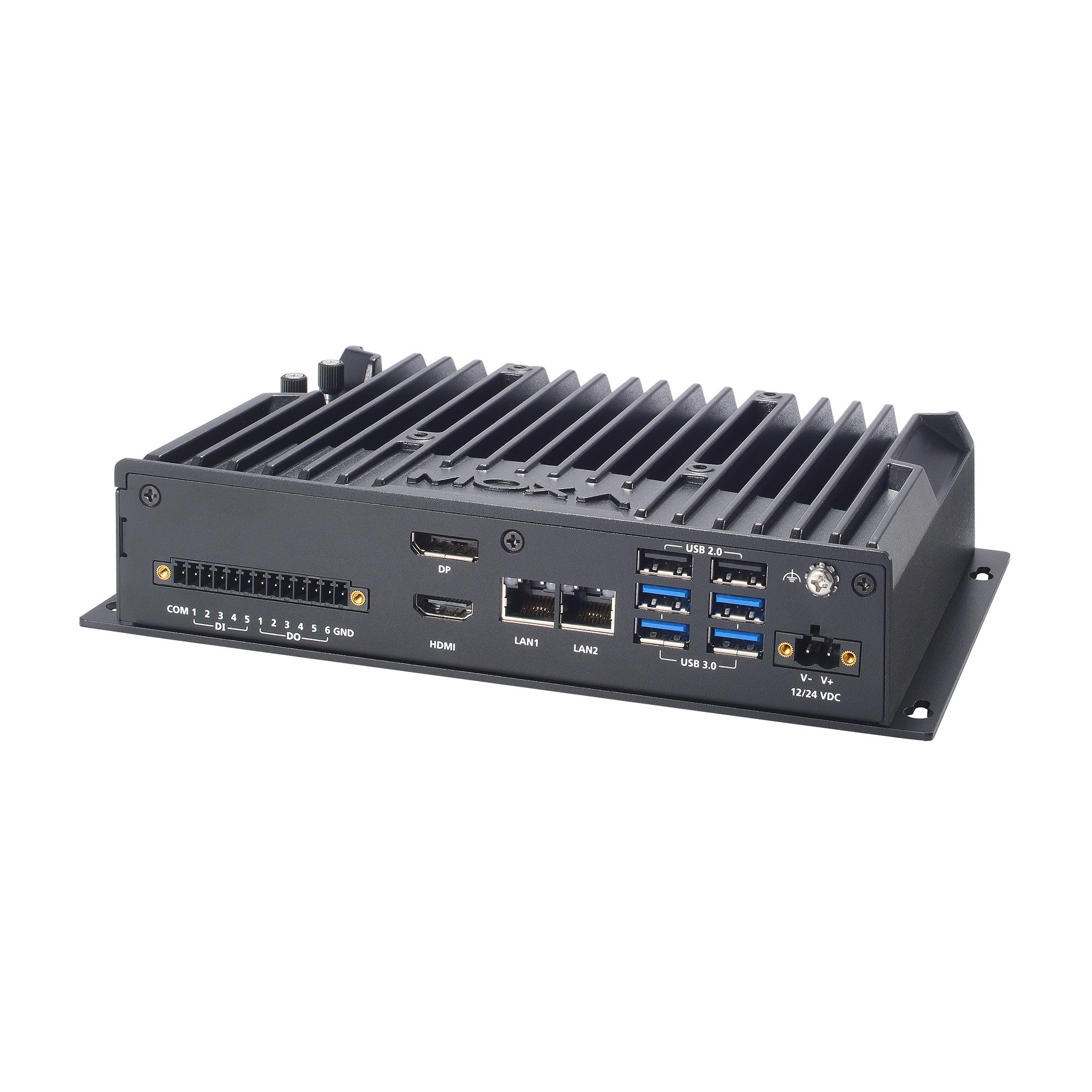

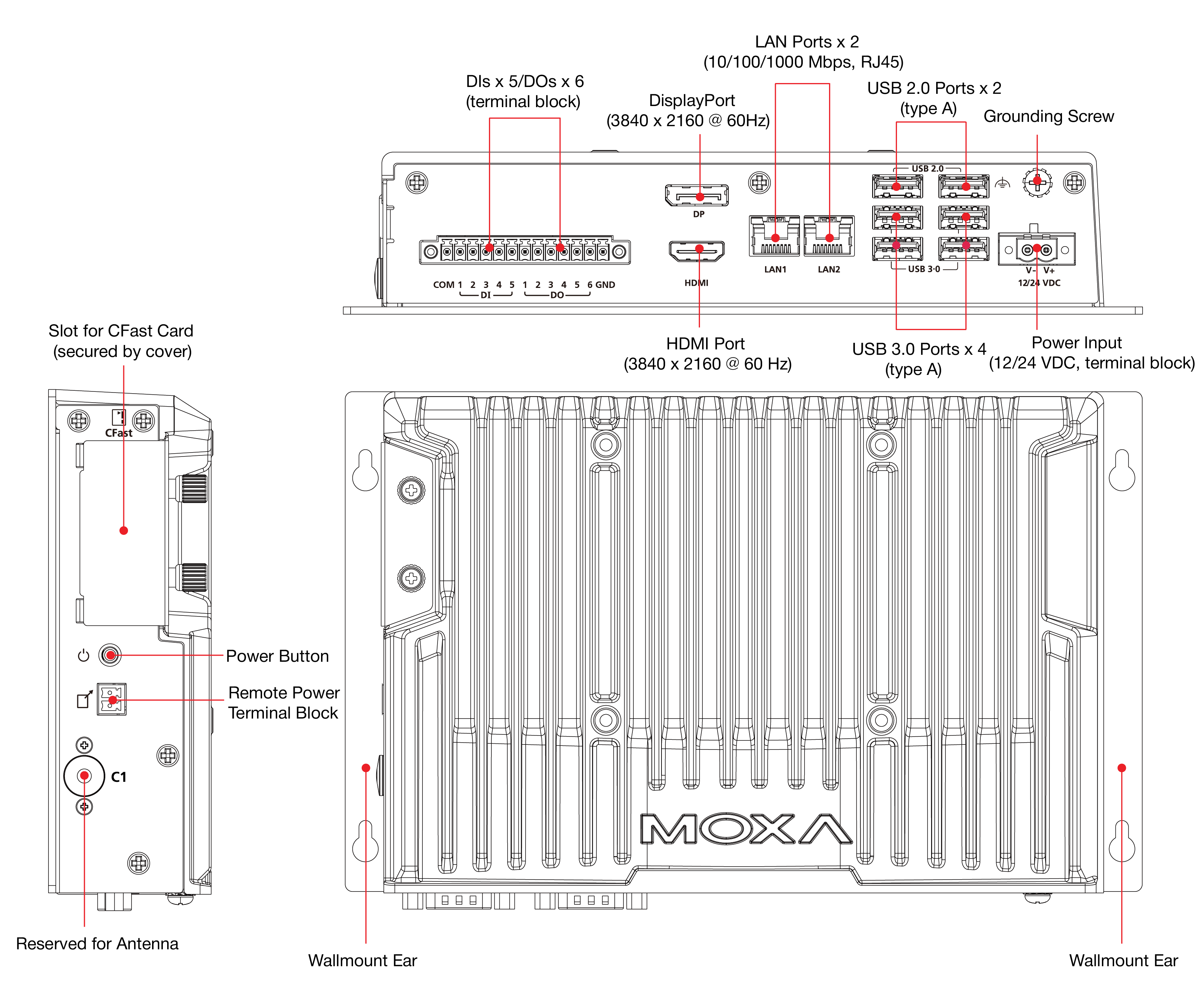

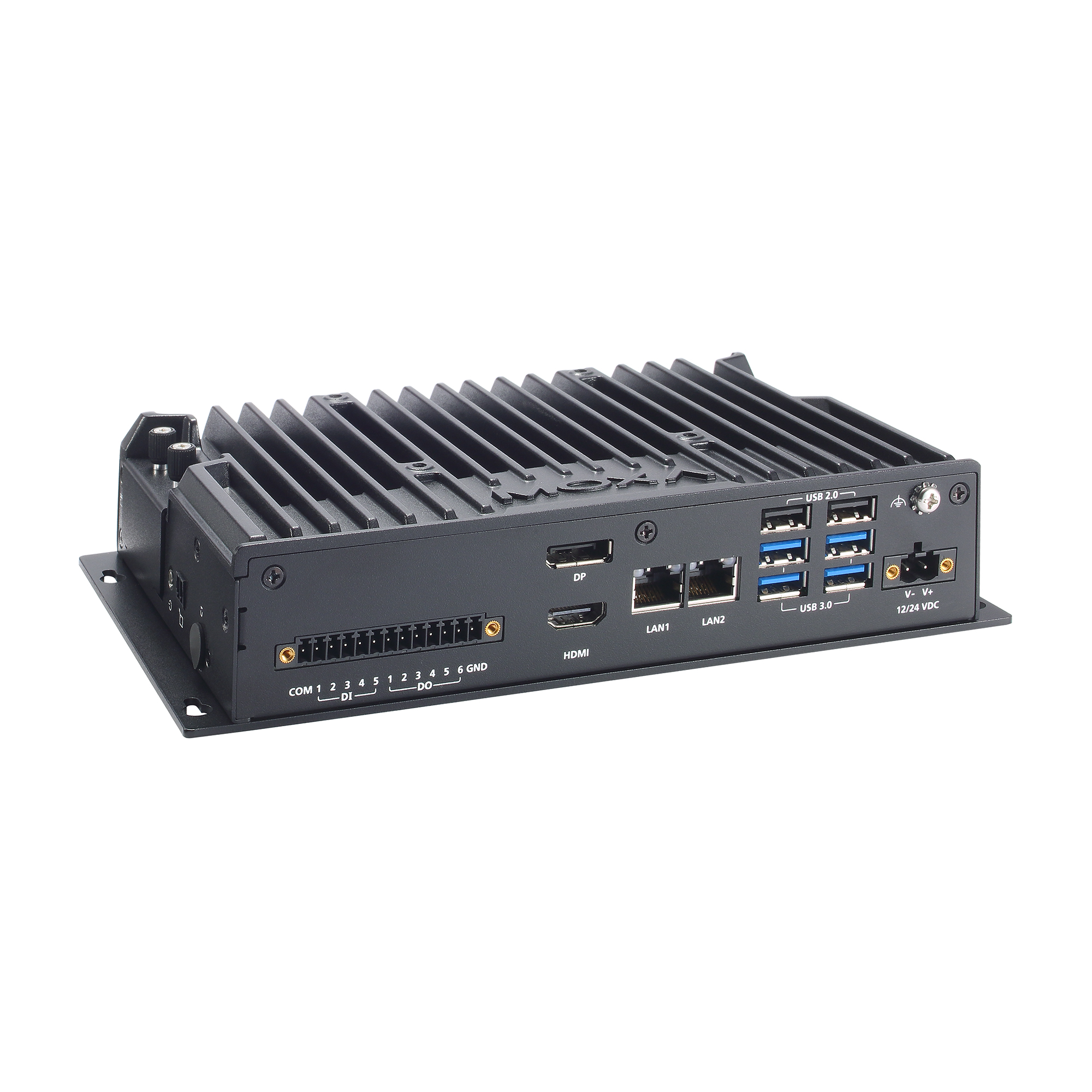

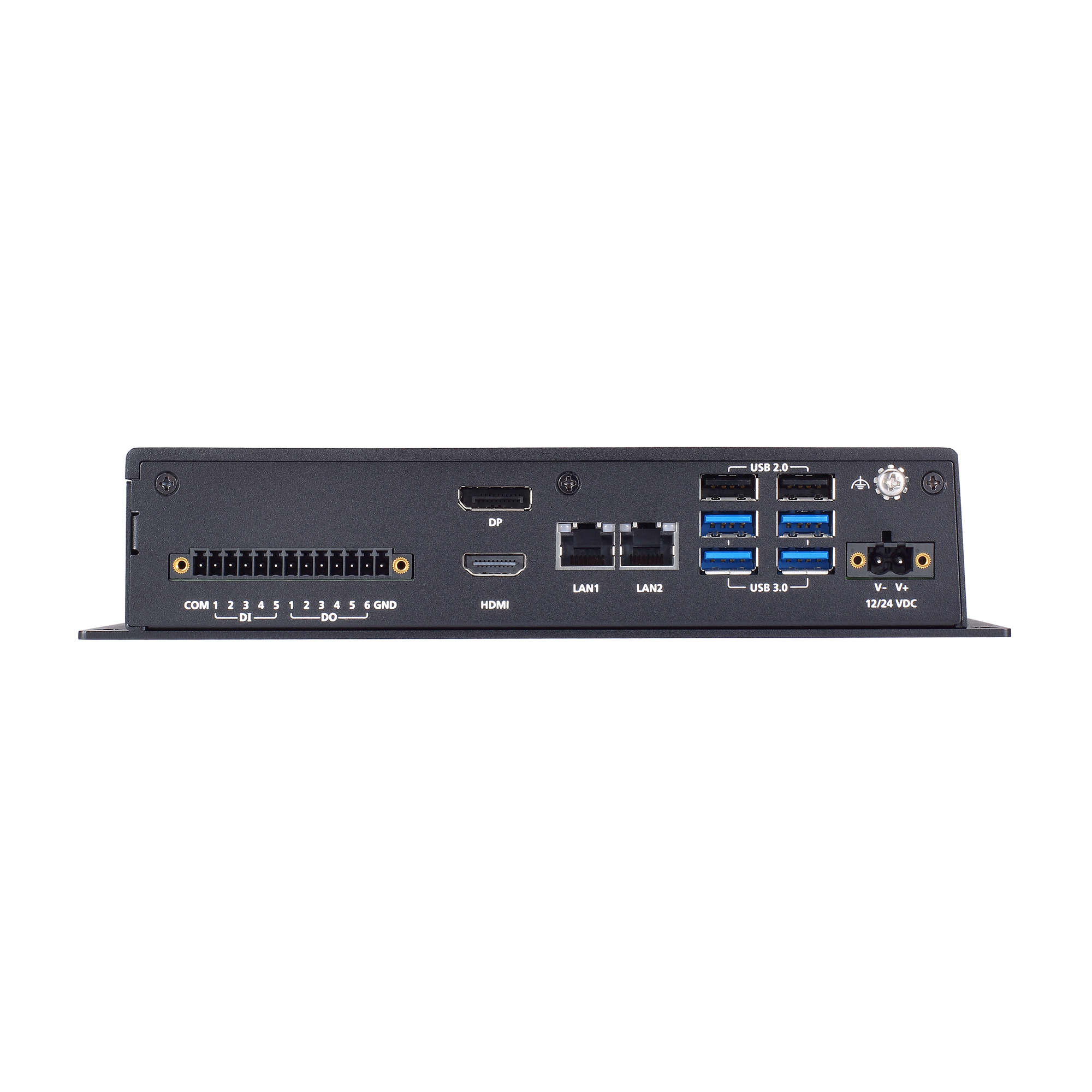

S2 Models (BXP-C101-C3-S2-T/C5-S2-T/C7-S2-T)

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

CPU

BXP-C101-C3 models: Intel® Core™ 3-100U processor (6 cores, 10 MB Intel® smart cache, 1.2 GHz)
BXP-C101-C5 models: Intel® Core™ 5-120U processor (10 cores, 12 MB Intel® smart cache, 1.4 GHz)
BXP-C101-C7 models: Intel® Core™ 7-150U processor (10 cores, 12 MB Intel® smart cache, 1.8 GHz)
System Memory Slot

SODIMM DDR4 slots x 1, up to 32 GB max.
System Memory Pre-installed

8 GB DDR4
Storage Slot

CFast slot x 1 (SATAIII interface)
M.2 M-key 2242 sockets x 1 (PCIe Gen 4 x4)
Expansion Slots

mPCIe slots x 1
Supported OS

Windows images and drivers supported:
- Windows 11 Professional 64-bit
- Windows 11 IoT Enterprise LTSC 2024 64-bit
- Windows 10 IoT Enterprise LTSC 2021 64-bit

Linux drivers supported:
- Debian 13
- Ubuntu 24.04 LTS
- RHEL 9
Graphics Controller

Intel® UHD Graphics

Ethernet Ports

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports

S1 models: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
Digital Input

DIs x 5
Digital Output

DOs x 6
Video Output

HDMI 2.1 TMDS x 1, (type-A connector)
DisplayPort 1.2 x 1
USB

USB 3.0 hosts x 4, type-A connectors
USB 2.0 hosts x 2, type-A connectors
SIM Format

Nano
Number of SIMs

1
Buttons

Power button
TPM

TPM v2.0

Magnetic Isolation Protection

1.5 kV (built-in)

Bitrate

50 bps to 115.2 kbps
Connector

DB9 male
Data Bits

5, 6, 7, 8
Parity

None, Even, Odd, Space, Mark
Stop Bits

1, 1.5, 2

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Connector

Spring-type Euroblock terminal
Sensor Type

Dry contact
Wet contact (NPN)
Dry Contact

Logic 0: Close to GND
Logic 1: Open
Wet Contact (COM to DI)

Logic 0: 10 to 30 VDC
Logic 1: 0 to 3 VDC

Connector

Spring-type Euroblock terminal
I/O Type

Sink
Voltage

0 to 30 VDC
Current Rating

200 mA per channel

System

Power x 1
LAN

2 per port (10/100/1000 Mbps)

Input Voltage

12/24 VDC
Power Connector

Screw-fastened Euroblock terminal
Power Consumption

62.4 W

Housing

Metal
IP Rating

IP20
Dimensions

217 x 136.5 x 44.5 mm (8.55 x 5.38 x 1.75 in)
Weight

1,600 g (3.52 lb)
Installation

Wall mounting (standard)

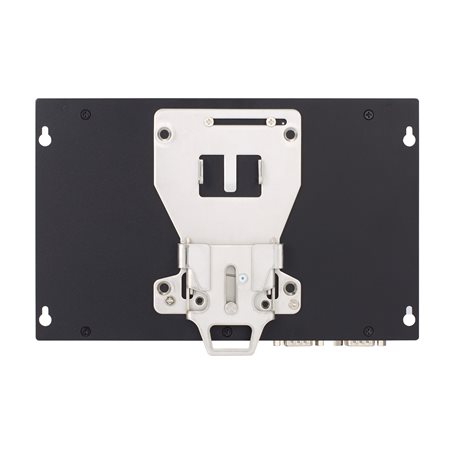

DIN-rail mounting (with optional kit)

Operating Temperature

-30 to 70°C (-22 to 158°F)
Storage Temperature

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V
IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Safety

IEC 62368-1
UL 62368-1
EN 62368-1
Shock

IEC 60068-2-27
Vibration

IEC 60068-2-6
IEC 60068-2-64
Package Drop Test

ISTA 1A
Package Vibration Test

ISTA 1A

Green Product

RoHS, CRoHS, WEEE

Time Source

Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger

Built-in WDT

Time

1,515,150 hrs
Standards

Telcordia (Bellcore), GB

Warranty Period

3 years
Details

See www.moxa.com/warranty

Download datasheet

Support Documents

Name	Type	Version	Release Date
DRP/BXP/RKP Series Linux User Manual 1.7 MB	Manual	v3.2	Aug 18, 2026 Aug 18, 2026
Manual for BXP-C101 Series (hardware) 8.1 MB	Manual	v1.0	Aug 18, 2026 Aug 18, 2026
DRP/BXP/RKP Series Windows 11 IoT Enterprise LTSC 2024 Manual 12.7 MB	Manual	v1.1	Aug 18, 2026 Aug 18, 2026
QIG for BXP-C101 Series 4.4 MB	QIG	v1.0	Aug 18, 2026 Aug 18, 2026
DRP/BXP/RKP Series Windows 10 IoT Enterprise LTSC 2021 Manual 15.2 MB	Manual	v1.4	Aug 18, 2026 Aug 18, 2026
DRP/BXP/RKP Series Windows 11 Professional 2022/2024/2025 Manual 13.6 MB	Manual	v1.1	Aug 18, 2026 Aug 18, 2026
Datasheet for BXP-C101 Series 11.1 MB	Datasheet	v1.0	Aug 17, 2026 Aug 17, 2026

Available Models (6)

Show Images

	Compare BXP-C101-C3-S1-T	Compare BXP-C101-C3-S2-T	Compare BXP-C101-C5-S1-T	Compare BXP-C101-C5-S2-T
CPU	Intel® Core™ 3-100U	Intel® Core™ 3-100U	Intel® Core™ 5-120U	Intel® Core™ 5-120U
Memory	8 GB	8 GB	8 GB	8 GB
Storage Slots	1 x Cfast, 1 x M.2 M-key	1 x Cfast, 1 x M.2 M-key	1 x Cfast, 1 x M.2 M-key	1 x Cfast, 1 x M.2 M-key
OS Preinstalled	–	–	–	–
LAN Ports	2	2	2	2
Serial Ports	2	–	2	–
USB Ports	4 x USB 3.0 2 x USB 2.0	4 x USB 3.0 2 x USB 2.0	4 x USB 3.0 2 x USB 2.0	4 x USB 3.0 2 x USB 2.0
DIs/ DOs	–	5 DIs 6 DOs	–	5 DIs 6 DOs
Video Outputs	1 x HDMI 2.1 1 x DisplayPort	1 x HDMI 2.1 1 x DisplayPort	1 x HDMI 2.1 1 x DisplayPort	1 x HDMI 2.1 1 x DisplayPort
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare BXP-C101-C7-S1-T	Compare BXP-C101-C7-S2-T
CPU	Intel® Core™ 7-150U	Intel® Core™ 7-150U
Memory	8 GB	8 GB
Storage Slots	1 x Cfast, 1 x M.2 M-key	1 x Cfast, 1 x M.2 M-key
OS Preinstalled	–	–
LAN Ports	2	2
Serial Ports	2	–
USB Ports	4 x USB 3.0 2 x USB 2.0	4 x USB 3.0 2 x USB 2.0
DIs/ DOs	–	5 DIs 6 DOs
Video Outputs	1 x HDMI 2.1 1 x DisplayPort	1 x HDMI 2.1 1 x DisplayPort
Power Input	12/24 VDC	12/24 VDC
	Add to Quote View Bag	Add to Quote View Bag
