BXP-C101-C5-S2-T
BXP-C101 Series

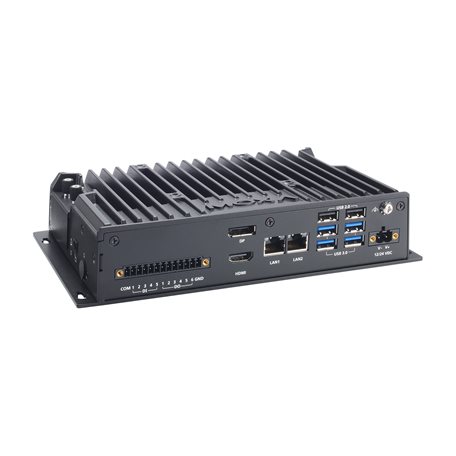

Box computer with Intel® Core™ i5-120U processor, 2 LAN ports, 5 DIs, 6 DOs, 4 USB 3.0 ports, 2 USB 2.0 ports, 1 HDMI port, 1 DP port, 1 CFast slot, 1 M.2 M-key 2242 slot, 12/24 VDC power input, -30 to 70°C operating temperature

Computer

  • CPU

    • BXP-C101-C3 models: Intel® Core™ 3-100U processor (6 cores, 10 MB Intel® smart cache, 1.2 GHz)
      BXP-C101-C5 models: Intel® Core™ 5-120U processor (10 cores, 12 MB Intel® smart cache, 1.4 GHz)
      BXP-C101-C7 models: Intel® Core™ 7-150U processor (10 cores, 12 MB Intel® smart cache, 1.8 GHz)

  • System Memory Slot

    • SODIMM DDR4 slots x 1, up to 32 GB max.

  • System Memory Pre-installed

    • 8 GB DDR4

  • Storage Slot

    • CFast slot x 1 (SATAIII interface)
      M.2 M-key 2242 sockets x 1 (PCIe Gen 4 x4)

  • Expansion Slots

    • mPCIe slots x 1

  • Supported OS

    • Windows images and drivers supported:
      - Windows 11 Professional 64-bit
      - Windows 11 IoT Enterprise LTSC 2024 64-bit
      - Windows 10 IoT Enterprise LTSC 2021 64-bit

      Linux drivers supported:
      - Debian 13
      - Ubuntu 24.04 LTS
      - RHEL 9

  • Graphics Controller

    • Intel® UHD Graphics
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • S1 models: RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • Digital Input

    • DIs x 5

  • Digital Output

    • DOs x 6

  • Video Output

    • HDMI 2.1 TMDS x 1, (type-A connector)
      DisplayPort 1.2 x 1

  • USB

    • USB 3.0 hosts x 4, type-A connectors
      USB 2.0 hosts x 2, type-A connectors

  • SIM Format

    • Nano

  • Number of SIMs

    • 1

  • Buttons

    • Power button

  • TPM

    • TPM v2.0
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Bitrate

    • 50 bps to 115.2 kbps

  • Connector

    • DB9 male

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs

  • Connector

    • Spring-type Euroblock terminal

  • Sensor Type

    • Dry contact
      Wet contact (NPN)

  • Dry Contact

    • Logic 0: Close to GND
      Logic 1: Open

  • Wet Contact (COM to DI)

    • Logic 0: 10 to 30 VDC
      Logic 1: 0 to 3 VDC
Digital Outputs

  • Connector

    • Spring-type Euroblock terminal

  • I/O Type

    • Sink

  • Voltage

    • 0 to 30 VDC

  • Current Rating

    • 200 mA per channel
LED Indicators

  • System

    • Power x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)
Power Parameters

  • Input Voltage

    • 12/24 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal

  • Power Consumption

    • 62.4 W
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP20

  • Dimensions

    • 217 x 136.5 x 44.5 mm (8.55 x 5.38 x 1.75 in)

  • Weight

    • 1,600 g (3.52 lb)

  • Installation

    • Wall mounting (standard)
      DIN-rail mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -30 to 70°C (-22 to 158°F)

  • Storage Temperature

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
      IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V
      IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    • IEC 62368-1
      UL 62368-1
      EN 62368-1

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64

  • Package Drop Test

    • ISTA 1A

  • Package Vibration Test

    • ISTA 1A
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
Reliability

  • Time Source

    • Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    • Built-in WDT
MTBF

  • Time

    • 1,515,150 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
