MOXA

x86 Computers

Moxa’s x86 industrial-grade fanless computers have passed rigorous tests and strictly adhere to industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for a variety of industrial-automation applications.

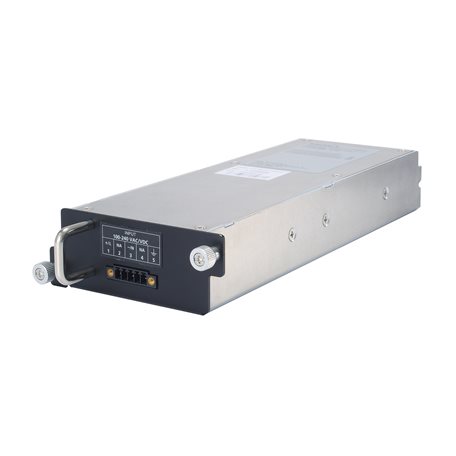

DA-PWR-150-HV
DA-820E Power Modules

Hot-swappable power-supply module (100 to 240 VAC/VDC) with system power input and terminal block for DA-820E computers

Power Parameters

  • Input Voltage

    • 100 to 240 VAC, 50 to 60 Hz

  • Operating Voltage

    • 90 to 264 VAC, 50 to 60 Hz
      90 to 264 VDC

  • Overload Current Protection

    • Supported

  • Overload Voltage Protection

    • Supported

  • Overload Temperature Protection

    • Supported
Physical Characteristics

  • Weight

    • 840 g (1.85 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
MTBF

  • Time

    • 905,396 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty
