RKP-C220 Series

2U rackmount computers with Raptor Lake-S 13th Gen Intel® Core™ processor base model and rich interface models

moxa-rkp-c220-series-image-1-(1).jpg | Moxa

moxa-rkp-c220-series-image-2-(1).jpg | Moxa

moxa-rkp-c220-series-image-3-(1).jpg | Moxa

moxa-rkp-c220-series-image-5-(1).jpg | Moxa

Features and Benefits

13th Gen Intel® Core™ Raptor Lake-S processor and Intel® Q670E chipset
2U rackmount computers with fanless design
Supports NVIDIA RTX Series FLFH GPU card up to 200 W TDP
2 SODIMM sockets support up to 64 GB
3 PCIe slots for expansion modules: x16 (with GPU support), x8 (4-lane), and x1 PCIe slots
Rich set of interfaces: Up to 8 LAN ports, up to 10 serial ports, and 2 CAN ports
2 lockable 2.5" SATA SSD slots and 3 extendable M.2 M key SSD slots for supporting 2 sets of Intel® RST RAID 0/1
-30 to 60°C operating temperature range

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The RKP-C220 Series rugged fanless rackmount computers powered by a 13th Gen Intel® Core™ i3, i5, i7, or i9 processor with up to 24 cores and 32 threads, and a rich set of interface options can easily extend the potential of your industrial applications. The computer models come with a rich set of interfaces including up to 8 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports (Moxa in-house IC design), up to 2 CAN ports, and 4 DIs and 4 DOs. Expansion modules can be installed via 3 PCIe slots, including a x16 slot that supports full-length discrete GPU cards for AI-accelerated performance, a x8 (4-lane) slot, and a x1 slot. Two lockable 2.5” SSD storage slots and three M.2 M key SSD extension slots support two sets of Intel® RST RAID 0/1. All interfaces are located on one side of the product for convenient access and wire stripping while an external RTC battery slot simplifies battery replacement.

A 2U standard form factor with a rackmount chassis, fanless design, a wide temperature range of -30 to 60°C, an additional fan module to increase performance, and a built-in TPM 2.0 module, make the computers reliable, durable, versatile yet user-friendly industrial platforms in harsh operating environments. The RKP-C220 Series is an intelligent computing platform that is a perfect fit for your industrial applications.

Appearance

Front View

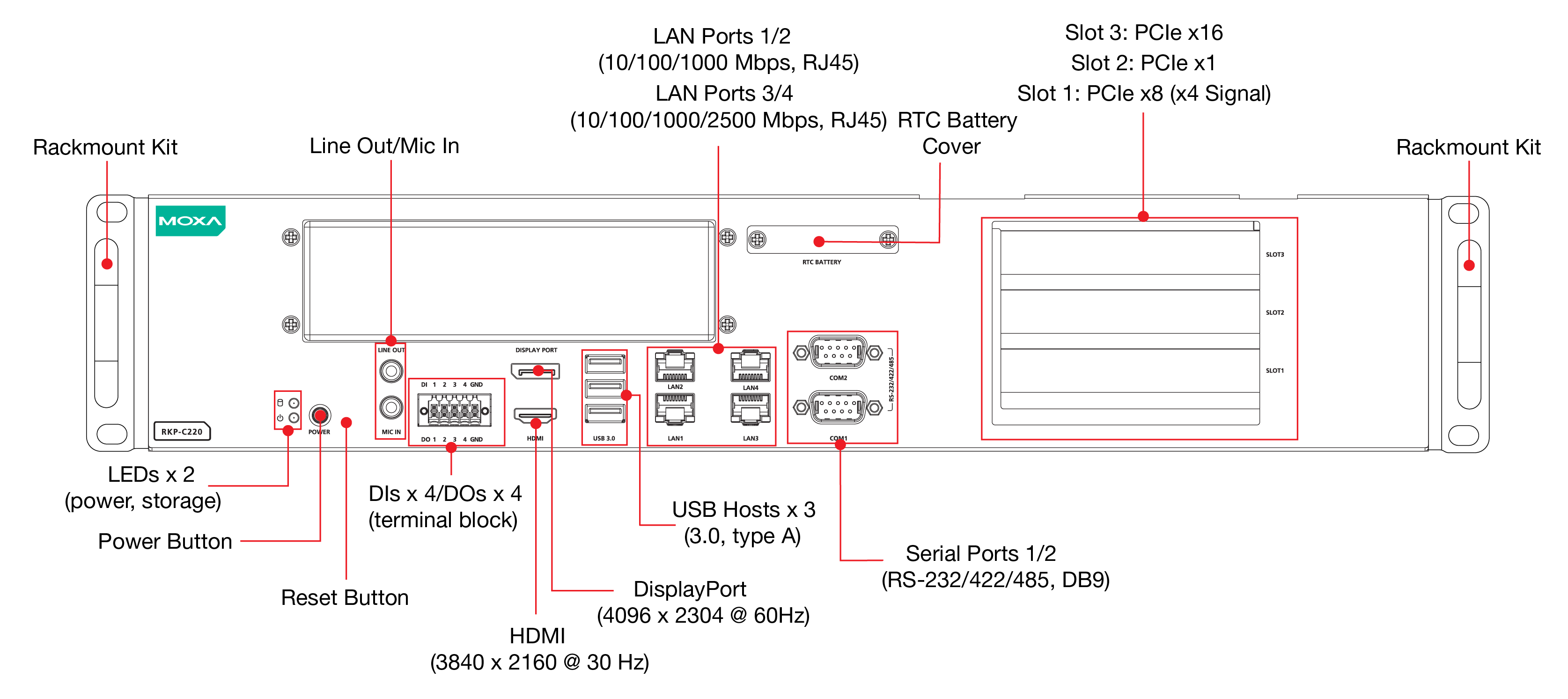

RKP-C220-C3-T/ RKP-C220-C5-T/ RKP-C220-C7-T/ RKP-C220-C9-T Models

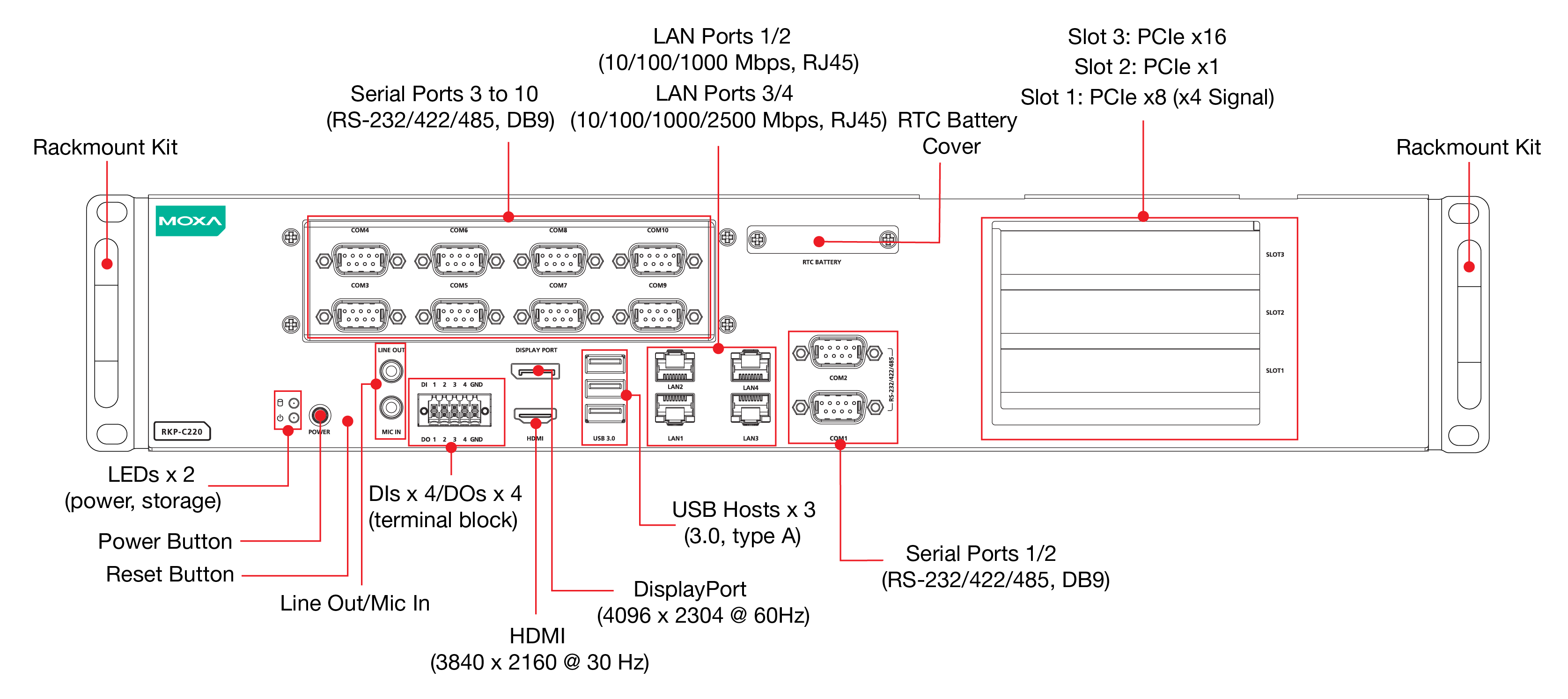

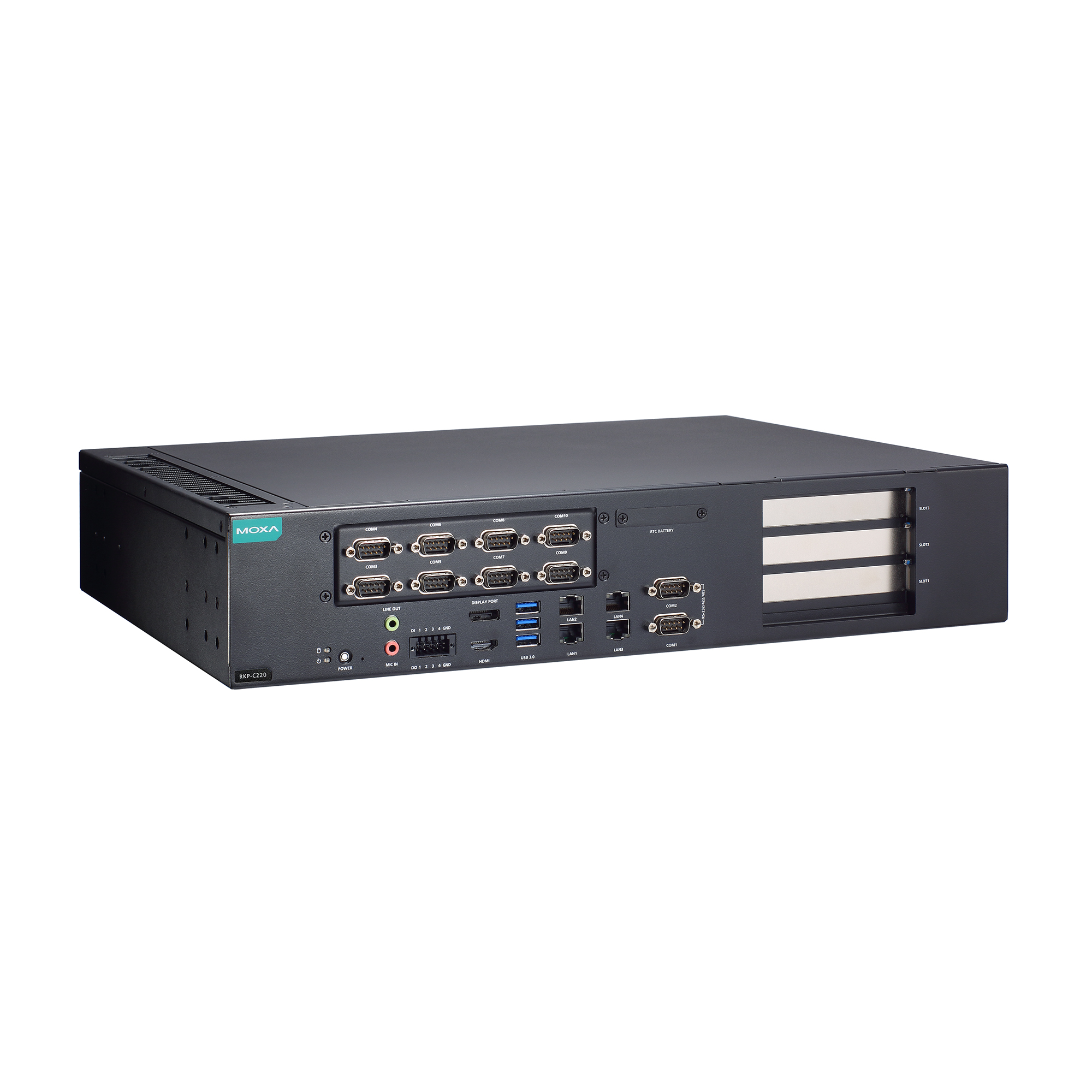

RKP-C220-C3-8C-T/ RKP-C220-C5-8C-T/ RKP-C220-C7-8C-T/ RKP-C220-C9-8C-T Models

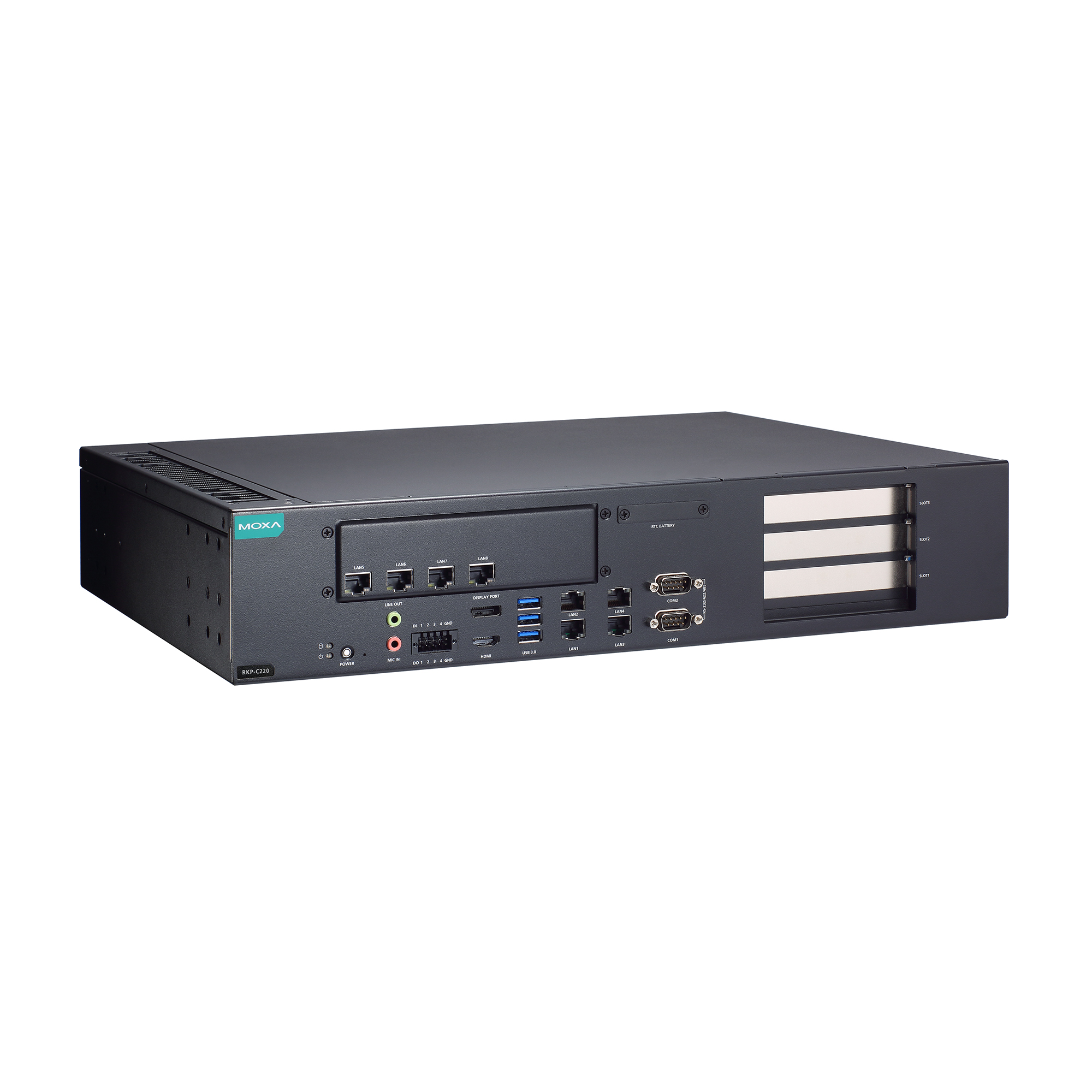

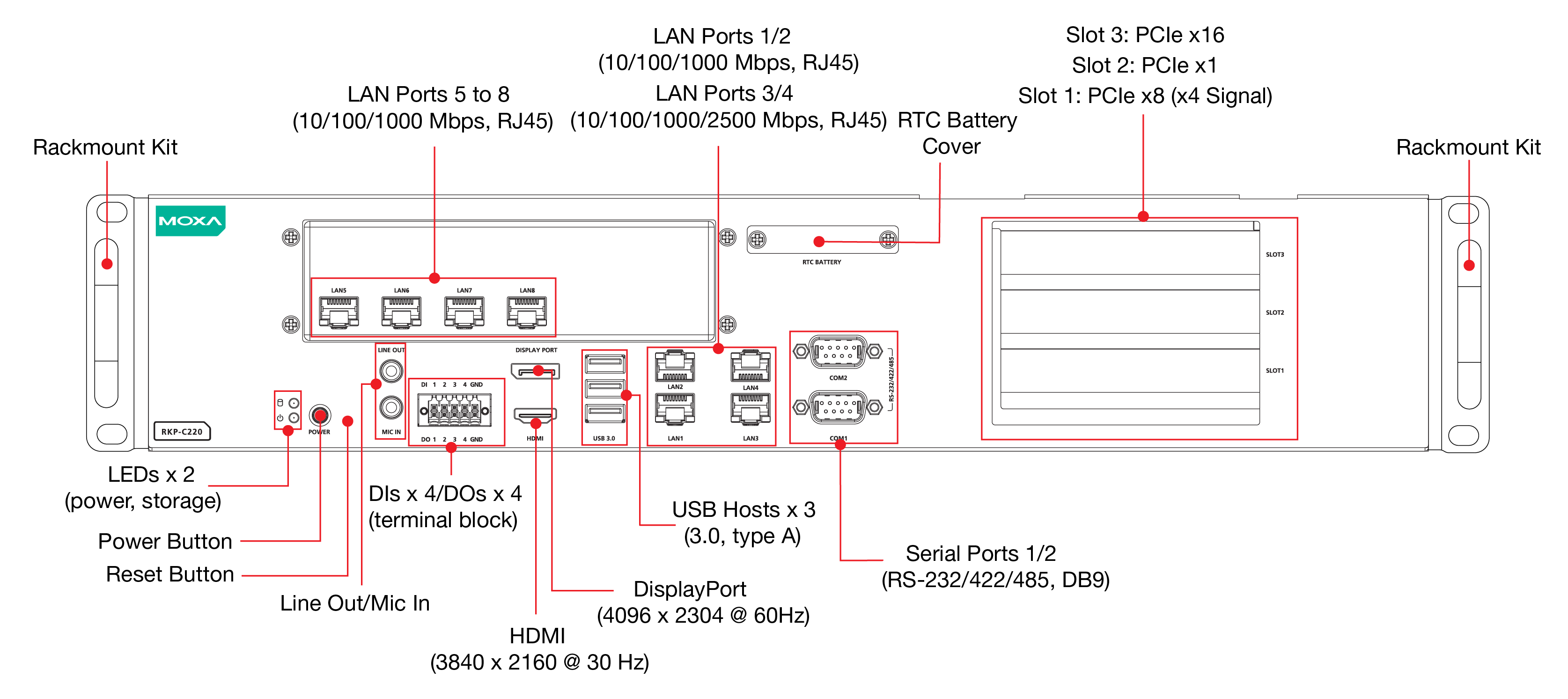

RKP-C220-C3-4L-T/ RKP-C220-C5-4L-T/ RKP-C220-C7-4L-T/ RKP-C220-C9-4L-T Models

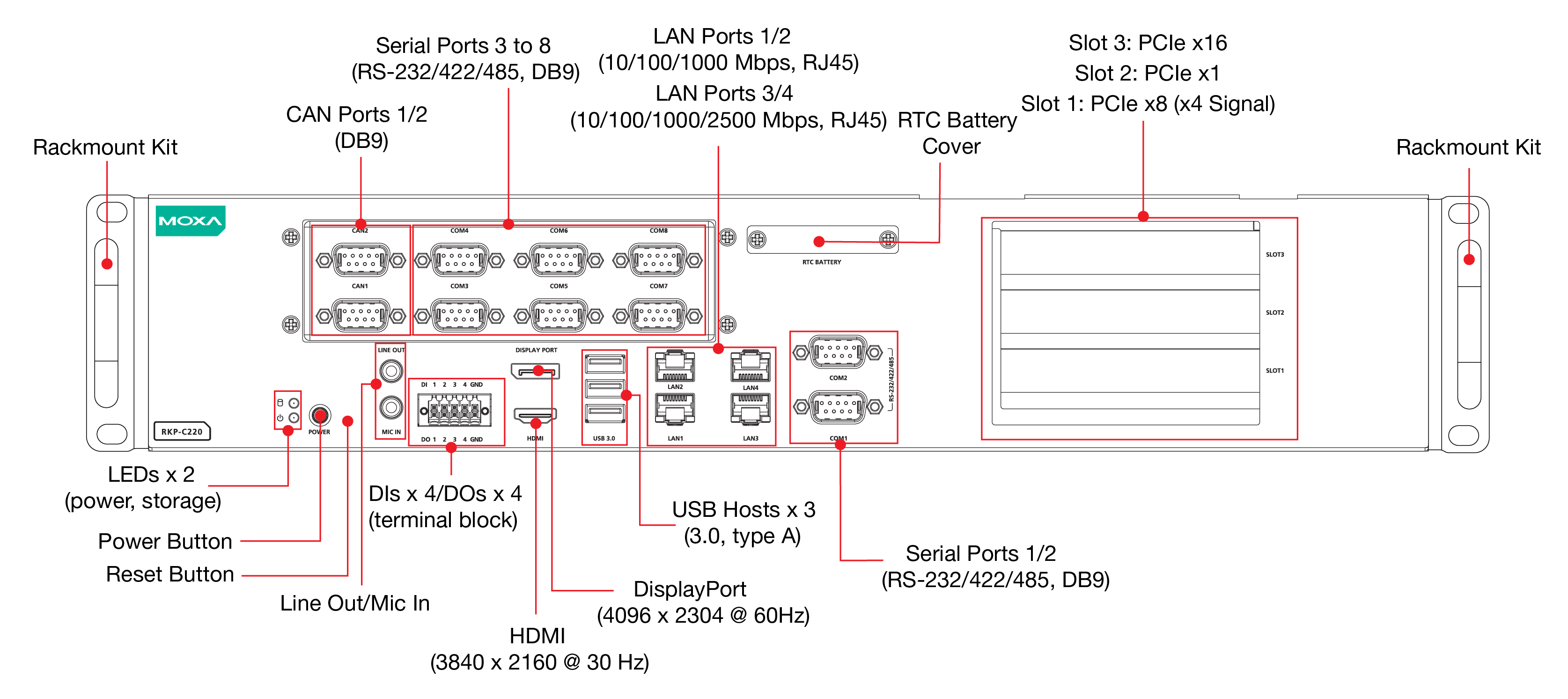

RKP-C220-C3-2CB6C-T/ RKP-C220-C5-2CB6C-T/ RKP-C220-C7-2CB6C-T/ RKP-C220-C9-2CB6C-T Models

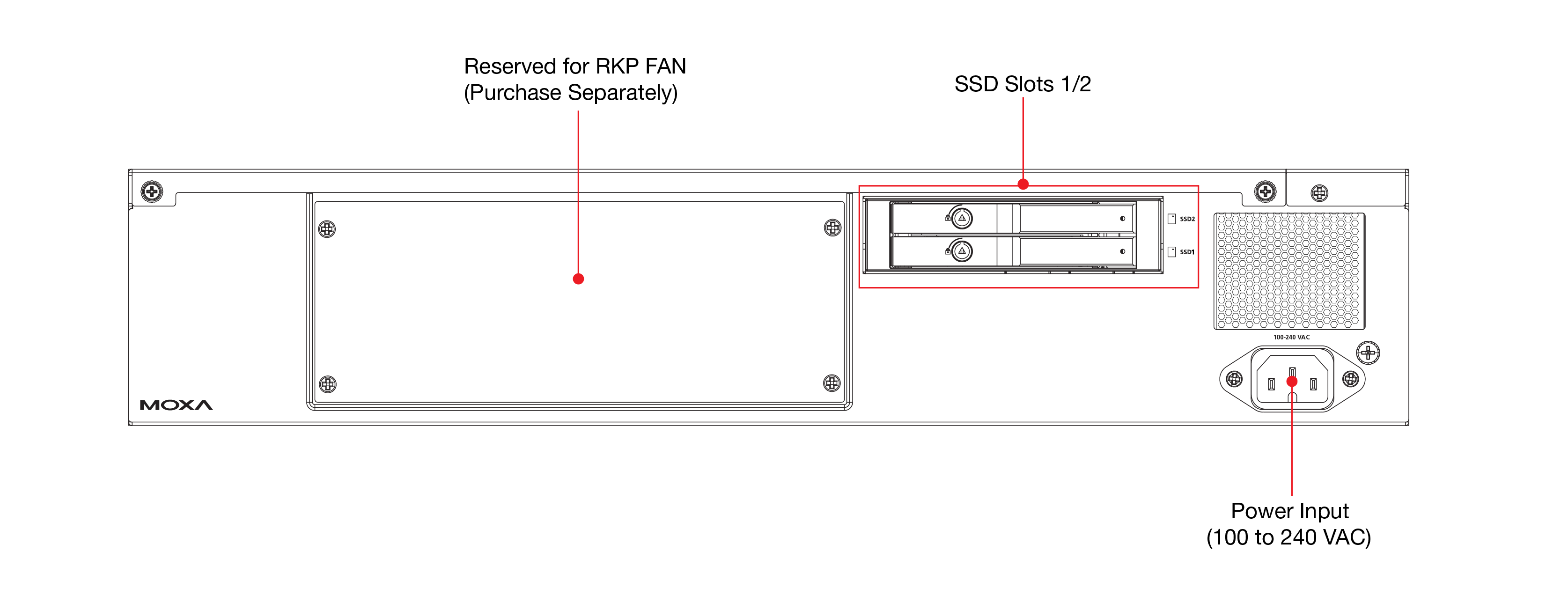

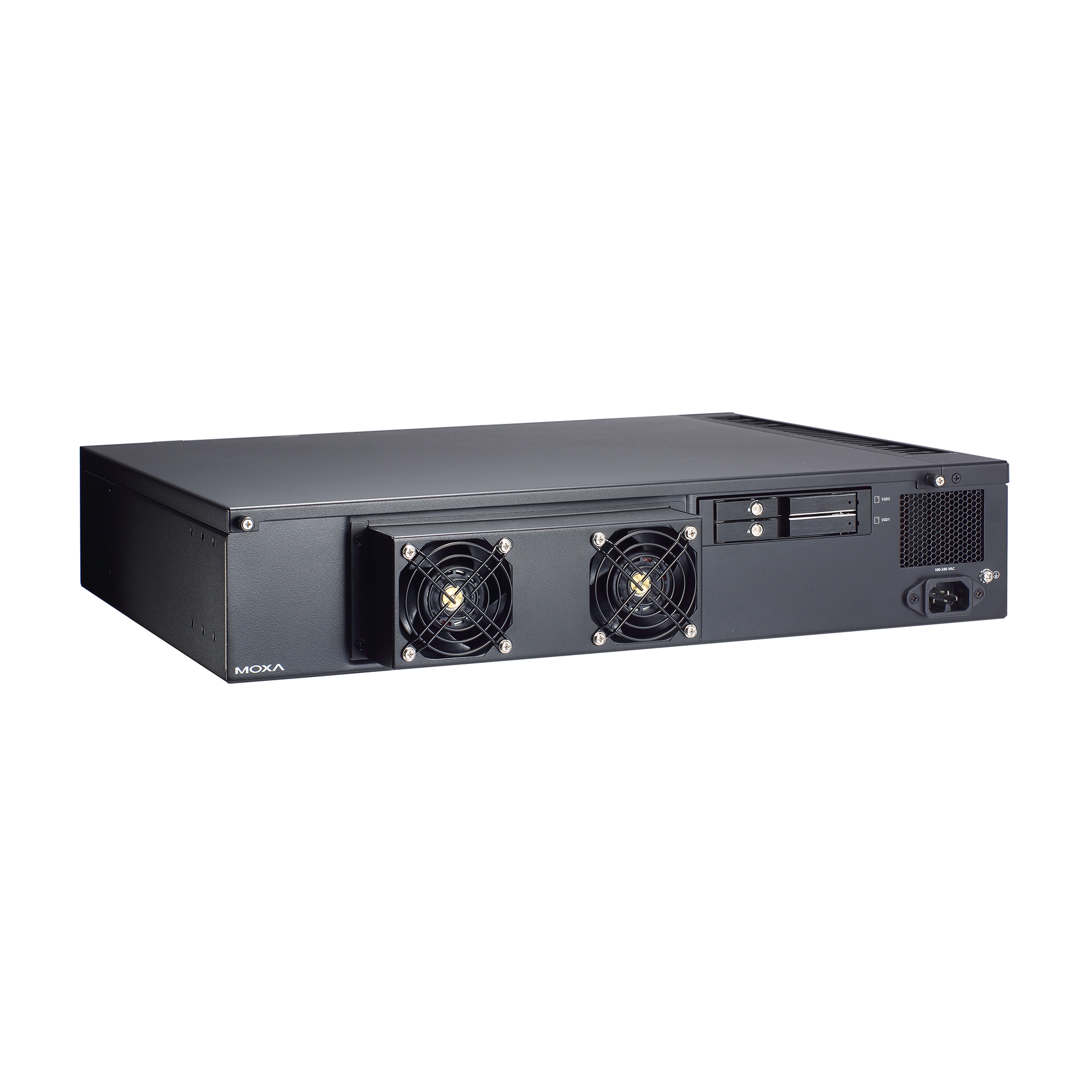

RearView

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

CPU

RKP-C220-C9 models: Intel® Core™ i9-13900TE
RKP-C220-C7 models: Intel® Core™ i7-13700TE
RKP-C220-C5 models: Intel® Core™ i5-13500TE
RKP-C220-C3 models: Intel® Core™ i3-13100TE
Chipset

Intel® Q670E
System Memory Slot

SODIMM DDR4 slots x 2, up to 64 GB max.
System Memory Pre-installed

8 GB DDR4
Storage Slot

2.5-inch SSD slot x 2 (SATA III interface, RAID 0/1 support)
M.2 M Key 2280 socket x 1 (PCIe interface, NVMe support)
M.2 M Key 2242 socket x 2 (PCIe interface, NVMe support, RAID 0/1 support)
Supported OS

OS images:
- Windows 10 IoT Enterprise LTSC 2021 64-bit
- Windows 11 IoT Enterprise LTSC 2024 64–bit
- Windows 11 Professional 64-bit
Windows drivers supported:
- Windows 10 IoT Enterprise LTSC 2021 64-bit
- Windows 11 IoT Enterprise LTSC 2024 64–bit
- Windows 11 Professional 64-bit
- Windows Server 2022
Linux driver supported:
- Debian 12 (kernel 6.10)
- Ubuntu 22.04 LTS/ HWE (kernel 5.15)
- RHEL 9.0 (kernel 5.14)
Graphics Controller

i9. i7, and i5 processor: Intel® UHD Graphics 770
i3 processor: Intel® UHD Graphics 730

Ethernet Ports

RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2
RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
Auto-sensing 10/100/1000/2500 Mbps ports (RJ45 connector) x 2
Serial Channels

RKP-C220-C9-T/ RKP-C220-C7-T/ RKP-C220-C5-T/ RKP-C220-C3-T:
RS-232/RS-422/RS-485-2W/RS-485-4W ports x 2, software selectable (DB9 male)
RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T:
RS-232/RS-422/RS-485-2W/RS-485-4W ports x 10, software selectable (DB9 male)
RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T:
RS-232/RS-422/RS-485-2W/RS-485-4W ports x 8, software selectable (DB9 male)
CAN Ports

RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T:
CAN Ports x 2
Expansion Slots

PCIe x16 (Gen 4) slot x 1
PCIe x8 (4-lane, Gen 4) slot x 1
PCIe x1 (Gen 4) slot x 1
USB 3.0

External: USB 3.0 hosts x 3, type-A connector
Internal: USB 3.0 hosts x 1, type-A connector
Digital Input

DIs x 4
Digital Output

DOs x 4
Audio Input/Output

Mic-in x 1, 3.5 mm audio jack
Line-out x 1, 3.5 mm audio jack
Video Output

HDMI 2.0b x 1, (type-A connector)
DisplayPort 1.2 x 1
Buttons

Reset button
Power button
TPM

TPM v2.0

Magnetic Isolation Protection

1.5 kV (built-in)

Baudrate

50 bps to 115.2 kbps
Connector

DB9 male
Data Bits

5, 6, 7, 8
Parity

None, Even, Odd, Space, Mark
Stop Bits

1, 1.5, 2
Flow Control

RTS/CTS, XON/XOFF

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Connector

Spring-type Euroblock terminal
Sensor Type

Dry contact
Dry Contact

Logic 0: Short to GND
Logic 1: Open

Connector

Spring-type Euroblock terminal
I/O Type

Sink
Current Rating

200 mA per channel
Voltage

0 to 24 VDC

Connector

DB9 male
Protocols

CAN 2.0A
CAN 2.0B
Signals

CAN_H, CAN_L, CAN_GND
Isolation

2 kV (built-in)

Input Voltage

100 to 240 VAC
Power Consumption

90 W
(without graphics card)
Power Connector

IEC 60320 C16 inlet

Housing

Metal
IP Rating

IP20
Dimensions

440 x 360 x 88.1 mm (17.32 x 14.17 x 3.47 in)
Weight

RKP-C220-C9-T/C7-T/C5-T/C3-T:
8,913 g (19.65 Ib)
RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T:
8,914 g (19.65 Ib)
RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T:
9,196 g (20.27 Ib)
RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T models:
9,062 g (19.98 Ib)
Installation

Rack mounting (standard 2U)

Operating Temperature

-30 to 60°C (-22 to 140°F)
(without graphics card; refer to the graphics card operating temperature specification if applicable)
Storage Temperature

-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
BSMI
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: Line-to-PE: 2 kV; Line-to-Line: 1 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Safety

UL 62368-1 (CB)
BSMI
Shock

IEC 60068-2-27
Vibration

IEC 60068-2-64
Package Drop Test

ISTA 1A
Package Vibration Test

ISTA 1A

Green Product

RoHS, CRoHS, WEEE

Time Source

Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger

Built-in WDT

Time

RKP-C220-C9-T/C7-T/C5-T/C3-T: 1,168,494 hrs
RKP-C220-C9-8C-T/C7-8C-T/C5-8C-T/C3-8C-T: 993,182 hrs
RKP-C220-C9-4L-T/C7-4L-T/C5-4L-T/C3-4L-T: 1,101,194 hrs
RKP-C220-C9-2CB6C-T/C7-2CB6C-T/C5-2CB6C-T/C3-2CB6C-T: 995,157 hrs hrs
Standards

Telcordia (Bellcore), GB

Warranty Period

3 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
Driver for RKP-C220 Series (Windows 11 IoT Enterprise LTSC 2024) 2.5 GB	Driver	E46E6D15C6769A4A7F80A4155851F2C8E3205349891F2F2D92F29EDC5A64DA669D5B1ABC40514B89B8C94CD63D1F56C95B8E5344BE1FAC8250F48E1E806DC376 SHA-512	v1.0	Windows 11 IoT Enterprise LTSC 2024	Oct 30, 2025 Oct 30, 2025 Release notes
Driver for RKP-C220 Series (Linux drivers and SDK) 36.7 MB	Driver	5F5B28D5962FD99A5FFA24149CE13BF5CD9CD1FAD70D0F7E100073D3A4220F8AC8C2818A5E976575C737C96E0B8557C22A98F395247685AEB5D999C0208AAA37 SHA-512	v1.0	Debian 12.x RHEL 9 Ubuntu 22.04	Oct 30, 2025 Oct 30, 2025 Release notes
Driver for RKP-C220 Series (Windows 10 IoT Enterprise LTSC 2021) 2.6 GB	Driver	70979AD464FE581E626CDF40302FACFE516C9DEE3B365754D261192DB1940C79AB69B90D0B845C0020CAB319B2FB3E2D4A67255C1C45A43CBE57824B13220EA3 SHA-512	v1.0	Windows 10 IoT Enterprise LTSC 2021	Oct 30, 2025 Oct 30, 2025 Release notes
Driver for RKP-C220 Series (Windows 11 Professional 2024) 2.5 GB	Driver	C0A13E4B596D4FB55EE17279737C11A8EF1586491FB5B74C0AEE456601DB8EA0C364234CA43B4091EF15D55E8A535C91A962C8BE3FAF61040DAEA3EF97A408AD SHA-512	v1.0	Windows 11 Professional 2024	Oct 30, 2025 Oct 30, 2025 Release notes
Driver for RKP-C220 Series (Windows Server 2022) 2.6 GB	Driver	776733072ED710EDC5AC5261BBC369A33BB5C4CCB40C37C1107442015177387BE67ADE51A36BDFA5EE1AB8CC9A3CB482E2CD2F63D9AF31D9B51C4B32DD8177FF SHA-512	v1.0	Windows Server 2022	Oct 30, 2025 Oct 30, 2025 Release notes

Support Documents

Name	Type	Version	Release Date
DRP/BXP/RKP Series Windows 11 Professional 2022/2024 Manual 13.6 MB	Manual	v1.0	Nov 03, 2025 Nov 03, 2025
DRP/BXP/RKP Series Windows 10 IoT Enterprise LTSC 2021 Manual 15.2 MB	Manual	v1.3	Nov 03, 2025 Nov 03, 2025
DRP/BXP/RKP Series Windows 11 IoT Enterprise LTSC 2024 Manual 12.7 MB	Manual	v1.0	Nov 03, 2025 Nov 03, 2025
Datasheet for RKP-C220 Series 2.2 MB	Datasheet	v1.0	Oct 30, 2025 Oct 30, 2025
QIG for RKP-C220 Series 2.8 MB	QIG	v1.0	Oct 30, 2025 Oct 30, 2025
Manual for RKP-C220 Series (hardware) 8.2 MB	Manual	v1.0	Oct 30, 2025 Oct 30, 2025
Declaration of Conformity (EU/UK) for RKP-C220 Series 328.8 KB	Declaration	v1.0	Sep 02, 2025 Sep 02, 2025
