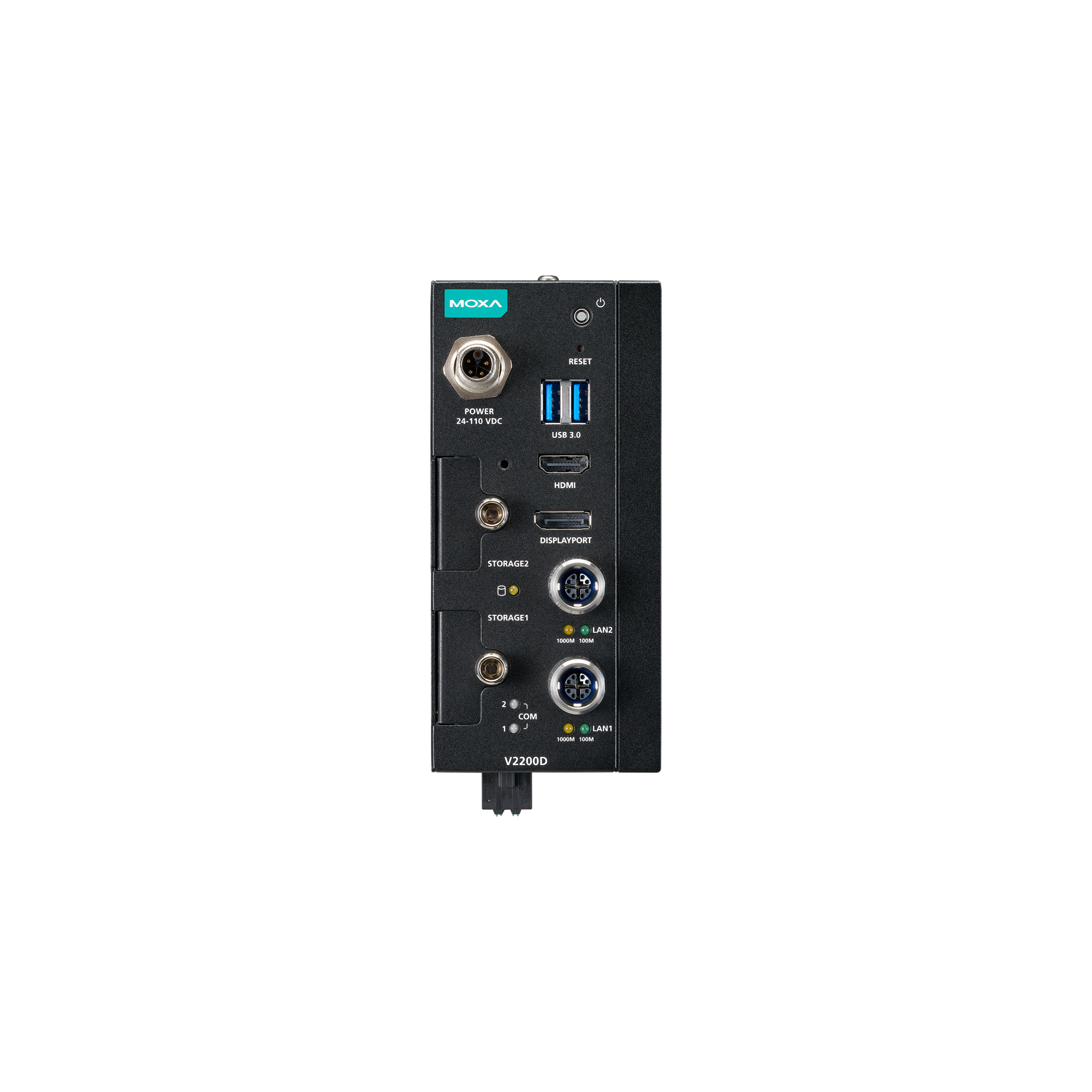

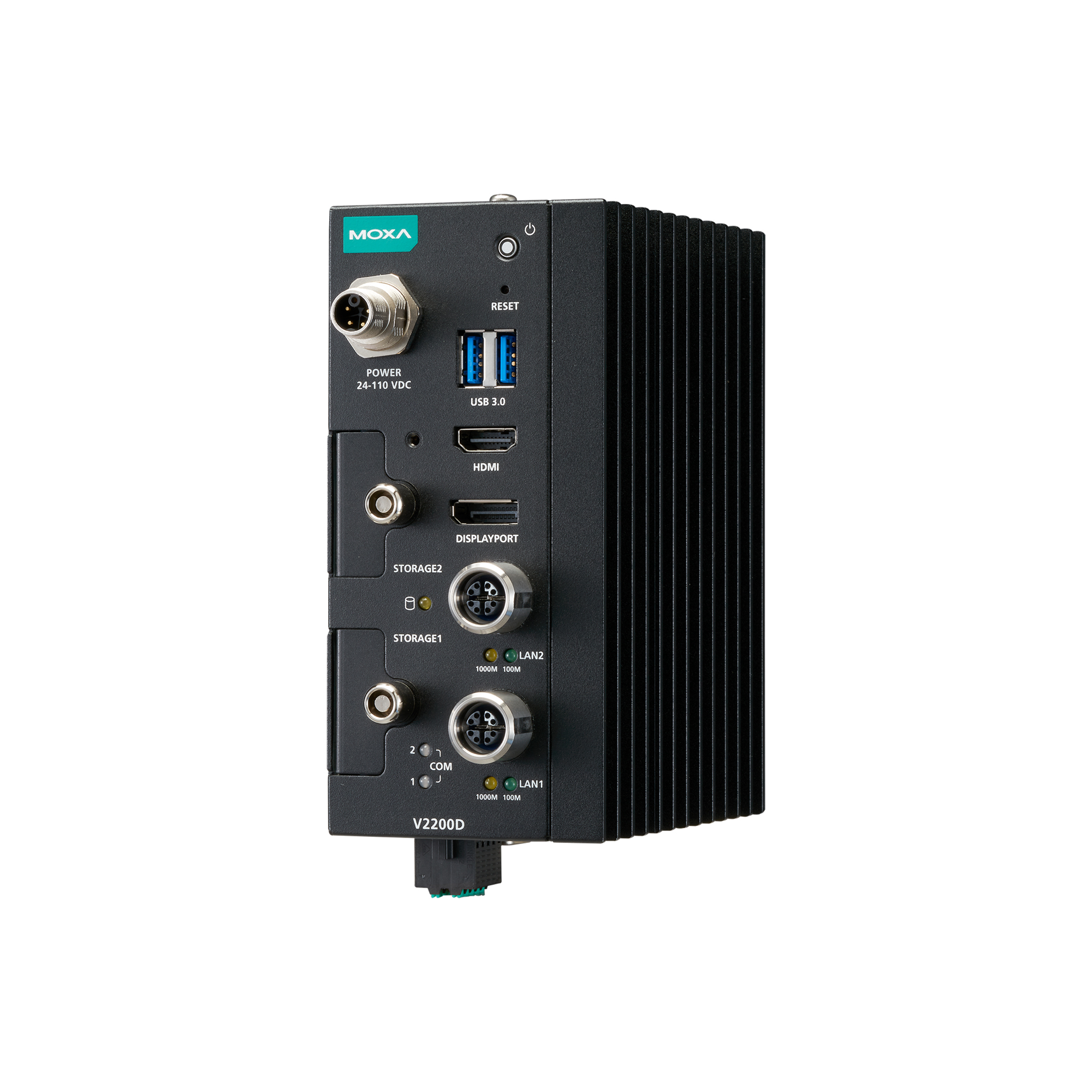

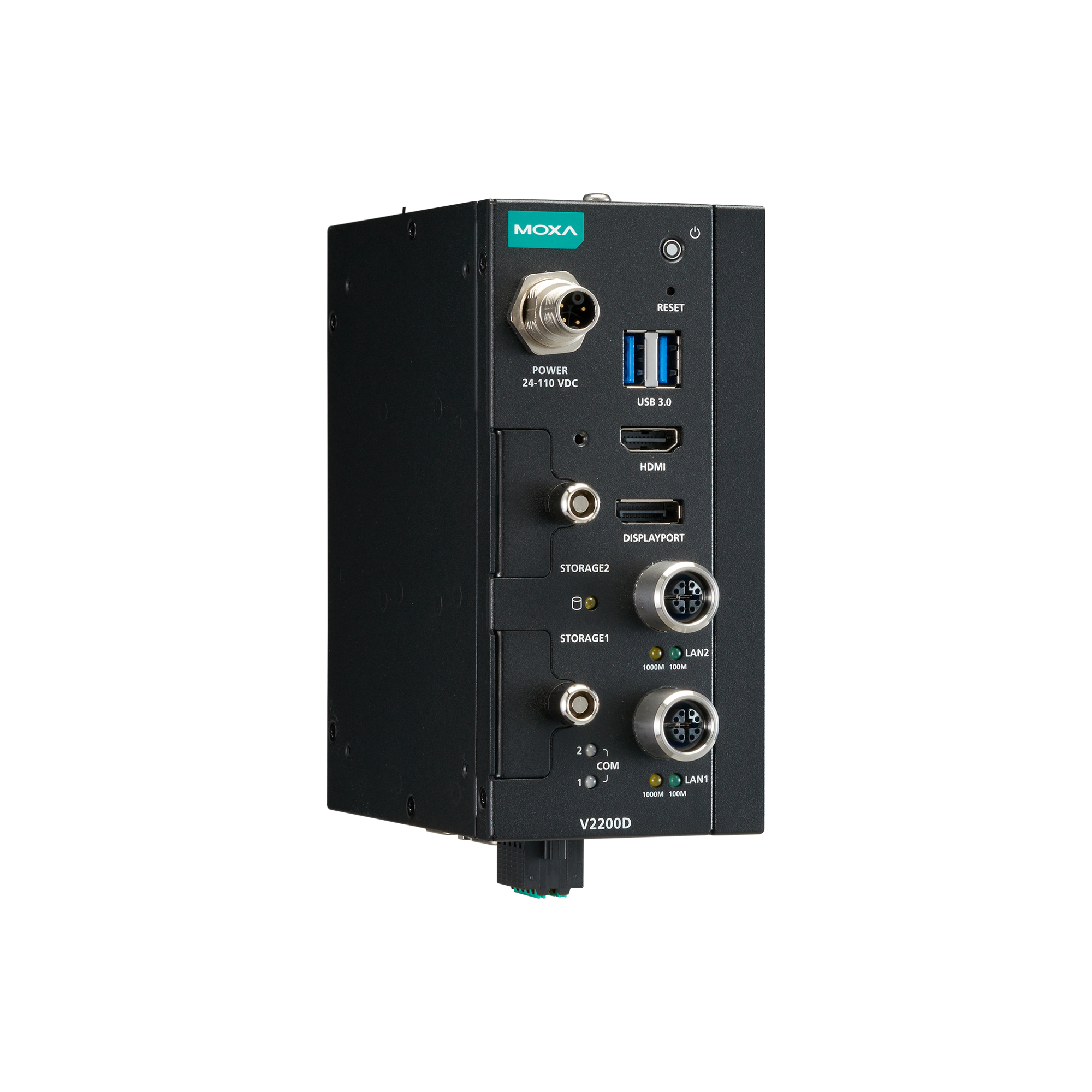

The V2200D Series embedded computers are built around an Intel Atom® Amston Lake x7433RE processor and come with up to 32 GB DDR4 memory, one internal M.2 2242 M-key storage slot, and two front-accessible easy-swappable M.2 2280 M-key storage slots for flexible and reliable data storage. The computers comply with railway requirements for operating temperature, power input, and EMC, making them suitable for onboard and wayside applications in harsh railway environments.

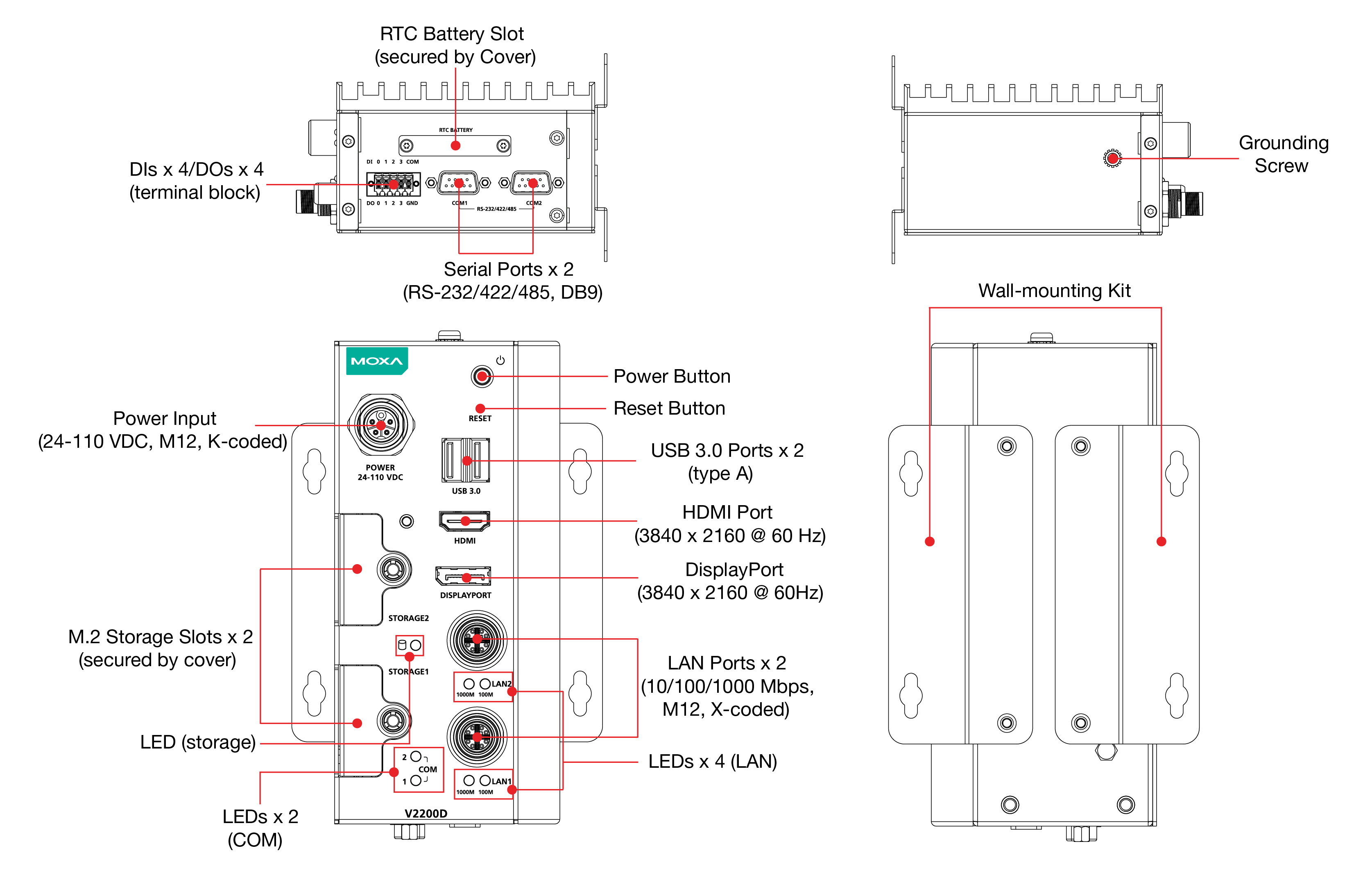

For enhanced data protection, the front-accessible storage slots are equipped with a lock, allowing only authorized personnel to access the storage devices. The V2200D computers provide essential industrial interfaces, including 2 Gigabit Ethernet ports, 2 RS-232/422/485 serial ports, 4 digital inputs, 4 digital outputs, 2 USB 3.0 ports, 1 HDMI, and 1 DisplayPort, enabling seamless integration with onboard systems and field devices. A built-in TPM 2.0 module further strengthens platform integrity and provides hardware-based protection against unauthorized access and tampering.
Save
Intel Atom® x7433RE processor (quad-core, 6M, 3.40 GHz)
SODIMM DDR4 slots x 1 (up to 32 GB)
(internal) M.2 M key 2242 slots x 1 (external for expansion) M.2 M key 2280 slots x 2
Windows 10 IoT Enterprise LTSC 2021Windows 11 IoT Enterprise LTSC 2024Linux: Debian 12Ubuntu 22.04 (driver)Moxa Industrial Linux 4See www.moxa.com/MIL
Auto-sensing 100/1000 Mbps Ethernet (M12 X-coded inner push-pull connector) x 2
RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
DIs x 4
DOs x 4
HDMI x 1, HDMI connector (type A) DisplayPort x 1
USB 3.0 hosts x 1, type-A connectors
TPM v2.0
Screw-fastened Euroblock terminal
Dry contact Wet contact (PNP)
Logic 0: Short to GND Logic 1: Open
Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
3k VDC
200 mA per channel
Sink
0 to 30 VDC
DB9 male
50 bps to 115.2 kbps
2k VDC
RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
None, Even, Odd, Space, Mark
1, 1.5, 2
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Tx+, Tx-, Rx+, Rx-, GND
Data+, Data-, GND
Power x 1 Storage x 1
2 per port (10/100/1000 Mbps)
1 per port (Tx, Rx)
M12 K-coded male
24 to 110 VDC
40.8 W (max.)
Aluminum
IP30
150 x 120 x 70 mm (5.91 x 4.73 x 2.95 in)
1680 g (3.70 lb)
Wall mounting (default), DIN-rail mounting, desk mounting
PCB conformal coating
-40 to 70°C (-40 to 158°F)
-40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)
EN 55032/35
CISPR 32, FCC Part 15B Class A
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
EN 50155 EN 50121-4 EN 50121-3-2
EN 45545-2
EN 62368-1 IEC 62368-1 UL 62368-1
IEC 60068-2-27 IEC 61373EN 50155
IEC 60068-2-64 IEC 61373EN 50155
RoHS, CRoHS, WEEE
1,318,292 hrs
Telcordia (Bellcore), GB
3 years
See www.moxa.com/warranty
