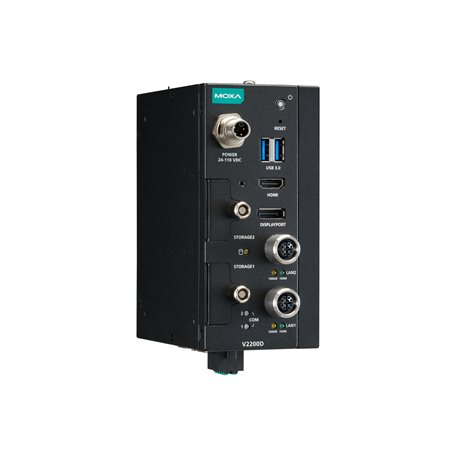

V2202D-AL4-CT-T
V2200D Series

x86 computer with Intel Atom® x7433RE processor, 2 1GbE ports, 2 COM ports, 4 DIs, 4 DOs, 1 HDMI port, 3 M.2 storage slots, 2 USB ports, 24 to 110 VDC power input with isolation, -40 to 70°C operating temperature, conformal coating

Computer

  • CPU

    • Intel Atom® x7433RE processor (quad-core, 6M, 3.40 GHz)

  • System Memory Slot

    • SODIMM DDR4 slots x 1 (up to 32 GB)

  • Storage Slot

    • (internal) M.2 M key 2242 slots x 1
      (external for expansion) M.2 M key 2280 slots x 2

  • Supported OS

    • Windows 10 IoT Enterprise LTSC 2021
      Windows 11 IoT Enterprise LTSC 2024
      Linux:
      Debian 12
      Ubuntu 22.04 (driver)
      Moxa Industrial Linux 4
      See www.moxa.com/MIL
Computer Interface

  • Ethernet Ports

    • Auto-sensing 100/1000 Mbps Ethernet (M12 X-coded inner push-pull connector) x 2

  • Serial Ports

    • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • Digital Input

    • DIs x 4

  • Digital Output

    • DOs x 4

  • Video Output

    • HDMI x 1, HDMI connector (type A)
      DisplayPort x 1

  • USB 3.0

    • USB 3.0 hosts x 1, type-A connectors

  • TPM

    • TPM v2.0
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Sensor Type

    • Dry contact
      Wet contact (PNP)

  • Dry Contact

    • Logic 0: Short to GND
      Logic 1: Open

  • Wet Contact (COM to DI)

    • Logic 0: 10 to 30 VDC
      Logic 1: 0 to 3 VDC

  • Isolation

    • 3k VDC
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Type

    • Sink

  • Voltage

    • 0 to 30 VDC

  • Isolation

    • 3k VDC
Serial Interface

  • Connector

    • DB9 male

  • Baudrate

    • 50 bps to 115.2 kbps

  • Isolation

    • 2k VDC

  • Flow Control

    • RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
LED Indicators

  • System

    • Power x 1
      Storage x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)

  • Serial

    • 1 per port (Tx, Rx)
Power Parameters

  • Power Connector

    • M12 K-coded male

  • Input Voltage

    • 24 to 110 VDC

  • Power Consumption

    • 40.8 W (max.)
Physical Characteristics

  • Housing

    • Aluminum

  • IP Rating

    • IP30

  • Dimensions (without ears)

    • 150 x 120 x 70 mm (5.91 x 4.73 x 2.95 in)

  • Weight

    • 1680 g (3.70 lb)

  • Installation

    • Wall mounting (default), DIN-rail mounting, desk mounting

  • Protection

    • PCB conformal coating
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50155
      EN 50121-4
      EN 50121-3-2

  • Railway Fire Protection

    • EN 45545-2

  • Safety

    • EN 62368-1
      IEC 62368-1
      UL 62368-1

  • Shock

    • IEC 60068-2-27
      IEC 61373
      EN 50155

  • Vibration

    • IEC 60068-2-64
      IEC 61373
      EN 50155
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 1,318,292 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
