ioPAC 6500 Series (65M) Power Modules

Power modules for modular programmable IIN controllers

moxa-iopac-6500-series-65m-power-modules-image-1-(1).jpg | Moxa

Features and Benefits

Separates system power from field power
Tool-free hardware installation and hot-swap design for maximizing operation efficiency
Fully modular design for maximum deployment flexibility

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

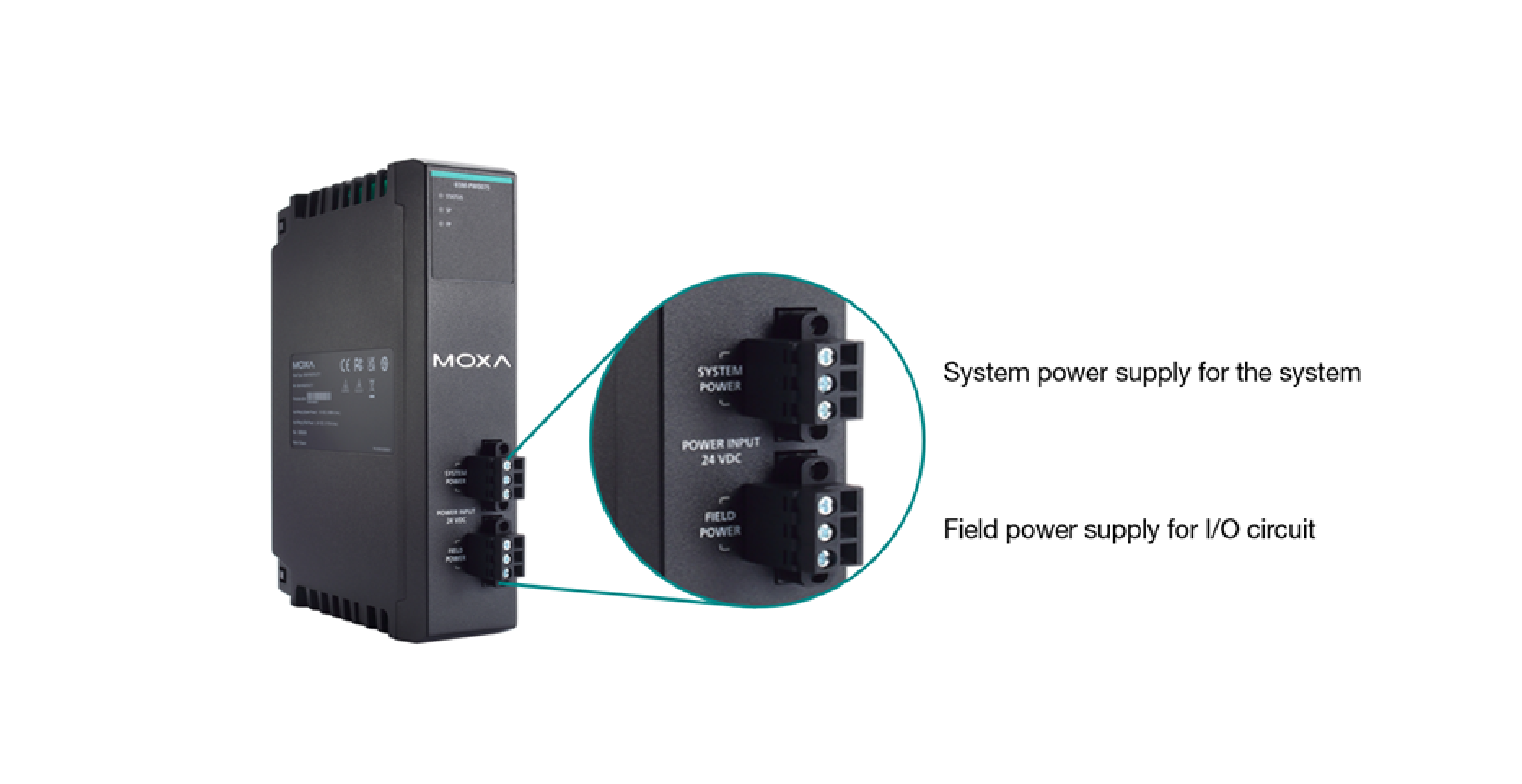

Separates System Power From Field Power

Fully Modular Design

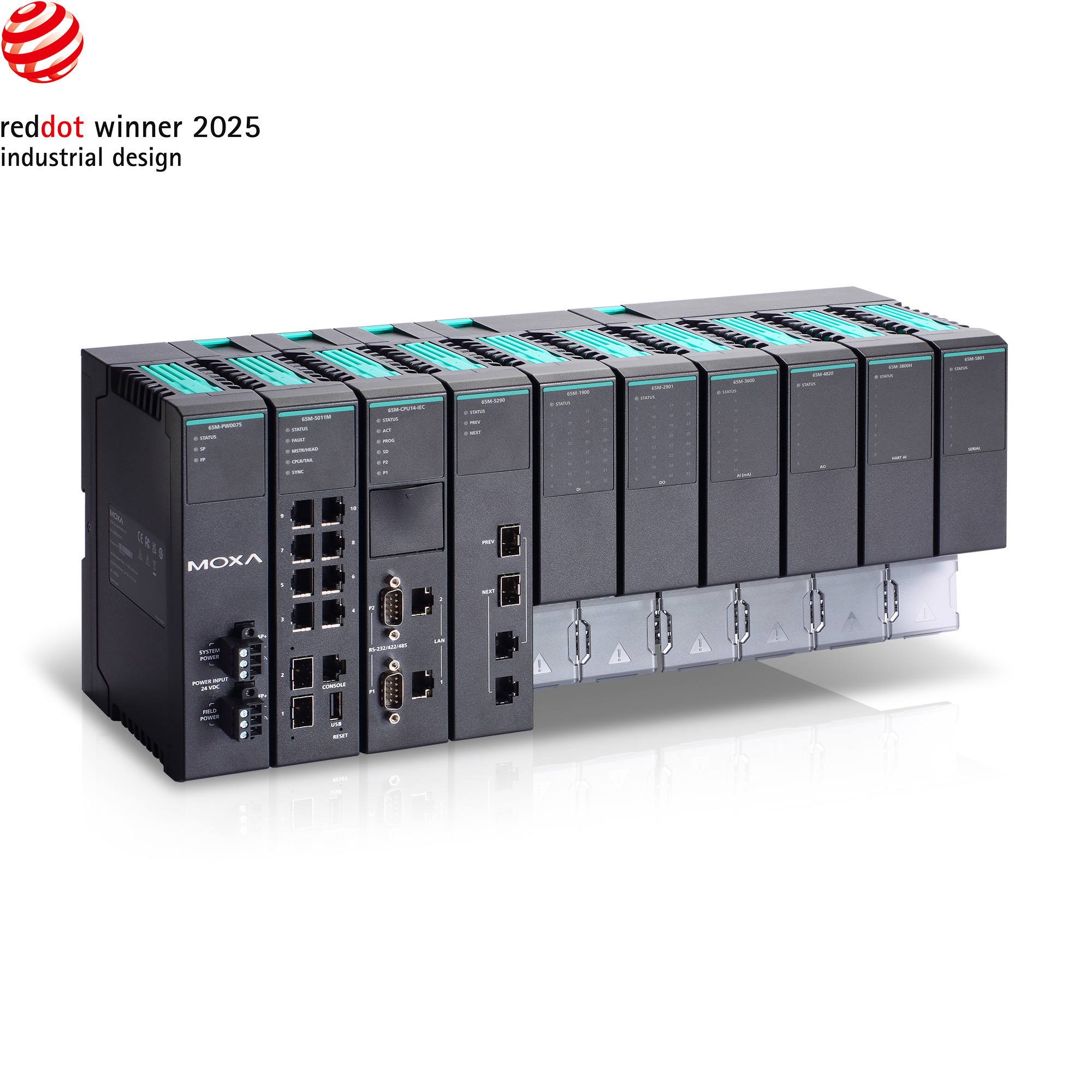

The ioPAC 6500 Series features a unique Lego-like mechanical design that allows for flexible deployment while minimizing installation efforts. The series can be divided into the components: Backplane modules, power modules, communication modules, expansion modules, CPU modules, I/O modules, and terminal-block modules.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

Power Connector

Screw-fastened Euroblock terminal
No. of Power Inputs

1
Input Voltage

Nominal value: 24 VDC
Acceptable range: 21.6 to 26.4 VDC
Input Current

4 A (max.)
Inrush Current

20 A (max.)
Internal Fuse Rating

10 A
Output Voltage

12 VDC
Output Current

6.25 A (max.)
Output Power

75 W (max.)
Output Hold-up Time

10 ms (min.)
Output Startup Delay Time

100 ms (max.)
Over-Voltage Protection

15.6 VDC (max.)
Over-Current Protection

9 A (min.)
Efficiency

87%
Isolation

3k VDC (input to output)
3k VDC (system to field power)

Power Connector

Screw-fastened Euroblock terminal
No. of Power Inputs

1
Input Voltage

Nominal value: 24 VDC
Acceptable range: 21.6 to 26.4 VDC
Input Current

3 A (max.)
Internal Fuse Rating

8 A
Output Voltage

3 A (max.)
[Input Voltage - 0.4] VDC (max., matching diode drop at 3 A)
Over-voltage Protection

29 VDC (max.)
Over-current Protection

5 A (min.)

Housing

Plastic
Dimensions

42 x 177 x 149.4 mm (1.65 x 6.97 x 5.88 in)
Weight

713 g (1.57 lb)
Installation

DIN-rail mounting
Rack mounting (with optional kit)

EMC

EN 55032/35
EN 61000-6-2/-6-4
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
IEC 61000-4-6 CS: Power: (DC) 10 Vrms; Signal: 10 Vrms
IEC 61000-4-8 PFMF: 30 A/m
Safety

UL 61010-1
UL 61010-2-201
Shock

IEC 60068-2-27
Half sine wave; acceleration: 15 g; time: 11 ms
Vibration

IEC 60068-2-6
DIN-rail mounted:
7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
Rack mounted (with optional kit):
7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)
Package Vibration Test

ISTA 1A
Package Drop Test

ISTA 1A

Time

954,606 hrs
Standards

Telcordia Standard SR-332

Operating Temperature

-40 to 75°C (-40 to 167°F)
Note: Proper airflow is required in an environment with temperature > 65°C
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)
Altitude

Up to 2000 m

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
ioPAC 6500 Series Firmware 292.3 MB	Firmware	92658EE2975D3685F721E100017892E3D686CB199C3A7DDE5E7D7AB0E2596116F35BCA32B9A4357B9FD1FA0457EA47AAC44D35F4A5E3A2027B4AC45798B0E921 SHA-512	v1.1		Nov 28, 2025 Nov 28, 2025 Release notes
ioPAC 6500 Series MIB file 95.6 KB	Software Package	1D70CB9608F958A931894B3DECCAC4048F1D13F50F6F7EA23C692BE20E2EA14441125CF7FE81921C8C6830C2362F46B54050793DDEB7072799229E84E992F986 SHA-512	v1.0		Aug 20, 2025 Aug 20, 2025 Release notes
ioPAC 6500 Series HART DTM 7.9 MB	Software Package	C33540C19EFFDC3816B079820546DEF582ACF61DD0675B7236469F9E48638693CCD789C7336A494D38CED083A0D1799891AB165D7A669CCCACEA372061DCC0F9 SHA-512	v1.1		Jul 24, 2025 Jul 24, 2025 Release notes
IINxpress Utility for the ioPAC 6500 Series 960.6 MB	Utility	2338921B959FC16A5773F5ACBB5E0C9B49F48CB2F0F2103AF27B8824A12F6A056CCD0855B6A501D30152F128EFF5E2D5DF93EF272AE8FD8D62656D3BB2933F1A SHA-512	v1.0	Windows 10 Windows 11	Sep 27, 2024 Sep 27, 2024 Release notes

Support Documents

Name	Type	Version	Release Date
ioPAC 6500 (65M) Power and Power Backplane Modules Quick Installation Guide 902.2 KB	QIG	v1.0	Nov 07, 2025 Nov 07, 2025
ioPAC 6500 Series User Manual 28.1 MB	Manual	v1.1	Nov 07, 2025 Nov 07, 2025
Datasheet for ioPAC 6500 Series (65M) Power Modules 1.7 MB	Datasheet	v1.1	Mar 17, 2025 Mar 17, 2025
QIG for ioPAC 6500 Series (65M) Power and Backplane Modules 947.0 KB	QIG	v1.0	Mar 17, 2025 Mar 17, 2025

Available Models (1)

Show Images

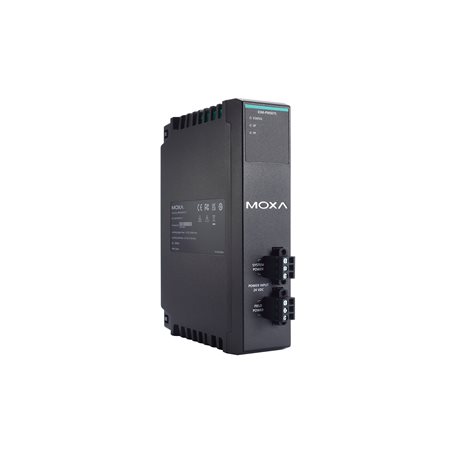

	Compare 65M-PW0075-CT-T
System Power	75 W
Conformal Coating	Yes
Operating Temperature	-40 to 75°C
