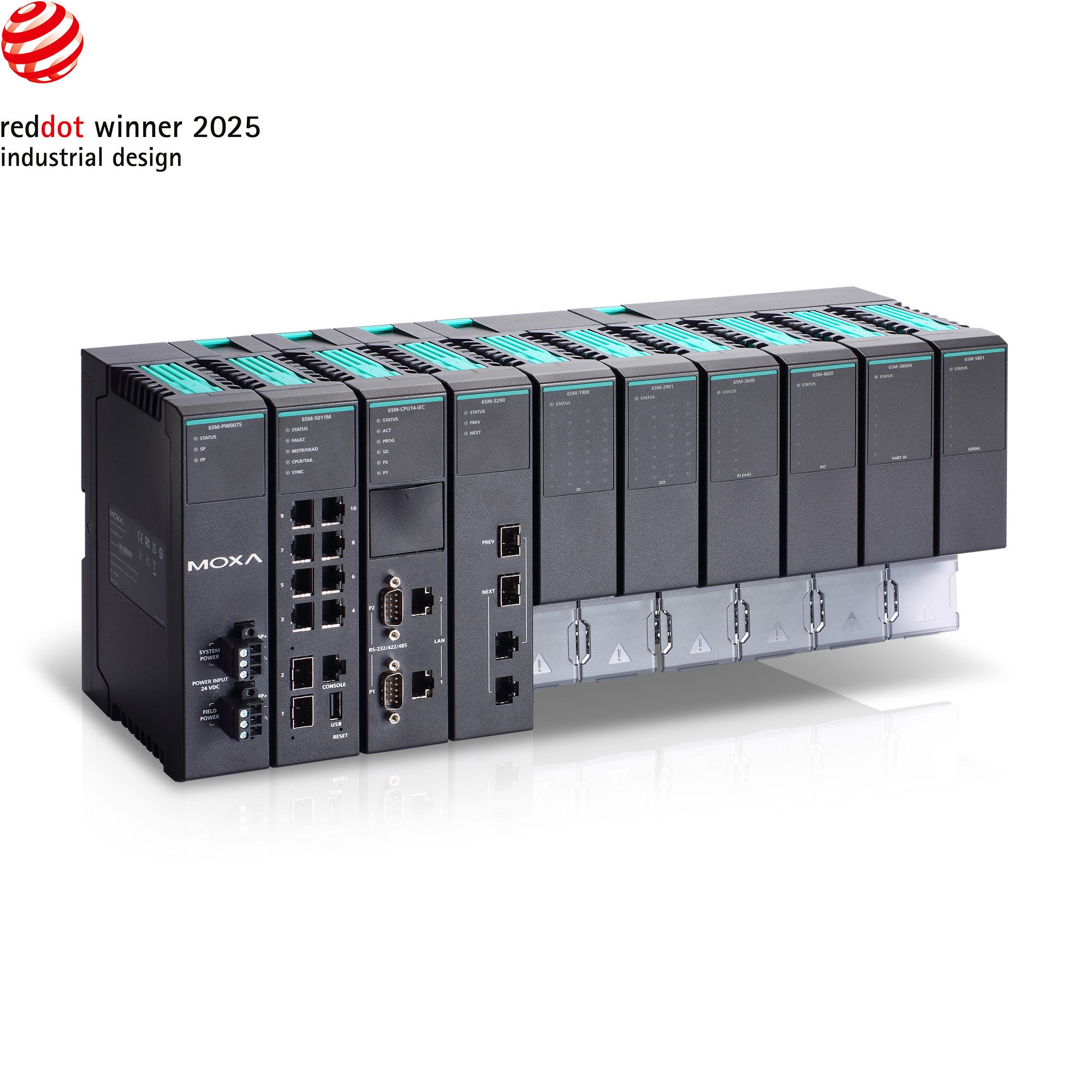

ioPAC 6500 Series

Fully modular programmable IIN controllers

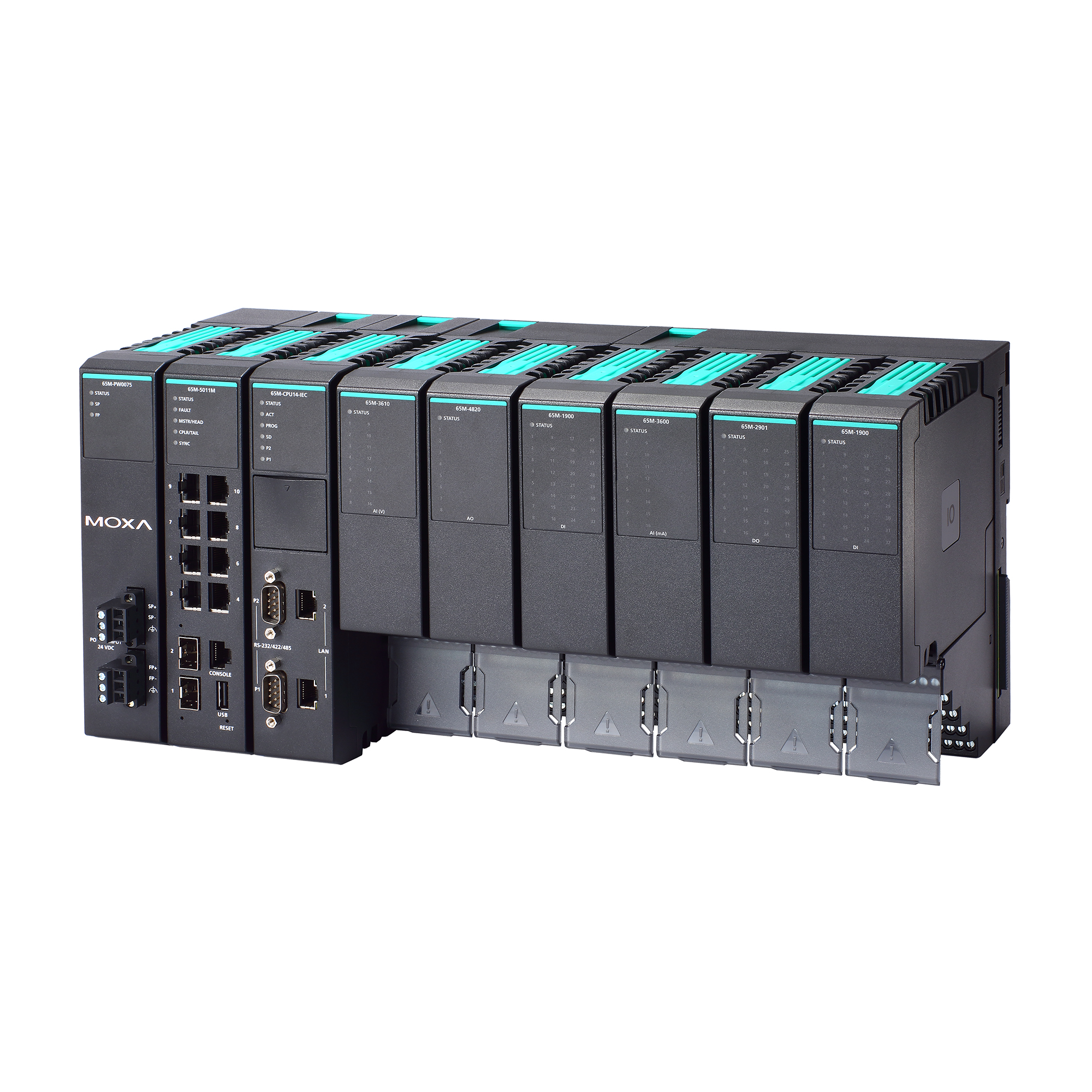

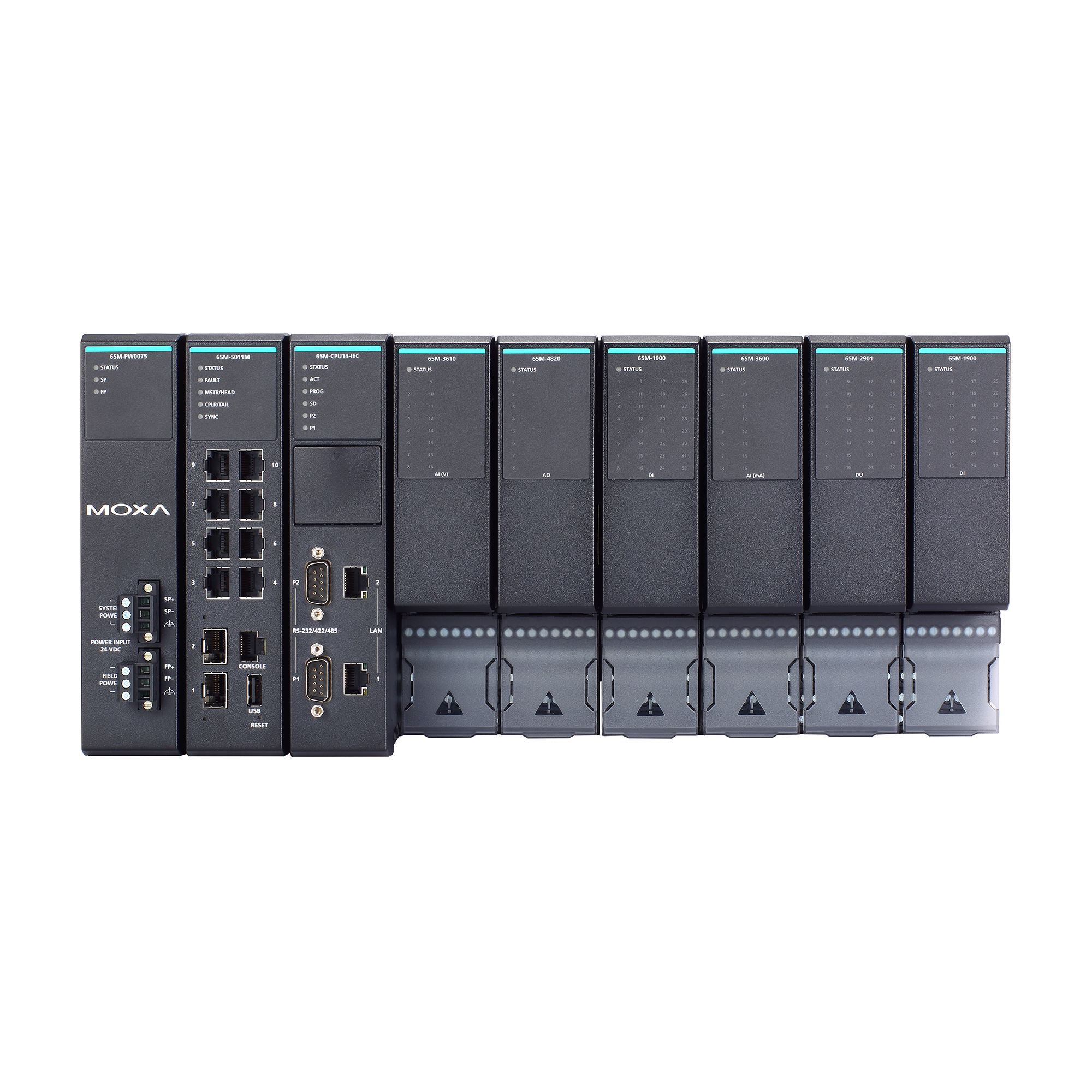

moxa-iopac-6500-series-image-1-(1).jpg | Moxa

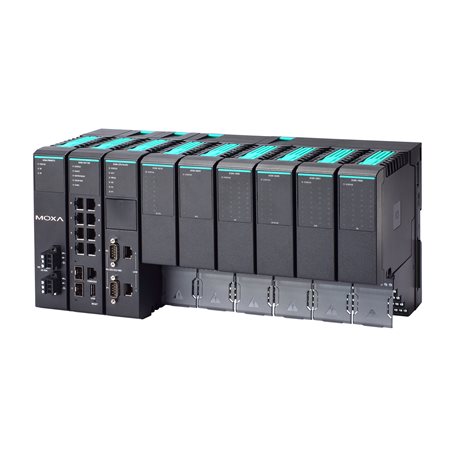

moxa-iopac-6500-series-image-2-(1).jpg | Moxa

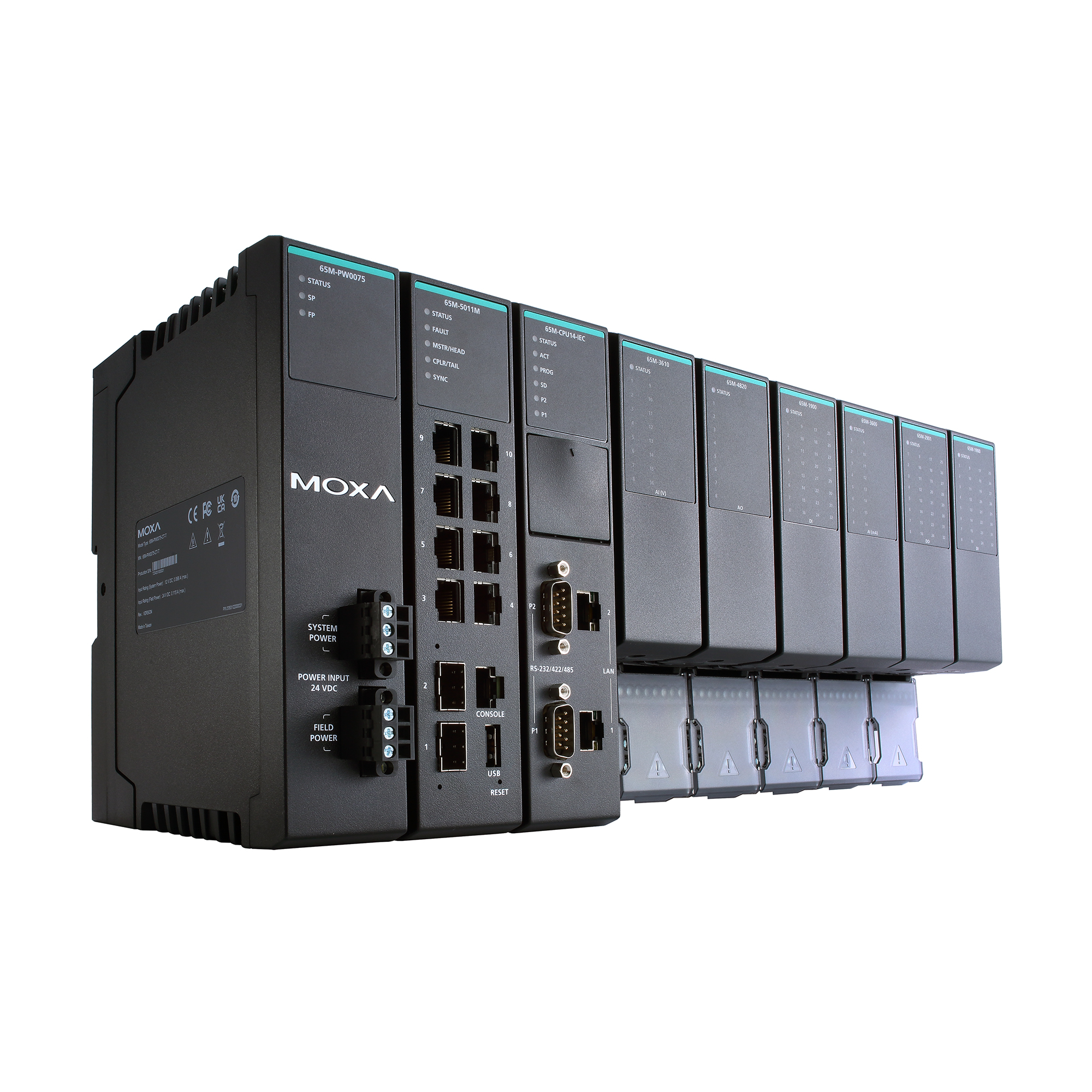

moxa-iopac-6500-series-image-3-(1).jpg | Moxa

moxa-iopac-6500-series-image-4-(1).jpg | Moxa

Features and Benefits

Supports multiple IT/OT protocols for seamless communication between SCADA, Plant Information System, and cloud applications
Tool-free hardware installation and hot-swap design for maximizing operation efficiency
Fully modular design for maximum deployment flexibility
Turbo Ring, Turbo Chain, and RSTP/STP for network redundancy
IINxpress IDE utility combines IEC 61131-3 programming, configuration, and protocol services to streamline workflow and reduce programming efforts
Enhanced security with built-in functions including Secure Boot, password-cracking defense, intrusion detection, and DoS defense

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

The ioPAC 6500 Series (also referred to as Intelligent Integrated Node or IIN) is an advanced Linux-based RTU. The ioPAC 6500 integrates multiple modules such as backplane modules, power modules, communication modules, expansion modules, CPU modules, I/O modules, and terminal-block modules. The ingenious mechanical design and versatile I/O portfolio of the IIN provide users the flexibility to assemble different combinations of modules based on their application needs. For detailed information on the modules, visit the respective product pages.

6C Competencies

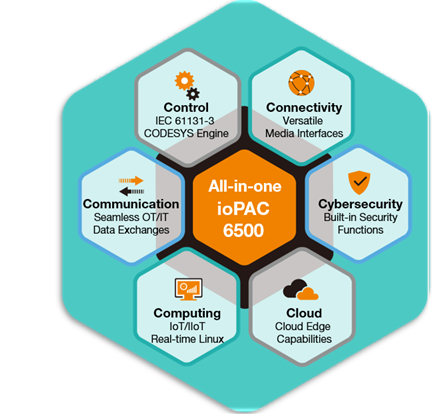

The ioPAC 6500 Series delivers the following competencies to your projects:

Control: Precision control of your equipment
Communication: Protocol support to connect to other devices and systems
Computing: Applications for computing and data processing
Connectivity: Versatile set of media interface
Cloud: Cloud connectivity and cloud edge computing
Cybersecurity: Security features to protect the devices and data

Application Architecture

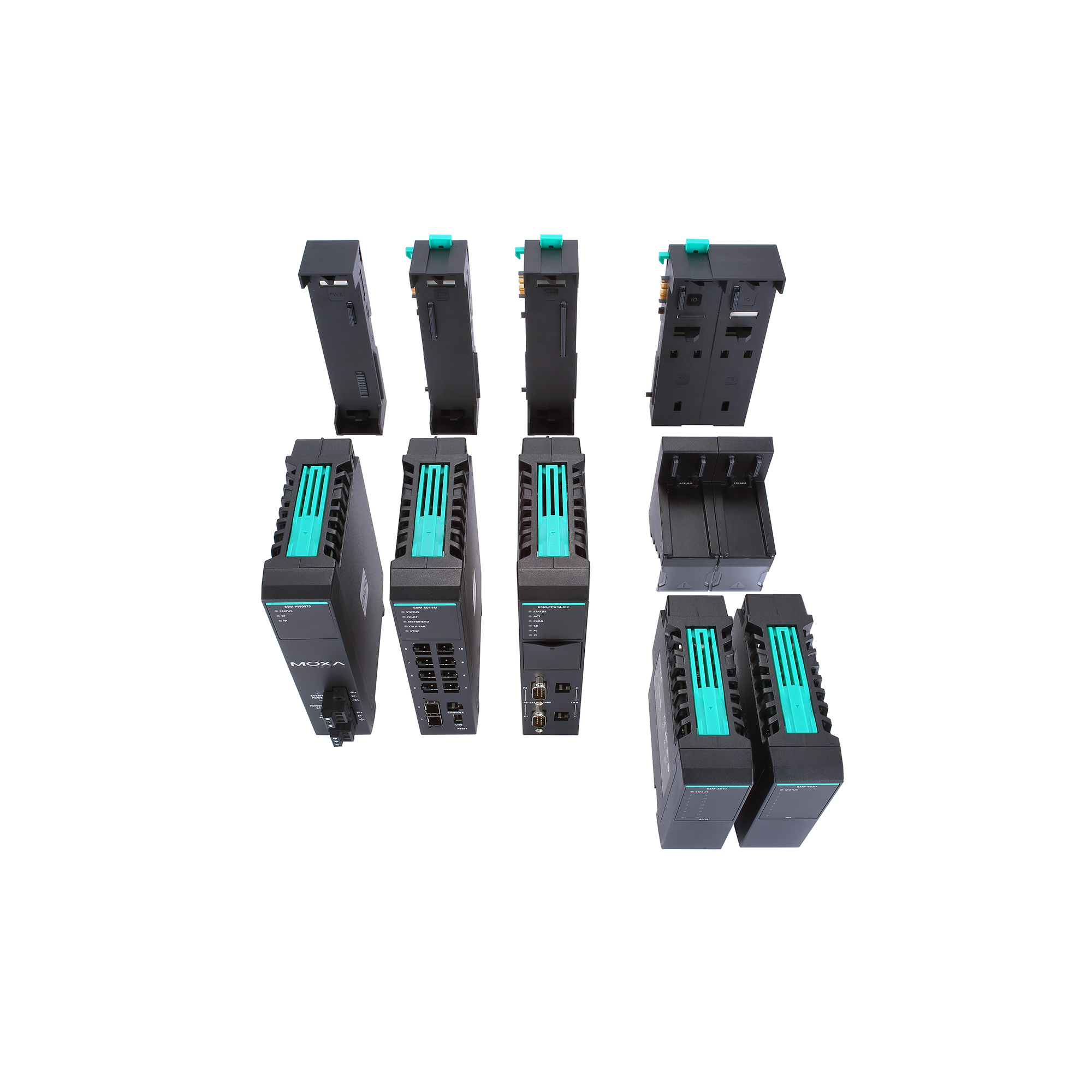

Fully Modular Design

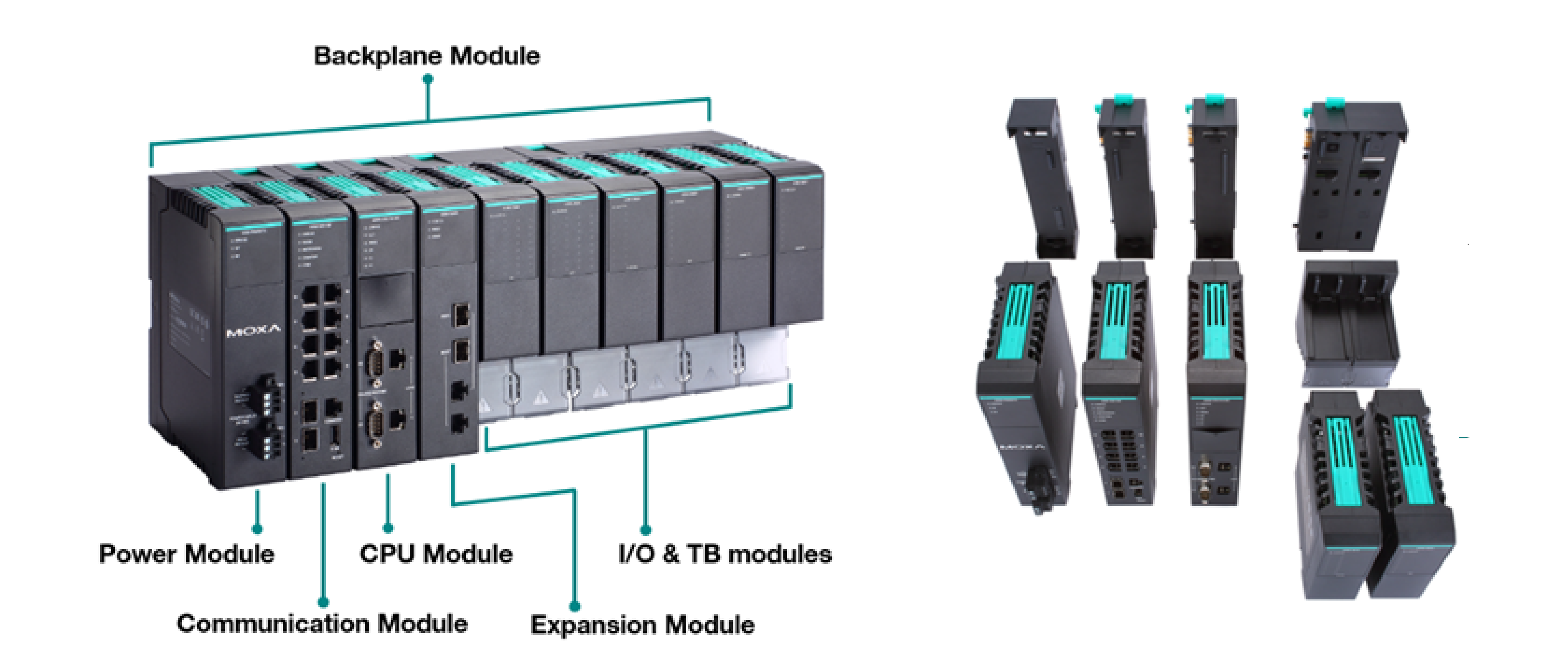

The ioPAC 6500 Series features a unique Lego-like mechanical design that allows for flexible deployment while minimizing installation efforts. The series can be divided into the components: Backplane modules, power modules, communication modules, expansion modules, CPU modules, I/O modules, and terminal-block modules.

ioPAC 6500 Series (65M) CPU Modules: https://www.moxa.com/iopac-6500-cpu-modules
ioPAC 6500 Series (65M) Backplane Modules: https://www.moxa.com/iopac-6500-backplane-modules
ioPAC 6500 Series (65M) Power Module: https://www.moxa.com/iopac-6500-power-modules
ioPAC 6500 Series (65M) Communication Modules: https://www.moxa.com/iopac-6500-communication-modules
ioPAC 6500 Series (65M) I/O Modules: https://www.moxa.com/iopac-6500-io-modules
ioPAC 6500 Series (65M) Expansion Modules: https://www.moxa.com/iopac-6500-expansion-modules

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

Max. No. of Control Units

1
Max. No. of Expansion Units

4
Max. No. of Power Backplanes Per Unit

Control and expansion units:
1 (1/ 2 slots)
Max. No. of CPU Backplanes Per Unit

Control unit:
1 (1/2 slots)
Max. No. of Communication Backplanes Per Unit

Control unit:
1 (1/2 slots)
Max. No. of I/O Backplanes Per Unit

Control and expansion units:
2 (2/4 slots)
Max. No. of Expansion Backplanes Per Unit

Control and expansion units:
1 (1/2 slots)

Housing

Plastic
Installation

DIN-rail mounting
Rack mounting (with optional kit)

Operating Temperature

-40 to 75°C (-40 to 167°F)
Note: Proper airflow is required in an environment with temperature > 65°C
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)
Altitude

2000 m

EMC

EN 55032/35
EN 61000-6-2/-6-4
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
IEC 61000-4-6 CS: Power: 10 V; Signal: 10 Vrms
IEC 61000-4-8 PFMF: 30 A/m
Safety

UL 61010-1
UL 61010-2-201
Shock

IEC 60068-2-27
Half sine wave; acceleration: 15 g; time: 11 ms
Vibration

IEC 60068-2-6
DIN-rail mounted:
7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
Rack mounted (with optional kit):
7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)
Package Vibration Test

ISTA 1A
Package Drop Test

ISTA 1A

Standards

Telcordia Standard SR-332
Time

See the datasheets for the modules for details.

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
ioPAC 6500 Series Firmware 292.3 MB	Firmware	92658EE2975D3685F721E100017892E3D686CB199C3A7DDE5E7D7AB0E2596116F35BCA32B9A4357B9FD1FA0457EA47AAC44D35F4A5E3A2027B4AC45798B0E921 SHA-512	v1.1		Nov 28, 2025 Nov 28, 2025 Release notes
ioPAC 6500 Series Utility - IINxpress 956.5 MB	Utility	42BC292CCC75DA3AE26A0231BFA41D758E9783278AD3CACCF444C072162A9B063B04345F05C1149BABC0AA8ED2F732672FBF8D16CE2A24212639A1506C3F55A4 SHA-512	v1.1	Windows 10 Windows 11	Nov 28, 2025 Nov 28, 2025 Release notes
ioPAC 6500 Series MIB file 95.6 KB	Software Package	1D70CB9608F958A931894B3DECCAC4048F1D13F50F6F7EA23C692BE20E2EA14441125CF7FE81921C8C6830C2362F46B54050793DDEB7072799229E84E992F986 SHA-512	v1.0		Aug 20, 2025 Aug 20, 2025 Release notes
ioPAC 6500 Series HART DTM 7.9 MB	Software Package	C33540C19EFFDC3816B079820546DEF582ACF61DD0675B7236469F9E48638693CCD789C7336A494D38CED083A0D1799891AB165D7A669CCCACEA372061DCC0F9 SHA-512	v1.1		Jul 24, 2025 Jul 24, 2025 Release notes

Support Documents

Name	Type	Version	Release Date
ioPAC 6500 (65M) Power and Power Backplane Modules Quick Installation Guide 902.2 KB	QIG	v1.0	Nov 07, 2025 Nov 07, 2025
ioPAC 6500 (65M) IO, IO Backplane, and Terminal Block Modules Quick Installation Guide 1.9 MB	QIG	v1.2	Nov 07, 2025 Nov 07, 2025
ioPAC 6500 (65M) Switch and Communication Backplane Modules Quick Installation Guide 1.2 MB	QIG	v1.0	Nov 07, 2025 Nov 07, 2025
ioPAC 6500 Series User Manual 28.1 MB	Manual	v1.1	Nov 07, 2025 Nov 07, 2025
ioPAC 6500 (65M) Expansion and Expansion Backplane Modules Quick Installation Guide 1.5 MB	QIG	v1.1	Nov 07, 2025 Nov 07, 2025
ioPAC 6500 Series (65M) I/O Modules HART Module Configuration Manual (PACTware) 3.0 MB	Manual	v1.0	Nov 07, 2025 Nov 07, 2025
Datasheet for ioPAC 6500 Series 2.1 MB	Datasheet	v1.0	Nov 06, 2025 Nov 06, 2025
