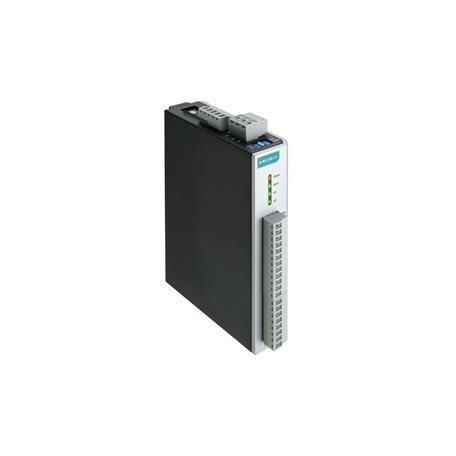

ioLogik R1214
ioLogik R1200 Series

Universal I/O, 6 DIs, 6 relays, -10 to 75°C operating temperature

Input/Output Interface
  • Buttons

    • Reset button
  • Digital Input Channels

    • 6
  • Isolation

    • 3k VDC or 2k Vrms
  • Relay Channels

    • 6
Digital Inputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Counter Frequency

    • 2.5 kHz
  • Digital Filtering Time Interval

    • Software configurable
  • Dry Contact

    • On: short to GND
      Off: open
  • I/O Mode

    • DI or event counter
  • Points per COM

    • 6 channels
  • Sensor Type

    • Dry contact
      Wet Contact (NPN or PNP)
  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Relays
  • Breakdown Voltage

    • 500 VAC
  • Connector

    • Screw-fastened Euroblock terminal
  • Contact Current Rating

    • Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC
  • Contact Resistance

    • 100 milli-ohms (max.)
  • Electrical Endurance

    • 100,000 operations @ 5 A resistive load
  • Initial Insulation Resistance

    • 1,000 mega-ohms (min.) @ 500 VDC
  • Mechanical Endurance

    • 5,000,000 operations
  • Pulse Output Frequency

    • 0.3 Hz at rated load
  • Type

    • Form A (N.O.) power relay
  • Note

    • Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.
LED Interface
  • LED Indicators

    • PWR, RDY, P1, P2
Serial Interface
  • Baudrate

    • 1200 bps to 921.6 kbps
  • Connector

    • Terminal block
  • No. of Ports

    • 2
  • Parity

    • None
      Even
      Odd
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Serial Standards

    • RS-485
  • Stop Bits

    • 1, 2
  • Surge

    • 1 kV
  • ESD

    • 15 kV
  • Data Bits

    • 8
  • Flow Control

    • None
      XON/XOFF
Serial Signals
  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU Server (slave)
Power Parameters
  • Power Connector

    • Screw-fastened Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 207 mA @ 24 VDC
Physical Characteristics
  • Housing

    • Plastic
  • Dimensions

    • 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
  • Weight

    • 200 g (0.44 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting
  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 12 to 24 AWG
Environmental Limits
  • Operating Temperature

    • -10 to 75°C (14 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,239,293 hrs
  • Standards

    • Telcordia SR332
