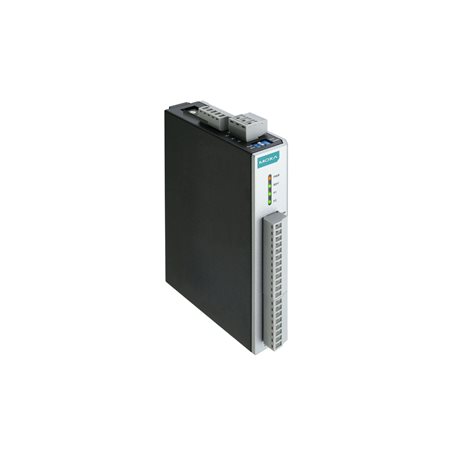

ioLogik R1240-T
ioLogik R1200 Series

Universal I/O, 8 AIs, -40 to 85°C operating temperature

Input/Output Interface
  • Buttons

    • Reset button
  • Analog Input Channels

    • 8
  • Isolation

    • 3k VDC or 2k Vrms
Analog Inputs
  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -10 to 60°C
      ±0.5% FSR @ -40 to 75°C
  • Built-in Resistor for Current Input

    • 120 ohms
  • Connector

    • Screw-fastened Euroblock terminal
  • I/O Mode

    • Voltage/Current
  • I/O Type

    • Differential
  • Input Impedance

    • 10 mega-ohms (min.)
  • Input Range

    • 0 to 10 VDC
      0 to 20 mA
      4 to 20 mA
      4 to 20 mA (with burn-out detection)
  • Resolution

    • 16 bits
  • Sampling Rate

    • All channels: 12 samples/sec
      Per channel: 1.5 samples/sec
      Only one channel enabled: 12 samples/sec
LED Interface
  • LED Indicators

    • PWR, RDY, P1, P2
Serial Interface
  • Baudrate

    • 1200 bps to 921.6 kbps
  • Connector

    • Terminal block
  • No. of Ports

    • 2
  • Parity

    • None
      Even
      Odd
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Serial Standards

    • RS-485
  • Stop Bits

    • 1, 2
  • Surge

    • 1 kV
  • ESD

    • 15 kV
  • Data Bits

    • 8
  • Flow Control

    • None
      XON/XOFF
Serial Signals
  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU Server (slave)
Power Parameters
  • Power Connector

    • Screw-fastened Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 216 mA @ 24 VDC
Physical Characteristics
  • Housing

    • Plastic
  • Dimensions

    • 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)
  • Weight

    • 200 g (0.44 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting
  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 12 to 24 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,239,293 hrs
  • Standards

    • Telcordia SR332
