Video Servers

Moxa’s industrial video servers are designed to perform reliably even in harsh environments, making them ideal to serve as the core of a remote monitoring or surveillance solution. Our video servers are capable of using efficient MPEG-4 video compression and allow for easy integration of CCTV cameras into your IP surveillance solution.

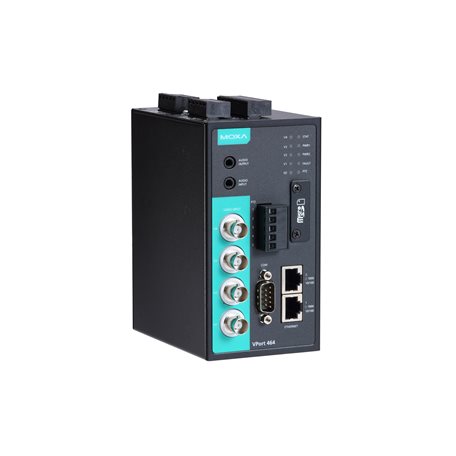

VPort 464-T
VPort 464 Series

4-channel H.264/MJPEG industrial video encoder, 2 10/100/1000BaseT(X) Ethernet ports, -40 to 75°C operating temperature

Memory
  • microSD Slot

    • SDXC
Input/Output Interface
  • Digital Input Channels

    • 4
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA
  • Relay Channels

    • 2
  • Contact Current Rating

    • Resistive load: 1 A @ 24 VDC
  • Connector

    • Terminal block
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
Ethernet Software Features
  • Protocols

    • TCP/IP
      IPv4/IPv6
      UDP
      HTTP
      RTP/RTSP
      ARP
      UPnP
      FTP
      TFTP
      NTP Client
      DNS
      QoS
      IGMP v3
      ICMP
      SNMPv1/v2c/v3
      Modbus TCP
      HTTPS
      802.1X
      NTCIP
Security Functions
  • Password

    • User-level password protection
  • Filter

    • IP address
  • Authentication

    • 802.1X
  • Encryption

    • HTTPS
      SSH
LED Interface
  • LED Indicators

    • STAT: Indicates if system is booted up properly or not
      Power 1: Power 1 on/off
      Power 2: Power 2 on/off
      FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
      Video: Video input signal
      PTZ: Indicates if PTZ or COM port data has been transmitted
      SD: Indicates if SD card was mounted successfully
      Network: 10 Mbps or 100 Mbps
Serial Interface
  • PTZ Port

    • 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps
  • COM Port

    • 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps
  • Console Port

    • 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)
Power Parameters
  • No. of Power Inputs

    • 2
  • Input Voltage

    • Redundant dual inputs
  • Operating Voltage

    • 12 to 32 VDC, 18 to 30 VAC
  • Input Current

    • 1 A @ 12 VDC
      0.3 A @ 32 VDC
      0.92 A @ 18 VAC
      0.56 A @ 30 VAC
  • Power Connector

    • 2-pin terminal block
Video Interface
  • Video Compression

    • H.264 (ISO/IEC 14496-10) or MJPEG
  • Video Input

    • 4, BNC connector (1.0 Vpp, 75 ohm)
  • Video Output

    • via Ethernet
  • Video Streams

    • 2 independent H.264 or MJPEG video streams
      1 quad (4-channel images) stream
  • NTSC/PAL

    • Auto-sensing or manual
  • Video Resolution and FPS (frames per second)

  • Video Viewing

    • DynaStream™ support for changing the video frame rate automatically
      CBR Pro™ for good image quality in limited bandwidth transmissions
      Adjustable image size and quality
      Timestamp and text overlay
      OSD (On Screen Display) position adjustable
      Maximum of 10 simultaneous unicast connections, 50 multicast clients
      Image tuning control: brightness, contrast, saturation, sharpness, noise reduction
Audio Interface
  • Audio Inputs

    • 1 Line-in or MIC-in with 3.5 mm phone jack
  • Audio Outputs

    • 1 Line-out, with 3.5 mm phone jack
  • Audio Format

    • Mono, PCM (G.711)
Camera Software Development
  • Video Standards

    • ONVIF Profile S
Camera PAN/TILT/ZOOM
  • PTZ Camera Control

    • Via PTZ port or COM port
  • PTZ Control Functions

    • Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)
  • PTZ Function Updates

    • Driver upload supported
  • Protocols

    • Pelco D, Pelco P, Custom Camera
Camera Alarm Software Features
  • Intelligent Video

    • Camera tampering detection
  • Video Motion Detection

    • 3 independently configurable areas
  • Scheduling

    • Daily repeat timing schedule
  • Imaging

    • JPEG snapshots for pre/trigger/post alarm images
  • Custom Alarms

    • HTTP event servers for setting customized alarm actions
  • FTP Messaging

    • Automatic transfer of stored images via FTP as event-triggered actions
  • Pre-Alarm Buffer

    • 50 MB video buffer for JPEG snapshot images
  • Video Recording

    • Event recordings stored on the SD card
Software Requirements
  • Memory Size

    • 1 GB
  • Operating System

    • Windows 7 or above
  • Browser

    • Internet Explorer 9.x or above
  • Multimedia

    • DirectX 9.0C or above
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
  • Weight

    • 1130 g (2.49 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Safety

    • UL 60950-1
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 827,831 hrs
  • Standards

    • Telcordia SR332
Warranty
