EtherNet/IP Gateways

Moxa's Ethernet/IP gateways enable various communication protocol conversions in an EtherNet/IP network.

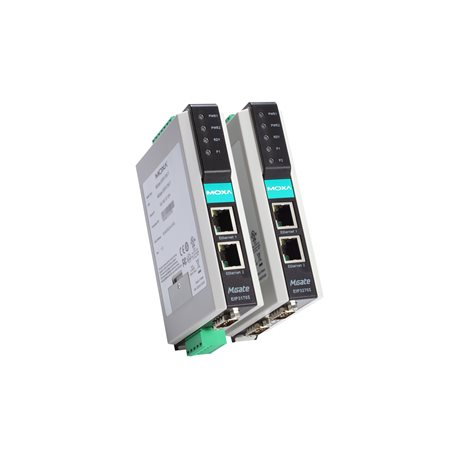

MGate EIP3270-T
MGate EIP3170/EIP3270 Series

2-port EtherNet/IP-to-DF1 gateway, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection
Ethernet Software Features
  • Industrial Protocols

    • Ethernet/IP (PCCC)
  • Configuration Options

    • MGate Manager
      Telnet Console
  • Management

    • ARP
      DHCP Client
      SNMPv1
      TCP/IP
      Telnet
      UDP
  • MIB

    • RFC1213, RFC1317
Serial Interface
  • No. of Ports

    • 2
  • Connector

    • 2 x DB9 male
  • Serial Standards

    • RS-232
      RS-422
  • Baudrate

    • 1200 bps to 921.6 kbps
  • Data Bits

    • 8
  • Parity

    • None
      Even
      Odd
  • Stop Bits

    • 1, 2
  • Flow Control

    • RTS/CTS
      DTR/DSR (RS-232 only)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Industrial Protocols

    • DF1
DF1 (Transparent)
  • Mode

    • Full duplex
  • Max. No. of Client Connections

    • 8
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 435 mA @ 12 VDC
Relays
  • Contact Current Rating

    • Resistive load: 1 A @ 30 VDC
Physical Characteristics
  • Housing

    • Plastic top cover, metal bottom plate
  • IP Rating

    • IP30
  • Dimensions (with ears)

    • 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
  • Dimensions (without ears)

    • 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
  • Weight

    • 380 g (0.84 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Safety

    • IEC 60950-1
      UL 60950-1
      EN 62368-1
      UL 508
  • Hazardous Locations

    • ATEX
      Class I Division 2
      IECEx If you need an IECEx certificate for this product, please contact a Moxa sales representative.
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64
MTBF
  • Time

    • 1,204,573 hrs
  • Standards

    • Telcordia SR332
Warranty
