MGate 5103 Series

1-port Modbus RTU/ASCII/TCP/EtherNet/IP-to-PROFINET gateways

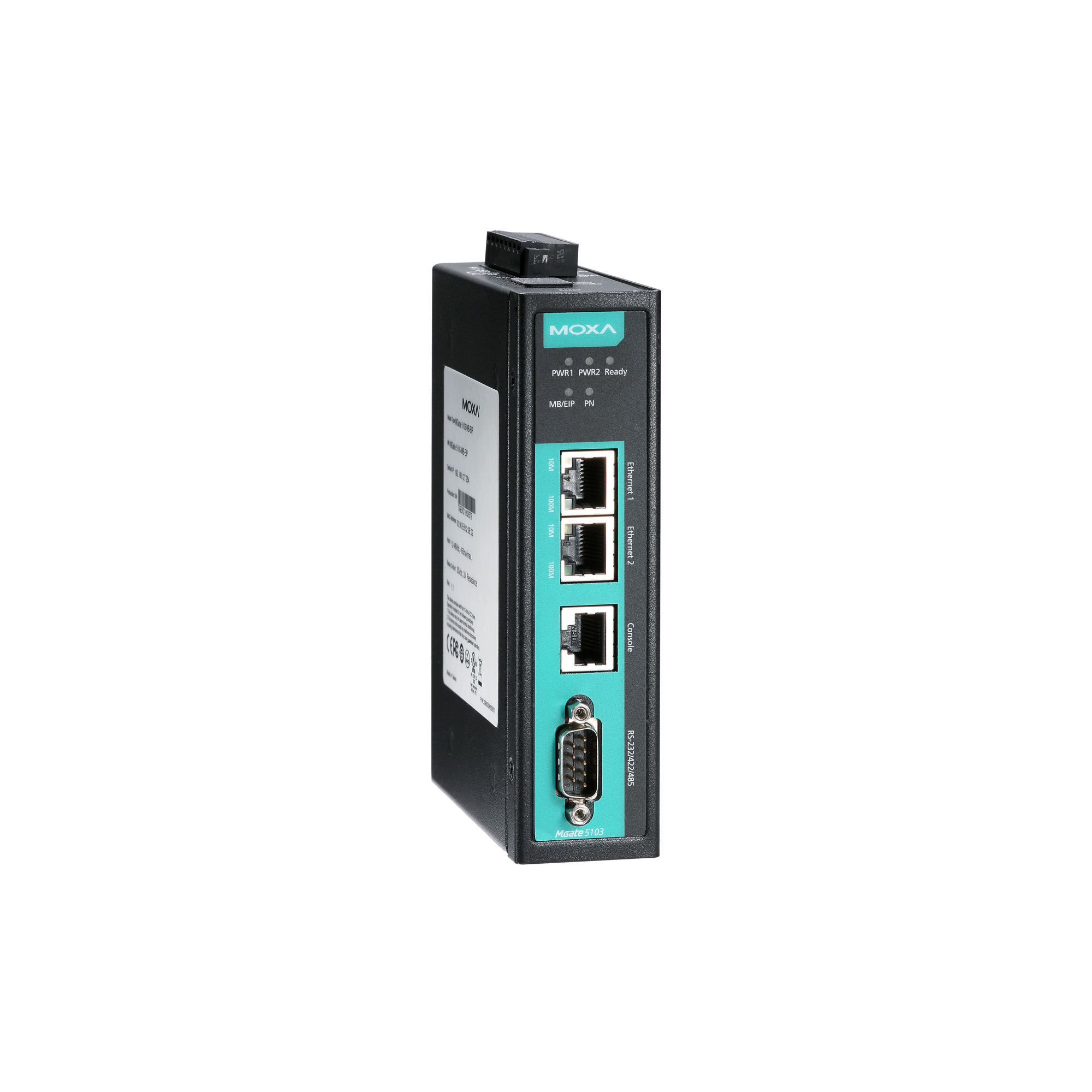

moxa-mgate-5103-series-image-1-(1).jpg | Moxa

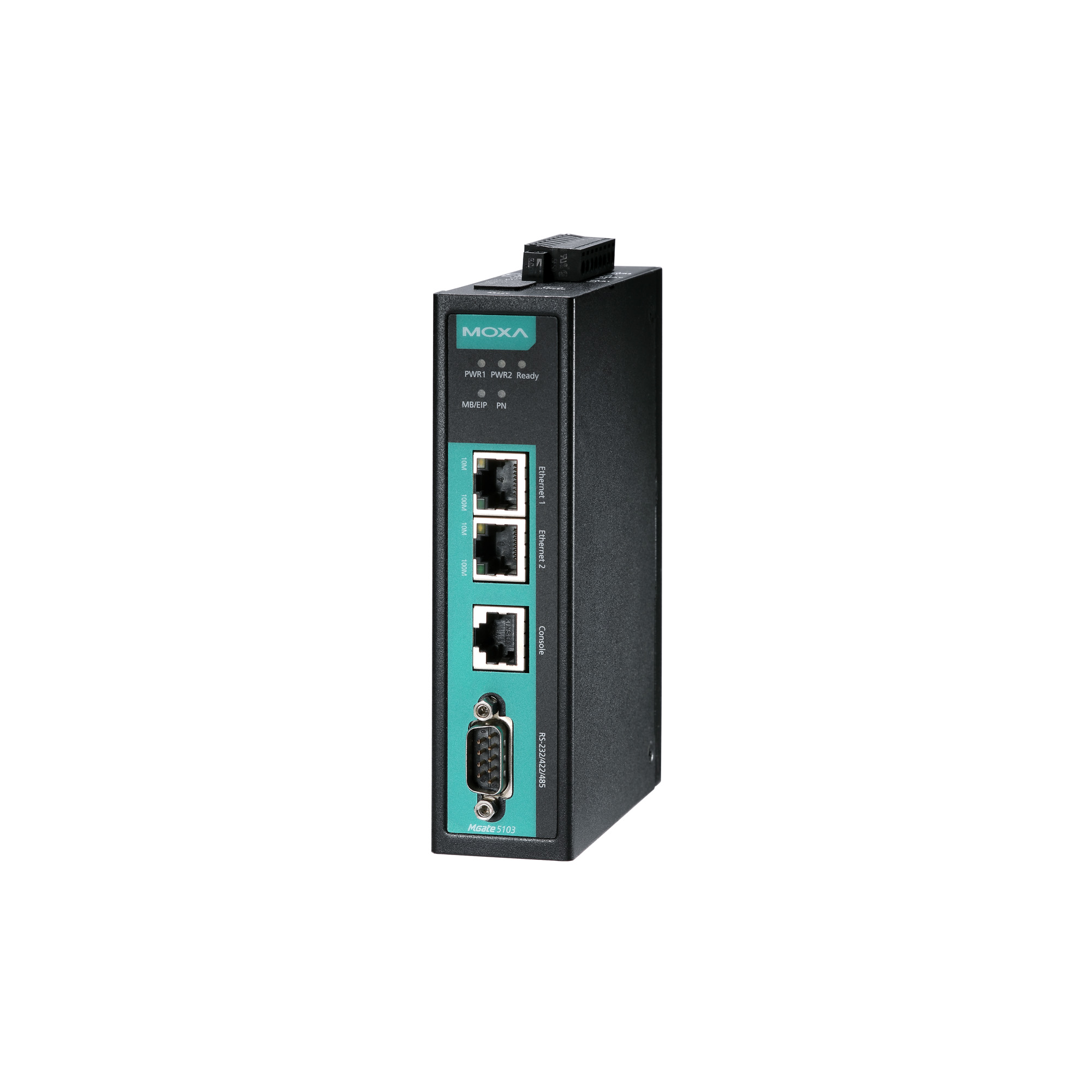

moxa-mgate-5103-series-image-2-(1).jpg | Moxa

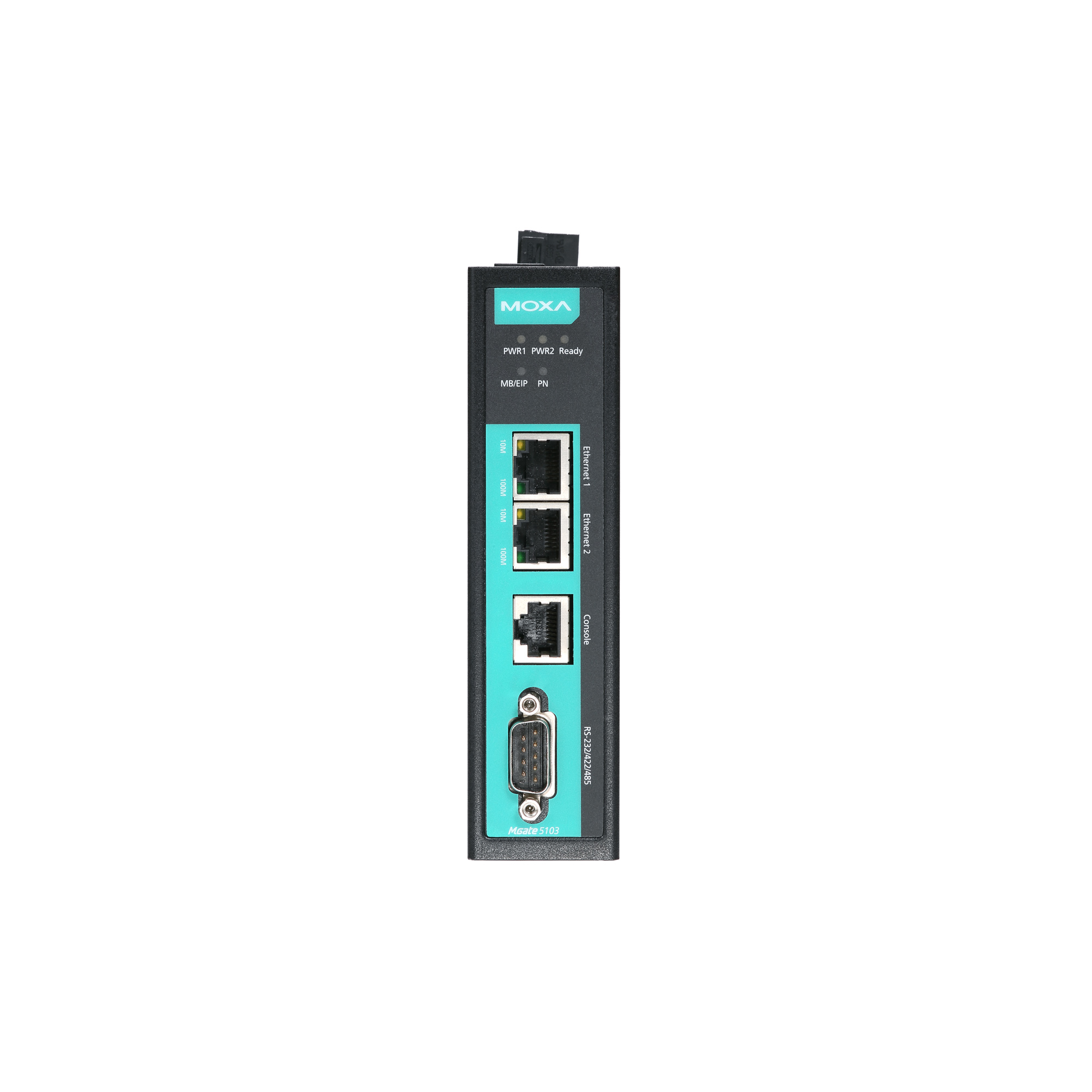

moxa-mgate-5103-series-image-3-(1).jpg | Moxa

Features and Benefits

  • Converts Modbus, or EtherNet/IP to PROFINET
  • Supports PROFINET IO device
  • Supports Modbus RTU/ASCII/TCP master/client and slave/server
  • Supports EtherNet/IP Adapter
  • Effortless configuration via web-based wizard
  • Built-in Ethernet cascading for easy wiring
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • microSD card for configuration backup/duplication and event logs
  • Status monitoring and fault protection for easy maintenance
  • Serial port with 2 kV isolation protection
  • -40 to 75°C wide operating temperature models available
  • Supports redundant dual DC power inputs and 1 relay output
  • Security features based on IEC 62443

Certifications

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-iecex-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

Contact Sales

Introduction

The MGate 5103 is an industrial Ethernet gateway for converting Modbus RTU/ASCII/TCP or EtherNet/IP to PROFINET-based network communications. To integrate existing Modbus devices onto a PROFINET network, use the MGate 5103 as a Modbus master/slave or EtherNet/IP adapter to collect data and exchange data with PROFINET devices. The latest exchange data will be stored in the gateway. The gateway will convert stored Modbus or EtherNet/IP data into PROFINET packets so the PROFINET IO Controller can control or monitor field devices.

Easy Configuration via Web Console

The MGate 5103 Series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5103 Series also supports a GSDML export function. GSDML files can be imported into PROFINET PLCs to save time on PLC configuration.

Modbus RTU/ASCII/TCP Protocol Traffic Monitor

MGate 5103 gateways support Modbus RTU/ASCII/TCP Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave IDs and register addresses, that were entered incorrectly, or an incorrect command configuration. With Modbus RTU/ASCII/TCP Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.

Maintenance Functions

MGate 5103 gateways support a system log function that records events in the MGate; users can easily review log data remotely through the web console. The gateways also support status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators.

  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    PROFINET IO Device
    Modbus TCP Client (Master)
    Modbus TCP Server (Slave)
    EtherNet/IP Adapter

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Device Search Utility (DSU)
    Telnet Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    Telnet
    SSH
    UDP
    NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.3)

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only)
    RTS/CTS

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Configuration Options

    Serial Console

  • Industrial Protocols

    Modbus RTU/ASCII Master
    Modbus RTU/ASCII Slave

  • Mode

    Master, Slave

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    128

  • Input Data Size

    512 bytes

  • Output Data Size

    512 bytes

  • Mode

    Client (Master), Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    16

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    128

  • Input Data Size

    512 bytes

  • Output Data Size

    512 bytes

  • Mode

    IO Device

  • Max. No. of IO Controller Connections

    1 (for read/write)

  • Input Data Size

    512 bytes

  • Output Data Size

    512 bytes

  • Mode

    Adapter

  • CIP Objects Supported

    Identity
    Message Router
    Assembly
    Connection Manager
    TCP/IP interface
    Ethernet link
    Port

  • Max. No. of Scanner Connections

    1 (for read-only), 1 (for read/write)

  • Input Data Size

    496 bytes

  • Output Data Size

    496 bytes

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    455 mA @ 12 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

  • Weight

    507 g (1.12 lb)

  • Operating Temperature

    MGate 5103: 0 to 60°C (32 to 140°F)
    MGate 5103-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Safety

    EN 62368-1
    UL 508

  • Hazardous Locations

    ATEX
    Class I Division 2
    IECEx

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Time

    859,422 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

All Firmware Software Package Utility
Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Linux version)
508.2 MB 		Software Package
SHA-512
v1.5.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Jan 22, 2025 Jan 22, 2025 Release notes
Software Package for MXview One Series (Windows version)
284.5 MB 		Software Package
SHA-512
v1.5.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Jan 22, 2025 Jan 22, 2025 Release notes
MXconfig Plugin
3.6 MB 		Software Package
SHA-512
v1.7
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
 Nov 11, 2024 Nov 11, 2024 Release notes
MXview One plugin (Windows)
18.7 MB 		Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Nov 11, 2024 Nov 11, 2024 Release notes
MXconfig plugin (non-Java version)
1.8 MB 		Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
 Nov 11, 2024 Nov 11, 2024 Release notes
Moxa CLI Configuration Tool for Windows
2.0 MB 		Utility
SHA-512
v1.4
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Nov 07, 2024 Nov 07, 2024 Release notes
Moxa CLI Configuration Tool for Linux
11.6 MB 		Utility
SHA-512
v1.4
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
  • Linux Kernel 6.x
 Nov 07, 2024 Nov 07, 2024 Release notes
MXview One plugin (Linux)
18.7 MB 		Software Package
SHA-512
v1.6
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Nov 04, 2024 Nov 04, 2024 Release notes
Device Search Utility
428.1 MB 		Utility
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Oct 31, 2024 Oct 31, 2024 Release notes
MXview Plugin
41.7 MB 		Software Package
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
 Oct 04, 2024 Oct 04, 2024 Release notes
MXview Plugin
40.8 MB 		Software Package
SHA-512
v1.5
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
 Jun 12, 2024 Jun 12, 2024 Release notes
Firmware for MGate 5103 Series
8.5 MB 		Firmware
SHA-512
v2.4
Sep 26, 2023 Sep 26, 2023 Release notes
Device Search Utility
2.2 MB 		Utility
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
 Jun 28, 2023 Jun 28, 2023 Release notes
MIB file for MGate 5103 Series
14.8 KB 		Software Package
SHA-512
v1.0
Jan 14, 2018 Jan 14, 2018 Release notes
Software Package for MGate 5103 Series (GSDML)
24.8 KB 		Software Package
SHA-512
v1.0
Jan 14, 2018 Jan 14, 2018 Release notes
EtherNet/IP Adapter EDS file for MGate 5103 Series
10.5 KB 		Software Package
SHA-512
v2.0
Jan 14, 2018 Jan 14, 2018 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Declaration Manual QIG Tech Note
Name Type Version Release Date
Tech Note: The Security Hardening Guide for MGate 5000 Series
1.4 MB 		Tech Note v2.4 Jan 10, 2025 Jan 10, 2025
FOSS Statement for Moxa CLI Configuration Tool
114.6 KB 		Declaration v1.0 Dec 10, 2024 Dec 10, 2024
QIG for MGate 5103 Series
365.0 KB 		QIG v1.4 Dec 10, 2024 Dec 10, 2024
Moxa CLI Configuration Tool User Manual
1.0 MB 		Manual v2.4 Nov 18, 2024 Nov 18, 2024
Device Search Utility v3.x User Manual
6.6 MB 		Manual v1.0 Oct 31, 2024 Oct 31, 2024
FOSS Statement for MGate 5000 Series
852.4 KB 		Declaration v1.1 Sep 27, 2024 Sep 27, 2024
FOSS Statement for Device Search Utility
161.8 KB 		Declaration v1.0 Jun 24, 2024 Jun 24, 2024
Tech Note: Configuring and Monitoring with MXview One/MXview and MXconfig (non-java and java) Plugins
2.1 MB 		Tech Note v1.0 May 07, 2024 May 07, 2024
Datasheet for MGate 5103 Series
723.7 KB 		Datasheet v1.2 Apr 23, 2024 Apr 23, 2024
Declaration of Conformity for MGate 5103/5105-MB-EIP/5109/5114 Series
302.0 KB 		Declaration v1.0 Nov 02, 2023 Nov 02, 2023
Manual for MGate 5103 Series
6.1 MB 		Manual v1.1 Sep 20, 2023 Sep 20, 2023
Tech Note: Swapping the byte order in a Siemens PLC or Allen-Bradley PLC with the MGate 5103
1.2 MB 		Tech Note v1.0 Mar 02, 2020 Mar 02, 2020
Tech Note: How to Use the TIA Portal to Set a Siemens PLC and the MGate 5103
2.4 MB 		Tech Note v1.1 Aug 15, 2019 Aug 15, 2019
2D CAD for MGate 5103
164.9 KB 		2D CAD Sep 05, 2017 Sep 05, 2017

Related Content

FILTER

All Application Note Article Case Study Collection Solution Brochure Technology Guide Video White Paper

Available Models (2)

Show Images
Compare
moxa-mgate-5103-image.jpg | MoxaMGate 5103
Compare
moxa-mgate-5103-t-image.jpg | MoxaMGate 5103-T
Operating Temp.0 to 60°C-40 to 75°C
Add to QuoteView BagAdd to QuoteView Bag

Secure Your Edge Connectivity in Every Aspect

Learn More

Details

File Name: Firmware for Nport 6000 Series

Version: xx

SHA-512 Checksum: --checksum placeholder--

Copied to clipboard

product image

Buy online from distributors

Please sign in

Forgot your password?
Sign In
Remember Me.
Not a member? Sign up now

Do Not Share My Personal Information

To opt out of sharing your personal information for cross-context behavioral advertising, you can complete and submit the form provided below.


Please note that even if you choose to complete the form, you may still see our ads on other websites. However, these ads may not be as relevant to you as they would be if you had not opted out.




Added To Bag

View Bag
You have some items waiting in your bag; click here to finish your quote!

You are currently on the Global / English site.
Would you like to go to the site for your region?

Feedback
