Our NPort device servers make your serial devices network-ready in an instant. Their compact size makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN.

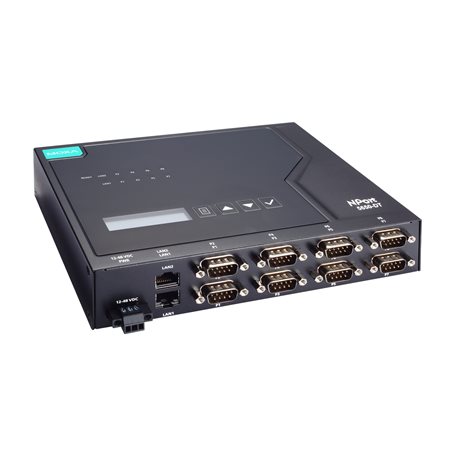

NPort 5650I-8-DT-G2
NPort 5600-DT-G2 Series

NPort 5650I-8-DT-G2

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Web Console (HTTPS)
      Windows Utility
      Device Search Utility (DSU)
      MCC Tool
      Serial Console

  • Management

    • ARP
      DHCP Client
      DNS
      HTTPS
      ICMP
      IPv4/IPv6
      SMTP
      SMTPS
      SNMPv1/v2c/v3
      SNTP
      TCP/IP
      UDP
      WINS

  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, and 7
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2

  • Linux Real TTY Drivers

    • Kernel versions 6.x, 5.x, and 4.x

  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, and 11

  • Arm®-based Platform Support

    • Windows 11
      Linux Kernel 6.x, 5.x and 4.x
      macOS 14, 13, 12 and 11

  • Virtual Machine

    • VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x) VMware Fusion (Windows on macOS 14, 13, 12, and 11)
      Parallels Desktop (Windows on macOS 14, 13, 12, and 11)

  • Time Management

    • SNTP Client

  • MIB

    • MIB-II
      RFC1213, RFC1317
      Private MIB
Security Functions

  • Root of Trust

    • Secure Boot
      True Random Number Generator (TRNG)

  • Authentication

    • Local database (RBAC support)

  • Encryption

    • HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
      SNMPv3: AES-128, SHA-256, SHA-384
      Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
      Config Import/Export: AES-256, SHA-256, HMAC

  • Security Protocols

    • HTTPS (TLS 1.2)
      SNMPv3
Serial Interface

  • Connector

    • NPort 5600-8-DT-G2 models: DB9 male
      NPort 5600-16-DT-J-G2 models: 8-pin RJ45
      NPort 5600-8-DTS-J-G2 models: 10-pin RJ50

  • No. of Ports

    • NPort 5600-8-DT-G2/5600-8-DTS-J-G2 models: 8
      NPort 5600-16-DT-G2 models: 16

  • Serial Standards

    • NPort 5610-DT-G2/5610-DTS-G2 models: RS-232
      NPort 5650-DT-G2/5650-DTS-G2 models: RS-232, RS-422, RS-485

  • Secure Operation Modes

    • Secure Pair Connection
      Secure Real COM
      Secure TCP Client
      Secure TCP Server

  • Standard Operation Modes

    • Disabled
      Pair Connection
      Real COM
      RFC2217
      TCP Client
      TCP Server
      UDP

  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None
      RTS/CTS
      DTR/DSR
      XON/XOFF

  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)

  • Terminator for RS-485

    • 120 ohms

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • No. of Power Inputs

    • 1

  • Input Current

    • 800 mA (max.)

  • Input Voltage

    • 12 to 48 VDC

  • Reverse Polarity Protection

    • Supported

  • Source of Input Power

    • Terminal block
Reliability

  • Automatic Reboot Trigger

    • Built-in WDT

  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (without ears)

    • NPort 5600-DT-G2 models: 197 x 125 x 44 mm (7.76 x 4.92 x 1.73 in)
      NPort 5600-DTS-G2 models: 210 x 95 x 25 mm (8.27 x 3.74 x 0.98 in)

  • Weight

    • NPort 5600-8-DT-G2 models: 880 g (1.94 lbs)
      NPort 5600-16-DT-J-G2 models: 875 g (1.93 lbs)
      NPort 5600-8-DTS-J-G2 models: 610 g (1.34 lbs)

  • Installation

    • Desktop
      Wall mounting
      DIN-rail mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • Standard models: -10 to 60°C (14 to 140°F)
      Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Safety

    • IEC 62368-1
      UL 62368-1
      EN 62368-1

  • Vibration

    • IEC 60068-2-6

  • Package Drop Test

    • ISTA 1A
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • NPort 5610-8-DT-G2: 29,666 hrs
      NPort 5610-8-DT-G2-T: 2,729,079 hrs
      NPort 5650-8-DT-G2: 29,612 hrs
      NPort 5650-8-DT-G2-T: 2,339,917 hrs
      NPort 5650I-8-DT-G2: 29,543 hrs
      NPort 5650I-8-DT-G2-T: 1,971,992 hrs
      NPort 5610-16-DT-J-G2 models: 2,043,468 hrs
      NPort 5650-16-DT-J-G2 models: 1,638,263 hrs
      NPort 5610-8-DTS-J-G2 models: 3,499,034 hrs
      NPort 5650-8-DTS-J-G2 models: 2,883,685 hrs

  • Standards

    • Telcordia Standard SR-332
      Telcordia SR-332 Issue 4
