NPort 5600-DT-G2 Series

8/16-port RS-232/422/485 compact desktop serial device servers

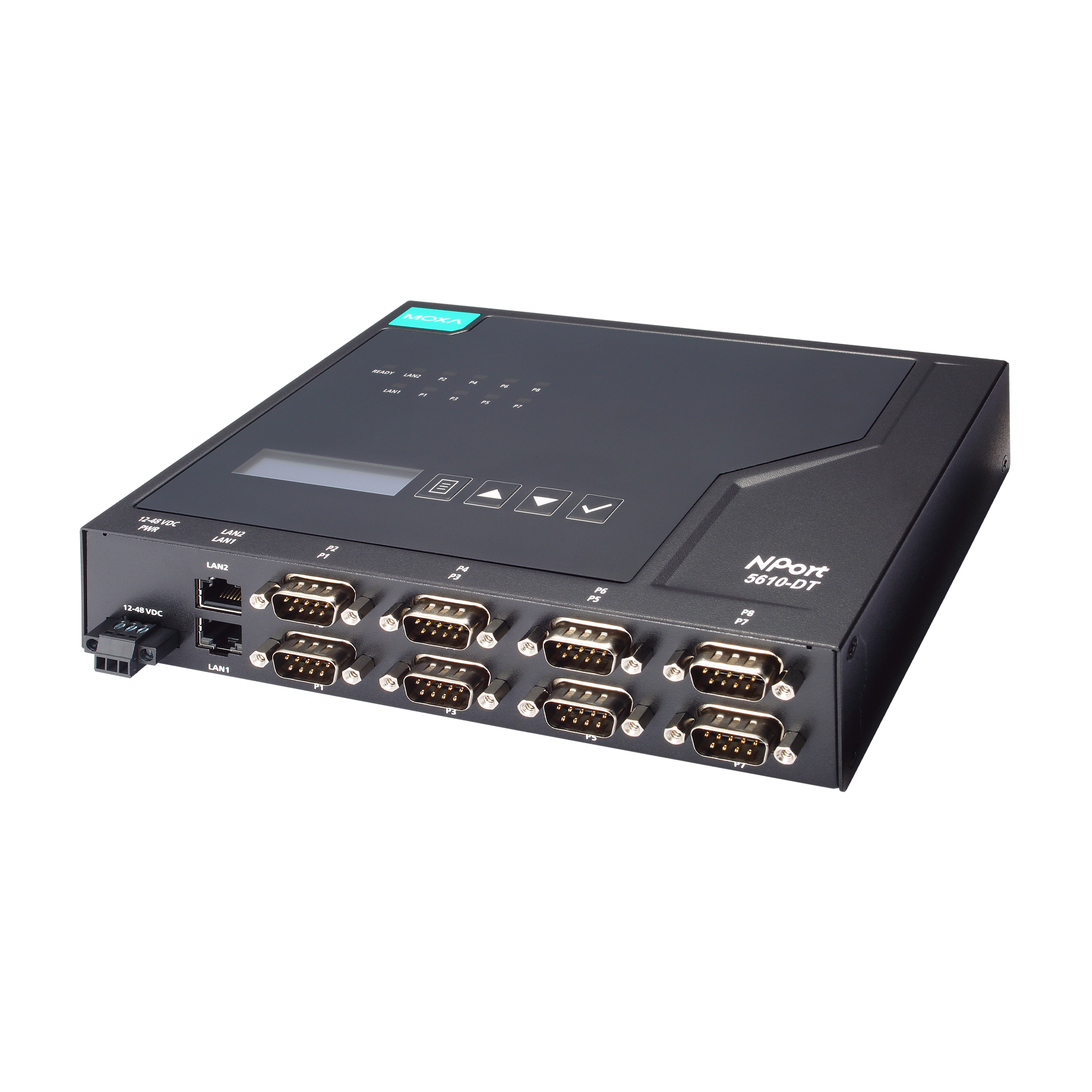

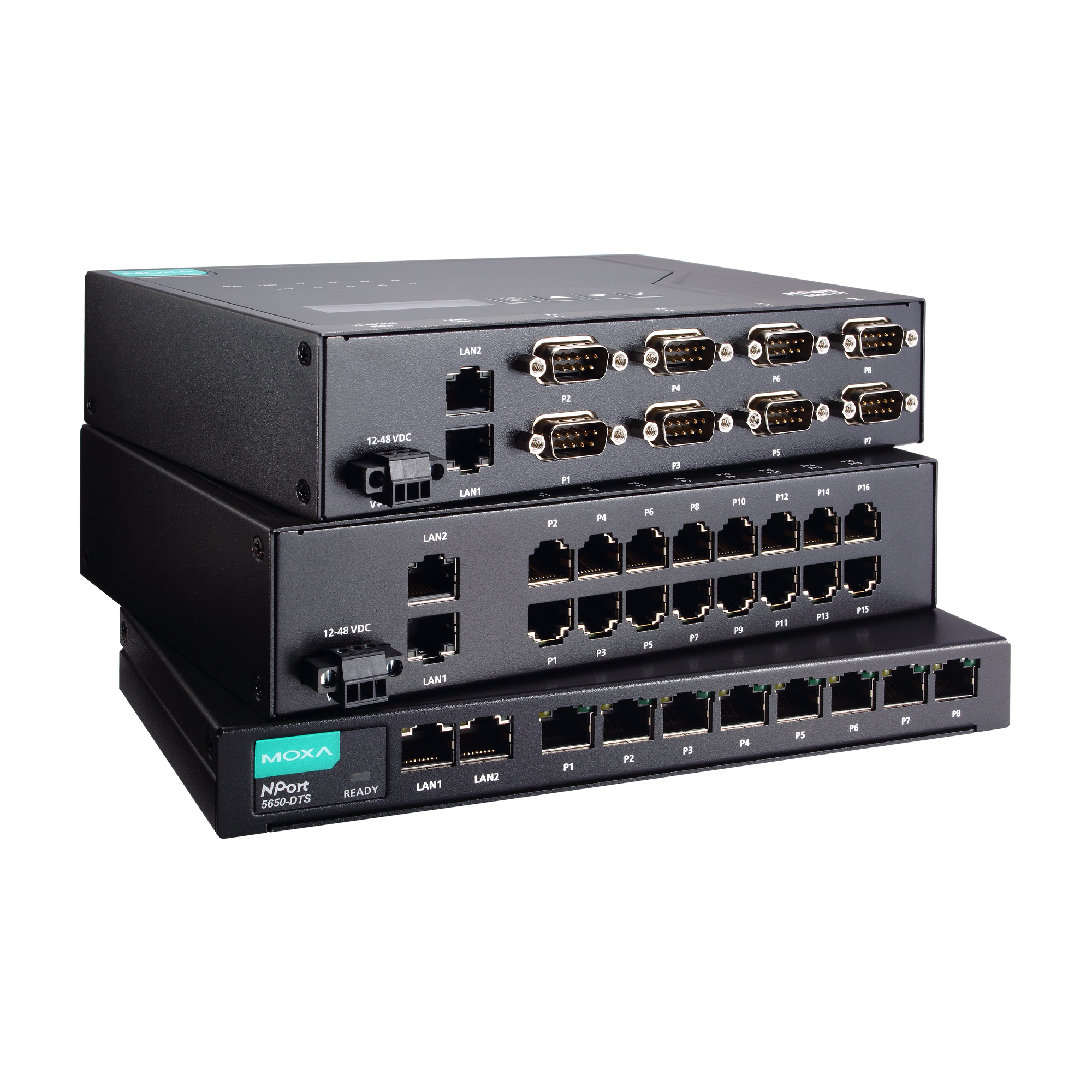

moxa-nport-5600-dt-g2-series-image-1-(1).jpg | Moxa

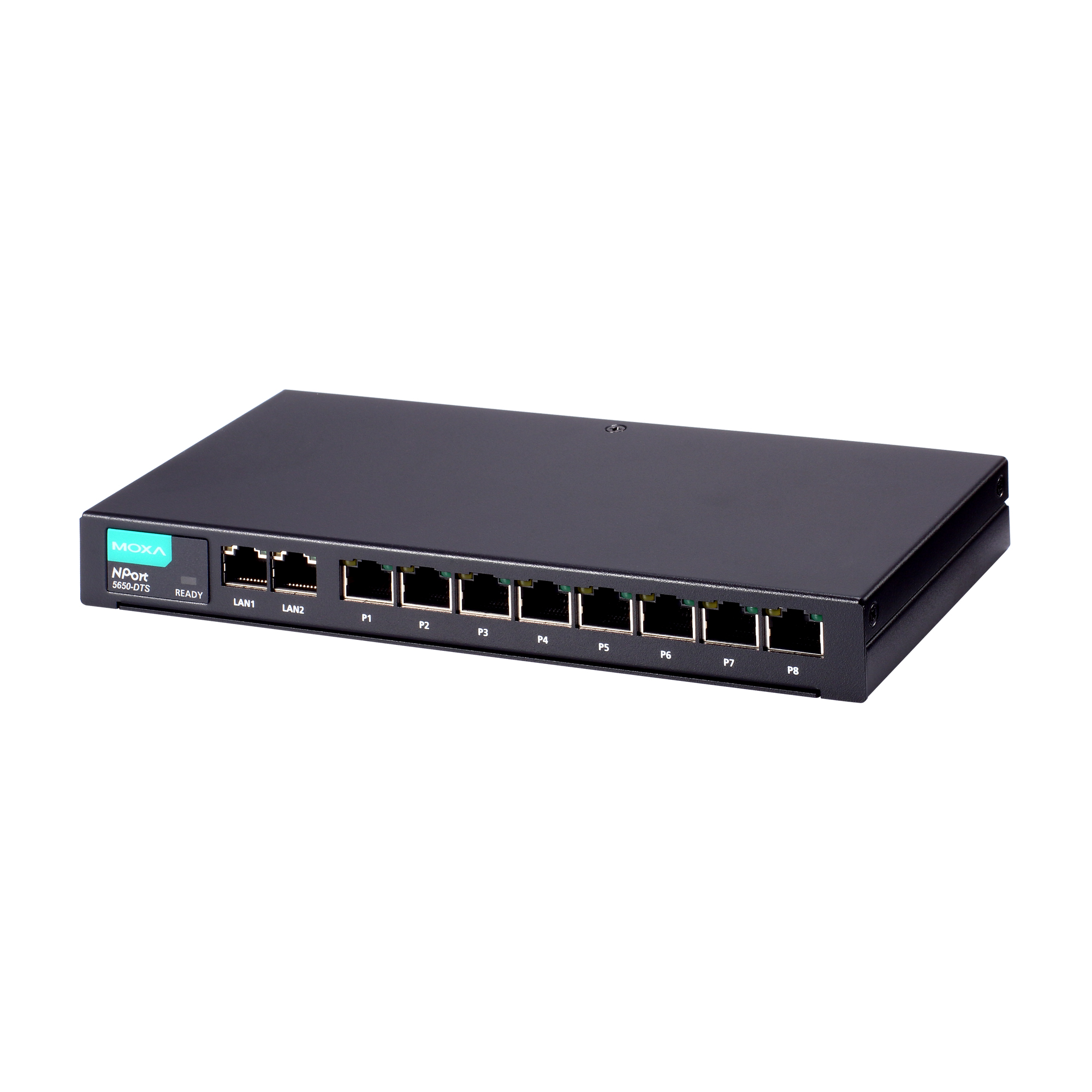

moxa-nport-5600-dt-g2-series-image-2-(1).jpg | Moxa

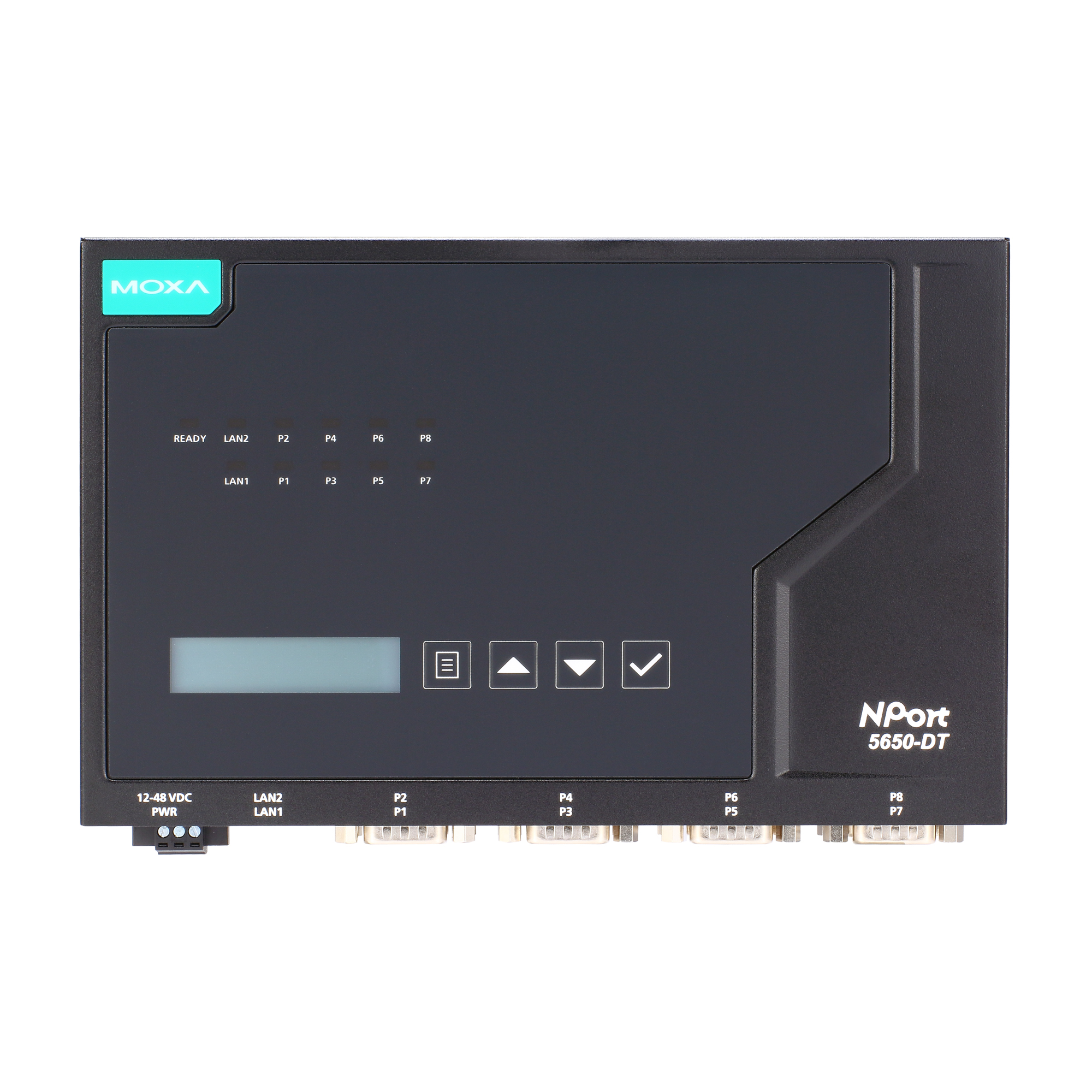

moxa-nport-5600-dt-g2-series-image-3-(1).jpg | Moxa

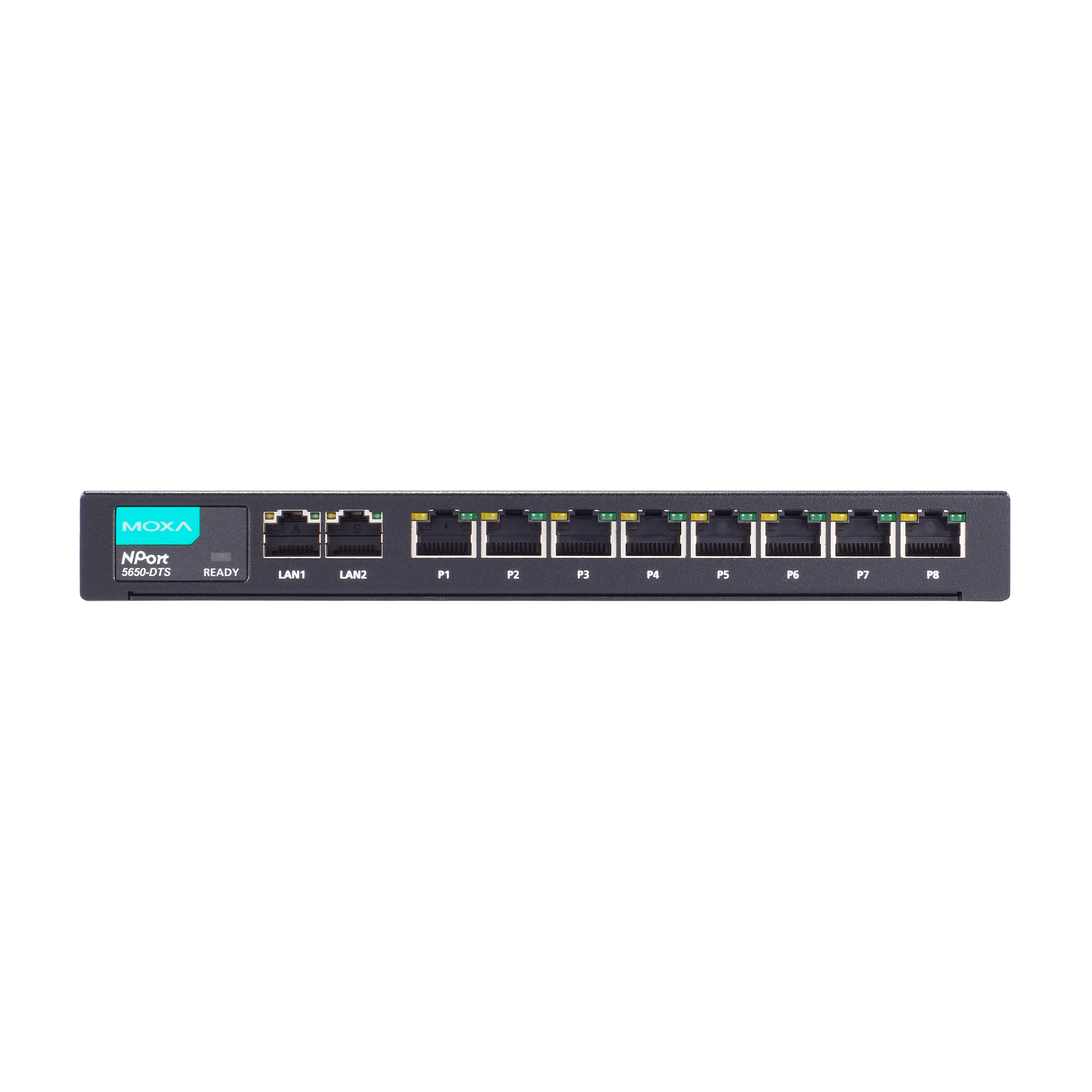

moxa-nport-5600-dt-g2-series-image-4-(1).jpg | Moxa

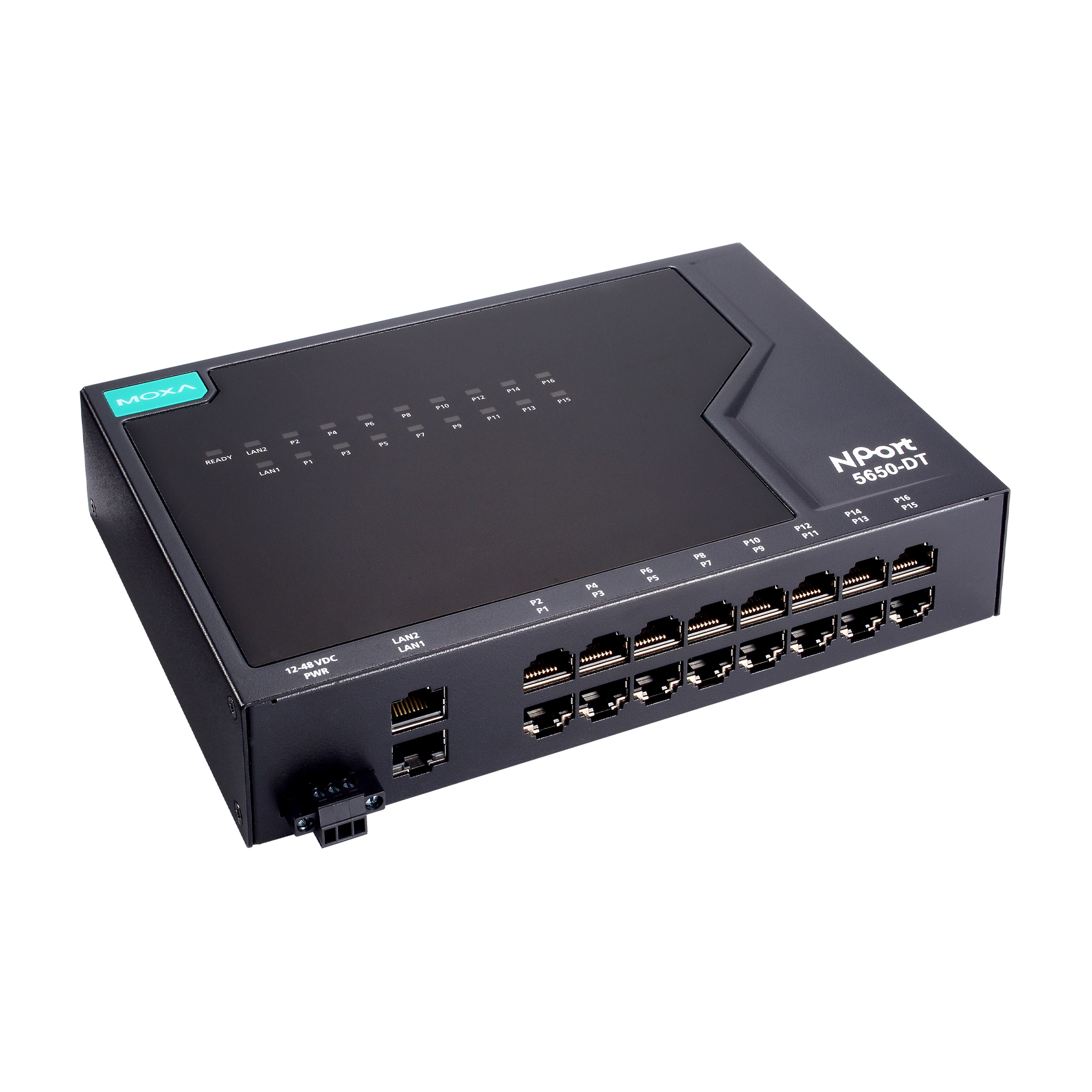

moxa-nport-5600-dt-g2-series-image-5-(1).jpg | Moxa

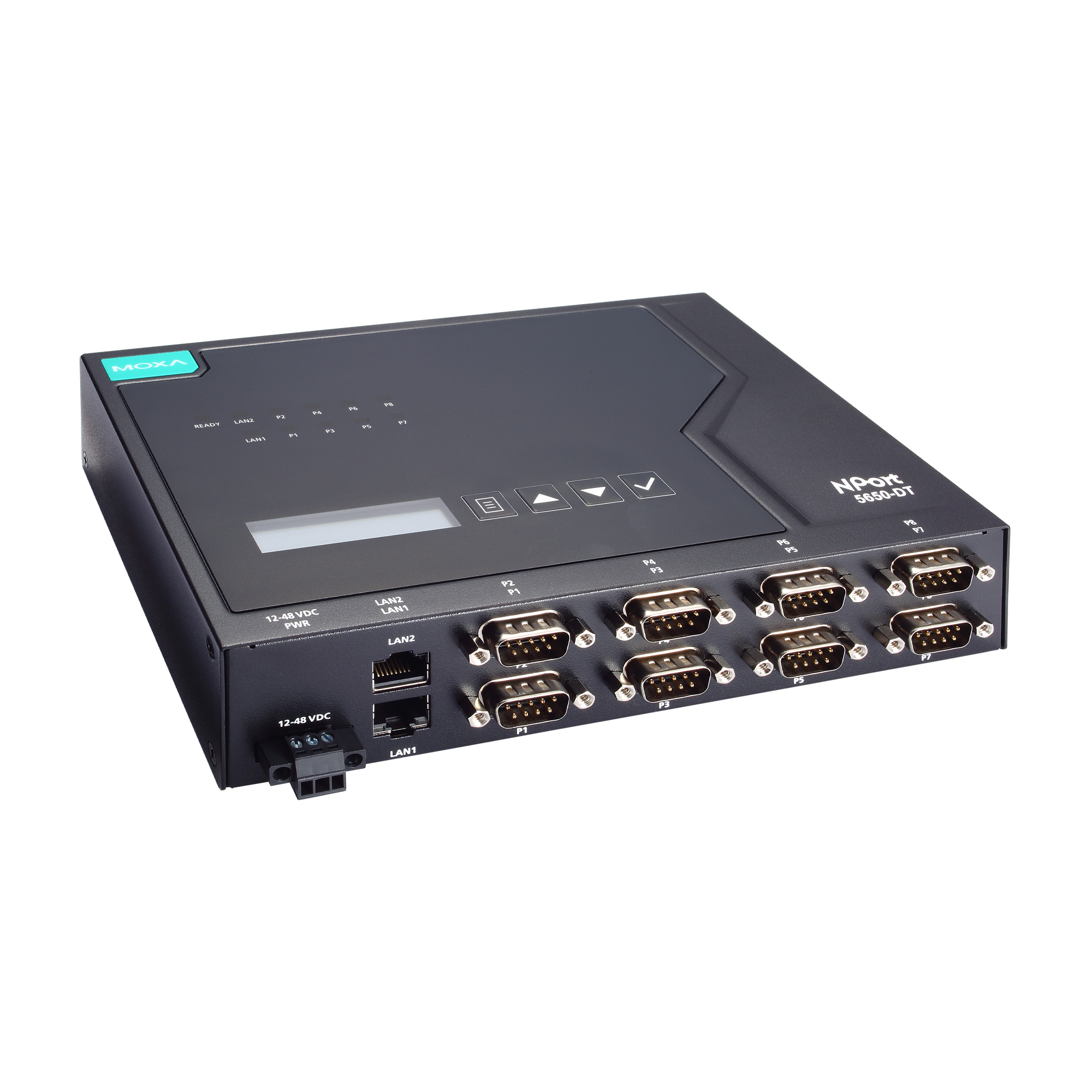

moxa-nport-5600-dt-g2-series-image-6-(1).jpg | Moxa

Features and Benefits

10/100/1000M auto-sensing Ethernet
Compact desktop design: 8-port DTS and 16-port slim models available
One-click log collection and application analysis for easy troubleshooting
Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
Secure Boot only allows Moxa-authorized firmware to run on devices
Supports SSL certificate signing by RSA-4096 and ECC-521

Certifications

You can track updates for your followed products in My Moxa

Contact Sales

Introduction

NPort 5600-8-DT-G2 device servers can conveniently and transparently connect up to 16 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT-G2 device servers have a slim form factor compared to our other device servers, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available. The device servers also come with one-click log collection and one-click application analyzer for easy troubleshooting.

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort®5600-DT-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort®5600-DT-G2, you can be rest assured that serial data is transmitted securely over both private and public networks.

One-click Logs and Application Analysis for Easy Troubleshooting

During the deployment stage, system integrators must connect devices and ensure the communication is smooth. They may encounter issues and will require tools to troubleshoot issues. Moxa provides a application analyzer that generates a report at the click of a button to help the system integrator easily identify potential issues and understand how to resolve them.

At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because they need to collect information and then hold discussions with the technical support team. The NPort®5600-DT-G2 comes with a one-click log collection function, which can provide all the data that a technical support team needs to quickly troubleshoot system issues.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

10/100/1000BaseT(X) Ports (RJ45 connector)

2
Auto MDI/MDI-X connection
Magnetic Isolation Protection

1.5 kV (built-in)

Configuration Options

Web Console (HTTPS)
Windows Utility
Device Search Utility (DSU)
MCC Tool
Serial Console
Management

ARP
DHCP Client
DNS
HTTPS
ICMP
IPv4/IPv6
SMTP
SMTPS
SNMPv1/v2c/v3
SNTP
TCP/IP
UDP
WINS
Windows Real COM Drivers

Windows 11, 10, 8.1, 8, and 7
Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
Linux Real TTY Drivers

Kernel versions 6.x, 5.x, and 4.x
Fixed TTY Drivers

macOS versions: 14, 13, 12, and 11
Arm®-based Platform Support

Windows 11
Linux Kernel 6.x, 5.x and 4.x
macOS 14, 13, 12 and 11
Virtual Machine

VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x) VMware Fusion (Windows on macOS 14, 13, 12, and 11)
Parallels Desktop (Windows on macOS 14, 13, 12, and 11)
Time Management

SNTP Client
MIB

MIB-II
RFC1213, RFC1317
Private MIB

Root of Trust

Secure Boot
True Random Number Generator (TRNG)
Authentication

Local database (RBAC support)
Encryption

HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
SNMPv3: AES-128, SHA-256, SHA-384
Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC
Config Import/Export: AES-256, SHA-256, HMAC
Security Protocols

HTTPS (TLS 1.2)
SNMPv3

Connector

NPort 5600-8-DT-G2 models: DB9 male
NPort 5600-16-DT-J-G2 models: 8-pin RJ45
NPort 5600-8-DTS-J-G2 models: 10-pin RJ50
No. of Ports

NPort 5600-8-DT-G2/5600-8-DTS-J-G2 models: 8
NPort 5600-16-DT-G2 models: 16
Serial Standards

NPort 5610-DT-G2/5610-DTS-G2 models: RS-232
NPort 5650-DT-G2/5650-DTS-G2 models: RS-232, RS-422, RS-485
Secure Operation Modes

Secure Pair Connection
Secure Real COM
Secure TCP Client
Secure TCP Server
Standard Operation Modes

Disabled
Pair Connection
Real COM
RFC2217
TCP Client
TCP Server
UDP
Baudrate

50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits

5, 6, 7, 8
Stop Bits

1, 1.5, 2
Parity

None, Even, Odd, Space, Mark
Flow Control

None
RTS/CTS
DTR/DSR
XON/XOFF
RS-485 Data Direction Control

Automatic Data Direction Control (ADDC)
Terminator for RS-485

120 ohms
Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND

No. of Power Inputs

1
Input Current

800 mA (max.)
Input Voltage

12 to 48 VDC
Reverse Polarity Protection

Supported
Source of Input Power

Terminal block

Automatic Reboot Trigger

Built-in WDT
Alert Tools

Built-in buzzer and RTC (real-time clock)

Housing

Metal
Dimensions (without ears)

NPort 5600-DT-G2 models: 197 x 125 x 44 mm (7.76 x 4.92 x 1.73 in)
NPort 5600-DTS-G2 models: 210 x 95 x 25 mm (8.27 x 3.74 x 0.98 in)
Weight

NPort 5600-8-DT-G2 models: 880 g (1.94 lbs)
NPort 5600-16-DT-J-G2 models: 875 g (1.93 lbs)
NPort 5600-8-DTS-J-G2 models: 610 g (1.34 lbs)
Installation

Desktop
Wall mounting
DIN-rail mounting (with optional kit)

Operating Temperature

Standard models: -10 to 60°C (14 to 140°F)
Wide temp. models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)

-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Safety

IEC 62368-1
UL 62368-1
EN 62368-1
Vibration

IEC 60068-2-6
Package Drop Test

ISTA 1A

Green Product

RoHS, CRoHS, WEEE

Time

NPort 5610-8-DT-G2: 29,666 hrs
NPort 5610-8-DT-G2-T: 2,729,079 hrs
NPort 5650-8-DT-G2: 29,612 hrs
NPort 5650-8-DT-G2-T: 2,339,917 hrs
NPort 5650I-8-DT-G2: 29,543 hrs
NPort 5650I-8-DT-G2-T: 1,971,992 hrs
NPort 5610-16-DT-J-G2 models: 2,043,468 hrs
NPort 5650-16-DT-J-G2 models: 1,638,263 hrs
NPort 5610-8-DTS-J-G2 models: 3,499,034 hrs
NPort 5650-8-DTS-J-G2 models: 2,883,685 hrs
Standards

Telcordia Standard SR-332
Telcordia SR-332 Issue 4

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Checksum	Version	Operating System	Release Date
Private MIB for NPort 5600-DT-G2 Series 148.2 KB	Software Package	1F048D94C63201382853E1887FD0191B4B13ECBA185C0B1413EB1BB3C215F7838B5858F65BE211490BBD9EB9BE2BD484EE51B6DD926A5862054BF5FC4CE8148C SHA-512	v1.0.0		May 27, 2026 May 27, 2026 Release notes
Firmware for NPort 5600-DT-G2 Series 3.0 MB	Firmware	ACD39D46F513F867DDA67D713E3E38D7959E4D4E029EDF40EFCD268CA71289704F87386C3AF2F2C9A9274271B2489D99B709F412B249CFCEB9C5F1A33C4DB027 SHA-512	v1.0.0		May 27, 2026 May 27, 2026 Release notes
Moxa CLI Configuration Tool (Linux) 11.3 MB	Utility	8BFC6BABE8F92B37C2EA8CFD7441DBB7648468830DDF1F3C5FAC597B4FD0D0675AC4BEE4BFE2EF3C843DE400E9EE1BC31C5B45875461B2906D17E571E05F8651 SHA-512	v1.6	Linux Kernel 2.4.x Linux Kernel 2.6.x Linux Kernel 3.x Linux Kernel 4.x Linux Kernel 5.x Linux Kernel 6.x	Feb 02, 2026 Feb 02, 2026 Release notes
Moxa CLI Configuration Tool (Windows) 2.1 MB	Utility	CD684A6334B8BF04C3D76E72FDC4A288CF77B1C0AA057C32D9F922806BA4169EFDF3393F977CB0935894975BFD08CEC8949345C03AC9093FD0C39B01B586F7C6 SHA-512	v1.6	Windows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022	Feb 02, 2026 Feb 02, 2026 Release notes
Real TTY Linux Kernel 6.x Driver 2.5 MB	Driver	237F77E2F40BCA7D51F88942ACD49C96AA5328E9C34A61261E950042E08C2E1406221321BB315258BF2AB1FC8304E19D3BC495949BDB960E1C68964C1C9F330B SHA-512	v6.2	Linux Kernel 6.x	Jan 22, 2026 Jan 22, 2026 Release notes
Real TTY Linux Kernel 4.x Driver 650.0 KB	Driver	2B3D28729539A32AD4D1D326A328AE12FB2AA0445BAF7F2254579EB5456E34D3148B3BFA8AFB2EF440A290083F4F007281C5C6296F2B508AE509A119CB6FA010 SHA-512	v4.4	Linux Kernel 4.x	Jan 22, 2026 Jan 22, 2026 Release notes
Real TTY Linux Kernel 5.x Driver 650.0 KB	Driver	0DA27DE67F9765CA40527674FABC0650F9192F42DB77D02D743B1E73BFD564A7D6612563BEC517B854EC893BD045B7063FCDE80D75A246FD5749FFA7987B18EB SHA-512	v5.6	Linux Kernel 5.x	Jan 22, 2026 Jan 22, 2026 Release notes
Moxa Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified) 11.9 MB	Driver	BA32BA788191ADABE0FFE9ABE42A00117EE845DBF2B69561C594D26290BB401B1F8EF8F08B1798E920A1F6A484F32E17ADB4FFF52CB093A080398C4AEE821494 SHA-512	v4.5	Windows 11 Windows Server 2022 Windows Server 2025	Jan 09, 2026 Jan 09, 2026 Release notes
Device Search Utility (installer) 236.2 MB	Utility	46BFBEF375C5A5A231CDFBFEBCC30E1847BDAB75BDBD882E681528558AB696F43ED8B14BA7BF199EEF60625FDECF4C21A63FD20E0D0D735246EBC27B10C2399D SHA-512	v3.1	Windows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022 Windows Server 2025	Nov 17, 2025 Nov 17, 2025 Release notes
Device Search Utility (portable) 128.6 MB	Utility	728BA6AE2F8A19FEE90E5E89B67E72BBEC0CF70A6343D897B839B2A5BB897B19B7ECD9FDBCFEB412207F0536AC82E4B7923F25E86B5C1EC8F6592F1BC494BD3D SHA-512	v3.1	Windows 10 Windows 11 Windows 7 Windows 8 Windows 8.1 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022 Windows Server 2025	Nov 17, 2025 Nov 17, 2025 Release notes
Serial Device Server Driver for macOS (macOS 11.x to 14) 6.3 MB	Driver	91948DC612A34FDCFAA923230297736427FB8217C04496AFB919C92099D2F9073F583B9334D8D0A8636CF4AA4D47767CF06E93AA9450C4A64CA77B4E6F14F417 SHA-512	v1.3	macOS 11 macOS 12 macOS 13 macOS 14 macOS 15 macOS 26	Sep 02, 2024 Sep 02, 2024 Release notes

Support Documents

Name	Type	Version	Release Date
Tech Note: The Migration Guide for the NPort 5600-DT Series 1.9 MB	Tech Note	v1.0	May 27, 2026 May 27, 2026
Manual for NPort 5600-DT-G2 Series 11.4 MB	Manual	v1.0	May 27, 2026 May 27, 2026
Tech Note: The Security Hardening Guide for the NPort 5600-DT-G2 Series 1.2 MB	Tech Note	v1.0	May 27, 2026 May 27, 2026
QIG for NPort 5600-DT-G2 Series 2.5 MB	QIG	v1.0	May 22, 2026 May 22, 2026
Datasheet for NPort 5600-DT-G2 Series 1.8 MB	Datasheet	v1.0	May 19, 2026 May 19, 2026
FOSS Statement for Moxa CLI Configuration Tool 114.6 KB	Declaration	v1.0	Dec 10, 2024 Dec 10, 2024
FOSS Statement for Device Search Utility 161.8 KB	Declaration	v1.0	Jun 24, 2024 Jun 24, 2024
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms 372.3 KB	Tech Note	v2.0	Jun 08, 2023 Jun 08, 2023
Tech Note: Real TTY Driver for NPort 379.2 KB	Tech Note	v2.0	Jun 08, 2023 Jun 08, 2023
FOSS Statement for Moxa Windows Driver Manager 255.8 KB	Declaration	v1.0	Aug 01, 2022 Aug 01, 2022

Available Models (14)

Show Images

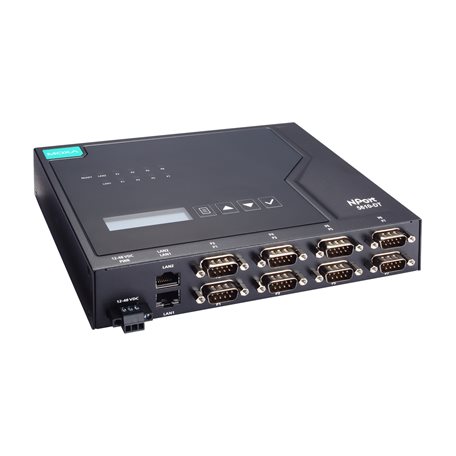

	Compare NPort 5610-8-DT-G2	Compare NPort 5610-8-DT-G2-T	Compare NPort 5650-8-DT-G2	Compare NPort 5650-8-DT-G2-T
Ethernet Interface	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45
No. of Serial Ports	8	8	8	8
Serial Standards	RS-232	RS-232	RS-232/422/485	RS-232/422/485
Serial Interface Connector	DB9 Male	DB9 Male	DB9 Male	DB9 Male
Serial Interface Isolation	–	–	–	–
Operating Temp.	-10 to 60°C	-40 to 75°C	-10 to 60°C	-40 to 75°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare NPort 5650I-8-DT-G2	Compare NPort 5650I-8-DT-G2-T	Compare NPort 5610-16-DT-J-G2	Compare NPort 5610-16-DT-J-G2-T
Ethernet Interface	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45
No. of Serial Ports	8	8	16	16
Serial Standards	RS-232/422/485	RS-232/422/485	RS-232	RS-232
Serial Interface Connector	DB9 Male	DB9 Male	8-pin RJ45	8-pin RJ45
Serial Interface Isolation	2 kV	2 kV	–	–
Operating Temp.	-10 to 60°C	-40 to 75°C	-10 to 60°C	-40 to 75°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare NPort 5650-16-DT-J-G2	Compare NPort 5650-16-DT-J-G2-T	Compare NPort 5610-8-DTS-J-G2	Compare NPort 5610-8-DTS-J-G2-T
Ethernet Interface	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45
No. of Serial Ports	16	16	8	8
Serial Standards	RS-232/422/485	RS-232/422/485	RS-232	RS-232
Serial Interface Connector	8-pin RJ45	8-pin RJ45	10-pin RJ50	10-pin RJ50
Serial Interface Isolation	–	–	–	–
Operating Temp.	-10 to 60°C	-40 to 75°C	-10 to 60°C	-40 to 75°C
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

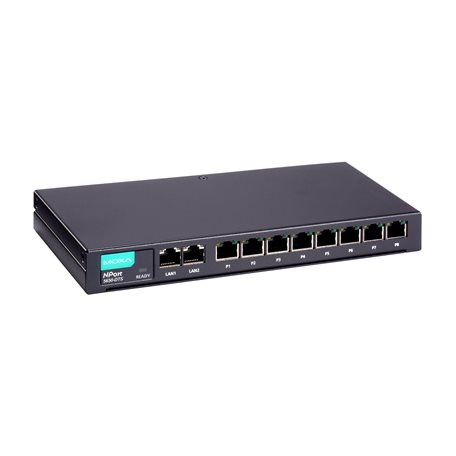

	Compare NPort 5650-8-DTS-J-G2	Compare NPort 5650-8-DTS-J-G2-T
Ethernet Interface	2 x 10/100/1000M RJ45	2 x 10/100/1000M RJ45
No. of Serial Ports	8	8
Serial Standards	RS-232/422/485	RS-232/422/485
Serial Interface Connector	10-pin RJ50	10-pin RJ50
Serial Interface Isolation	–	–
Operating Temp.	-10 to 60°C	-40 to 75°C
	Add to Quote View Bag	Add to Quote View Bag
