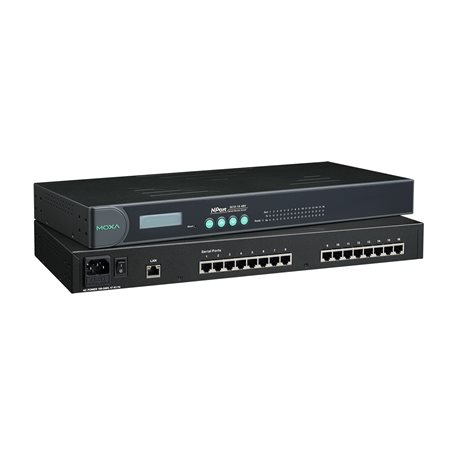

NPort 5630-16
NPort 5600 Series

16-port RS-422/485 rackmount device server with RJ45 connectors and 100-240 VAC power input

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
  • Filter

    • IGMP v1/v2c
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
  • Time Management

    • SNTP
Serial Interface
  • Connector

    • 8-pin RJ45
  • No. of Ports

    • 16
  • Serial Standards

    • RS-422, RS-485
  • Operation Modes

    • Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
Serial Signals
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 152 mA @ 100 VAC
  • Input Voltage

    • 100 to 240 VAC, 47 to 63 Hz
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • 19-inch rack mounting
  • Dimensions (with ears)

    • 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
  • Dimensions (without ears)

    • 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
  • Weight

    • 2,490 g (5.49 lb)
  • Interactive Interface

    • LCD panel display
      Push buttons for configuration
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMC

    • EN 55032/24
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Medical

    • EN 60601-1-2 Class B, EN 55011
  • Safety

    • UL 60950-1
MTBF
  • Time

    • 473,748 hrs
  • Standards

    • MIL-HDBK-217F
