NPort 5600 Series

8 and 16-port RS-232/422/485 rackmount serial device servers

moxa-nport-5600-series-image-1-(1).jpg | Moxa
moxa-nport-5600-series-image-2-(1).jpg | Moxa
moxa-nport-5600-series-image-3-(1).jpg | Moxa
moxa-nport-5600-series-image-4-(1).jpg | Moxa
moxa-nport-5600-series-image-5-(1).jpg | Moxa
moxa-nport-5600-series-image-6-(1).jpg | Moxa
moxa-nport-5600-series-image-7-(1).jpg | Moxa

Features and Benefits

  • Standard 19-inch rackmount size
  • Easy IP address configuration with LCD panel (excluding wide-temperature models)
  • Configure by Telnet, web browser, or Windows utility
  • Socket modes: TCP server, TCP client, UDP
  • SNMP MIB-II for network management
  • Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
  • Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

Network Readiness for up to 16 Serial Devices

Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.

19-Inch Rackmount Device Server

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.

Real COM/TTY Ports

Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.

LED Indicators to Ease Your Maintenance Tasks

The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.

Adjustable Termination and Pull High/Low Resistors

When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.

Appearance

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Optical Fiber

  • Configuration Options

    Web Console (HTTP), Windows Utility, Telnet Console

  • Management

    ARP, BOOTP, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, UDP, ICMP, Rtelnet, RFC2217, PPP, SLIP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Linux Real TTY Drivers

    Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Android API

    Android 3.1.x and later

  • Time Management

    SNTP

  • Connector

    8-pin RJ45

  • No. of Ports

    8 or 16 ports

  • Serial Standards

    NPort 5610 Series: RS-232
    NPort 5630 Series: RS-422, RS-485
    NPort 5650 Series: RS-232, RS-422, RS-485

  • Operation Modes

    Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5610-8-48V/16-48V: 135 mA @ 48 VDC
    NPort 5650-8-HV-T/16-HV-T: 152 mA @ 88 VDC
    NPort 5610-8/16: 141 mA @ 100 VAC
    NPort 5630-8/16: 152 mA @ 100 VAC
    NPort 5650-8/8-T/16/16-T: 158 mA @ 100 VAC
    NPort 5650-8-M-SC/16-M-SC: 174 mA @ 100 VAC
    NPort 5650-8-S-SC/16-S-SC: 164 mA @ 100 VAC

  • Input Voltage

    HV Models: 88 to 300 VDC
    AC Models: 100 to 240 VAC, 47 to 63 Hz
    DC Models: ±48 VDC, 20 to 72 VDC, -20 to -72 VDC

  • Automatic Reboot Trigger

    Built-in WDT

  • Housing

    Metal

  • Installation

    19-inch rack mounting

  • Dimensions (with ears)

    480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)

  • Dimensions (without ears)

    440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)

  • Weight

    NPort 5610-8: 2,290 g (5.05 lb)
    NPort 5610-8-48V: 3,160 g (6.97 lb)
    NPort 5610-16/5630-16: 2,490 g (5.49 lb)
    NPort 5610-16-48V: 3,260 g (7.19 lb)
    NPort 5650-8/5650-8-T: 2,310 g (5.09 lb)
    NPort 5650-8-M-SC: 2,380 g (5.25 lb)
    NPort 5650-8-S-SC/5650-16-M-SC: 2,440 g (5.38 lb)
    NPort 5650-8-HV-T: 3,720 g (8.20 lb)
    NPort 5650-16/5650-16-T: 2,510 g (5.53 lb)
    NPort 5650-16-S-SC: 2,500 g (5.51 lb)
    NPort 5650-16-HV-T: 3,820 g (8.42 lb)

  • Interactive Interface

    LCD panel display (standard temp. models only)
    Push buttons for configuration (standard temp. models only)

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)
    High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    Standard Models: -20 to 70°C (-4 to 158°F)
    Wide Temp. Models: -40 to 75°C (-40 to 185°F)
    High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMC

    EN 55032/24

  • EMS

    NPort 5650-8/16 Series:
    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8
    IEC 61000-4-11 DIPs

    NPort 5650-8/16-HV Series:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8

  • Medical

    EN 60601-1-2 Class B, EN 55011

  • Safety

    UL 60950-1

  • Time

    NPort 5610-8: 877,888 hrs
    NPort 5610-8-48V: 870,961 hrs
    NPort 5610-16: 666,105 hrs
    NPort 5610-16-48V: 662,111 hrs
    NPort 5630-8: 765,449 hrs
    NPort 5630-16: 473,748 hrs
    NPort 5650-8: 692,010 hrs
    NPort 5650-8-T: 692,010 hrs
    NPort 5650-8-HV-T: 627,078 hrs
    NPort 5650-8-M-SC: 678,053 hrs
    NPort 5650-8-S-SC: 678,053 hrs
    NPort 5650-16: 473,748 hrs
    NPort 5650-16-T: 473,748 hrs
    NPort 5650-16-HV-T: 442,626 hrs
    NPort 5650-16-M-SC: 467,180 hrs
    NPort 5650-16-S-SC: 467,180 hrs

  • Standards

    AC models: MIL-HDBK-217F
    HV models: Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for NPort 5600 Series (Windows Driver Manager)
2.7 MB
Driver 3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
2018-08-23 Aug 23, 2018 Release notes
Driver for NPort 5600 Series (Windows Driver Manager)
2.6 MB
Driver 2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2018-08-22 Aug 22, 2018 Release notes
Driver for NPort 5600 Series (Device Server Android API)
18.1 MB
Driver 1.0
  • Android
2018-01-19 Jan 19, 2018 Release notes
Software Package for NPort 5600 Series (MXview)
244.9 MB
Software Package v2.9
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows 7
2017-12-05 Dec 05, 2017 Release notes
Driver for NPort 5600 Series (Real TTY for Linux 3.x.x, 4.x.x)
88.6 KB
Driver 1.19
  • Linux 3.x
  • Linux 4.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5600 Series (Real TTY for Linux 2.4.x, 2.6.x)
92.8 KB
Driver 1.19
  • Linux 2.4.x
  • Linux 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Utility for NPort 5600 Series (Device Search Utility)
1.1 MB
Utility v2.2
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Vista
  • Windows 98
  • Windows 2000
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows Server 2016
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2017-09-05 Sep 05, 2017 Release notes
Firmware for NPort 5600 Series
592.4 KB
Firmware v3.8
2017-03-14 Mar 14, 2017
Driver for NPort 5600 Series (NPort Administration Suite)
4.0 MB
Driver v1.22
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Server 2008 R2
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows 10
  • Windows Vista
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2016-10-28 Oct 28, 2016 Release notes
Software Package for NPort 5600 Series (MXview Plugin)
264.3 KB
Software Package v2.2.1
2012-12-26 Dec 26, 2012
Driver for NPort 5600 Series (WinCE 5)
230.5 KB
Driver v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012-11-15 Nov 15, 2012 Release notes
Utility for NPort 5600 Series (PComm Lite)
1.6 MB
Utility v1.6
  • Windows 7
  • Windows XP
  • Windows 2000
  • Windows Vista
  • Windows Server 2008
  • Windows Server 2003
2012-05-14 May 14, 2012 Release notes
Driver for NPort 5600 Series (WinXP Embedded)
1.2 MB
Driver v1.14
  • Windows XP Embedded
2012-04-05 Apr 05, 2012 Release notes
Driver for NPort 5600 Series (UNIX)
73.0 KB
Driver v3.5
  • FreeBSD 8.x
  • QNX 4.x
  • Mac OS X
  • HP-UX
  • Solaris 10
  • IBM AIX 5.3
  • FreeBSD 7.x
  • SCO OpenServer 5
  • SCO UnixWare 7
  • SCO OpenServer 6
  • QNX 6.x
  • FreeBSD 5.x
  • FreeBSD 6.x
2012-03-20 Mar 20, 2012 Release notes

Support Documents

Name Type Version Release Date
Datasheet for NPort 5600 Series
2.7 MB
Datasheet v1.0 2018-11-11 Nov 11, 2018
Manual for NPort 5600 Series
15.2 MB
Manual v3.2 2018-02-08 Feb 08, 2018
QIG for NPort 5600 Series
1.6 MB
QIG v5.1 2017-06-28 Jun 28, 2017
Tech Note for NPort 5600 Series (NPort Real COM Mode for DNP3 Applications)
1.9 MB
Tech Note v1.0 2014-11-18 Nov 18, 2014
Tech Note for NPort 5600 Series (TCP Server Mode for NPort Series)
311.3 KB
Tech Note v1.0 2013-06-30 Jun 30, 2013
Tech Note for NPort 5600 Series (Using DNP3 with the NPort Series)
1.0 MB
Tech Note v1.0 2012-03-30 Mar 30, 2012
Tech Note for NPort 5600 Series (Accessing Multiple NPorts Behind NAT for NPort Series)
482.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600 Series (Ethernet Modem Mode for NPort Series)
116.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600 Series (Pair Connection Mode)
211.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600 Series (Real COM Mode for NPort Series)
253.0 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600 Series (Reverse Telnet Mode for NPort Series)
204.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600 Series (TCP Client Mode for NPort Series)
224.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600 Series (UDP Mode for NPort Series)
173.2 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5600 Series (Fixed TTY Driver for NPort Series)
207.6 KB
Tech Note v1.0 2009-05-22 May 22, 2009
Tech Note for NPort 5600 Series (Real TTY Driver for NPort Series)
204.2 KB
Tech Note v1.0 2009-05-22 May 22, 2009
3D CAD for NPort 5610-16-48v
886.3 KB
3D CAD 1995-08-03 Aug 03, 1995
3D CAD for NPort 5600
1.5 MB
3D CAD 1995-08-03 Aug 03, 1995
3D CAD for NPort 5650-16-HV
867.1 KB
3D CAD 1995-08-03 Aug 03, 1995
3D CAD for NPort 5650-8-HV
782.7 KB
3D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5610-16-48
595.9 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5610-16 TOP
657.5 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5610-8-48 TOP
709.1 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5610-8 TOP
595.9 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5630-16 TOP
657.5 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5630-8 TOP
595.9 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5650-16-M-SC TOP
608.7 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5650-16-S-SC TOP
608.7 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5650-16 TOP
657.5 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5650-8-M-SC TOP
603.4 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5650-8-S-SC TOP
603.4 KB
2D CAD 1995-08-03 Aug 03, 1995
2D CAD for NPort 5650-8 TOP
595.9 KB
2D CAD 1995-08-03 Aug 03, 1995

Available Models (16)

Show Images

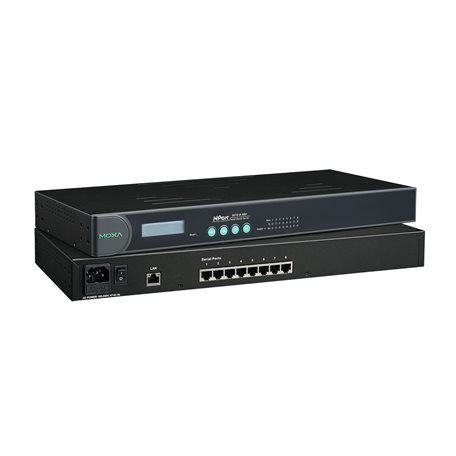

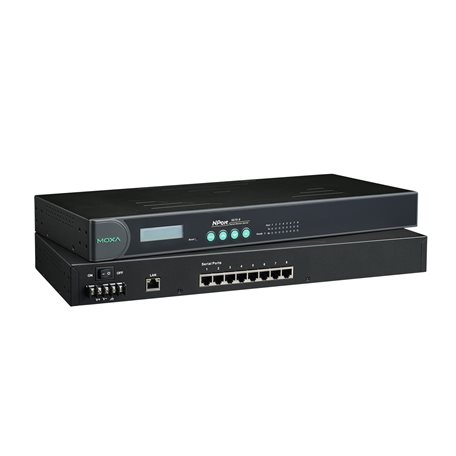

moxa-nport-5610-8-image.jpg | MoxaNPort 5610-8moxa-nport-5610-8-48v-image.jpg | MoxaNPort 5610-8-48Vmoxa-nport-5630-8-image.jpg | MoxaNPort 5630-8moxa-nport-5610-16-image.jpg | MoxaNPort 5610-16
Ethernet Interface Connector8-pin RJ458-pin RJ458-pin RJ458-pin RJ45
Serial InterfaceRS-232RS-232RS-422/485RS-232
No. of Serial Ports88816
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Input Voltage100-240 VAC±48 VDC100-240 VAC100-240 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

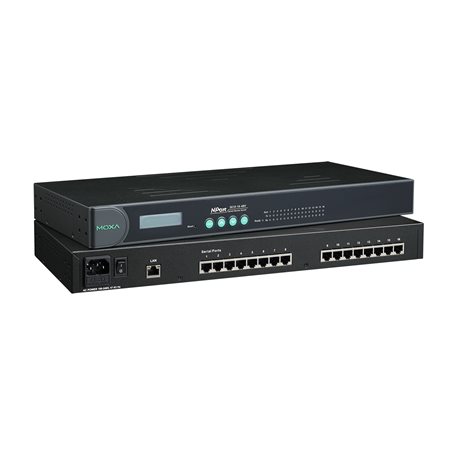

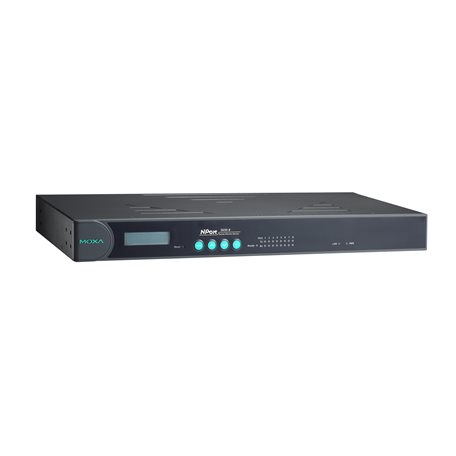

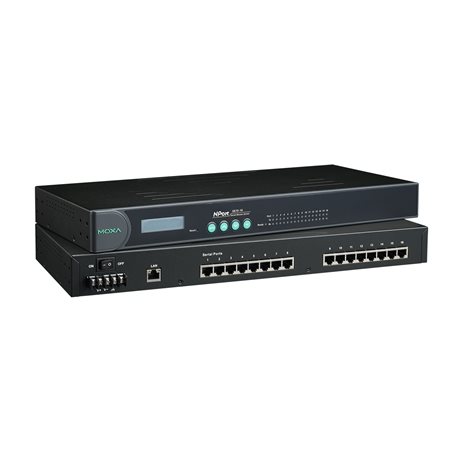

moxa-nport-5610-16-48v-image.jpg | MoxaNPort 5610-16-48Vmoxa-nport-5630-16-image.jpg | MoxaNPort 5630-16moxa-nport-5650-8-image.jpg | MoxaNPort 5650-8moxa-nport-5650-8-m-sc-image.jpg | MoxaNPort 5650-8-M-SC
Ethernet Interface Connector8-pin RJ458-pin RJ458-pin RJ45Multi-mode fiber SC
Serial InterfaceRS-232RS-422/485RS-232/422/485RS-232/422/485
No. of Serial Ports161688
Operating Temp.0 to 55°C0 to 55°C0 to 55°C0 to 55°C
Input Voltage±48 VDC100-240 VAC100-240 VAC100-240 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

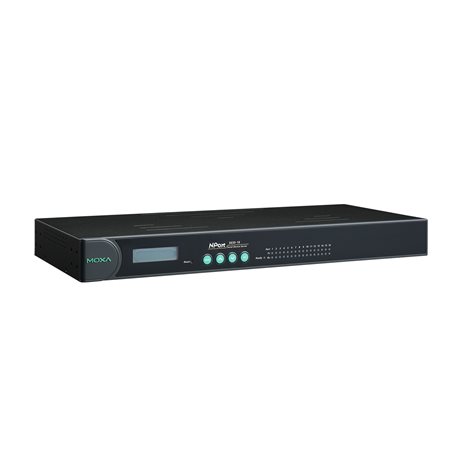

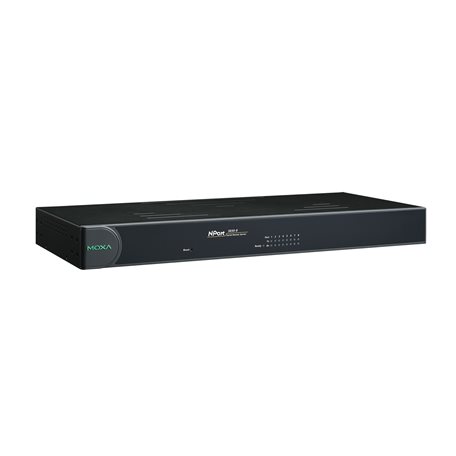

moxa-nport-5650-8-s-sc-image.jpg | MoxaNPort 5650-8-S-SCmoxa-nport-5650-8-t-image.jpg | MoxaNPort 5650-8-Tmoxa-nport-5650-8-hv-t-image.jpg | MoxaNPort 5650-8-HV-Tmoxa-nport-5650-16-image.jpg | MoxaNPort 5650-16
Ethernet Interface ConnectorSingle-mode fiber SC8-pin RJ458-pin RJ458-pin RJ45
Serial InterfaceRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
No. of Serial Ports88816
Operating Temp.0 to 55°C-40 to 75°C-40 to 85°C0 to 55°C
Input Voltage100-240 VAC100-240 VAC88-300 VDC100-240 VAC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

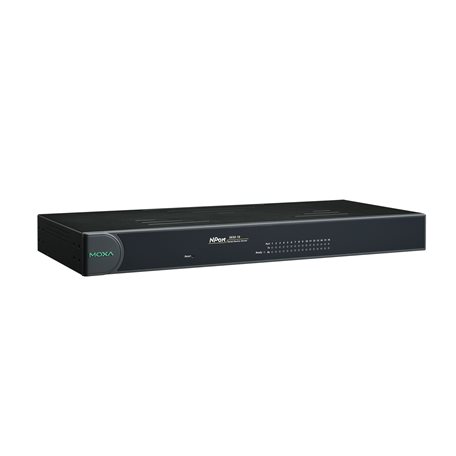

moxa-nport-5650-16-m-sc-image.jpg | MoxaNPort 5650-16-M-SCmoxa-nport-5650-16-s-sc-image.jpg | MoxaNPort 5650-16-S-SCmoxa-nport-5650-16-t-image.jpg | MoxaNPort 5650-16-Tmoxa-nport-5650-16-hv-t-image.jpg | MoxaNPort 5650-16-HV-T
Ethernet Interface ConnectorMulti-mode fiber SCSingle-mode fiber SC8-pin RJ458-pin RJ45
Serial InterfaceRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
No. of Serial Ports16161616
Operating Temp.0 to 55°C0 to 55°C-40 to 75°C-40 to 85°C
Input Voltage100-240 VAC100-240 VAC100-240 VAC88-300 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Added To Bag

NPort 5600 Series

NPort 5610-8

moxa-nport-5610-8-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5610-8-48V

moxa-nport-5610-8-48v-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5630-8

moxa-nport-5630-8-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5610-16

moxa-nport-5610-16-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5610-16-48V

moxa-nport-5610-16-48v-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5630-16

moxa-nport-5630-16-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-8

moxa-nport-5650-8-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-8-M-SC

moxa-nport-5650-8-m-sc-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-8-S-SC

moxa-nport-5650-8-s-sc-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-8-T

moxa-nport-5650-8-t-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-8-HV-T

moxa-nport-5650-8-hv-t-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-16

moxa-nport-5650-16-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-16-M-SC

moxa-nport-5650-16-m-sc-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-16-S-SC

moxa-nport-5650-16-s-sc-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-16-T

moxa-nport-5650-16-t-image.jpg | Moxa

Buy online from our distributors

NPort 5600 Series

NPort 5650-16-HV-T

moxa-nport-5650-16-hv-t-image.jpg | Moxa

Buy online from our distributors
