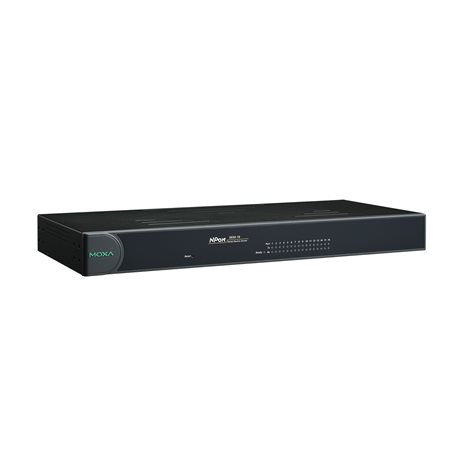

NPort 5650-16-T
NPort 5600 Series

16-port RS-232/422/485 rackmount device server with RJ45 connectors and 100 to 240 VAC power input, -40 to 75°C operating temperature

Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • Optical Fiber

    • 100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features

  • Configuration Options

    • Telnet Console
      Web Console (HTTP/HTTPS)
      Windows Utility

  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

  • Filter

    • IGMP v1/v2c

  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
      Windows Embedded CE 6.0 and 5.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, 11, and 10.1x

  • Arm®-based Platform Support

    • Windows 11
      Linux Kernel 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11

  • Virtual Machine

    • VMWare ESXi (Windows 11/10)
      VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
      Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)

  • Android API

    • Android 3.1.x and later

  • Time Management

    • SNTP
Security Functions

  • Authentication

    • Local database

  • Encryption

    • HTTPS
      AES-128
      RSA-1024
      SHA-1
      SHA-256

  • Security Protocols

    • HTTPS (TLS 1.2)
      SNMPv3
Serial Interface

  • Connector

    • 8-pin RJ45

  • No. of Ports

    • 16

  • Serial Standards

    • RS-232
      RS-422
      RS-485

  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • None
      RTS/CTS (RS-232 only)
      DTR/DSR (RS-232 only)
      XON/XOFF

  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    • 120 ohms

  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)

  • Operation Modes

    • Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, RFC2217, Disabled
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 158 mA @ 100 VAC

  • Input Voltage

    • 100 to 240 VAC, 47 to 63 Hz
Reliability

  • Automatic Reboot Trigger

    • Built-in WDT
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (with ears)

    • 480 x 45.5 x 198 mm (18.90 x 1.79 x 7.80 in)

  • Dimensions (without ears)

    • 440 x 45.5 x 198 mm (17.32 x 1.79 x 7.80 in)

  • Weight

    • 2,510 g (5.53 lb)

  • Installation

    • 19-inch rack mounting
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11

  • Safety

    • UL 62368-1

  • Medical

    • EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
      EN 60601-1-2: 2007 compliant
MTBF

  • Time

    • 533,046 hrs

  • Standards

    • MIL-HDBK-217F
