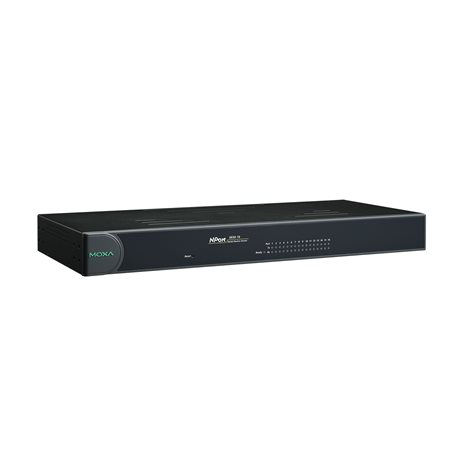

NPort 5650-16-HV-T
NPort 5600 Series

16-port RS-232/422/485 rackmount device server with RJ45 connectors and 88 to 300 VDC power input, -40 to 85°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Telnet Console
      Web Console (HTTP/HTTPS)
      Windows Utility
  • Management

    • ARP
      BOOTP
      DHCP Client
      DNS
      HTTP
      HTTPS
      ICMP
      IPv4
      LLDP
      RFC2217
      Rtelnet
      PPP
      SLIP
      SMTP
      SNMPv1/v2c
      TCP/IP
      Telnet
      UDP
  • Filter

    • IGMP v1/v2c
  • Windows Real COM Drivers

    • Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
      Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
      Windows Embedded CE 6.0/5.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Fixed TTY Drivers

    • macOS Versions: 11.x, 10.12 to 10.15
  • Arm®-based Platform Support

    • Linux Kernel 5.x/4.x
  • Virtual Machine

    • VMWare ESXi (Windows 11/10)
      VMware Fusion (Windows on macOS 10.12 to 11.x)
      Parallels Desktop (Windows on macOS 10.12 to 11.x)
  • Android API

    • Android 3.1.x and later
  • Time Management

    • SNTP
Security Functions
  • Authentication

    • Local database
  • Encryption

    • HTTPS
      AES-128
      RSA-1024
      SHA-1
      SHA-256
  • Security Protocols

    • HTTPS (TLS 1.2)
      SNMPv3
Serial Interface
  • Connector

    • 8-pin RJ45
  • No. of Ports

    • 16
  • Serial Standards

    • RS-232
      RS-422
      RS-485
  • Operation Modes

    • Disabled
      Ethernet Modem
      Pair Connection
      Real COM
      Reverse Telnet
      RFC2217
      TCP Client
      TCP Server
      UDP
  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None
      RTS/CTS (RS-232 only)
      DTR/DSR (RS-232 only)
      XON/XOFF
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 152 mA @ 88 VDC
  • Input Voltage

    • 88 to 300 VDC
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • 19-inch rack mounting
  • Dimensions (with ears)

    • 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
  • Dimensions (without ears)

    • 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
  • Weight

    • 3,820 g (8.42 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
  • Safety

    • UL 62368-1
  • Medical

    • EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
      EN 60601-1-2: 2007 compliant
MTBF
  • Time

    • 506,093 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
