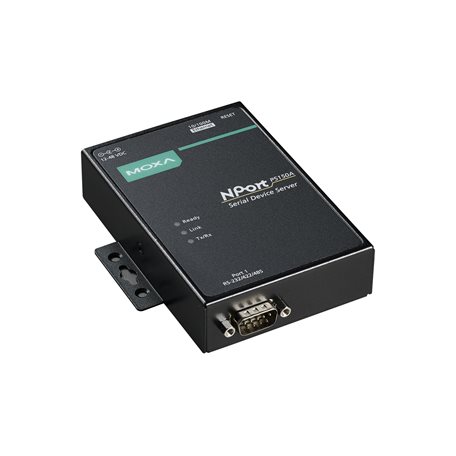

NPort P5150A Series

1-port RS-232/422/485 PoE serial device servers

moxa-nport-p5150a-series-image-1-(1).jpg | Moxa
moxa-nport-p5150a-series-image-2-(1).jpg | Moxa
moxa-nport-p5150a-series-image-3-(1).jpg | Moxa

Features and Benefits

  • IEEE 802.3af-compliant PoE power device equipment
  • Speedy 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power
  • COM port grouping and UDP multicast applications
  • Screw-type power connectors for secure installation
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Standard TCP/IP interface and versatile TCP and UDP operation modes

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

NPort® P5150A device servers are designed to make serial devices network-ready in an instant. It is a power device and is IEEE 802.3af compliant, so it can be powered by a PoE PSE device without an additional power supply. Use the NPort® P5150A device servers to give your PC software direct access to serial devices from anywhere on the network. The NPort® P5150A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

Surge Protection for Serial, Ethernet, and Power

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® P5150A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

3-Step Web-based Configuration

The NPort® P5150A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® P5150A’s web console guides users through 3 simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.

Easy to Troubleshoot

NPort® P5150A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Appearance

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Standards

    PoE (IEEE 802.3af)

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Windows Utility
    Device Search Utility (DSU)
    Telnet Console
    Serial Console
    MCC Tool

  • Management

    ARP
    BOOTP
    DHCP Client
    DNS
    HTTP
    HTTPS
    ICMP
    IPv4
    LLDP
    SMTP
    SNMPv1/v2c
    TCP/IP
    Telnet
    UDP

  • Filter

    IGMP v1/v2

  • Windows Real COM Drivers

    Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
    Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
    Windows Embedded CE 5.0 and 6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    macOS versions: 14, 13, 12, 11, and 10.1x
    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    Windows 11
    Linux Kernel 6.x, 5.x, and 4.x
    macOS 14, 13, 12, and 11

  • Virtual Machine

    VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
    Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Connector

    DB9 male

  • No. of Ports

    1

  • Serial Standards

    RS-232
    RS-422
    RS-485

  • Operation Modes

    Disabled
    Ethernet Modem
    Pair Connection
    Real COM
    Reverse Telnet
    RFC2217
    TCP Client
    TCP Server
    UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS
    DTR/DSR
    XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    DC Jack I/P: 125 mA @ 12 VDC
    PoE I/P: 180 mA @ 48 VDC

  • Input Voltage

    12 to 48 VDC (supplied by power adapter)
    48 VDC (supplied by PoE)

  • No. of Power Inputs

    1

  • Source of Input Power

    Power input jack
    PoE

  • Automatic Reboot Trigger

    Built-in WDT

  • Housing

    Metal

  • Dimensions (with ears)

    100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

  • Dimensions (without ears)

    77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

  • Weight

    300 g (0.66 lb)

  • Operating Temperature

    NPort P5150A: 0 to 60°C (32 to 140°F)
    NPort P5150A-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    EN 62368-1
    UL 60950-1

  • Time

    2,231,530 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Windows version)
374.0 MB
Software Package
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Jan 31, 2024 Jan 31, 2024 Release notes
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
7.4 MB
Driver
SHA-512
v4.2
  • Windows 11
  • Windows Server 2022
Dec 11, 2023 Dec 11, 2023 Release notes
Serial Device Server Driver for macOS (macOS 10.1x to 14)
689.8 KB
Driver
SHA-512
v1.2
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
Nov 10, 2023 Nov 10, 2023 Release notes
Real TTY Linux driver v5.3 (kernel 5.x)
113.3 KB
Driver
SHA-512
v5.3
  • Linux Kernel 5.x
Oct 18, 2023 Oct 18, 2023 Release notes
MXview One plugin (Windows)
12.8 MB
Software Package
SHA-512
v1.2
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Aug 02, 2023 Aug 02, 2023 Release notes
Moxa CLI Configuration Tool for Linux
11.6 MB
Utility
SHA-512
v1.3
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
Jun 29, 2023 Jun 29, 2023 Release notes
Moxa CLI Configuration Tool for Windows
2.0 MB
Utility
SHA-512
v1.3
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Jun 29, 2023 Jun 29, 2023 Release notes
Device Search Utility
2.2 MB
Utility
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 28, 2023 Jun 28, 2023 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 19, 2023 Jun 19, 2023 Release notes
Real TTY Linux kernel 6.x
113.7 KB
Driver
SHA-512
v6.0
  • Linux Kernel 6.x
May 04, 2023 May 04, 2023 Release notes
MXview plugin
32.8 MB
Software Package
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
May 02, 2023 May 02, 2023 Release notes
Real TTY Linux drivers v4.2 (kernel 4.x)
114.9 KB
Driver
SHA-512
v4.2
  • Linux Kernel 4.x
Jan 17, 2023 Jan 17, 2023 Release notes
NPort Administrator Suite (Windows 10 and Server 2019 and later, WHQL certified)
7.7 MB
Driver
SHA-512
v4.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Jan 17, 2023 Jan 17, 2023 Release notes
NPort Administrator Suite v3.2 (Windows 7 to 8.1 and Windows Server 2008 R2 to 2016, WHQL certified)
4.1 MB
Driver
SHA-512
v3.2
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
Jan 17, 2023 Jan 17, 2023 Release notes
Device Server Android API
18.0 MB
Library
SHA-512
v1.1
  • Android
Dec 22, 2022 Dec 22, 2022 Release notes
Windows Driver Manager v3.5 (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.8 MB
Driver
SHA-512
v3.5
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Dec 01, 2022 Dec 01, 2022 Release notes
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
611.6 KB
Driver
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
Sep 26, 2022 Sep 26, 2022 Release notes
MXconfig plugin
2.2 MB
Software Package
SHA-512
v1.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
Mar 31, 2021 Mar 31, 2021 Release notes
Firmware for NPort P5150A Series
806.6 KB
Firmware
SHA-512
v1.6
Oct 15, 2020 Oct 15, 2020 Release notes
Real TTY drivers for Linux 3.x.x
95.0 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Oct 24, 2019 Oct 24, 2019 Release notes
Real TTY drivers for Linux 2.x.x
92.2 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
Oct 24, 2019 Oct 24, 2019 Release notes
NPort Administration Suite for Windows Vista, Server 2008 or prior
4.1 MB
Driver
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Feb 11, 2019 Feb 11, 2019 Release notes
Windows Driver Manager (Windows Vista, Server 2008, and prior)
2.6 MB
Driver
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
Aug 23, 2018 Aug 23, 2018 Release notes
Driver for NPort P5150A Series (WinCE 5)
230.5 KB
Driver
SHA-512
v1.6
  • Windows CE 5.0
  • Windows CE 6.0
Nov 14, 2012 Nov 14, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for NPort P5150A Series (WinXP Embedded)
1.2 MB
Driver
SHA-512
v1.14
  • Windows XP Embedded
Apr 04, 2012 Apr 04, 2012 Release notes
Driver for NPort P5150A Series (UNIX)
73.0 KB
Driver
SHA-512
v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • FreeBSD 8.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
Mar 19, 2012 Mar 19, 2012 Release notes

Support Documents

Name Type Version Release Date
Datasheet for NPort P5150A Series
1.6 MB
Datasheet v1.6 Mar 29, 2024 Mar 29, 2024
Moxa CLI Configuration Tool User Manual
1.0 MB
Manual v2.2 Jan 26, 2024 Jan 26, 2024
Manual for NPort 5000 Series
20.0 MB
Manual v7.0 Jun 13, 2023 Jun 13, 2023
Tech Note: TCP Client Mode for NPort
394.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real COM mode for NPort
479.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Reverse Telnet Mode for NPort
364.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Pair Connection Mode
544.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: UDP Mode for NPort
397.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: TCP Server Mode for NPort
395.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Accessing Multiple NPorts Behind NAT
497.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real TTY Driver for NPort
379.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Fixed TTY Driver for NPort
389.7 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Ethernet Modem Mode
429.4 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: The Security Hardening Guide for NPort 5000 Series
1.7 MB
Tech Note v2.1 May 30, 2023 May 30, 2023
EULA for NPort Administrator Suite
100.3 KB
Tech Note v1.0 May 18, 2023 May 18, 2023
Manual for NPort 5000 Series
18.7 MB
Manual v6.8 Sep 05, 2022 Sep 05, 2022
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
Tech Note v1.0 Aug 05, 2021 Aug 05, 2021
QIG for NPort P5150A Series
541.3 KB
QIG v2.3 Apr 28, 2021 Apr 28, 2021
Tech Note: Real COM mode for NPort
423.5 KB
Tech Note v1.1 Apr 30, 2020 Apr 30, 2020
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
Tech Note v1.0 Nov 17, 2014 Nov 17, 2014
Tech Note: TCP Server Mode for NPort
311.3 KB
Tech Note v1.0 Jun 29, 2013 Jun 29, 2013
2D CAD for NPort P5150A TOP
114.9 KB
2D CAD Apr 05, 2012 Apr 05, 2012
Tech Note: Using DNP3 with the NPort Series
1.0 MB
Tech Note v1.0 Mar 29, 2012 Mar 29, 2012
Tech Note: UDP Mode for NPort
173.2 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Real COM Mode for NPort
253.0 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Pair Connection Mode
211.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: TCP Client Mode for NPort
224.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Real TTY Driver for NPort
204.2 KB
Tech Note v1.0 May 21, 2009 May 21, 2009
Tech Note: Fixed TTY Driver for NPort
207.6 KB
Tech Note v1.0 May 21, 2009 May 21, 2009

Available Models (2)

Show Images
moxa-nport-p5150a-image.jpg | MoxaNPort P5150Amoxa-nport-p5150a-t-image.jpg | MoxaNPort P5150A-T
Operating Temp.0 to 60°C-40 to 75°C
Baudrate50 bps to 921.6 kbps50 bps to 921.6 kbps
Serial StandardsRS-232/422/485RS-232/422/485
No. of Serial Ports11
Input Voltage12-48 VDC by power adapter or 48 VDC by PoE12-48 VDC by power adapter or 48 VDC by PoE
Add to QuoteView BagAdd to QuoteView Bag

Secure Your Edge Connectivity in Every Aspect

Learn More

product image

Buy online from distributors

Added To Bag
You have some items waiting in your bag; click here to finish your quote!
Feedback
