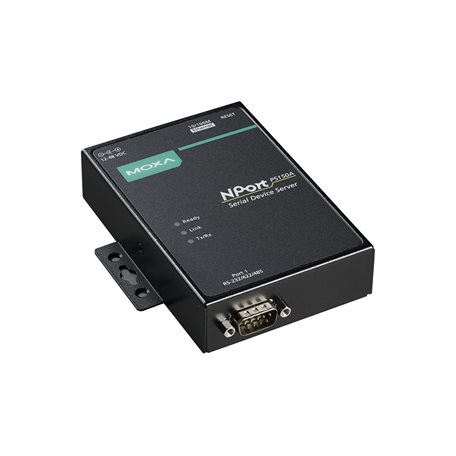

NPort P5150A
NPort P5150A Series

1-port RS-232/422/485 PoE device server, 0 to 60°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Standards

    • PoE (IEEE 802.3af)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Windows Utility
      Device Search Utility (DSU)
      Telnet Console
      Serial Console
      MCC Tool
  • Management

    • ARP
      BOOTP
      DHCP Client
      DNS
      HTTP
      HTTPS
      ICMP
      IPv4
      LLDP
      SMTP
      SNMPv1/v2c
      TCP/IP
      Telnet
      UDP
  • Filter

    • IGMP v1/v2
  • Windows Real COM Drivers

    • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
      Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
      Windows Embedded CE 5.0 and 6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
  • Fixed TTY Drivers

    • macOS versions: 14, 13, 12, 11, and 10.1x
      SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Arm®-based Platform Support

    • Windows 11
      Linux Kernel 6.x, 5.x, and 4.x
      macOS 14, 13, 12, and 11
  • Virtual Machine

    • VMWare ESXi (Windows 11/10)
      VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
      Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)
  • Android API

    • Android 3.1.x and later
  • MIB

    • RFC1213, RFC1317
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 1
  • Serial Standards

    • RS-232
      RS-422
      RS-485
  • Operation Modes

    • Disabled
      Ethernet Modem
      Pair Connection
      Real COM
      Reverse Telnet
      RFC2217
      TCP Client
      TCP Server
      UDP
  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS
      DTR/DSR
      XON/XOFF
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • DC Jack I/P: 125 mA @ 12 VDC
      PoE I/P: 180 mA @ 48 VDC
  • Input Voltage

    • 12 to 48 VDC (supplied by power adapter)
      48 VDC (supplied by PoE)
  • No. of Power Inputs

    • 1
  • Source of Input Power

    • Power input jack
      PoE
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
  • Dimensions (without ears)

    • 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
  • Weight

    • 300 g (0.66 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Safety

    • EN 62368-1
      UL 60950-1
MTBF
  • Time

    • 2,231,530 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
