MiiNePort E2 Series

10/100 Mbps embedded pin header module serial device servers

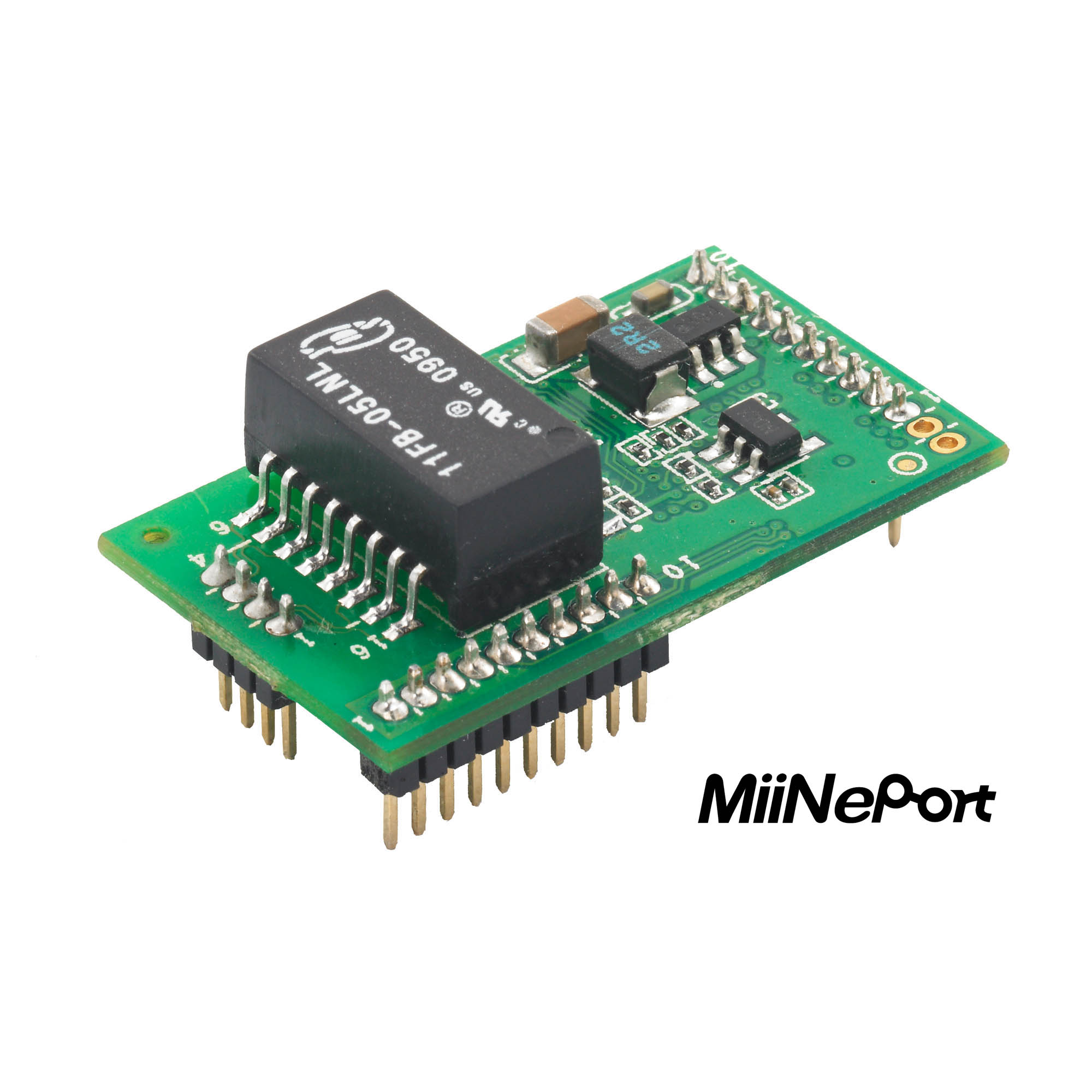

moxa-miineport-e2-series-image-(1).jpg | Moxa

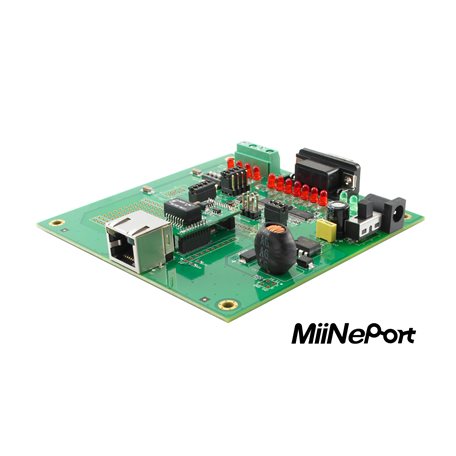

moxa-miineport-e2-series-image-1-(1).jpg | Moxa

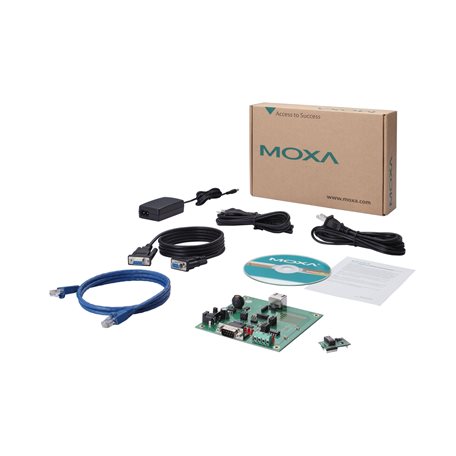

moxa-miineport-e2-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Smallest embedded device server available—only 29 x 17 x 12.6 mm
  • Supports EZPower for 3.3 to 5 VDC system power input
  • Green design with extremely low power consumption
  • Uses Moxa’s high-quality and reliable second-generation MiiNe SoC
  • MiiNePort NetEZ technology makes integration incredibly easy
  • Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s MiiNePort E2 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, delivers a serial baudrate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes, and requires a minimal amount of power. With Moxa's innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.

Moxa’s Second-generation SoC

The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E2, which uses the MiiNe for its SoC, is one of the world’s tiniest embedded device servers and has the lowest power consumption among similar products. The MiiNe’s features include:

  • Cost-effective serial-to-Ethernet conversions

  • Arm core

  • Advanced UART technology

  • Internal 2 MB Flash and 4 MB SDRAM memory

  • CPU

    32-bit Arm Core

  • Flash

    2 MB

  • SDRAM

    4 MB

  • Configurable DIO Channels (by software)

    4

  • 10/100BaseT(X) Ports, Auto MDI/MDI-X

    4-pin pin header

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP), Windows Utility

  • Management

    ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • No. of Ports

    1

  • Serial Standards

    TTL

  • Operation Modes

    MiiNePort E2 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Ethernet Modem mode, MCSC mode
    MiiNePort E2-SDK: Real COM mode, Ethernet Modem mode

  • Baudrate

    MiiNePort E2 Series: 50 bps to 230.4 kbps
    MiiNePort E2-H/-SDK Series: 50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, DTR/DSR, XON/XOFF

  • TTL

    • • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
  • NetEZ Functions

    EZPower, EZPage, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication)

  • Serial to Ethernet Sample Source Code

    MiiNePort E2-SDK (Integrated in MiiNePort-IDE):
    1. TCP Server Echo
    2. TCP Server to Serial (Single connection)
    3. TCP Server to Serial (Multi-connection)
    4. TCP Client Echo
    5. TCP Client to Serial (Startup)
    6. TCP Client to Serial (Any character)
    7. TCP Client to Serial (Designed destination TCP/IP port from serial)
    8. UDP Echo
    9. UDP to Serial

  • Input Current

    157 mA @ 3.3 VDC

  • Input Voltage

    3.3 to 5 VDC

  • Dimensions

    MiiNePort E2/E2-H/E2-SDK Series: 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in)

  • Weight

    MiiNePort E2/E2-H Series: 5 g (0.01 lb)
    MiiNePort E2-ST/E2-H-ST/E2-SDK: 77 g (0.17 lb)

  • Form Factor Type

    Drop-in modules

  • Operating Temperature

    Standard Models: 0 to 55˚C (32 to 131˚F)
    Wide Temp. Models: -40 to 85˚C (-40 to 185˚F)

  • Storage Temperature (package included)

    -40 to 60°C (-40 to 140°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-3

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    5,696,350 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Device Search Utility
428.1 MB
Utility
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Oct 31, 2024 Oct 31, 2024 Release notes
Windows Driver Manager (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
8.9 MB
Driver
SHA-512
v3.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Sep 22, 2024 Sep 22, 2024 Release notes
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
9.4 MB
Driver
SHA-512
v4.3
  • Windows 11
  • Windows Server 2022
Sep 22, 2024 Sep 22, 2024 Release notes
Real TTY Linux Kernel 6.x Driver
590.0 KB
Driver
SHA-512
v6.1
  • Linux Kernel 6.x
Sep 05, 2024 Sep 05, 2024 Release notes
Serial Device Server Driver for macOS (macOS 11.x to 14)
6.3 MB
Driver
SHA-512
v1.3
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
Sep 02, 2024 Sep 02, 2024 Release notes
Real TTY Linux Kernel 4.x Driver
600.0 KB
Driver
SHA-512
v4.3
  • Linux Kernel 4.x
Aug 07, 2024 Aug 07, 2024 Release notes
Real TTY Linux Kernel 5.x Driver
590.0 KB
Driver
SHA-512
v5.4
  • Linux Kernel 5.x
Aug 07, 2024 Aug 07, 2024 Release notes
Real TTY drivers for Linux 3.x.x
94.6 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Jul 04, 2024 Jul 04, 2024 Release notes
Serial Device Server Driver for macOS (macOS 10.1x to 14)
689.8 KB
Driver
SHA-512
v1.2
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
Nov 10, 2023 Nov 10, 2023 Release notes
Device Search Utility
2.2 MB
Utility
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 28, 2023 Jun 28, 2023 Release notes
Firmware for MiiNePort E2 Series
627.3 KB
Firmware
SHA-512
v1.5
Feb 20, 2023 Feb 20, 2023 Release notes
Device Server Android API
18.0 MB
Library
SHA-512
v1.1
  • Android
Dec 22, 2022 Dec 22, 2022 Release notes
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
611.6 KB
Driver
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
Sep 26, 2022 Sep 26, 2022 Release notes
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
492.2 KB
Driver
SHA-512
v1.0
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
Jul 08, 2020 Jul 08, 2020 Release notes
Real TTY drivers for Linux 2.x.x
92.2 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
Oct 24, 2019 Oct 24, 2019 Release notes
Windows Driver Manager (Windows Vista, Server 2008, and prior)
2.6 MB
Driver
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Aug 01, 2019 Aug 01, 2019 Release notes
Utility for MiiNePort E2 Series (MiiNePort-IDE)
138.8 MB
Utility
SHA-512
v1.0
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
Apr 12, 2019 Apr 12, 2019 Release notes
Driver for MiiNePort E2 Series (WinCE 5)
230.5 KB
Driver
SHA-512
v1.6
  • Windows CE 5.0
  • Windows CE 6.0
Nov 14, 2012 Nov 14, 2012 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for MiiNePort E2 Series (WinXP Embedded)
1.2 MB
Driver
SHA-512
v1.14
  • Windows XP Embedded
Apr 04, 2012 Apr 04, 2012 Release notes
Driver for MiiNePort E2 Series (TTY driver for Unix)
73.0 KB
Driver
SHA-512
v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
Mar 20, 2012 Mar 20, 2012 Release notes
Software Package for MiiNePort E2 Series (EZPage)
489.7 KB
Software Package
SHA-512
v1.1
Mar 09, 2012 Mar 09, 2012 Release notes
Library for MiiNePort E2 Series (NECI)
476.7 KB
Library
SHA-512
v1.1
Jun 14, 2011 Jun 14, 2011 Release notes
Software Package for MiiNePort E2 Series (NECI)
485.0 KB
Software Package
SHA-512
v2.3.0
Sep 01, 2008 Sep 01, 2008 Release notes

Support Documents

Name Type Version Release Date
Device Search Utility v3.x User Manual
95.1 MB
Manual v1.0 Oct 31, 2024 Oct 31, 2024
FOSS Statement for NPort macOS driver
108.4 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
FOSS Statement for Device Search Utility
161.8 KB
Declaration v1.0 Jun 24, 2024 Jun 24, 2024
Declaration of Conformity for MiiNePort E2 Series
299.7 KB
Declaration v1.0 Apr 19, 2024 Apr 19, 2024
Tech Note: Reverse Telnet Mode for NPort
364.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Accessing Multiple NPorts Behind NAT
497.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Pair Connection Mode
544.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: TCP Client Mode for NPort
394.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: UDP Mode for NPort
397.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real COM mode for NPort
479.5 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Ethernet Modem Mode
429.4 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: TCP Server Mode for NPort
395.0 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Fixed TTY Driver for NPort
389.7 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
Tech Note: Real TTY Driver for NPort
379.2 KB
Tech Note v2.0 Jun 08, 2023 Jun 08, 2023
FOSS Statement for MiiNePort E1, MiiNePort E2, MiiNePort E3 Series
185.0 KB
Declaration v1.0 Feb 24, 2023 Feb 24, 2023
Manual for MiiNePort E2/E3 Series
10.9 MB
Manual v10.1 Aug 02, 2022 Aug 02, 2022
FOSS Statement for NPort Windows Driver Manager
255.8 KB
Declaration v1.0 Aug 01, 2022 Aug 01, 2022
Datasheet for MiiNePort E2 Series
877.3 KB
Datasheet v1.5 Sep 24, 2021 Sep 24, 2021
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
Tech Note v1.0 Aug 05, 2021 Aug 05, 2021
QIG for MiiNePort E Series SDK
880.0 KB
QIG v1.1 May 18, 2021 May 18, 2021
QIG for MiiNePort E Series
2.4 MB
QIG v1.2 May 18, 2021 May 18, 2021
Tech Note: Real COM mode for NPort
423.5 KB
Tech Note v1.1 Apr 30, 2020 Apr 30, 2020
Manual for MiiNePort E2 Series (MiiNePort E2-SDK)
4.0 MB
Manual v4.0 Apr 12, 2019 Apr 12, 2019
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
Tech Note v1.0 Nov 17, 2014 Nov 17, 2014
Manual for MiiNePort E2 Series (Schematic Design Guide)
944.9 KB
Manual v5.0 Jul 08, 2013 Jul 08, 2013
Tech Note: TCP Server Mode for NPort
311.3 KB
Tech Note v1.0 Jun 29, 2013 Jun 29, 2013
Tech Note: MiiNePort Dual-Channel Multitasking With MCSC
933.1 KB
Tech Note v1.0 Jun 29, 2012 Jun 29, 2012
Manual for MiiNePort E2 Series (E2-ST board BOM file)
19.4 KB
Manual v1.0 Jun 13, 2012 Jun 13, 2012
Tech Note: Auto-configuration of the MiiNePort Series
515.7 KB
Tech Note v1.0 May 30, 2012 May 30, 2012
Tech Note: Customized Webpage for the MiiNePort E2 Series
665.1 KB
Tech Note v1.0 Apr 29, 2012 Apr 29, 2012
2D CAD for MiiNePort E2
715.7 KB
2D CAD Mar 10, 2012 Mar 10, 2012
Tech Note: UDP Mode for NPort
173.2 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: TCP Client Mode for NPort
224.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Pair Connection Mode
211.4 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Real COM Mode for NPort
253.0 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
Tech Note v1.0 Nov 03, 2009 Nov 03, 2009
Tech Note: Fixed TTY Driver for NPort
207.6 KB
Tech Note v1.0 May 21, 2009 May 21, 2009
Tech Note: Real TTY Driver for NPort
204.2 KB
Tech Note v1.0 May 21, 2009 May 21, 2009

Available Models (7)

Show Images

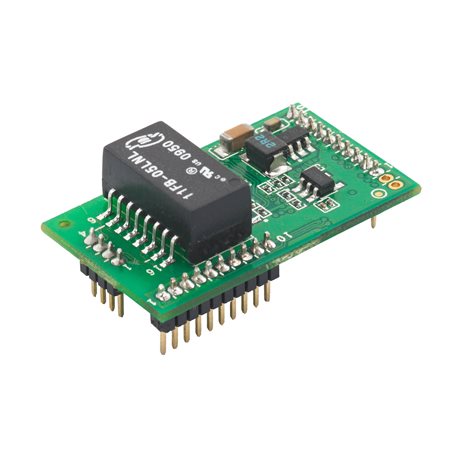

moxa-miineport-e2-image.jpg | MoxaMiiNePort E2moxa-miineport-e2-h-image.jpg | MoxaMiiNePort E2-Hmoxa-miineport-e2-t-image.jpg | MoxaMiiNePort E2-Tmoxa-miineport-e2-h-t-image.jpg | MoxaMiiNePort E2-H-T
No. of Serial
Ports
1111
Supported Baudrates50 bps to 230.4 kbps50 bps to 921.6 kbps50 bps to 230.4 kbps50 bps to 921.6 kbps
Operating Temp.0 to 55°C0 to 55°C-40 to 85°C-40 to 85°C
With Evaluation Board
With Software Development Kit
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

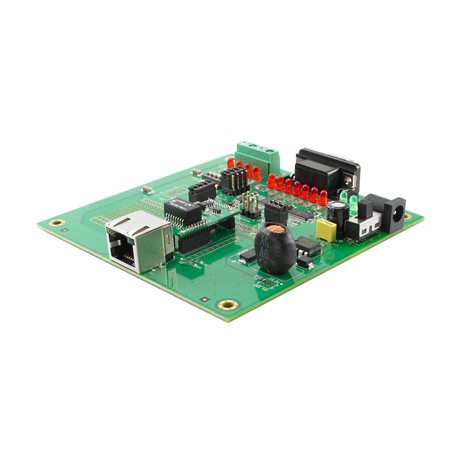

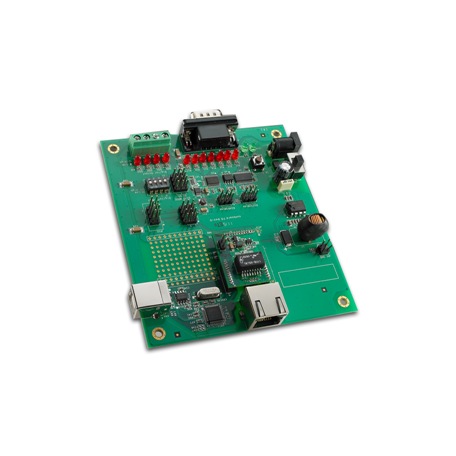

moxa-miineport-e2-st-image.jpg | MoxaMiiNePort E2-STmoxa-miineport-e2-h-st-image.jpg | MoxaMiiNePort E2-H-STmoxa-miineport-e2-sdk-image.jpg | MoxaMiiNePort E2-SDK
No. of Serial
Ports
111
Supported Baudrates50 bps to 230.4 kbps50 bps to 921.6 kbps50 bps to 921.6 kbps
Operating Temp.0 to 55°C0 to 55°C0 to 55°C
With Evaluation Board
With Software Development Kit
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag

product image

Buy online from distributors

Added To Bag
You have some items waiting in your bag; click here to finish your quote!
Feedback
